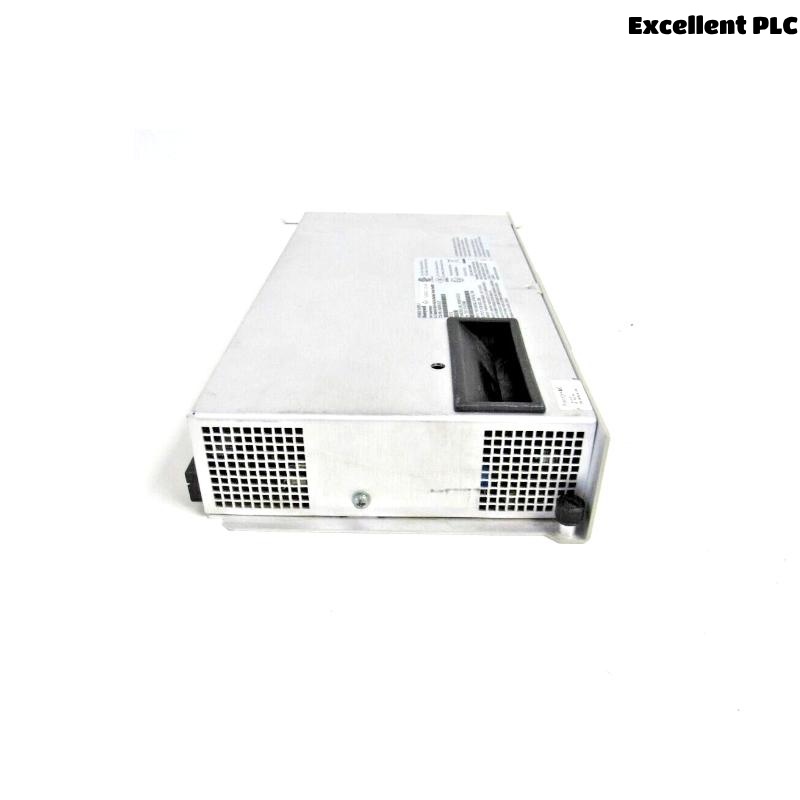

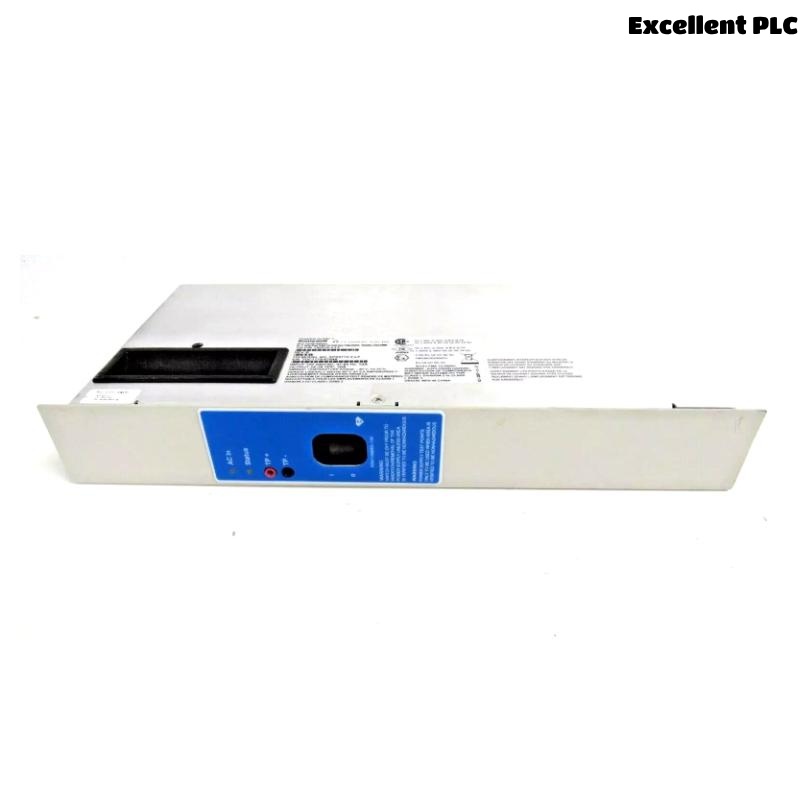

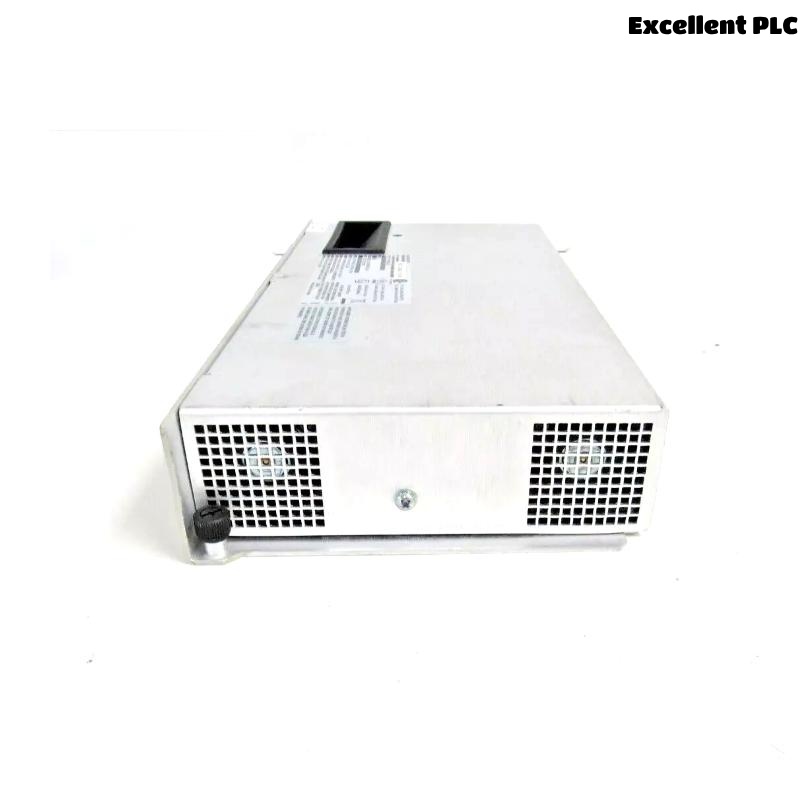

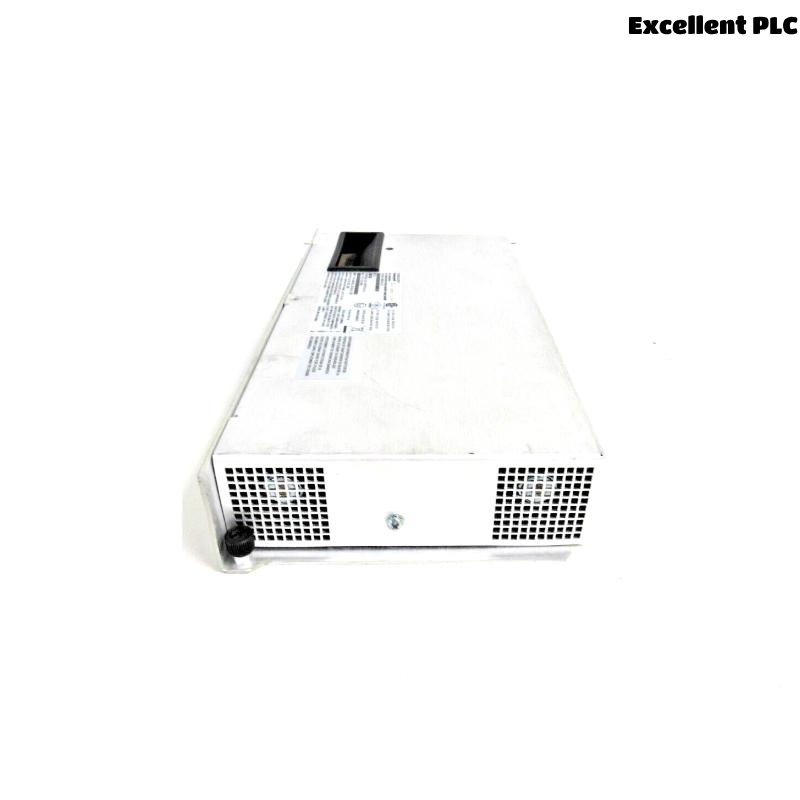

Honeywell SPS5710-2-LF 51198685-100 Power Supply Module
The Honeywell SPS5710-2-LF 51198685-100 is a reliable and efficient power supply module designed for industrial automation systems. It provides stable power output and high durability, making it ideal for demanding environments where continuous operation is critical.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SPS5710-2-LF |
| Part Number | 51198685-100 |
| Input Voltage | 85–264 VAC |
| Output Voltage | 24 VDC |
| Output Power | 10 W |
| Efficiency | ≥ 85% |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 119.88 × 69.85 × 29.97 mm |
| Weight | 0.204 kg |
Applications
This module is widely used in process control, industrial automation, and safety systems where stable DC power is required. Typical applications include Distributed Control Systems (DCS), Programmable Logic Controllers (PLC), and monitoring equipment.
Advantages
-
Compact size for easy integration into panels
-
High reliability and long operational life
-
Wide input voltage range for flexible deployment
-
Excellent efficiency reducing power loss
-
Designed for harsh industrial conditions
FAQ
Q1: What is the input voltage range of the SPS5710-2-LF?
A1: The input voltage range is 85–264 VAC.
Q2: What is the output voltage of this power supply?
A2: It provides a regulated 24 VDC output.
Q3: Can it operate in high-temperature environments?
A3: Yes, it operates between 0°C and +55°C.
Q4: Is the SPS5710-2-LF suitable for continuous operation?
A4: Yes, it is designed for continuous and reliable operation in industrial environments.
Q5: Does it support redundant power configurations?
A5: It can be used in redundant setups if paired accordingly.
Q6: What is the typical efficiency of this module?
A6: The efficiency is typically ≥ 85%.
Q7: What is the physical size of the module?
A7: The dimensions are 119.88 × 69.85 × 29.97 mm.
Q8: How much does the module weigh?
A8: The weight is approximately 0.204 kg.
Q9: Is it compatible with Honeywell DCS systems?
A9: Yes, it is designed to work seamlessly with Honeywell DCS and PLC systems.
Q10: Does it have overvoltage protection?
A10: Yes, it includes standard overvoltage and overload protection features.
Related Models (Same Series or Similar)
| Model | Part Number | Output Voltage | Power | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| SPS5710-2-LF | 51198685-100 | 24 VDC | 10 W | 119.88×69.85×29.97 | 0.204 |
| SPS5710-4-LF | 51198685-200 | 24 VDC | 20 W | 125×75×35 | 0.250 |
| SPS5710-6-LF | 51198685-300 | 24 VDC | 30 W | 130×80×40 | 0.300 |
| SPS5711-2-LF | 51198686-100 | 12 VDC | 10 W | 119.88×69.85×29.97 | 0.205 |
| SPS5711-4-LF | 51198686-200 | 12 VDC | 20 W | 125×75×35 | 0.255 |
| SPS5720-2-LF | 51198687-100 | 48 VDC | 10 W | 119.88×69.85×29.97 | 0.210 |
