Product Introduction

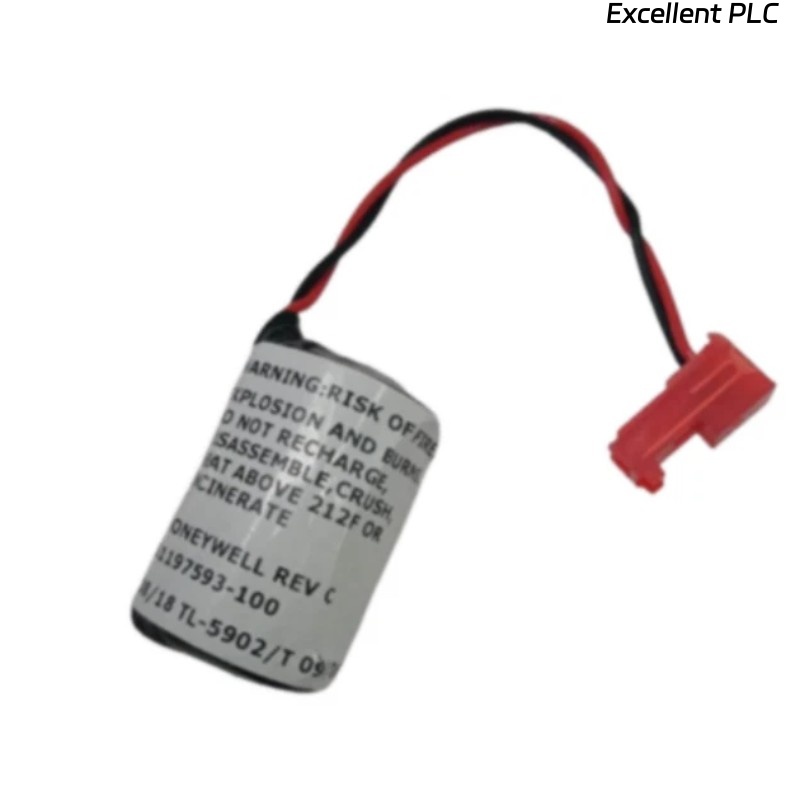

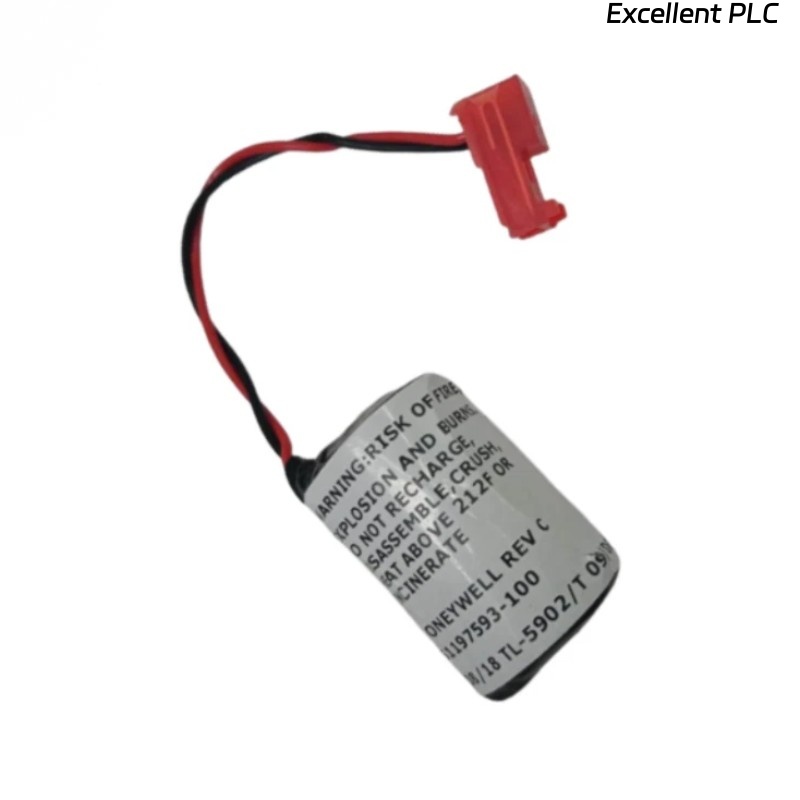

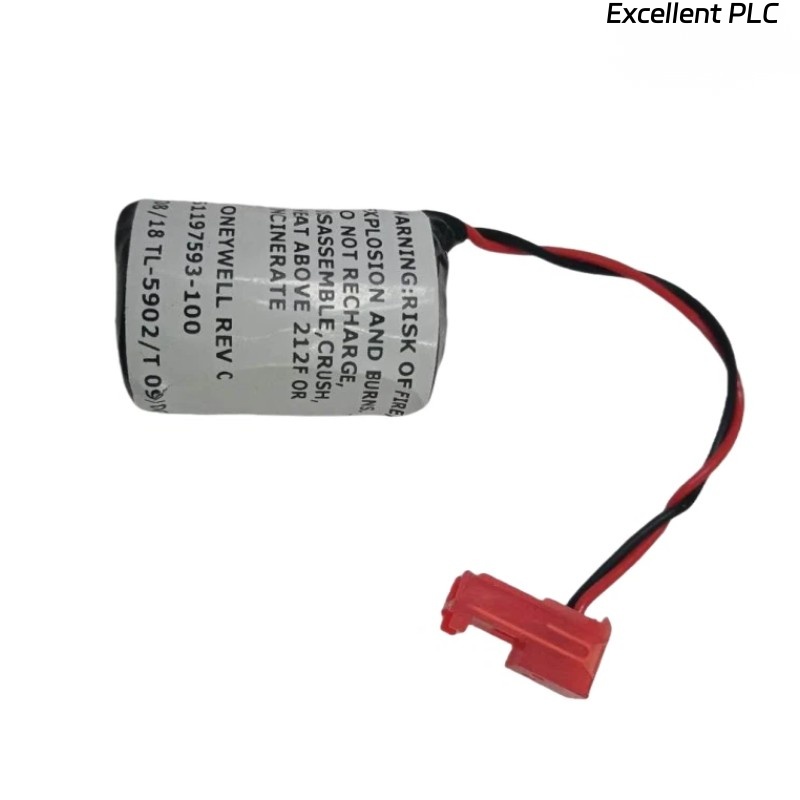

The Honeywell TC-BATT01 51197593-100 is a high-performance replacement lithium battery specifically designed for Honeywell TC series controllers and modules. Engineered to meet stringent industrial standards, this battery ensures reliable backup power, safeguarding critical data and operational parameters during power interruptions. Its advanced lithium chemistry provides consistent voltage output and superior rechargeability, making it a trusted component in industrial automation, safety, and process control applications.
The TC-BATT01 is widely recognized for its compatibility with multiple Honeywell devices, enabling easy maintenance without compromising system performance. Its robust design ensures long-term stability even in challenging industrial environments, where temperature fluctuations and high operational loads are common.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | TC-BATT01 |
| Honeywell Part Number | 51197593-100 |
| Battery Type | Lithium |
| Nominal Voltage | 3.6 V |
| Capacity | 1.2 Ah |
| Chemistry | Li-SOCl2 (Lithium Thionyl Chloride) |
| Operating Temperature Range | -40°C to 70°C |
| Storage Temperature Range | -55°C to 85°C |
| Dimensions | 48 × 20 × 12 mm |
| Weight | 0.35 kg |
| Connector Type | Standard Honeywell TC module connector |
| Certifications | UL Recognized, CE, RoHS Compliant |
Product Applications
-
Backup power for Honeywell TC series controllers, including digital control and safety modules.
-
Industrial automation systems requiring uninterrupted memory retention.
-
Process control systems in manufacturing plants, refineries, and chemical processing units.
-
Critical monitoring systems for utilities such as water, gas, and electricity.
-
Environmental monitoring equipment with Honeywell TC interfaces.
-
Situations requiring compact, reliable, and long-lasting energy sources for embedded devices.
Product Advantages
-
Reliable Data Retention: Maintains critical system data during unexpected power outages.
-
High Energy Density: Lithium chemistry offers superior energy in a compact form.
-
Wide Temperature Tolerance: Operates efficiently in extreme cold and heat conditions.
-
Long Shelf Life: Up to 10 years shelf life ensures readiness for extended storage periods.
-
Easy Replacement: Direct plug-in design for Honeywell TC series modules simplifies maintenance.
-
Industrial Safety Compliance: UL, CE, and RoHS certifications meet global industrial standards.
-
Stable Voltage Output: Consistent voltage ensures proper functioning of sensitive electronic circuits.
-
Lightweight Design: Minimal weight reduces mechanical stress on embedded systems.
-
Cost-Effective Maintenance: Extends the operational lifespan of Honeywell controllers.
-
Environmentally Friendly Chemistry: Lithium technology reduces environmental hazards compared to older chemistries.
FAQ
Q1: What is the nominal voltage of the TC-BATT01?
A1: The nominal voltage of the TC-BATT01 is 3.6 V.
Q2: Is this battery compatible with all Honeywell TC series modules?
A2: It is compatible with most Honeywell TC series controllers and modules; verify the specific model number to ensure compatibility.
Q3: Can the TC-BATT01 operate in extreme temperatures?
A3: Yes, it operates reliably between -40°C and 70°C.
Q4: What type of connector does this battery use?
A4: It uses the standard Honeywell TC module connector for direct replacement.
Q5: What is the capacity of this battery?
A5: The TC-BATT01 has a capacity of 1.2 Ah.
Q6: Can the battery be recharged?
A6: The TC-BATT01 is a primary lithium battery and is not designed for recharging.
Q7: How long is the warranty period?
A7: The standard warranty is 1 years, subject to proper usage and conditions.
Q8: Does this battery meet industrial safety standards?
A8: Yes, it is UL recognized, CE, and RoHS compliant.
Q9: Can the TC-BATT01 be used in outdoor installations?
A9: Yes, as long as it is housed within the rated Honeywell module, which provides environmental protection.
Q10: How do I ensure proper installation?
A10: Follow the Honeywell TC series module replacement procedure; the battery is designed for plug-and-play installation.
Related or Same-Series Models
| Model Number | Battery Type | Nominal Voltage | Capacity | Application |
|---|---|---|---|---|
| TC-BATT02 | Lithium | 3.6 V | 1.5 Ah | Honeywell TC modules |
| TC-BATT03 | Lithium | 3.6 V | 2.0 Ah | Honeywell TC modules |
| TC-BATT04 | Lithium | 3.6 V | 1.2 Ah | Honeywell TC modules |
| TC-BATT05 | Lithium | 3.6 V | 1.0 Ah | Honeywell TC controllers |
| TC-BATT06 | Lithium | 3.6 V | 1.8 Ah | Honeywell TC series |
| TC-BATT07 | Lithium | 3.6 V | 1.4 Ah | Honeywell TC modules |
