Product Introduction

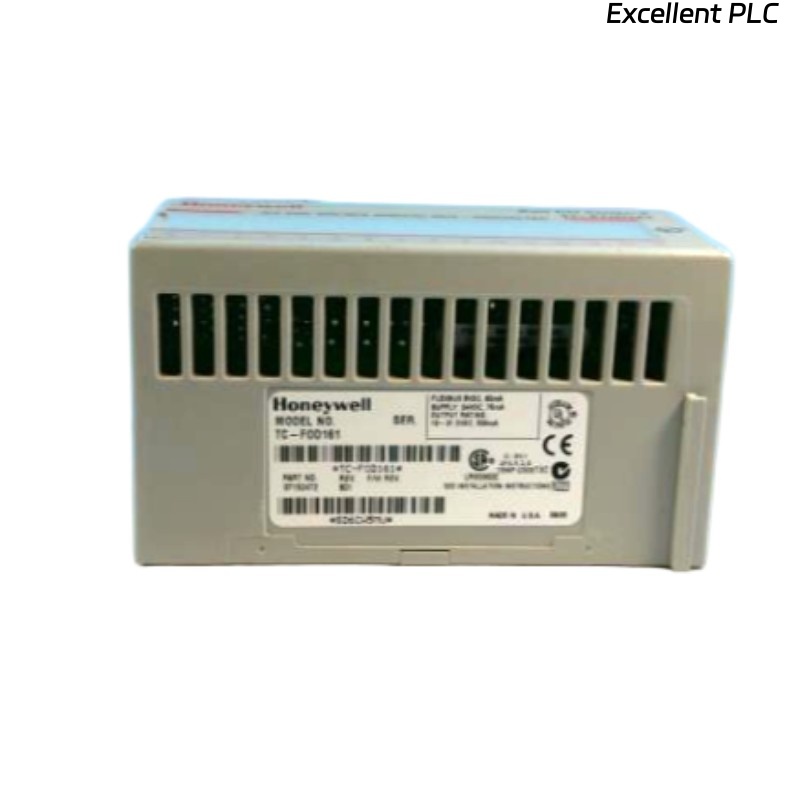

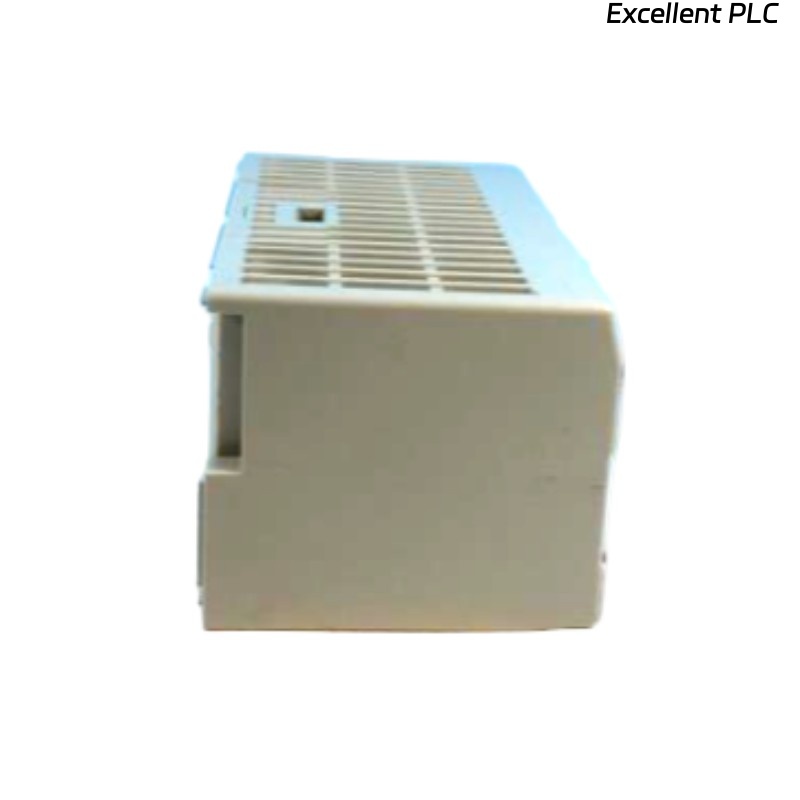

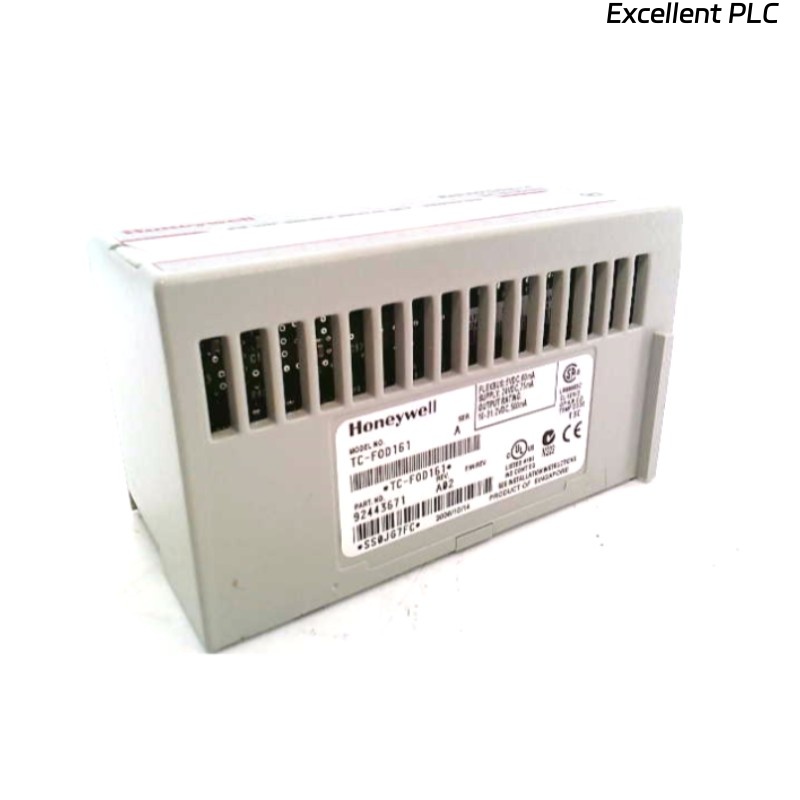

The Honeywell TC-FOD161 is a high-performance 24 VDC source digital output module designed for advanced process control systems. It is part of Honeywell’s Experion PKS digital I/O platform, providing reliable interface solutions between field devices and the control system. The TC-FOD161 module ensures precise and fast switching of digital output signals, making it suitable for a wide range of industrial applications where reliable signal transmission is critical.
It supports both discrete and complex control applications, offering tight integration with Honeywell controllers, remote I/O systems, and safety-critical configurations. The module is engineered with robust circuitry to handle demanding industrial environments, including high electromagnetic interference and fluctuating power conditions. Its compact design allows for efficient installation in I/O racks or cabinets while maintaining ease of maintenance and diagnostics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | 24 VDC Source Digital Output |
| Output Channels | 16 channels per module |
| Output Voltage | 24 VDC nominal |
| Output Current | 0.5 A per channel |
| Isolation | Channel-to-backplane isolation: 500 VDC |
| Response Time | < 10 ms typical |
| Power Consumption | 3 W maximum |
| Communication Interface | Standard Honeywell I/O bus interface |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Humidity | 5 to 95% RH non-condensing |
| Dimensions | 69 × 94 × 80 mm |
| Weight | 0.222 kg |
| Certifications | CE, UL, CSA, ATEX Zone 2 approved |
Product Applications
The TC-FOD161 module is widely applied in industries requiring high-reliability digital output control. Key applications include:
-
Process Automation: Switching valves, pumps, and actuators in chemical, oil & gas, and refining plants.
-
Safety Systems: Integration in safety interlock loops and emergency shutdown systems.
-
Remote I/O Systems: Distributed digital control in large-scale industrial installations.
-
Batch Control: Precise operation in pharmaceutical, food, and beverage process automation.
-
Utility Systems: Controlling power distribution, motor starters, and alarm annunciation systems.
-
Continuous Process Monitoring: Coordinating output signals from sensors to actuators in real-time control environments.
Product Advantages
The TC-FOD161 offers multiple advantages for modern industrial control systems:
-
High Reliability: Built to perform in harsh industrial conditions with strong EMI immunity.
-
Fast Response: Typical switching time under 10 ms ensures rapid digital signal actuation.
-
Ease of Integration: Fully compatible with Honeywell controllers, remote I/O racks, and standard I/O bus systems.
-
Flexible Architecture: Supports both discrete digital control and complex, multi-channel output applications.
-
Robust Protection: Overload and short-circuit protection enhance system safety and reduce downtime.
-
Compact Design: Efficient use of space in control panels, simplifying installation and maintenance.
-
Diagnostic Features: Real-time monitoring for output status and fault detection improves maintenance efficiency.
-
Industry Compliance: Certified for multiple industrial standards ensuring global applicability.
FAQ
Q1: What is the maximum current per channel for the TC-FOD161 module?
A1: The maximum current per channel is 0.5 A.
Q2: Can this module interface with older Honeywell I/O racks?
A2: Yes, it is compatible with Honeywell standard I/O racks supporting the Experion PKS I/O bus interface.
Q3: What kind of digital outputs does this module provide?
A3: The module provides 24 VDC source digital outputs suitable for switching actuators and relays.
Q4: How is the module protected against short circuits?
A4: Each channel is individually protected against overload and short-circuit conditions.
Q5: What is the typical response time for output switching?
A5: The typical response time is less than 10 milliseconds.
Q6: Can this module operate in high-humidity environments?
A6: Yes, it can operate in 5 to 95% relative humidity, non-condensing.
Q7: Is the TC-FOD161 certified for hazardous locations?
A7: Yes, it is ATEX Zone 2 approved for hazardous locations.
Q8: What temperature range is suitable for operation?
A8: The module operates reliably between 0°C and 60°C (32°F to 140°F).
Q9: How are faults and channel status monitored?
A9: The module supports real-time diagnostics through the Honeywell I/O bus, indicating output status and fault conditions.
Q10: Is the module compatible with safety-critical applications?
A10: Yes, the TC-FOD161 can be integrated into safety systems with appropriate Honeywell controllers.
