Product Introduction

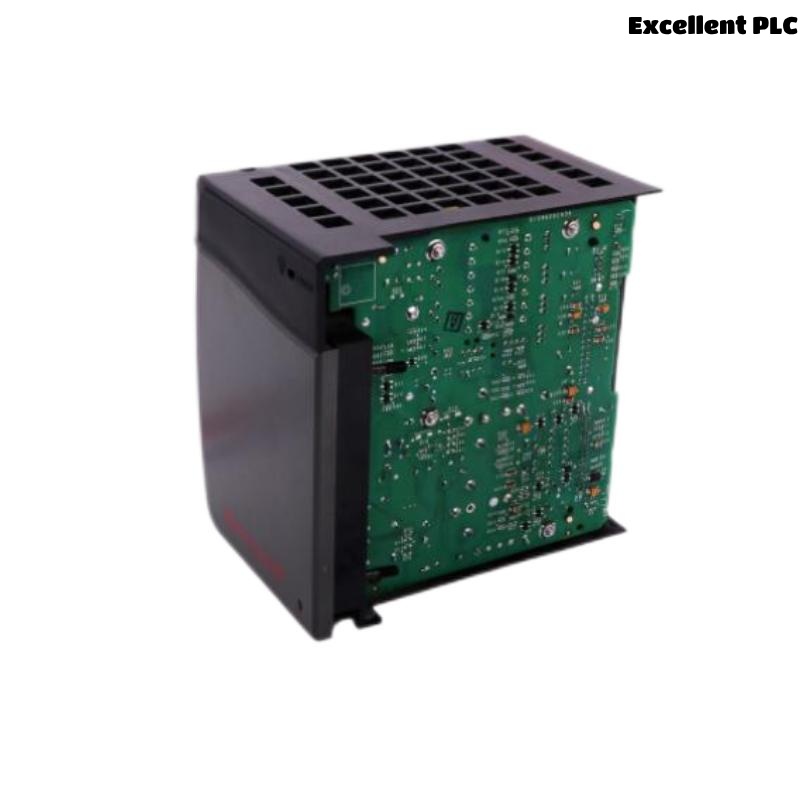

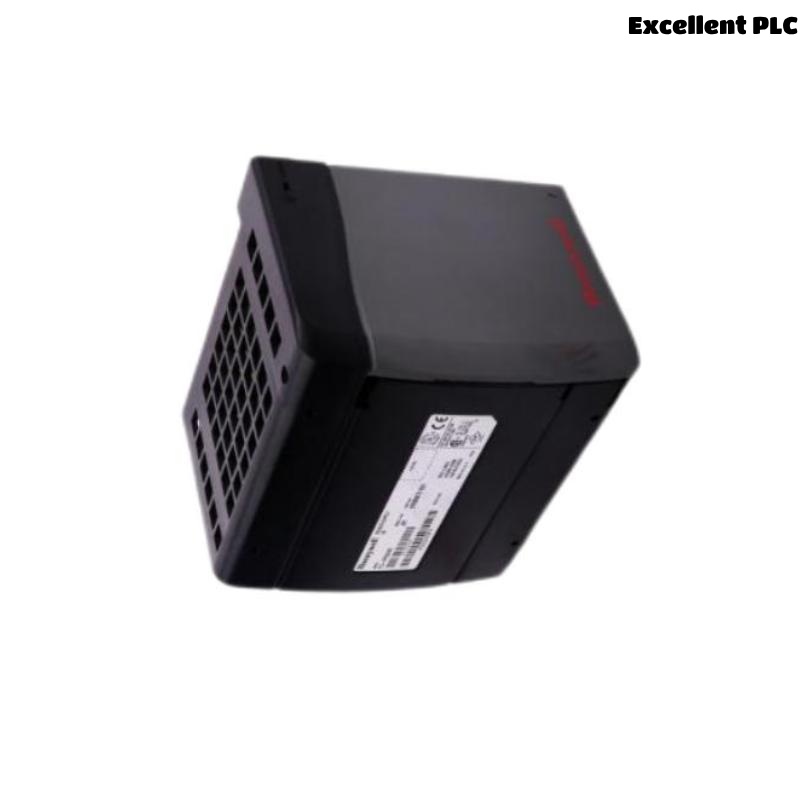

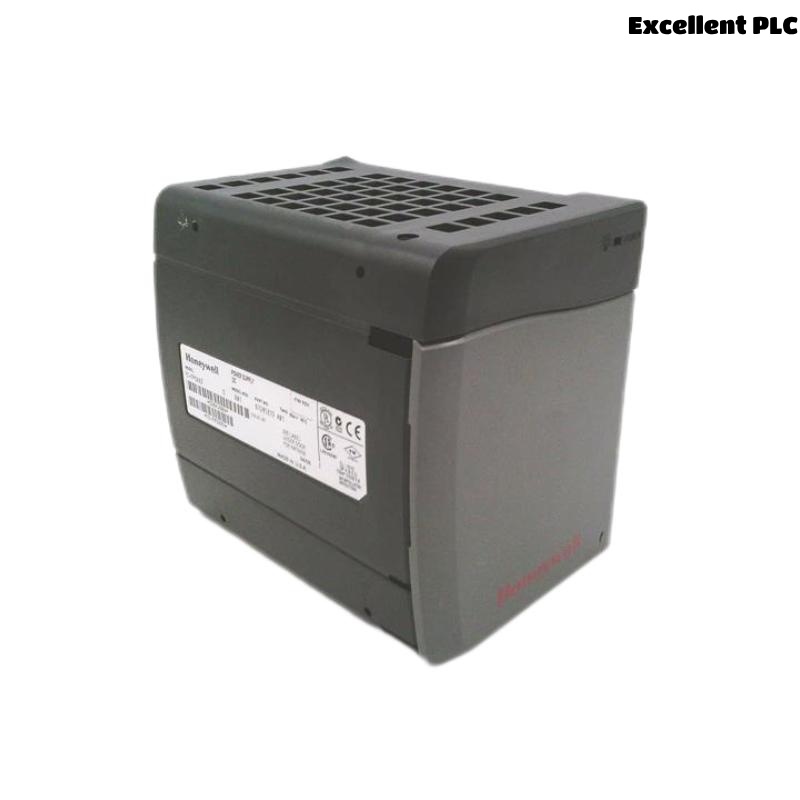

The Honeywell TC-FPDXX2 is a highly reliable and efficient power supply module designed for industrial automation and control applications. Engineered to meet the demanding power requirements of modern systems, the TC-FPDXX2 ensures consistent and stable power delivery to essential components within a control system. Whether deployed in manufacturing plants, energy systems, or industrial networks, the TC-FPDXX2 offers seamless integration, optimal performance, and long-term durability.
With its compact dimensions of 111 x 145 x 140 mm and a weight of 1.36 kg, the TC-FPDXX2 is designed to fit easily into control panels and industrial racks. Its robust construction allows it to operate efficiently in a wide range of environmental conditions, from temperature extremes to high-humidity environments. The module is ideal for powering a variety of devices, including sensors, actuators, and controllers, ensuring they operate smoothly and efficiently within the system.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | TC-FPDXX2 |
| Dimensions | 111 x 145 x 140 mm |
| Weight | 1.36 kg |
| Power Supply | 24 VDC |
| Input Voltage | 85-264 VAC |
| Output Voltage | 24 VDC |
| Output Current | 5 A |
| Efficiency | ≥ 90% |
| Operating Temperature | -10°C to +60°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Mounting Type | DIN Rail Mount |
| Protection Rating | IP20 |
| Certification | UL, CE, RoHS |
Product Applications
The Honeywell TC-FPDXX2 Power Supply is suitable for use in various industrial and commercial applications where stable and reliable power is critical. Its applications include:
-
Industrial Automation: The module is used in manufacturing plants to power control systems, sensors, PLCs (Programmable Logic Controllers), and other automation devices.
-
Energy Systems: The TC-FPDXX2 ensures a stable power supply to equipment in energy generation and distribution systems, such as turbines, solar panels, and substations.
-
Process Control Systems: In industries such as oil and gas, pharmaceuticals, and chemicals, the module powers equipment involved in monitoring and controlling the production processes.
-
Building Automation Systems: In smart buildings, the module supports systems like HVAC (Heating, Ventilation, and Air Conditioning), lighting, and security devices.
-
Telecommunication Infrastructure: The TC-FPDXX2 can power telecommunications devices, ensuring uninterrupted connectivity and communication between systems.
-
Renewable Energy Systems: It supports power delivery to renewable energy systems, helping to optimize energy management and efficiency in solar and wind installations.
Product Advantages
-
High Efficiency: The TC-FPDXX2 boasts an impressive efficiency of ≥ 90%, reducing energy consumption and minimizing heat generation in the system.
-
Reliable Power Supply: With a wide input voltage range of 85-264 VAC, the module ensures a reliable and stable power supply for devices operating in industrial environments.
-
Compact and Lightweight Design: The TC-FPDXX2 features a compact design of 111 x 145 x 140 mm and weighs just 1.36 kg, making it easy to install in space-limited control panels or racks.
-
Wide Temperature and Humidity Range: Operating in temperatures from -10°C to +60°C and supporting 5% to 95% RH humidity (non-condensing), the module is highly reliable in varying environmental conditions.
-
DIN Rail Mounting: The TC-FPDXX2 is designed for DIN rail mounting, making it easy to install and integrate into existing systems and infrastructure.
-
IP20 Protection Rating: With an IP20 protection rating, the module is protected against dust and large objects, ensuring it remains operational in most industrial environments.
-
Certifications: The TC-FPDXX2 meets international standards, including UL, CE, and RoHS, ensuring it complies with safety, environmental, and quality regulations.
-
Durable Construction: The module is built to withstand the rigors of industrial environments, ensuring long-lasting performance and minimal maintenance requirements.
-
Versatility: Whether for use in automation, energy systems, or process control, the TC-FPDXX2 is versatile enough to power a wide variety of industrial applications.
Frequently Asked Questions (FAQs)
Q1: What are the dimensions of the Honeywell TC-FPDXX2 module?
A1: The TC-FPDXX2 has dimensions of 111 x 145 x 140 mm.
Q2: How much does the TC-FPDXX2 weigh?
A2: The module weighs 1.36 kg, making it easy to install and handle during setup.
Q3: What is the operating voltage range of the TC-FPDXX2?
A3: The TC-FPDXX2 can accept an input voltage range of 85-264 VAC.
Q4: What is the output voltage of the TC-FPDXX2?
A4: The module provides a stable 24 VDC output voltage.
Q5: What is the current rating of the TC-FPDXX2?
A5: The TC-FPDXX2 can supply up to 5 A of output current.
Q6: What is the efficiency rating of the TC-FPDXX2?
A6: The module has an efficiency of ≥ 90%, ensuring optimal energy usage.
Q7: What is the temperature range within which the TC-FPDXX2 can operate?
A7: The TC-FPDXX2 operates in a temperature range of -10°C to +60°C.
Q8: How is the TC-FPDXX2 mounted?
A8: The module is designed for DIN rail mounting, making it easy to install in industrial control panels.
Q9: What protection rating does the TC-FPDXX2 have?
A9: The module has an IP20 protection rating, providing protection against dust and objects larger than 12 mm.
Q10: Is the TC-FPDXX2 certified?
A10: Yes, the TC-FPDXX2 is UL, CE, and RoHS certified, ensuring compliance with international safety and environmental standards.
