Product Overview

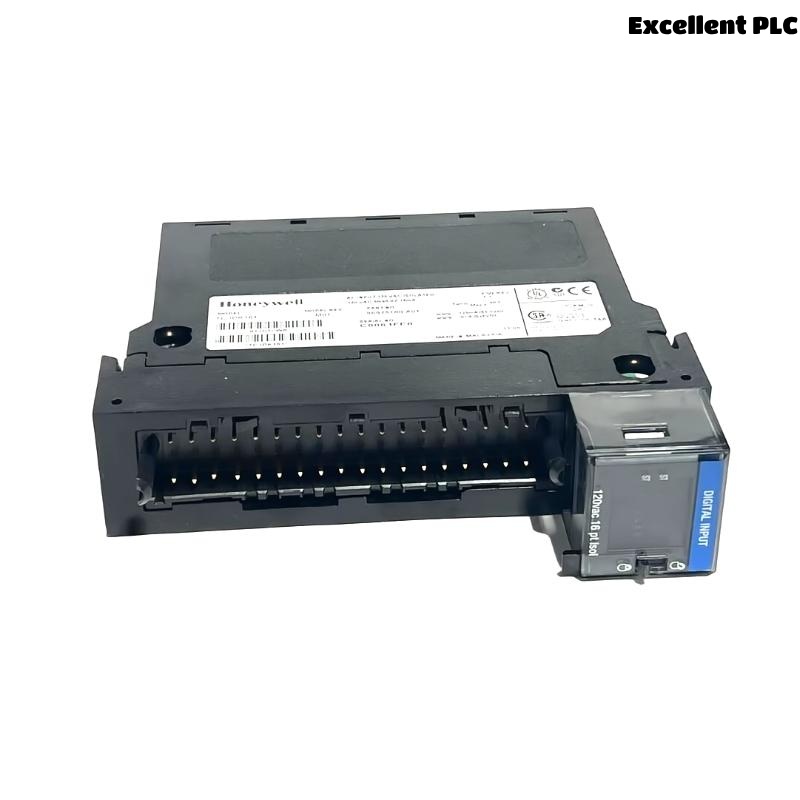

The Honeywell TC-IDK161 AC Input Module is designed to provide reliable and efficient integration of AC signals into Honeywell’s automation and control systems. This module plays a crucial role in industries where monitoring and controlling AC-powered devices are required. Its design ensures compatibility with Honeywell’s advanced control systems, making it an ideal choice for industrial automation, power distribution, and process control.
This module serves as a bridge between AC input devices (such as sensors, switches, and other field equipment) and the control system, allowing real-time monitoring and management of various operational parameters. It is built to meet the demands of critical infrastructure, ensuring operational stability and flexibility in diverse environments.
Product Specifications
| Feature | Specification |
|---|---|
| Product Type | AC Input Module |
| Model Number | TC-IDK161 |
| Input Type | AC Input |
| Number of Inputs | 16 |
| Input Voltage | 110–240 VAC ± 10% |
| Frequency Range | 50/60 Hz |
| Dimensions (L x W x H) | 35 x 140 x 145 mm |
| Weight | 0.2 kg |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Status Indicator | 16 individual LEDs for each input |
| Compatibility | Compatible with Honeywell Experion PKS & TPS systems |
| Surge Protection | Integrated surge protection for each input |
Applications
The Honeywell TC-IDK161 AC Input Module is designed for various applications in industrial environments where AC signals need to be processed and integrated into control systems. Common use cases include:
-
Power Distribution Systems
Used in power monitoring and distribution networks to integrate AC signals from circuit breakers, meters, or transformers into the control system for accurate data processing and control. -
Building Management Systems (BMS)
Utilized for integrating signals from HVAC systems, lighting, and other AC-powered equipment in large-scale building automation systems. -
Industrial Automation
Essential in manufacturing processes where AC-powered devices, such as motors and actuators, need to be monitored and controlled for efficient system operation. -
Energy Management
The TC-IDK161 module aids in energy monitoring and optimization by collecting data from energy meters, providing real-time analytics and performance insights. -
Safety and Alarm Systems
It enables integration of AC signal-based safety devices like emergency alarms, smoke detectors, or security systems into central control platforms.
Advantages
-
High Reliability
The TC-IDK161 is engineered to withstand harsh industrial environments, providing reliable input signal conversion even under fluctuating power conditions. -
Versatile Input Range
With a wide input voltage range (110–240 VAC) and frequency support (50/60 Hz), this module can be used in a variety of industrial applications across different regions and system configurations. -
Surge Protection
Built-in surge protection ensures that the module can handle electrical spikes, protecting both the device and the control system from transient voltage spikes. -
Compact and Space-Efficient
Despite its robust functionality, the TC-IDK161 offers a compact design that allows for easy installation in confined spaces, saving valuable panel space. -
Enhanced Integration with Honeywell Systems
Fully compatible with Honeywell’s Experion PKS and TPS systems, this module seamlessly integrates with existing infrastructure for a smooth operational experience. -
Easy Troubleshooting
Each input is equipped with an LED indicator, making it easy to monitor the status of each input and troubleshoot potential issues quickly without specialized equipment. -
Wide Temperature Tolerance
The module operates in a wide range of temperatures, from -20°C to 60°C, making it suitable for a variety of industrial conditions, including harsh outdoor environments.
FAQ (Frequently Asked Questions)
1. What type of inputs does the TC-IDK161 module support?
The module supports 16 individual AC inputs for integrating signals from AC-powered devices such as motors, alarms, and switches.
2. What is the input voltage range for the TC-IDK161?
The module supports an input voltage range of 110–240 VAC ± 10%.
3. What is the frequency range supported by this module?
It supports frequencies of 50/60 Hz.
4. Can the TC-IDK161 be used in outdoor environments?
Yes, the module can function in temperatures ranging from -20°C to 60°C, making it suitable for both indoor and outdoor use in industrial applications.
5. Does the TC-IDK161 have surge protection?
Yes, the module includes built-in surge protection for each input, protecting the module and connected equipment from voltage spikes.
6. How many inputs are available on the TC-IDK161?
The TC-IDK161 offers 16 individual AC input channels.
7. Is the TC-IDK161 compatible with Honeywell’s Experion PKS system?
Yes, the TC-IDK161 is designed to be fully compatible with Honeywell’s Experion PKS and TPS control systems.
8. What is the weight of the TC-IDK161 module?
The TC-IDK161 weighs 0.2 kg.
9. What type of status indicators are available on the module?
Each input channel has an individual LED indicator for easy monitoring of input status.
10. How does the TC-IDK161 integrate with industrial automation systems?
The module integrates seamlessly with Honeywell’s control systems, providing reliable AC input data to the system for monitoring and control purposes.
Related Models
| Model | Description | Inputs | Voltage | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|---|
| TC-IDK162 | 32-Input AC Input Module | 32 | 110–240 VAC | 7.5″ x 4.3″ x 3.0″ | 1.00 kg |
| TC-IDK160 | 8-Input AC Input Module | 8 | 110–240 VAC | 6.5″ x 4.0″ x 2.9″ | 0.50 kg |
| TC-IDK164 | 16-Input AC Input with Relay Outputs | 16 | 110–240 VAC | 7.5″ x 4.3″ x 3.5″ | 0.80 kg |
| TC-IDK170 | High-Density AC Input Module | 64 | 110–240 VAC | 10.0″ x 5.0″ x 3.5″ | 1.50 kg |
| TC-IDK168 | Isolated AC Input Module | 16 | 110–240 VAC | 7.5″ x 4.3″ x 2.9″ | 0.75 kg |
| TC-IDK150 | Digital and AC Input Hybrid Module | 32 | 110–240 VAC | 7.0″ x 4.2″ x 3.0″ | 0.70 kg |
