Product Introduction

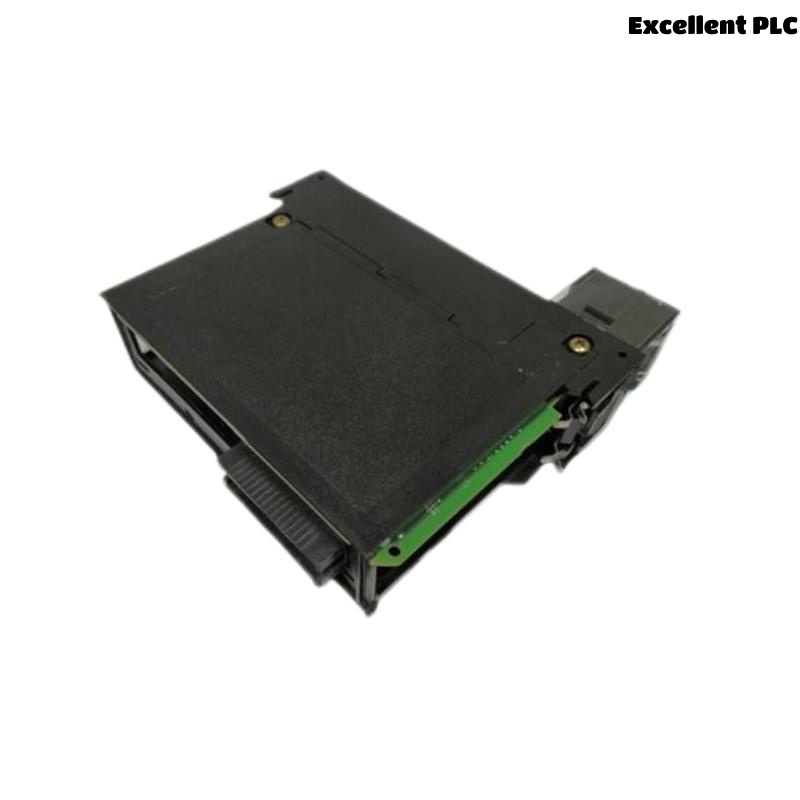

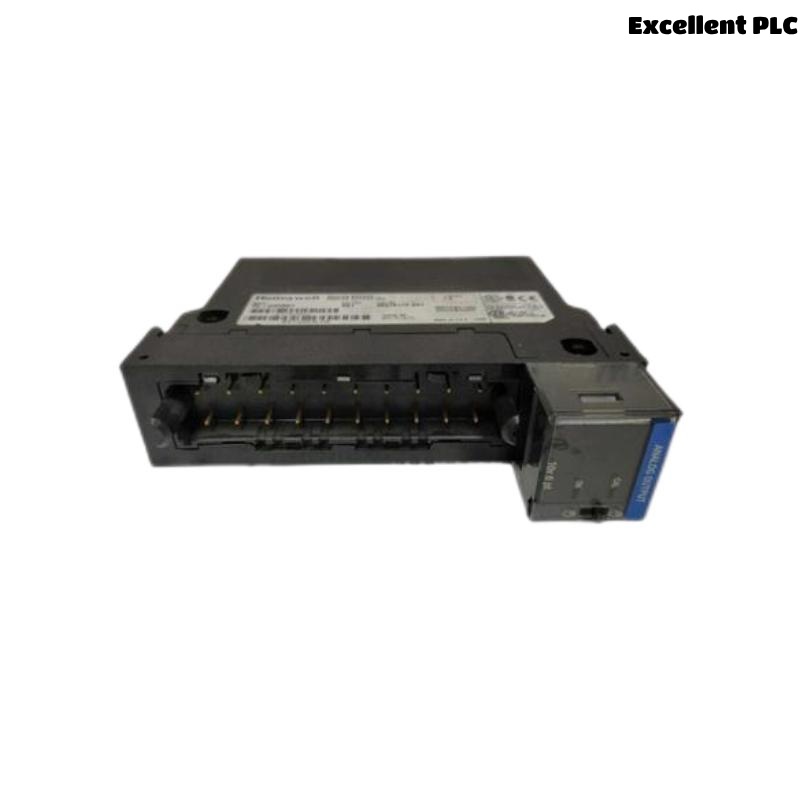

The Honeywell TC-OAV061 is a high-performance Analog Output Module designed for use in Honeywell’s Experion PKS and C300 controller systems. Engineered to ensure reliable and accurate analog signal output, this module supports the transmission of analog control signals to actuators and other field devices in complex industrial automation systems. With robust construction and a modular design, TC-OAV061 facilitates seamless integration, superior signal integrity, and long-term durability in harsh industrial environments.
As a component in Honeywell’s distributed control system (DCS), the TC-OAV061 plays a vital role in critical applications such as batch control, continuous process control, and precision analog regulation in industries like oil & gas, power generation, petrochemicals, and pharmaceuticals.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | TC-OAV061 |
| Type | Analog Output Module |
| Channels | 8 analog output channels |
| Signal Type | 4–20 mA current output |
| Resolution | 12-bit |
| Output Load | 0 to 750 Ohms |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Power Supply | 24 VDC (nominal) |
| Communication | Redundant I/O link compatible |
| Diagnostic Features | Loop supervision, fault reporting |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions | 22 x 124 x 126 mm |
| Weight | 0.1 kg |
| Mounting | DIN-rail or panel-mounted |
| Compliance | CE, CSA, UL approved |
Product Applications
The Honeywell TC-OAV061 is utilized in a variety of industrial control environments where precise analog signal output is crucial. Applications include:
-
Distributed Control Systems (DCS) in process automation
-
Industrial actuators control (valves, dampers)
-
Control loops in chemical or pharmaceutical manufacturing
-
Boiler and burner control in power plants
-
Analog signal transmission to field devices in oil refineries
-
Flow, pressure, and level control systems
Product Advantages
-
High Precision: With 12-bit resolution, TC-OAV061 ensures accurate analog output for precise control.
-
Robust Isolation: Offers superior channel-to-channel and system-level electrical isolation, minimizing interference.
-
Reliable Diagnostics: Built-in loop supervision and fault reporting enable early fault detection, improving uptime.
-
Redundant Communication: Compatible with redundant I/O links, ensuring fail-safe communication with the controller.
-
Compact Design: Space-saving form factor suitable for high-density I/O panels.
-
Easy Maintenance: Modular hot-swappable design simplifies replacements and reduces downtime.
10 Common FAQs (Q&A Format)
Q1: What is the function of the TC-OAV061 module?
A1: It is used to generate analog current signals (4–20 mA) from a control system to field devices like actuators or control valves.
Q2: How many output channels does TC-OAV061 support?
A2: The module supports 8 independent analog output channels.
Q3: Can this module be used in hazardous environments?
A3: Yes, it meets industrial certifications like UL and CE for safe use in industrial settings.
Q4: Is TC-OAV061 hot-swappable?
A4: Yes, it supports hot-swapping for ease of maintenance without shutting down the system.
Q5: Does the module support output signal diagnostics?
A5: Yes, it has built-in loop supervision and fault detection for each channel.
Q6: What is the power supply requirement?
A6: It typically requires a 24 VDC supply for operation.
Q7: What type of isolation does it offer?
A7: It provides both channel-to-channel and channel-to-system isolation.
Q8: Can TC-OAV061 be used with Experion PKS?
A8: Yes, it is fully compatible with Honeywell’s Experion PKS and C300 platforms.
Q9: What is the recommended load resistance?
A9: The output load should be within 0 to 750 Ohms.
Q10: What mounting options are available?
A10: It can be DIN-rail or panel mounted for flexibility in installation.
