Product Overview

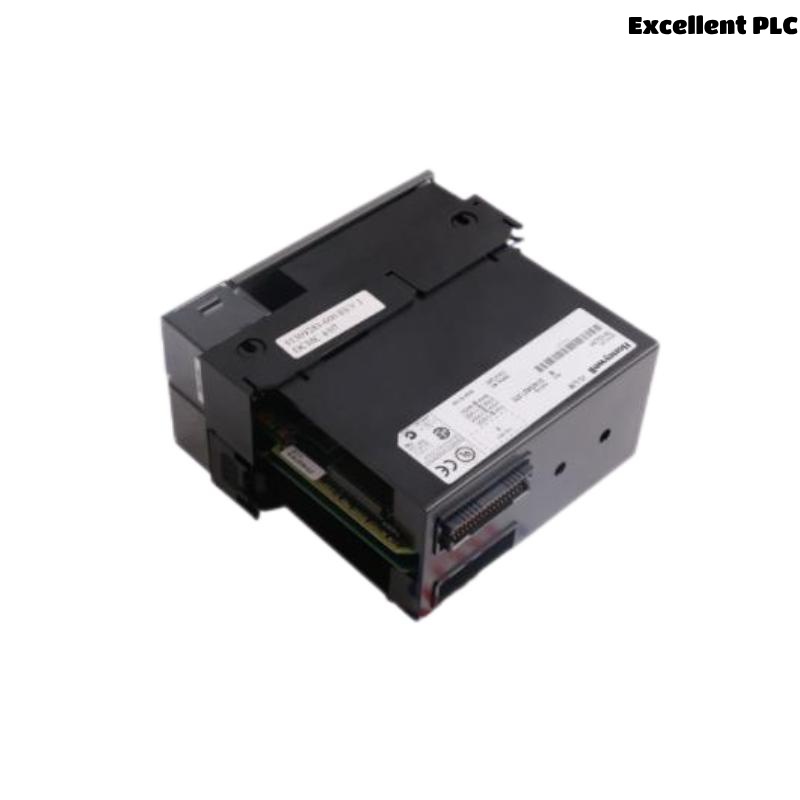

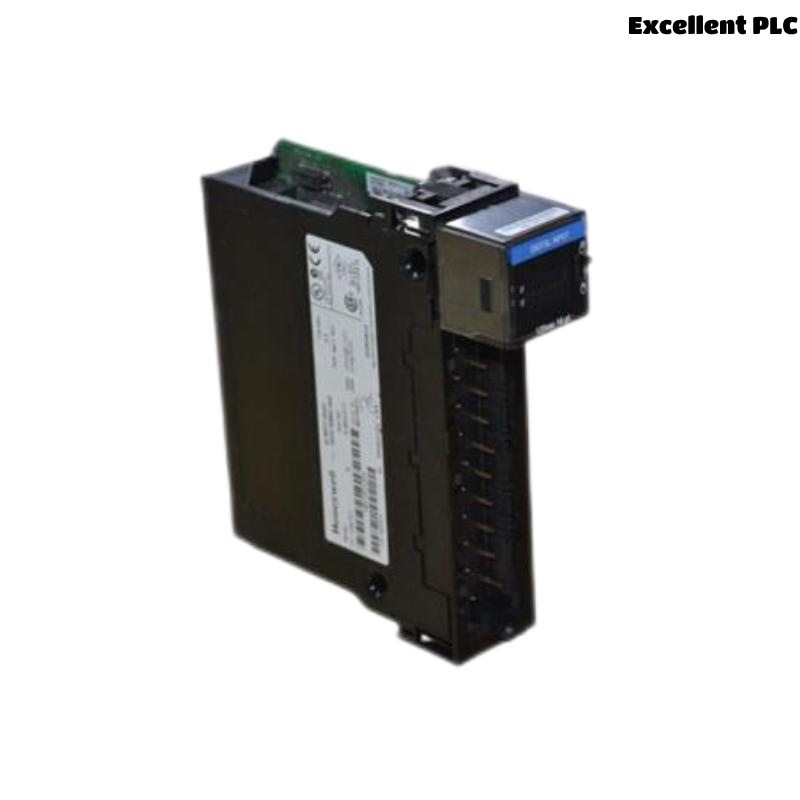

The Honeywell TC-ORC161 is a high-performance 16-channel relay output module designed for industrial control applications. It features 16 Normally Open (NO) relay outputs that provide robust and isolated signal switching for field devices such as alarms, indicators, and control relays.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | TC-ORC161 |
| Output Type | Relay (16 Channels, NO) |
| Rated Voltage | 24 VDC / 120–240 VAC |
| Max Output Current | 2 A per channel |
| Isolation | Optical isolation per channel |
| Status Indication | LED per channel |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Mounting | Chassis mounted |
| Dimensions (W×H×D) | 38 × 77 × 108 mm |
| Weight | 0.231 kg |
| Compliance | CE, UL, CSA certified |
Applications
-
Process control systems
-
Distributed I/O systems
-
Power generation and distribution
-
Factory automation
-
Building management systems
Advantages
-
High-density 16-channel output in compact size
-
Independent channel operation for flexibility
-
Optical isolation for enhanced protection
-
LED indicators for quick diagnostics
-
Compatible with Honeywell C200/C300 and Experion PKS systems
Frequently Asked Questions (FAQ)
Q1: What is the function of the TC-ORC161 module?
A1: It provides 16 Normally Open relay outputs to switch external field devices in automation systems.
Q2: Is the module hot-swappable?
A2: No, it is not designed for hot-swapping. Power must be off before removal or installation.
Q3: Can it be used in safety-critical applications?
A3: No, it is not safety-rated. Use only for general-purpose control.
Q4: What is the maximum load current per relay?
A4: Each relay can handle up to 2 A.
Q5: Does the module support mixed voltage levels on different channels?
A5: Yes, each channel is isolated, allowing different voltage levels.
Q6: Is this module compatible with ControlEdge systems?
A6: It is primarily designed for legacy C200/C300 systems but may be used with compatible I/O interfaces.
Q7: What is the recommended operating temperature range?
A7: 0°C to +60°C.
Q8: Does it have any built-in protection?
A8: Yes, each channel is optically isolated, reducing electrical interference and protecting internal circuitry.
Q9: Can this module control AC loads?
A9: Yes, it supports both DC and AC loads up to 240 VAC.
Q10: What diagnostic features are available?
A10: Each channel includes an LED to indicate output status for diagnostics.
Related Models (Same Series or Functional Category)
| Model | Description | Channels | Output Type | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| TC-ORC081 | Relay Output Module (8 NO + 8 NC) | 16 | Relay (NO/NC) | 38×77×108 | 0.235 kg |
| TC-ODA161 | AC Output Module | 16 | AC Output | 38×77×108 | 0.230 kg |
| TC-ODD161 | DC Output Module (E-fused) | 16 | DC Output | 38×77×108 | 0.230 kg |
| TC-OAH061 | Analog Output Module (6 pt) | 6 | 4–20 mA | 38×77×108 | 0.220 kg |
| TC-ODK161 | AC Output Module (Isolated) | 16 | AC Output | 38×77×108 | 0.240 kg |
| TC-ODX161 | Digital Output with Diagnostics | 16 | DC Output | 38×77×108 | 0.225 kg |
