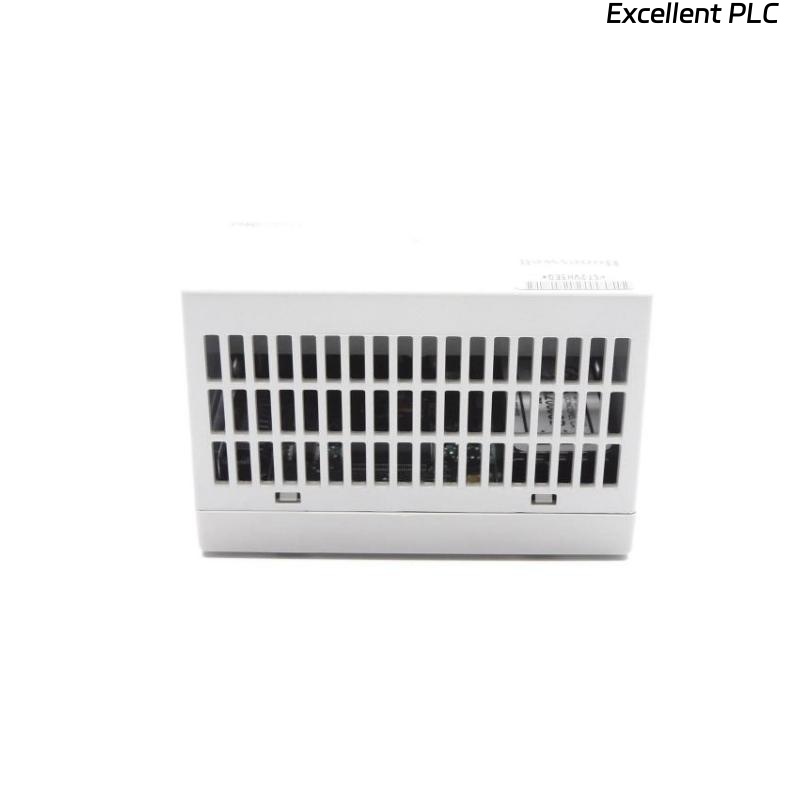

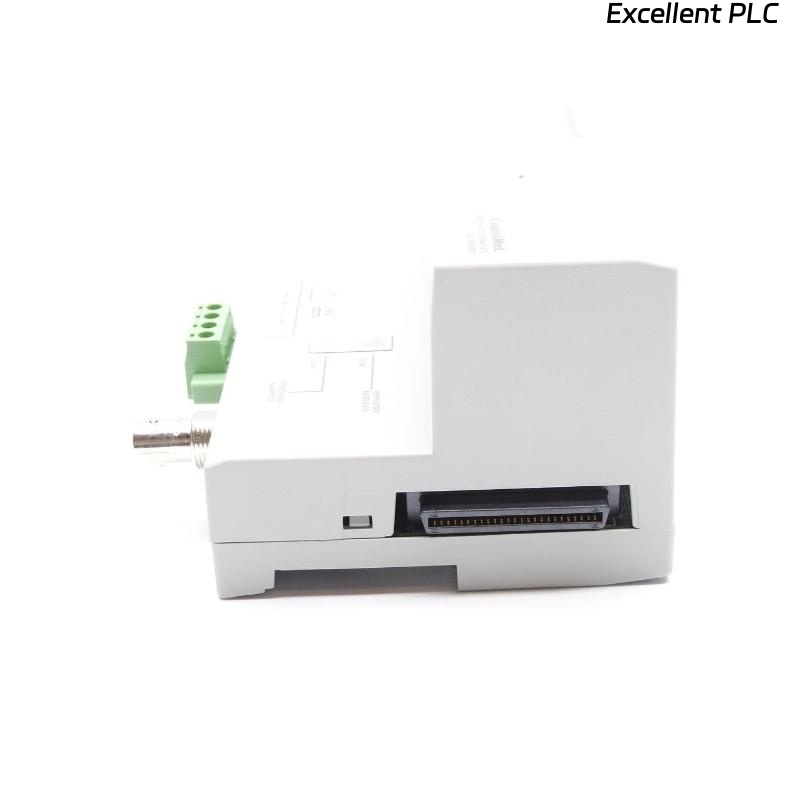

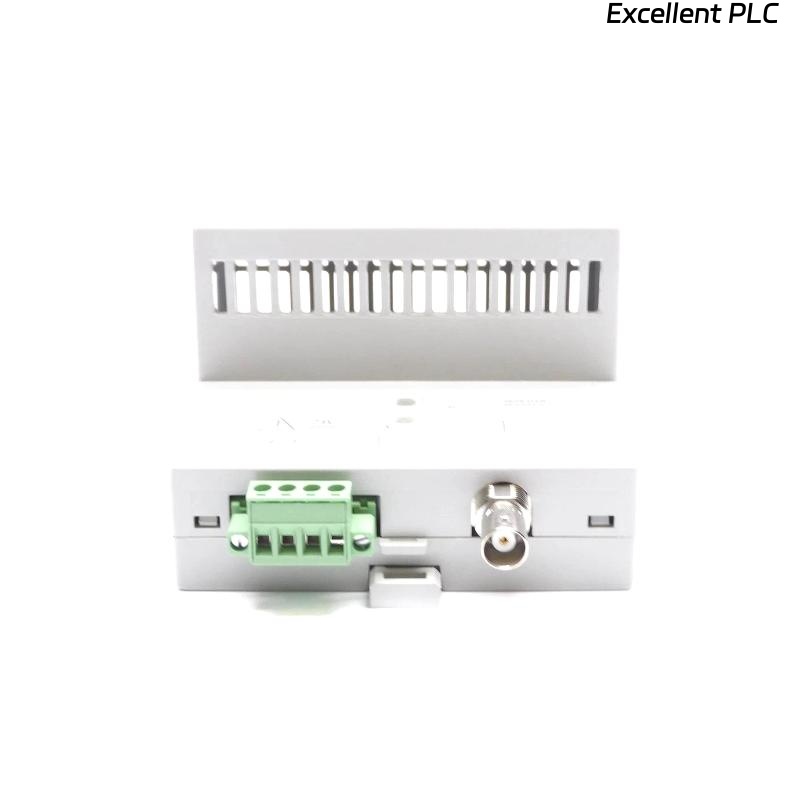

Honeywell TC-RPA002 ControlNet Repeater Adapter

Product Introduction

The Honeywell TC-RPA002 ControlNet Repeater Adapter is a crucial component in industrial control systems, designed to extend the communication range of ControlNet networks. The ControlNet protocol, commonly used in real-time data transmission within industrial automation systems, allows for high-speed communication between devices. The TC-RPA002 helps in enhancing network performance by improving signal strength and enabling devices that are beyond the reach of the original network to be connected seamlessly.

This repeater adapter works by boosting and regenerating the ControlNet signal, ensuring that the integrity of the signal is maintained over longer distances. This enables it to efficiently manage large, dispersed systems in industries such as manufacturing, process automation, and utilities.

The TC-RPA002 is designed for reliability and robustness, ideal for applications that require continuous data flow and high communication speeds. With its compact size, it can be easily integrated into existing ControlNet networks, improving connectivity and network stability without significant modification.


Product Specifications

Parameter Details
Model TC-RPA002
Type ControlNet Repeater Adapter
Dimensions (L x W x H) 114 x 90 x 50 mm
Weight 0.181 kg
Network Type ControlNet
Signal Amplification Yes
Communication Speed 5 Mbps (Max)
Power Supply 24 V DC
Environmental Rating IP20 (for indoor use)
Mounting Type DIN Rail Mountable
Operating Temperature Range -20°C to 60°C
Communication Distance Up to 500 meters (with multiple repeaters)

Product Applications

The Honeywell TC-RPA002 ControlNet Repeater Adapter is widely used in applications where extended communication distance and network reliability are essential. Its key applications include:

  • Process Control Systems: Used in industries like oil & gas, chemicals, and pharmaceuticals, where the ControlNet protocol is often used to interconnect control systems, sensors, and actuators over long distances.

  • Manufacturing Automation: In large-scale manufacturing plants, the repeater allows for seamless communication between remote stations and central control units, improving operational efficiency.

  • Energy Management: Ideal for energy distribution systems, where ControlNet ensures real-time monitoring and control of grid systems, and the repeater extends the network reach to remote substation locations.

  • Building Management: In large buildings or complexes with multiple control points, the TC-RPA002 ensures that communication between devices, such as HVAC systems, lighting controls, and security systems, is reliable and efficient over long distances.

  • Utility Infrastructure: Used in water treatment facilities, electrical substations, and other utility operations, the repeater extends the network to remote locations, ensuring uninterrupted communication for critical infrastructure.


Product Advantages

  • Extended Communication Range: The TC-RPA002 allows ControlNet networks to cover larger areas by boosting and regenerating signals, making it ideal for large-scale industrial and infrastructure applications.

  • High-Speed Communication: The TC-RPA002 supports 5 Mbps data transfer speed, providing quick and reliable communication, which is crucial in real-time control and monitoring applications.

  • Easy Installation: The module is designed for DIN rail mounting, allowing for easy integration into existing systems with minimal disruption.

  • Improved Signal Integrity: It ensures that signals are reliably transmitted over long distances without degradation, which is vital for maintaining network performance.

  • Compact and Robust: Despite its small form factor (114 x 90 x 50 mm), the TC-RPA002 is built to endure harsh industrial environments with an IP20 rating, ensuring protection from dust and debris.

  • Power Efficient: The module operates on a 24 V DC power supply, ensuring energy efficiency and making it compatible with a wide range of industrial power systems.

  • Flexible Connectivity: Supports multiple devices within the network, making it suitable for both centralized and decentralized systems, enhancing flexibility in network design.

  • Reduced Downtime: By extending the communication range, the TC-RPA002 ensures continuous operation of critical systems, reducing the likelihood of communication failures or downtime.

  • Cost-Effective: The adapter provides an affordable solution to expand ControlNet networks without the need for replacing or upgrading entire systems.

  • Reliability: Designed for high uptime and reliability, it is ideal for mission-critical applications that demand uninterrupted data flow.


FAQ

  1. How does the TC-RPA002 extend the ControlNet network?
    The TC-RPA002 amplifies and regenerates the ControlNet signal, allowing the network to reach farther distances without signal degradation.

  2. What is the maximum communication distance with the TC-RPA002?
    The TC-RPA002 can extend the network distance up to 500 meters, and even further with multiple repeaters.

  3. What power supply does the TC-RPA002 require?
    The module requires a 24 V DC power supply, which is commonly used in industrial applications.

  4. Can the TC-RPA002 be used in outdoor environments?
    The TC-RPA002 is rated with an IP20 protection level, meaning it is designed for indoor use only and should be protected from harsh outdoor conditions.

  5. What types of networks is the TC-RPA002 compatible with?
    The TC-RPA002 is specifically designed for use with ControlNet networks, providing signal boosting and extension.

  6. How do I install the TC-RPA002?
    The TC-RPA002 is designed for easy installation on DIN rails, making it simple to integrate into existing network setups.

  7. What communication speed does the TC-RPA002 support?
    The module supports 5 Mbps communication speed, which is adequate for most real-time control and monitoring applications.

  8. Is the TC-RPA002 suitable for use in hazardous environments?
    No, the TC-RPA002 is not designed for hazardous environments. It should be used in environments that do not pose risk of explosion or chemical exposure.

  9. How many devices can the TC-RPA002 support in a network?
    The adapter can support multiple devices in a ControlNet network, extending the communication reach to all connected devices.

  10. Can the TC-RPA002 be used with other protocols besides ControlNet?
    No, the TC-RPA002 is specifically designed for ControlNet and does not support other communication protocols like Ethernet/IP or Modbus.


Additional Models from the Same Series or Related:

Model Description
TC-RPA003 A ControlNet Repeater Adapter designed for enhanced signal strength and extended coverage.
TC-RPA004 A multi-port repeater for larger networks, allowing communication with more devices over greater distances.
TC-RPA005 A high-speed ControlNet repeater designed for large-scale industrial applications.
TC-RPA006 A compact version of the repeater with lower power consumption for energy-efficient applications.
TC-RPA007 A ruggedized version of the repeater for use in harsh industrial environments with high EMI (Electromagnetic Interference).
TC-RPA008 A wireless ControlNet repeater enabling flexible network designs in hard-to-wire locations.

Popular Honeywell Models:

Model Number Description
900R04-0200 Industrial Equipment Monitoring Device
900TNF-0101 High-performance Diagnostic Monitoring System
900K01-0201 Advanced Equipment Monitoring Solution
900R04-0201 Compact Diagnostic Monitoring Device
900TNF-0102 Robust Industrial Monitoring Device
900K01-0202 Comprehensive Monitoring and Diagnostic Solution

FAQ

  1. How does the TC-RPA002 extend the ControlNet network?
    The TC-RPA002 amplifies and regenerates the ControlNet signal, allowing the network to reach farther distances without signal degradation.

  2. What is the maximum communication distance with the TC-RPA002?
    The TC-RPA002 can extend the network distance up to 500 meters, and even further with multiple repeaters.

  3. What power supply does the TC-RPA002 require?
    The module requires a 24 V DC power supply, which is commonly used in industrial applications.

  4. Can the TC-RPA002 be used in outdoor environments?
    The TC-RPA002 is rated with an IP20 protection level, meaning it is designed for indoor use only and should be protected from harsh outdoor conditions.

  5. What types of networks is the TC-RPA002 compatible with?
    The TC-RPA002 is specifically designed for use with ControlNet networks, providing signal boosting and extension.

  6. How do I install the TC-RPA002?
    The TC-RPA002 is designed for easy installation on DIN rails, making it simple to integrate into existing network setups.

  7. What communication speed does the TC-RPA002 support?
    The module supports 5 Mbps communication speed, which is adequate for most real-time control and monitoring applications.

  8. Is the TC-RPA002 suitable for use in hazardous environments?
    No, the TC-RPA002 is not designed for hazardous environments. It should be used in environments that do not pose risk of explosion or chemical exposure.

  9. How many devices can the TC-RPA002 support in a network?
    The adapter can support multiple devices in a ControlNet network, extending the communication reach to all connected devices.

  10. Can the TC-RPA002 be used with other protocols besides ControlNet?
    No, the TC-RPA002 is specifically designed for ControlNet and does not support other communication protocols like Ethernet/IP or Modbus.

Additional Models from the Same Series or Related:

Model Description
TC-RPA003 A ControlNet Repeater Adapter designed for enhanced signal strength and extended coverage.
TC-RPA004 A multi-port repeater for larger networks, allowing communication with more devices over greater distances.
TC-RPA005 A high-speed ControlNet repeater designed for large-scale industrial applications.
TC-RPA006 A compact version of the repeater with lower power consumption for energy-efficient applications.
TC-RPA007 A ruggedized version of the repeater for use in harsh industrial environments with high EMI (Electromagnetic Interference).
TC-RPA008 A wireless ControlNet repeater enabling flexible network designs in hard-to-wire locations.

Popular Honeywell Models:

Model Number Description
900R04-0200 Industrial Equipment Monitoring Device
900TNF-0101 High-performance Diagnostic Monitoring System
900K01-0201 Advanced Equipment Monitoring Solution
900R04-0201 Compact Diagnostic Monitoring Device
900TNF-0102 Robust Industrial Monitoring Device
900K01-0202 Comprehensive Monitoring and Diagnostic Solution
