Product Overview

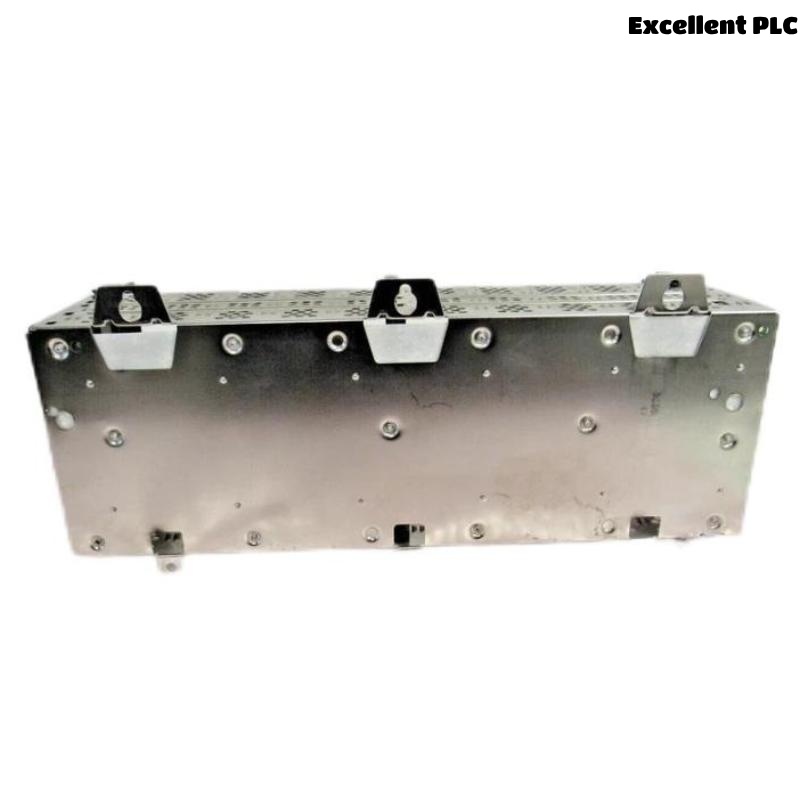

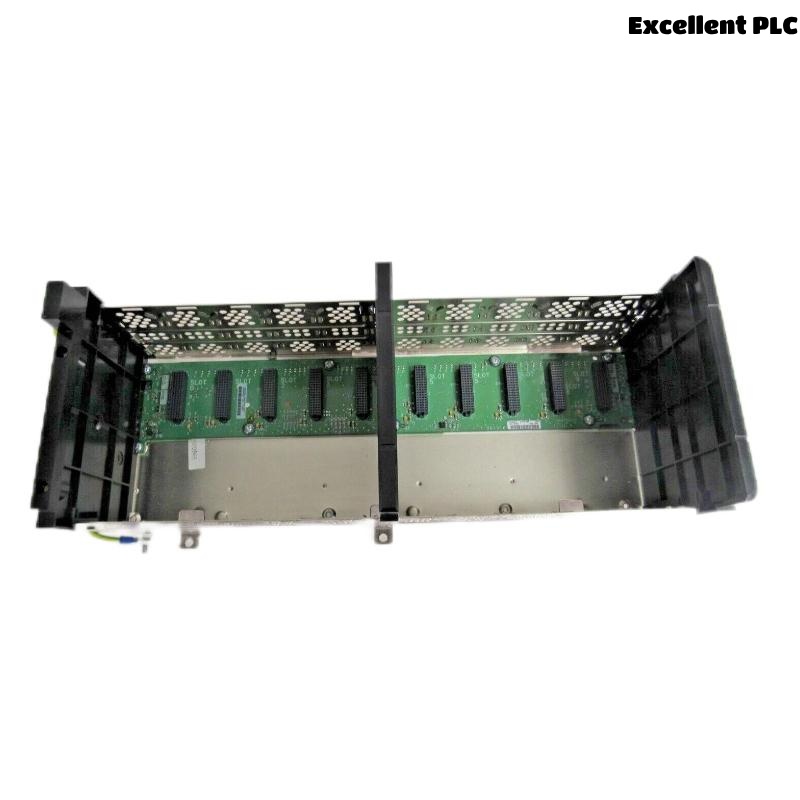

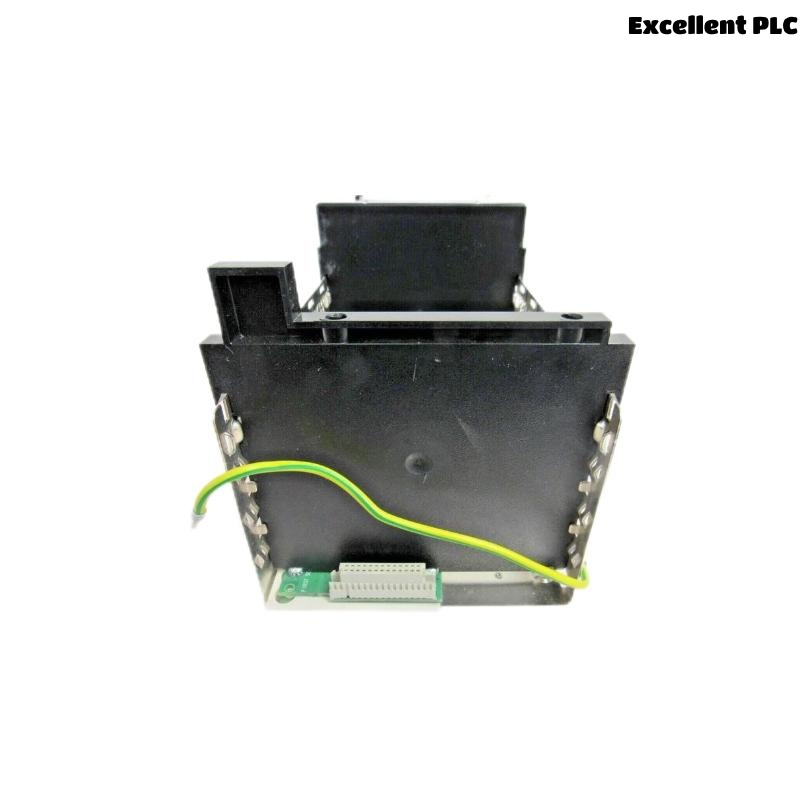

The Honeywell TK-FXX102 97126875 A01 Experion LS Frame is an essential component of the Experion LS Process Control System, designed to house various control modules and provide the necessary infrastructure for system integration and operation. This high-density control frame ensures that the Experion LS system remains scalable, organized, and efficient, enabling control of complex processes in a compact and reliable manner.
Engineered for use in a variety of process industries, the TK-FXX102 frame supports modular design, ensuring ease of expansion, flexibility, and efficient maintenance. It accommodates multiple I/O modules, power supplies, and communication interfaces, forming the backbone of the Experion LS distributed control system.
Key Features
-
High-Density Modular Design: Accommodates a wide range of control modules in a compact, efficient layout
-
Optimized for Experion LS System: Fully compatible with Honeywell’s Experion LS process control components
-
Scalable Architecture: Supports expansion to meet growing system requirements
-
Durable Construction: Built to endure harsh industrial environments with robust protection against dust, moisture, and electrical interference
-
Ease of Maintenance and Upgrade: Simplified module replacement and system upgrades without significant downtime
-
Integrated Power Distribution: Designed to distribute power efficiently across the modules for stable system operation
-
Redundancy Support: Supports redundant configurations for mission-critical applications, ensuring continuous operation
-
Versatile Mounting Options: Can be mounted in racks, control panels, or enclosures based on system design requirements
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | Experion LS Frame |
| Model Number | TK-FXX102 97126875 A01 |
| System Compatibility | Honeywell Experion LS Distributed Control System |
| Frame Type | High-density modular frame for I/O and communication modules |
| Power Supply Input | 24 VDC (nominal, system-dependent) |
| Power Consumption | Dependent on configured modules and system components |
| Environmental Conditions | IP20 rating, resistant to dust and moisture (indoors) |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -40°C to +70°C |
| Mounting Options | DIN rail, rack-mounted, or panel-mounted |
| Module Capacity | Supports up to 16 I/O and control modules per frame |
| Dimensions | 350 x 200 x 60 mm |
| Weight | 1.2 kg |
| Certifications | CE, UL, RoHS, IEC standards (system dependent) |
Note: The actual number of modules supported depends on the specific configuration of the system.
Product Advantages
-
Compact, High-Density Design: Maximizes use of available space, reducing the physical footprint of control systems
-
Modular and Scalable: Supports easy expansion and configuration adjustments to meet evolving system needs
-
Durable Industrial Construction: Built to withstand environmental factors such as temperature fluctuations, dust, and moisture
-
Redundancy for Critical Applications: Offers redundancy support for high-availability environments where downtime is costly
-
Seamless Integration with Experion LS: Specifically designed to house Honeywell Experion LS modules, simplifying system design and installation
-
Ease of Maintenance: Simplifies module replacement and upgrading, reducing system downtime and maintenance costs
-
Optimized Power Distribution: Ensures stable power delivery to all modules, supporting continuous operation and preventing power-related failures
Industry Applications
The Honeywell TK-FXX102 97126875 A01 Experion LS Frame is ideal for use in industries where reliable control and monitoring of processes are crucial:
-
Oil & Gas: Monitoring and control of upstream, midstream, and downstream processes, including pumps, valves, and compressors
-
Chemical & Petrochemical: Centralized control for chemical reactors, distillation columns, and mixing processes
-
Power Generation: Integrating control for turbines, generators, and other critical power plant systems
-
Water & Wastewater Treatment: Providing control for filtration, pumping, and chemical dosing systems in municipal or industrial plants
-
Pharmaceutical & Life Sciences: Ensuring the integrity and accuracy of control processes in pharmaceutical production environments
-
Food & Beverage: Control of automated production lines, packaging systems, and ingredient mixing processes
-
Manufacturing & Automation: Used in general manufacturing for automated assembly lines, robotic systems, and packaging
Frequently Asked Questions (FAQ)
Q1: What is the TK-FXX102 frame used for?
It is used to house various control and communication modules for the Honeywell Experion LS System, enabling the system to control and monitor industrial processes.
Q2: How many modules can the TK-FXX102 frame hold?
The frame supports up to 16 I/O and control modules, depending on the configuration.
Q3: Can the frame be used in outdoor environments?
The frame is rated to IP20, meaning it is suitable for indoor use. For outdoor environments, additional protection or enclosures may be required.
Q4: What power does the TK-FXX102 frame require?
The frame operates with a nominal 24 VDC input, but the total power consumption will depend on the specific configuration of modules and components.
Q5: Can the frame be mounted in a rack?
Yes, the frame can be mounted on DIN rails, racks, or control panels, depending on system design requirements.
Q6: Is redundancy supported by the frame?
Yes, the frame can support redundant configurations to ensure system availability for critical applications.
Q7: What is the operating temperature range of the frame?
The frame operates in environments with temperatures ranging from 0°C to +55°C.
Q8: Is the frame easy to maintain and upgrade?
Yes, the modular design of the frame allows for easy module replacement and system upgrades with minimal downtime.
Q9: Is the TK-FXX102 frame compliant with international standards?
Yes, the frame complies with CE, UL, and IEC standards for industrial safety and performance.
Q10: Can the frame be used in hazardous areas?
The frame is not rated for hazardous locations. For hazardous environments, consult Honeywell for suitable components with appropriate certifications.
