Product Overview

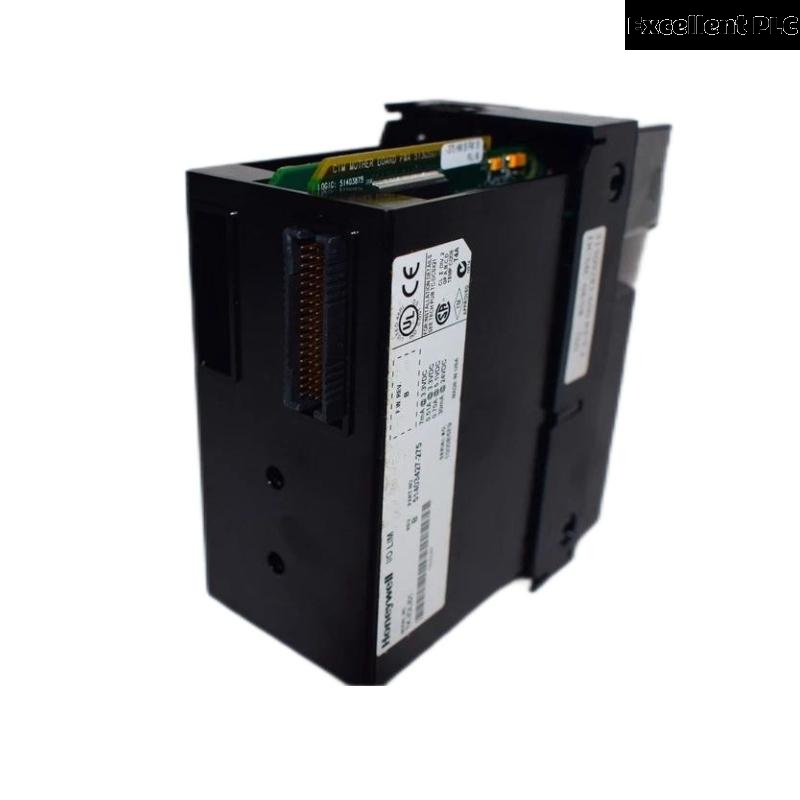

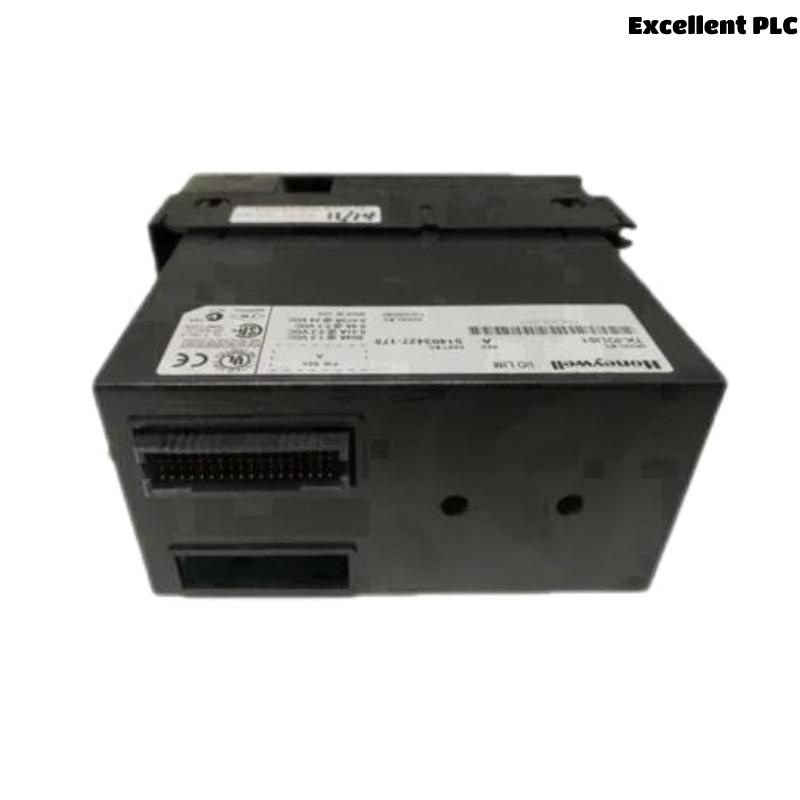

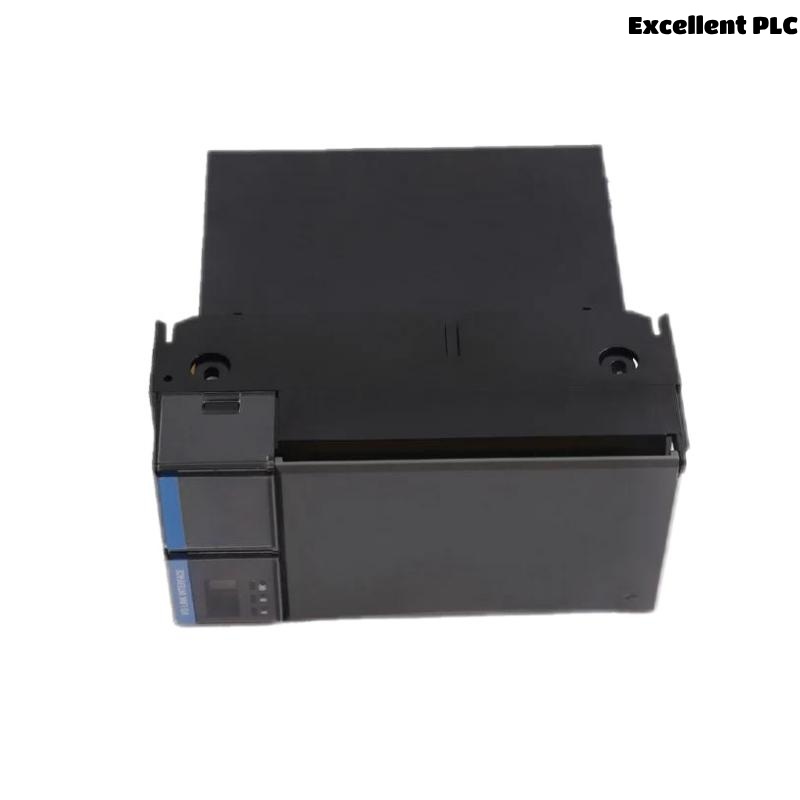

The Honeywell TK-IOLI01 51309283-600 I/O Link Interface Module is an essential component within the Honeywell Experion LS Process Control System, designed to provide seamless communication and integration between remote I/O devices and the central control system. The module serves as a bridge for various field devices such as sensors, actuators, and controllers, converting signals to a format compatible with the Experion LS system.
The TK-IOLI01 facilitates the transfer of data between I/O devices and the Experion LS, supporting both analog and digital signals. This module supports a range of input/output configurations, ensuring flexibility for integration in a wide range of industrial applications. Its robust construction, ease of integration, and industrial-grade reliability make it an ideal solution for critical process control environments.
Key Features
-
Seamless Integration: Designed to integrate field I/O devices with the Experion LS control system, facilitating real-time data transfer and processing
-
Multi-Protocol Support: Supports multiple communication protocols for versatile device connectivity
-
High-Speed Data Transfer: Ensures fast and reliable data transmission between field devices and the control system
-
Flexible I/O Connectivity: Compatible with a wide range of digital and analog I/O signals
-
Real-Time Diagnostics: Integrated diagnostics provide real-time monitoring of module health and communication status
-
Compact Design: Space-efficient and modular for easy installation and future upgrades
-
Durable Construction: Industrial-grade build for reliable performance in harsh process environments
-
Plug-and-Play Installation: Simplifies module installation and system expansion with minimal configuration required
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | Experion LS I/O Link Interface Module |
| Model Number | TK-IOLI01 51309283-600 |
| System Compatibility | Honeywell Experion LS Process Control System |
| I/O Link Ports | 4 I/O link ports for connectivity with field devices |
| Supported Protocols | Modbus TCP, OPC, Ethernet/IP, Profibus, etc. |
| Data Transfer Rate | High-speed data transfer for real-time process control |
| Power Supply | Powered via the Experion LS backplane |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -40°C to +70°C |
| Mounting Type | DIN rail or panel-mounted |
| Environmental Protection | IP20 rating, suitable for indoor use |
| Diagnostics | Real-time health and fault diagnostics |
| Dimensions | 160 × 120 × 70 mm |
| Weight | 1.0 kg |
| Certifications | CE, UL, RoHS, IEC compliant |
Product Advantages
-
Enhanced System Integration: Simplifies the connection of field devices to the Experion LS system, ensuring smooth data flow across various I/O types
-
Versatile Communication Support: Supports multiple communication protocols for wide-ranging device compatibility
-
Fast and Reliable Data Transfer: Ensures that real-time data is accurately and swiftly transferred between I/O devices and the control system
-
Modular and Space-Efficient Design: Compact form factor allows for easy installation and future scalability without taking up excessive space
-
Industrial-Grade Durability: Designed for demanding industrial environments, offering protection against electrical noise and environmental factors
-
Continuous Diagnostics: Built-in diagnostic capabilities enable proactive maintenance and reduce unplanned downtime
-
Simple Installation: Plug-and-play functionality simplifies installation, reducing setup time and labor costs
Industry Applications
The Honeywell TK-IOLI01 51309283-600 I/O Link Interface Module is ideal for industries where robust, real-time data transfer and control are essential:
-
Oil & Gas: Facilitates integration of field instrumentation for production, refining, and transportation systems
-
Chemical & Petrochemical: Connects field devices for monitoring and controlling critical process parameters in chemical plants
-
Power Generation: Interfaces with instrumentation and control devices in power plants, ensuring reliable and accurate control of turbines, boilers, and generators
-
Water & Wastewater Treatment: Connects I/O devices such as pumps, chemical dosing units, and filtration systems for efficient water treatment processes
-
Pharmaceutical & Life Sciences: Enables control and monitoring of equipment used in the production of pharmaceutical products, ensuring compliance with industry regulations
-
Food & Beverage: Integrates various sensors and actuators for process control in food and beverage manufacturing plants
-
Industrial Automation & Manufacturing: Used in a variety of manufacturing plants for automated assembly lines, robotic control, and process monitoring
Frequently Asked Questions (FAQ)
Q1: What does the TK-IOLI01 module do?
The TK-IOLI01 serves as an interface between field devices and the Experion LS system, enabling seamless communication and data transfer.
Q2: How many I/O ports are available on the TK-IOLI01 module?
The module has 4 I/O link ports for connecting field devices to the control system.
Q3: Which communication protocols are supported?
The module supports a variety of protocols, including Modbus TCP, OPC, Ethernet/IP, and Profibus.
Q4: What types of signals can the module handle?
The module can handle both analog and digital signals from a wide range of field devices.
Q5: How does the TK-IOLI01 help with system diagnostics?
It provides real-time health monitoring and fault detection, enabling early detection of issues to minimize downtime.
Q6: Can the module be used in outdoor environments?
The TK-IOLI01 has an IP20 rating, meaning it is suitable for indoor use. For outdoor applications, additional protection may be required.
Q7: What is the power requirement for the TK-IOLI01?
The module is powered through the Experion LS backplane, so no additional external power supply is required.
Q8: How is the module installed?
The module can be mounted on DIN rails or directly within control panels, providing flexibility in installation.
Q9: Is the module compatible with all Experion LS systems?
Yes, it is fully compatible with Honeywell’s Experion LS process control system.
Q10: How fast is the data transfer between field devices and the control system?
The module supports high-speed data transfer, ensuring real-time communication and control.
