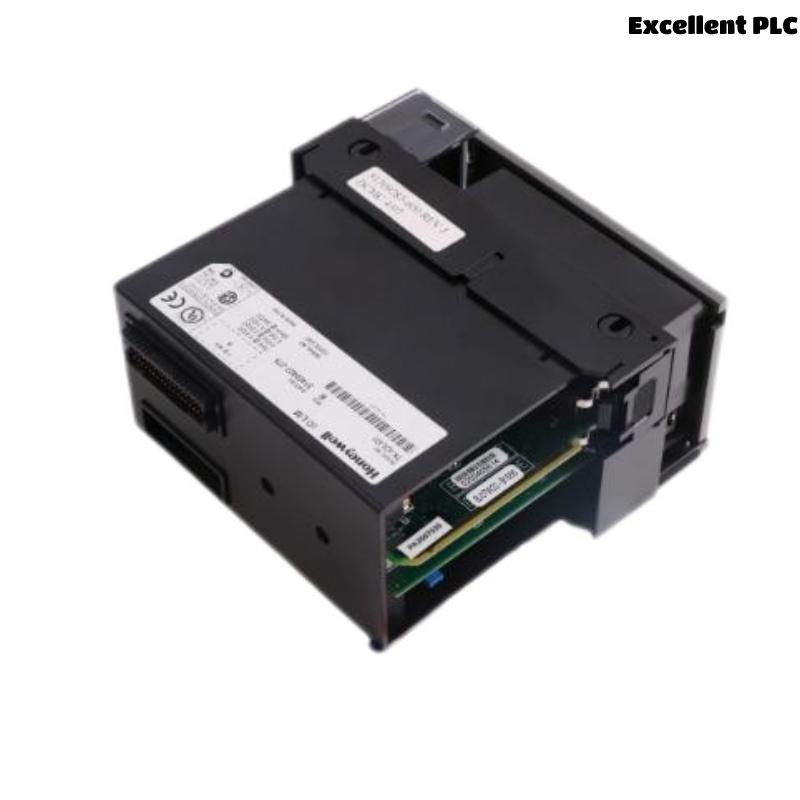

The Honeywell TK-IOLI01 51403427-275 I/O Link Interface Module is an essential part of the Experion LS Process Control System, enabling effective communication and integration of remote I/O devices. This module facilitates high-speed, real-time data transfer between field devices, such as sensors, actuators, and controllers, and the Experion LS system, allowing for accurate monitoring and control of industrial processes.
With its compact, modular design and support for multiple communication protocols, the TK-IOLI01 simplifies the connection of a wide range of analog and digital devices, ensuring scalability and future-proofing of automation systems. The module’s diagnostic capabilities further enhance system reliability, making it an ideal choice for demanding industrial environments.
Key Features
-
Flexible I/O Connectivity: Supports a wide variety of field devices by enabling communication for both analog and digital signals
-
High-Speed Data Transfer: Facilitates fast, reliable data transfer between I/O devices and the Experion LS system for real-time control and monitoring
-
Multiple Communication Protocols: Supports Modbus TCP, OPC, Ethernet/IP, Profibus, and other common protocols for broad device compatibility
-
Seamless Integration: Integrates easily with Honeywell’s Experion LS distributed control systems, simplifying system configuration and expansion
-
Built-in Diagnostics: Provides continuous monitoring of the module’s health and status, enabling early fault detection and minimizing downtime
-
Compact and Modular Design: Efficient use of space with a modular setup that allows for future system scalability
-
Industrial-Grade Durability: Built to perform reliably in harsh industrial environments, protecting against electrical noise, temperature fluctuations, and mechanical stress
-
Plug-and-Play Installation: Simplifies installation and system upgrades with automatic detection and minimal configuration required
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | Experion LS I/O Link Interface Module |
| Model Number | TK-IOLI01 51403427-275 |
| System Compatibility | Honeywell Experion LS Process Control System |
| I/O Link Ports | 4 I/O link ports for connecting remote devices |
| Supported Protocols | Modbus TCP, OPC, Ethernet/IP, Profibus, and more |
| Data Transfer Rate | High-speed, real-time data transfer for accurate control |
| Power Supply | Powered via Experion LS backplane |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -40°C to +70°C |
| Mounting Type | DIN rail or panel-mounted |
| Environmental Protection | IP20 rating, suitable for indoor use |
| Diagnostics | Real-time health monitoring and fault detection |
| Dimensions | 160 × 120 × 70 mm |
| Weight | 1.0 kg |
| Certifications | CE, RoHS, UL, IEC compliant |
Product Advantages
-
Versatile I/O Connectivity: Supports both analog and digital signals, making it compatible with a wide range of field devices and sensors
-
Fast, Reliable Data Transfer: Ensures accurate, real-time communication for effective process control and monitoring
-
Flexible Protocol Support: Multiple protocol options make it easy to integrate with existing systems, expanding system capabilities with minimal changes
-
Continuous Diagnostics: Built-in diagnostics help detect issues early, reducing the risk of downtime and enabling proactive maintenance
-
Space-Efficient, Modular Design: Compact and modular, the design ensures minimal footprint and scalability for future expansion
-
Durable and Reliable: With industrial-grade durability, the module is designed to perform in harsh environmental conditions, ensuring long-term reliability
-
Quick and Easy Installation: Plug-and-play functionality reduces setup time, enhancing operational efficiency and minimizing installation costs
Industry Applications
The Honeywell TK-IOLI01 51403427-275 I/O Link Interface Module is ideal for industries that rely on real-time process control, data acquisition, and remote I/O integration:
-
Oil & Gas: Facilitates the integration of field devices in production, refining, and distribution systems
-
Chemical & Petrochemical: Connects sensors and actuators for controlling chemical processes in manufacturing and processing plants
-
Power Generation: Interfaces with critical control systems in power plants, ensuring stability and efficiency in turbines, boilers, and generators
-
Water & Wastewater Treatment: Enables I/O connectivity for pumps, filtration systems, and chemical dosing units in water treatment processes
-
Pharmaceutical & Life Sciences: Provides secure, real-time data acquisition for manufacturing operations that require compliance with regulatory standards
-
Food & Beverage: Connects I/O devices for process control in automated food production lines, ensuring product consistency and safety
-
Industrial Automation & Manufacturing: Integrates I/O devices in various automation and manufacturing applications, including robotic systems, assembly lines, and control processes
Frequently Asked Questions (FAQ)
Q1: What is the function of the TK-IOLI01 51403427-275?
The module provides a reliable interface between remote I/O devices and the Experion LS control system, enabling fast and accurate data transfer for process monitoring and control.
Q2: How many I/O ports does the module support?
The module has 4 I/O link ports for connecting various field devices to the control system.
Q3: Which communication protocols are supported by the TK-IOLI01?
It supports Modbus TCP, OPC, Ethernet/IP, Profibus, and other industrial communication protocols.
Q4: Can the module handle both analog and digital signals?
Yes, the module supports both analog and digital signals, providing flexibility in device integration.
Q5: How does the module help ensure system reliability?
The TK-IOLI01 includes integrated diagnostics that provide real-time monitoring of the module’s performance and detect faults early to prevent unplanned downtime.
Q6: Is the module easy to install?
Yes, the module features plug-and-play functionality, simplifying installation and configuration without requiring extensive setup.
Q7: What is the operating temperature range of the module?
The operating temperature range is 0°C to +55°C, making it suitable for typical industrial environments.
Q8: Is the module compatible with all Experion LS systems?
Yes, it is fully compatible with Honeywell’s Experion LS process control systems.
Q9: Can this module be used outdoors?
The module has an IP20 rating, which makes it suitable for indoor use. For outdoor applications, additional protective enclosures are required.
Q10: How does the module provide real-time diagnostics?
It continuously monitors the health of the module and its communication status, providing feedback on potential issues to reduce system downtime.
