Product Overview

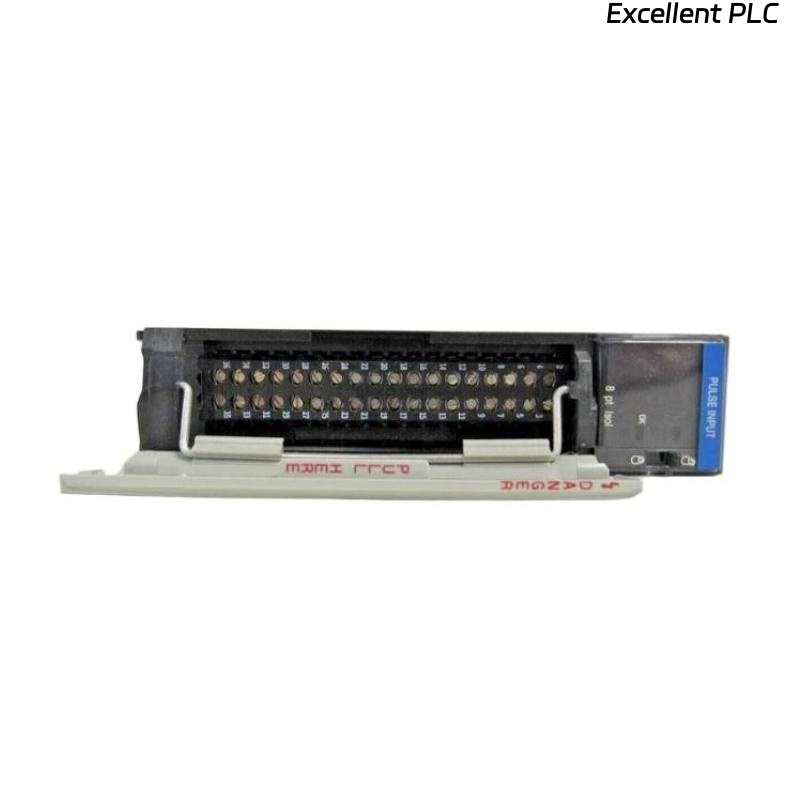

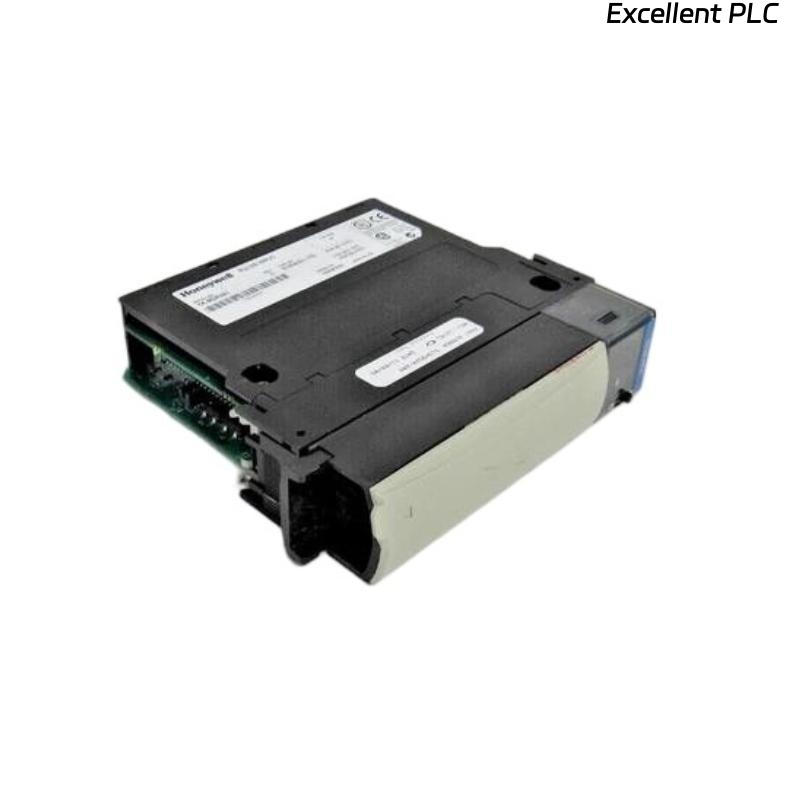

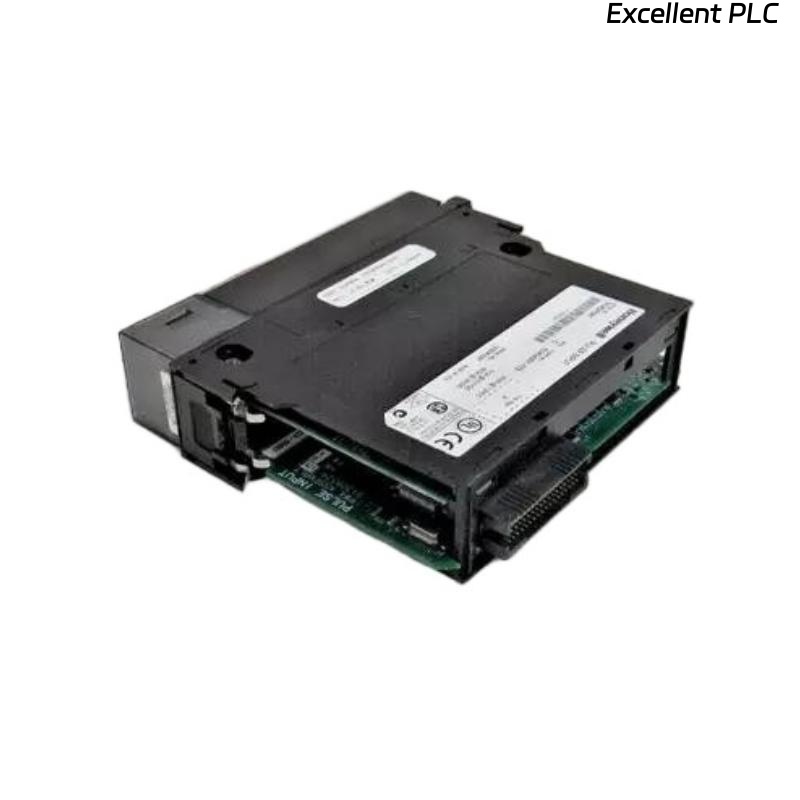

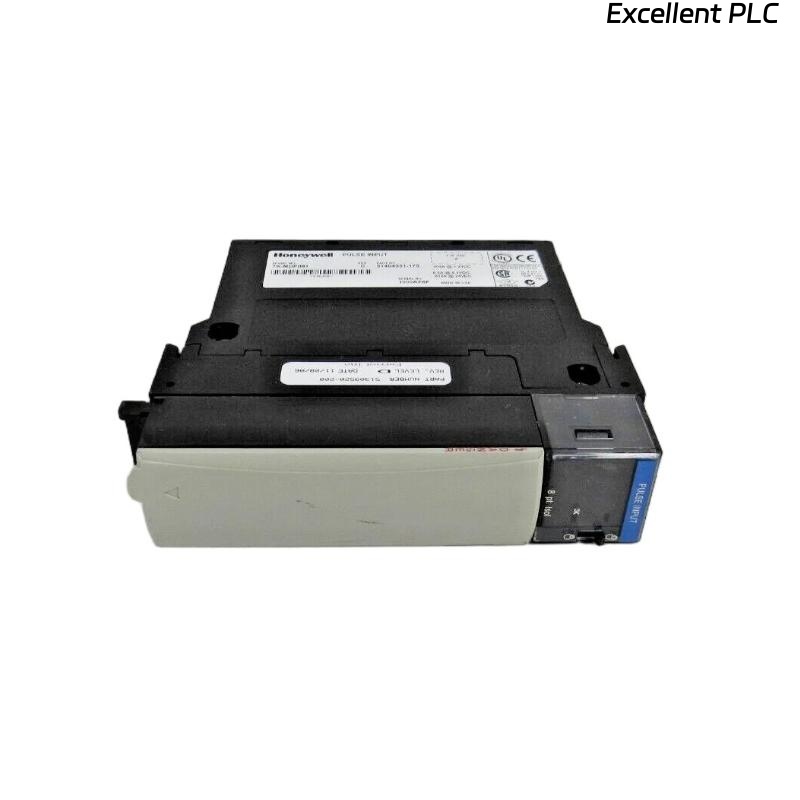

The Honeywell TK-MDP081 Pulse Input Module is designed for accurate counting and monitoring of pulse signals in Honeywell process automation and control systems. It enables precise measurement of flow, speed, and other pulse-based signals, ensuring reliable process control in industrial environments.
Key Features
-
Accurate pulse signal monitoring for industrial applications
-
Supports multiple pulse input channels for flexible integration
-
Compact, rack-mountable design for easy installation
-
High reliability in harsh industrial environments
-
Compatible with Honeywell TK series and related modules
-
Enhances system data accuracy and process monitoring
-
Designed for real-time process control applications
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | Pulse Input Module |
| Model Number | TK-MDP081 |
| Number of Channels | Multiple pulse input channels |
| Input Type | Digital pulse signals |
| Rack Compatibility | TK series racks |
| Power Supply | Via TK rack backplane |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% to 95%, non-condensing |
| Dimensions | 300 x 200 x 200 mm |
| Weight | 0.27 kg |
Industry Applications
-
Flow monitoring in chemical, oil & gas, and water treatment processes
-
Speed measurement in motors, pumps, and rotating machinery
-
Industrial automation requiring accurate pulse counting
-
Process monitoring in pharmaceutical and food & beverage industries
-
Control systems where precise signal acquisition is critical
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the TK-MDP081?
It counts and monitors pulse signals for process measurement and control.
Q2: How many channels does it support?
It supports multiple pulse input channels (depending on configuration).
Q3: Is it compatible with TK series racks?
Yes, it is designed for plug-in installation in TK series racks.
Q4: What types of signals can it handle?
Digital pulse signals from flow meters, tachometers, and other devices.
Q5: What is the operating temperature range?
0°C to 55°C.
Q6: How is it powered?
Via the TK rack backplane.
Q7: Can it operate in harsh industrial environments?
Yes, it is built to withstand industrial temperature and humidity conditions.
Q8: Is it suitable for real-time process monitoring?
Yes, it is designed for real-time signal acquisition and monitoring.
Q9: How precise is pulse counting?
It provides high-accuracy pulse counting suitable for flow and speed measurements.
Q10: Is installation complex?
No, it is a plug-in module designed for easy integration into TK series racks.
Related Models
| Model Number | Description |
|---|---|
| TK-MDP082 | Pulse Input Module with Higher Channel Count |
| TK-MDP083 | Redundant Pulse Input Module |
| TK-MDP084 | High-Speed Pulse Input Module |
| TK-IOM01 | TK Series I/O Module |
| TK-CPU01 | TK Series Controller CPU Module |
| TK-PSU01 | TK Series Power Supply Module |
