Product Description

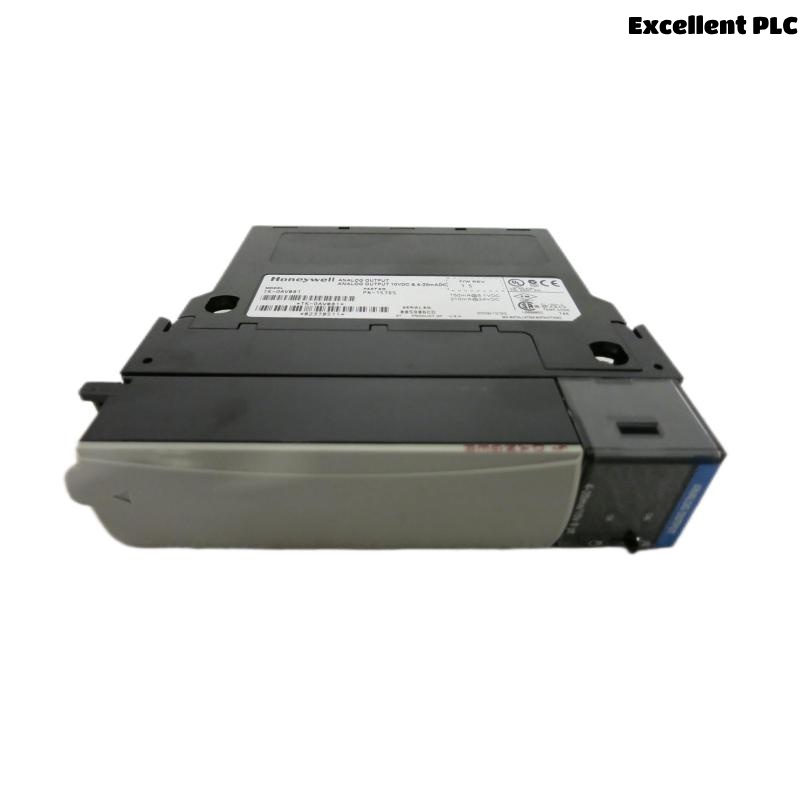

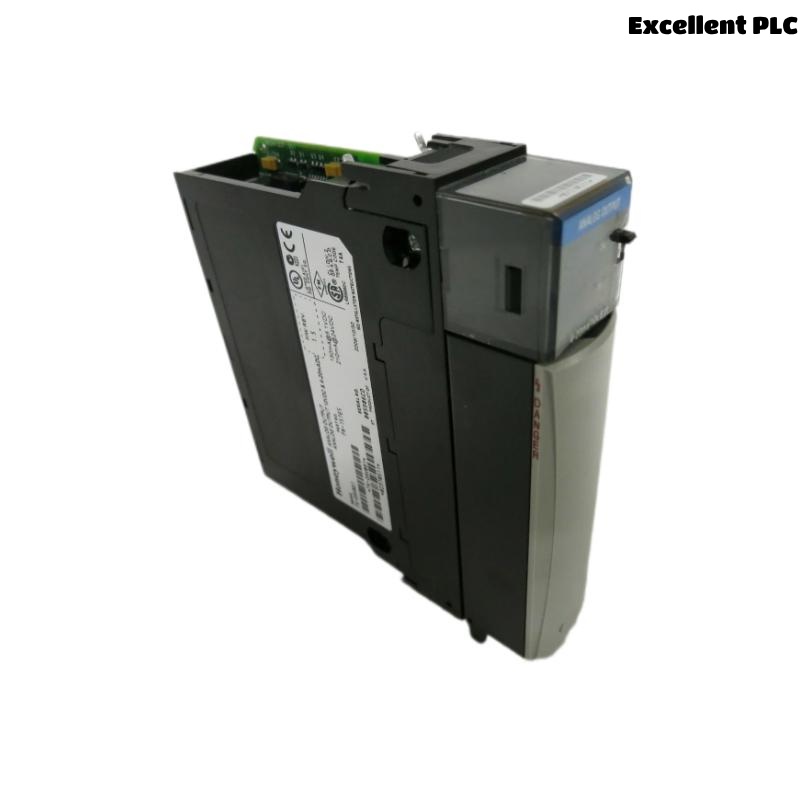

The Honeywell TK-OAV081 is an 8-channel non-isolated analog output module designed for use in ControlEdge systems. Supporting both current (4–20 mA) and voltage (0–10 V) outputs, it offers precise and reliable analog signal control for industrial process applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | TK-OAV081 |
| Type | Analog Output Module (non-isolated) |
| Number of Channels | 8 |
| Output Signal Range | 4–20 mA / 0–10 V |
| Isolation | Non-isolated |
| Resolution | 12-bit |
| Accuracy | ±0.1% Full Scale |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Power Supply | 24 VDC |
| Dimensions (W×H×D) | 114 × 50 × 120 mm |
| Weight | 0.4 kg |
Applications
Distributed Control Systems (DCS)
Industrial automation and process control
Analog signal control for actuators, valves, and regulators
Chemical, oil & gas, water treatment, and manufacturing industries
Product Advantages
Supports both current and voltage analog output
Compact and space-saving design
Reliable performance under industrial conditions
Seamless integration with ControlEdge systems
Easy configuration and maintenance
Frequently Asked Questions (FAQ)
Q1: How many output channels does the TK-OAV081 have?
A1: It provides 8 analog output channels.
Q2: What types of signals can it output?
A2: It can output 4–20 mA current and 0–10 V voltage signals.
Q3: Is the module output isolated?
A3: No, TK-OAV081 is a non-isolated analog output module.
Q4: What is the resolution of each output channel?
A4: Each output channel has a 12-bit resolution.
Q5: Can it be used in high-vibration environments?
A5: It is suitable for industrial environments, but additional dampening is recommended for high-vibration areas.
Q6: What are the installation dimensions?
A6: 114 mm (W) × 50 mm (H) × 120 mm (D).
Q7: How much does the TK-OAV081 weigh?
A7: Approximately 0.4 kg.
Q8: Can this module be hot-swapped?
A8: No, it is not designed for hot-swap capability.
Q9: What is the operating temperature range?
A9: It operates between 0°C and 60°C.
Q10: Is it compatible with Honeywell Safety Manager systems?
A10: It is primarily designed for ControlEdge and similar Honeywell systems. Compatibility should be confirmed per system integration specifications.
Related Honeywell Models in the Same Series
| Model | Description | Channels | Output Type | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| TK-OAV041 | Analog Output Module (4 ch) | 4 | 4–20 mA / 0–10 V | 114 × 50 × 120 | 0.4 kg |
| TK-OAV061 | Analog Output Module (6 ch, voltage) | 6 | 0–10 V | 114 × 50 × 120 | 0.4 kg |
| TK-OAH061 | Analog Output Module (6 ch, current) | 6 | 4–20 mA | 114 × 50 × 120 | 0.4 kg |
| TK-HAO081 | HART Analog Output Module (8 ch) | 8 | 4–20 mA (HART) | 114 × 50 × 120 | 0.4 kg |
| TC-OAV081 | Analog Output Module (standard ver.) | 8 | 4–20 mA / 0–10 V | 114 × 50 × 120 | 0.4 kg |
| TC-OAH061 | Analog Output Module (6 ch current) | 6 | 4–20 mA | 114 × 50 × 120 | 0.4 kg |
