Product Overview

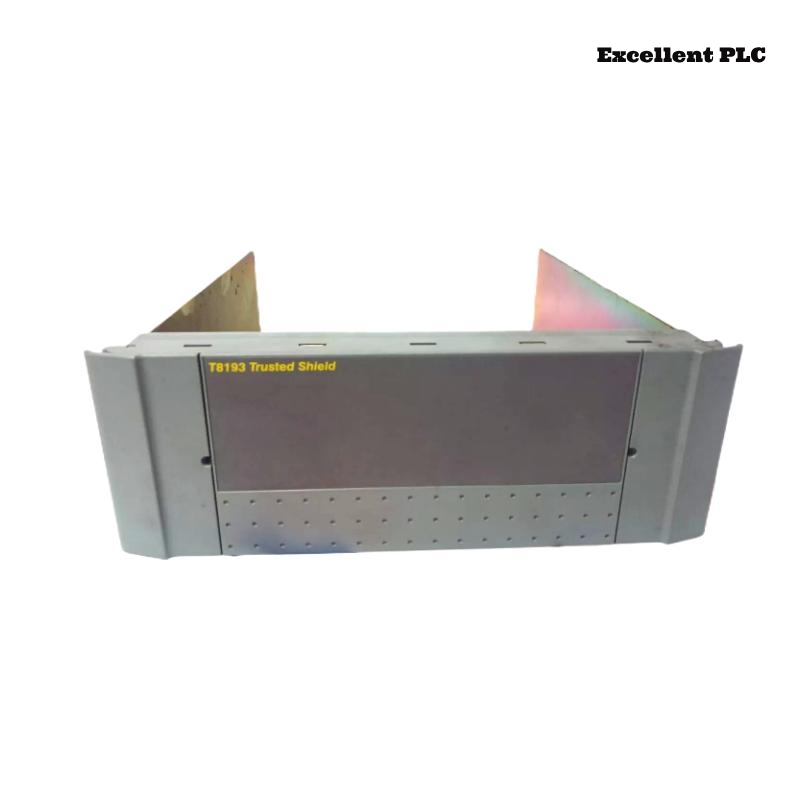

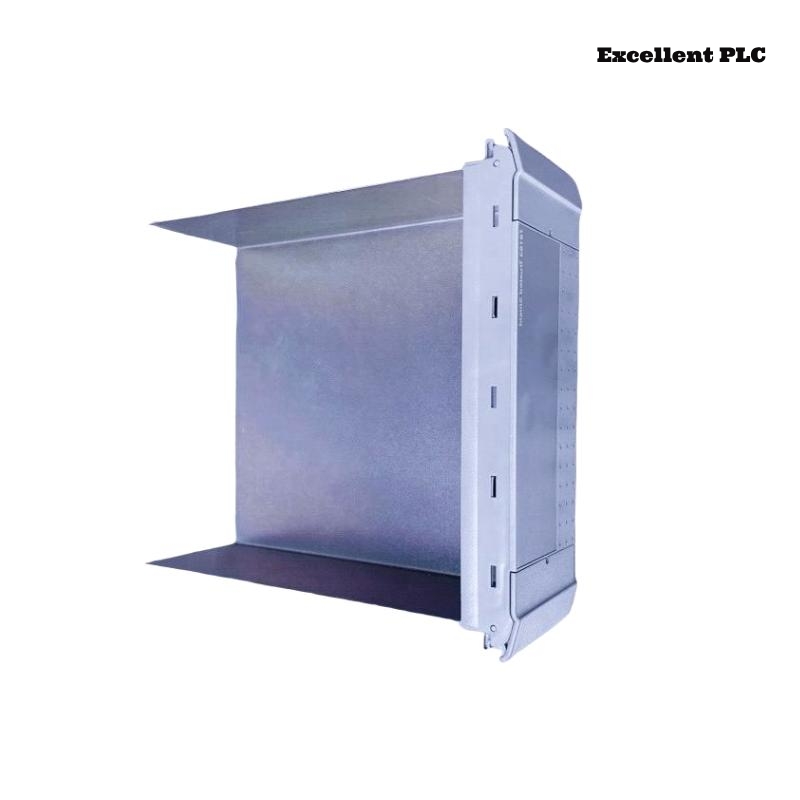

The ICS Triplex T8193 is part of the ICS Triplex family of industrial control systems, specifically designed for safety-critical applications. It is widely used in industries like oil and gas, power generation, and chemical processing, where uptime and reliability are paramount. The T8193 module plays a crucial role in controlling safety systems with high availability, fault tolerance, and operational flexibility.
It integrates seamlessly with the ICS Triplex Safety System (TMR – Triple Modular Redundant) architecture, providing redundant safety control for process plants. The T8193 is built with advanced diagnostics and robust communication protocols to ensure smooth operation even in harsh industrial environments.
Product Specifications
| Specification | Details |
|---|---|
| Model Number | T8193 |
| Type | Trusted Three Slot Width Shield |
| Application | Industrial Process Control |
| Communication Protocols | Modbus, HART, Ethernet |
| Voltage | 24V DC (nominal) |
| Inputs | 8 Digital Inputs (sink/source) |
| Outputs | 8 Digital Outputs (relay-based) |
| Dimensions (HxWxD) | 150 × 120 × 45 mm |
| Weight | 0.72 kg |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Consumption | 5W |
| Certifications | UL, ATEX, CE |
| Safety Integrity Level | SIL 3 |
Applications
The ICS Triplex T8193 module is designed for use in environments where high availability and fault tolerance are critical. Its applications include:
- Safety Instrumented Systems (SIS) – Ensuring safe shutdown in case of hazardous conditions.
- Process Control – Continuous monitoring and control of industrial processes.
- Emergency Shutdown Systems (ESD) – Ensuring processes shut down safely during emergencies.
- Fire and Gas Detection – Monitoring sensors for fire and gas hazards.
- Pump and Valve Control – Reliable monitoring and control of pumps and valves in critical processes.
Advantages
-
High Reliability and Fault Tolerance: The T8193 operates in a Triple Modular Redundant (TMR) configuration, ensuring that a failure in one module will not impact the system. This ensures continuous operation and reduces the risk of downtime.
-
Wide Operating Temperature Range: It can operate in extreme industrial environments, with a temperature range from -40°C to 70°C, making it ideal for use in outdoor or harsh indoor environments.
-
Safety Integrity Level (SIL 3): This module is certified for SIL 3, ensuring the highest level of safety for critical industrial processes. It meets stringent standards for safety and reliability.
-
Seamless Integration: The T8193 integrates easily with other ICS Triplex systems, such as the T8100 series, ensuring a smooth overall system setup and maintenance.
-
Advanced Diagnostics: Built-in diagnostics help detect faults early, allowing for preventive maintenance and minimizing unplanned downtime.
-
Modular Design: Its modular structure allows for easy scalability and system expansion, making it ideal for both small and large operations.
Latest News
-
“ICS Triplex T8193 Achieves SIL 3 Certification for Industrial Safety”
ICS Triplex has announced that the T8193 module has passed the rigorous safety assessments and is officially certified for SIL 3, providing users with enhanced safety features. -
“ICS Triplex T8193 Integration with New Digital Twins in Industrial Processes”
ICS Triplex T8193 modules are now compatible with digital twin technology, allowing for real-time simulation of industrial processes and proactive risk management. -
“ICS Triplex T8193 and the Future of Safety in the Oil and Gas Sector”
With the increasing complexity of oil and gas operations, the T8193 module is being integrated into more facilities to ensure safety and compliance with industry standards.
Frequently Asked Questions (FAQ)
-
What is the ICS Triplex T8193 used for?
The T8193 is primarily used in safety-critical applications, including Safety Instrumented Systems (SIS), Emergency Shutdown Systems (ESD), and fire and gas detection in industrial environments. -
What is the power requirement for the T8193?
The module operates on a nominal 24V DC power supply and consumes around 5W of power. -
What safety certifications does the T8193 have?
It has certifications for SIL 3, UL, ATEX, and CE, making it suitable for hazardous environments. -
How many inputs and outputs does the T8193 support?
The module provides 8 digital inputs and 8 digital relay-based outputs. -
What temperature range can the T8193 handle?
The T8193 can operate within a temperature range of -40°C to 70°C. -
Can the T8193 be integrated with existing ICS Triplex systems?
Yes, the T8193 integrates seamlessly with other ICS Triplex modules and systems for enhanced safety and control. -
Is the T8193 suitable for use in outdoor environments?
Yes, its wide operating temperature range and rugged design make it ideal for outdoor use in harsh conditions. -
What communication protocols does the T8193 support?
The T8193 supports Modbus, HART, and Ethernet communication protocols, allowing it to interface with various industrial systems. -
How does the T8193 ensure fault tolerance?
The T8193 uses Triple Modular Redundancy (TMR), meaning it can continue to operate even if one module fails. -
What is the weight of the T8193 module?
The module weighs approximately 0.72 kg, making it compact and easy to install.
