Product Overview

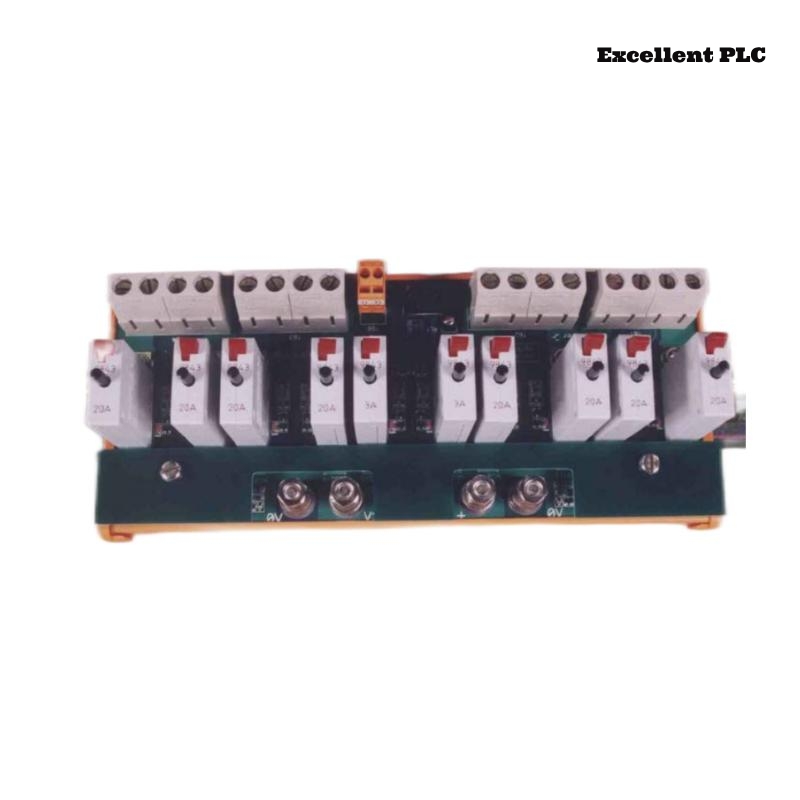

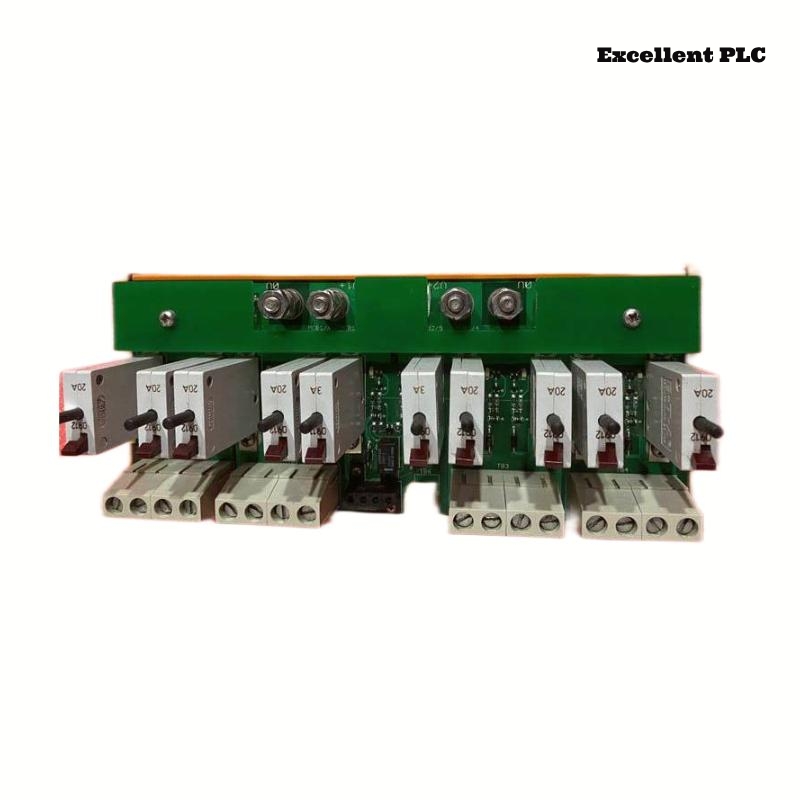

The ICS Triplex T8292 is an advanced Trusted Power Distribution Unit designed for use in industrial environments where high reliability and safety standards are required. The module is specifically engineered for safety-critical applications and integrates seamlessly into ICS Triplex safety systems. It ensures robust control and monitoring of various industrial processes, providing enhanced fault tolerance and operational efficiency. The T8292 is ideal for use in sectors such as oil and gas, chemical processing, and power generation, where uptime and safety are non-negotiable.
The module utilizes Triple Modular Redundancy (TMR) architecture, ensuring that even if one component fails, the system remains fully functional. This design maximizes system uptime and minimizes the risk of failure in hazardous environments. Additionally, the T8292 module offers extensive diagnostic capabilities to ensure early fault detection, which helps in performing predictive maintenance and reducing unplanned downtime.
Product Specifications
| Specification | Details |
|---|---|
| Model Number | T8292 |
| Type | Trusted Power Distribution Unit |
| Application | Industrial Process Control |
| Inputs | 16 Digital Inputs (sink/source) |
| Outputs | 16 Digital Outputs (relay-based) |
| Communication Protocols | Modbus, Ethernet, HART |
| Voltage | 24V DC (nominal) |
| Dimensions (HxWxD) | 108 x 240 x 109 mm |
| Weight | 0.823 kg |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Consumption | 6W |
| Certifications | UL, ATEX, CE, IECEx |
| Safety Integrity Level (SIL) | SIL 3 |
Applications
The ICS Triplex T8292 module serves multiple critical roles across various industries. Key applications include:
-
Safety Instrumented Systems (SIS)
The T8292 provides reliable input/output channels for Safety Instrumented Systems, helping to monitor and control safety-related processes. -
Emergency Shutdown Systems (ESD)
It plays a vital role in triggering emergency shutdown protocols during hazardous situations, ensuring the safety of both personnel and assets. -
Process Control Systems
The T8292 ensures safe and reliable control of industrial processes, including valve control, flow measurement, and more. -
Fire and Gas Detection
The module interfaces with fire and gas detectors, providing inputs and outputs that trigger safety responses during emergencies. -
Pump and Valve Monitoring
It is used to monitor pumps, valves, and other critical equipment, ensuring they operate within safe parameters.
Advantages
-
High Fault Tolerance
The T8292 utilizes Triple Modular Redundancy (TMR) to ensure high fault tolerance. If one component fails, the system remains fully operational, reducing downtime and maintaining safety. -
SIL 3 Certification
The T8292 is certified to Safety Integrity Level 3 (SIL 3), ensuring it meets the highest safety standards for industrial applications. It is suitable for industries that require a high level of safety assurance. -
Robust Design
Built to withstand extreme environmental conditions, the T8292 operates in temperatures ranging from -40°C to 70°C, making it suitable for use in outdoor and harsh indoor environments. -
Comprehensive Diagnostics
The T8292 module includes advanced diagnostics that help detect issues before they lead to failures, allowing for preventive maintenance and reducing downtime. -
Seamless Integration
Designed to integrate easily into the ICS Triplex architecture, the T8292 can be added to existing systems without disrupting operations. It supports Modbus, Ethernet, and HART protocols. -
Compact and Efficient
Despite its powerful capabilities, the T8292 is compact and lightweight, making it easy to install in space-constrained environments.
Latest News
-
“ICS Triplex T8292 Module Receives SIL 3 Certification”
ICS Triplex announced that the T8292 has officially achieved SIL 3 certification, ensuring that it meets the highest industrial safety standards for critical applications. -
“ICS Triplex T8292 Enhances Process Control in Chemical Plants”
The T8292 has been successfully implemented in chemical processing plants to improve safety and ensure that operations remain smooth even under extreme conditions. -
“ICS Triplex T8292 Powers Next-Gen Emergency Shutdown Systems”
The T8292 is now being used in advanced Emergency Shutdown Systems (ESD), improving response time and overall system reliability. -
“ICS Triplex T8292: Now Compatible with New Generation of Gas Detectors”
ICS Triplex has announced that the T8292 is now fully compatible with the latest generation of gas detectors, improving the reliability of fire and gas detection systems.
Frequently Asked Questions (FAQ)
-
What is the primary function of the T8292 module?
The T8292 is a Trusted Power Distribution Unit designed for use in critical industrial applications where high fault tolerance and safety are required. -
What safety certifications does the T8292 have?
The T8292 is SIL 3 certified and also complies with UL, ATEX, CE, and IECEx standards for use in hazardous areas. -
What communication protocols does the T8292 support?
The module supports Modbus, Ethernet, and HART communication protocols, providing flexibility in integration with existing systems. -
What are the input and output configurations for the T8292?
The T8292 provides 16 digital inputs (sink/source) and 16 relay-based digital outputs for flexible control and monitoring. -
What is the operating temperature range of the T8292?
The T8292 can operate in temperatures ranging from -40°C to 70°C, making it suitable for a wide range of industrial environments. -
How does the T8292 ensure high reliability?
The module uses Triple Modular Redundancy (TMR) to ensure that even if one component fails, the system continues to operate. -
Can the T8292 module be used in outdoor environments?
Yes, the T8292 is designed for use in both indoor and outdoor environments, with a wide operating temperature range that makes it resistant to extreme conditions. -
What is the weight of the T8292 module?
The T8292 weighs approximately 0.823 kg, making it compact and easy to install. -
Is the T8292 compatible with other ICS Triplex systems?
Yes, the T8292 integrates seamlessly with other ICS Triplex modules and systems, enhancing overall safety and performance. -
What is the power consumption of the T8292?
The T8292 module consumes about 6W of power, which is efficient for continuous operation.
Related Models
Here are 10 related models from the ICS Triplex series that are compatible with or complement the T8292 module:
| Model | Description | Key Features |
|---|---|---|
| T8100 | Safety I/O Module | SIL 3, Modular Design |
| T8130 | Analog I/O Module | 4-20mA Input, SIL 3 |
| T8150 | Safety Processor Module | High Reliability, Triple Redundancy |
| T8190 | Digital Input/Output Module | SIL 3, Wide Input/Output Range |
| T8210 | High-Speed Communication Module | Ethernet, Modbus |
| T8500 | Relay Output Module | High Voltage Handling, SIL 3 |
| T8600 | Advanced Fieldbus Interface Module | HART, SIL 3 |
| T8700 | Process Control Interface | Scalable, Ethernet |
| T8800 | Signal Conditioning Module | Precision Measurements, SIL 3 |
| T8900 | Safety I/O Expansion Module | Expandable, Modular Design |
