Product Overview

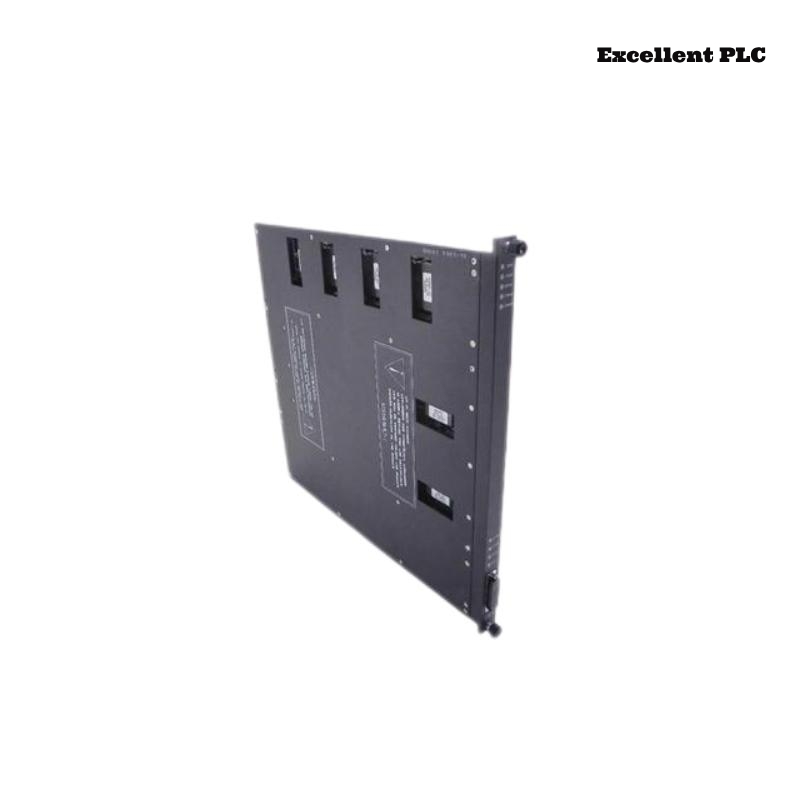

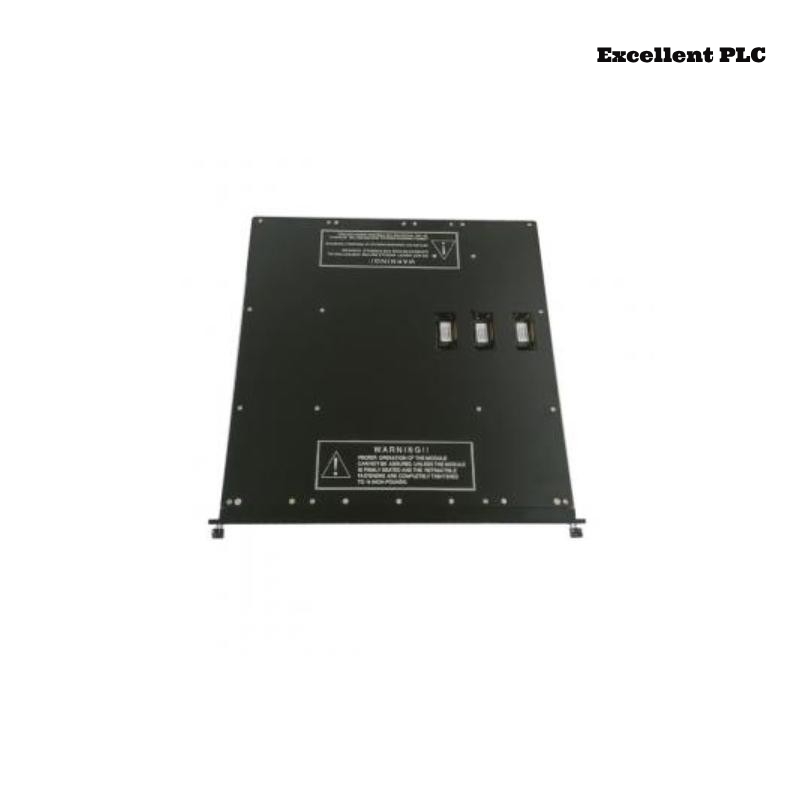

The following table outlines the technical specifications of the Invensys Tr
| Parameter | Specification |
|---|---|
| Model | Triconex 3007A |
| Type | Main Processor Module |
| Architecture | Triple Modular Redundancy (TMR) |
| Input Voltage | 24V DC |
| Output Voltage | 24V DC |
| Communication Interfaces | Ethernet, RS-485, Modbus, OPC |
| Processing Speed | High-speed real-time processing |
| Memory Capacity | 32 MB |
| Fault Tolerance | Automatic fault detection and recovery |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -55°C to 85°C |
| Humidity Resistance | 5% to 95% non-condensing |
| Shock Resistance | IEC 60068-2-27 compliant |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Safety Certifications | SIL3 (IEC 61508), TUV, ATEX, UL, CSA |
| Mounting | Rack-mounted (Tricon chassis) |
| Dimensions (L×W×H) | 228 x 160 x 75 mm |
| Weight | 1.5 kg |
Product Advantages
1. High Safety and Reliability
The Triconex 3007A is designed with Triple Modular Redundancy (TMR) technology, ensuring that the system continues to operate even in the presence of faults. It is ideal for applications requiring high availability and fail-safe performance.
2. Extensive Industrial Compatibility
The module supports multiple industrial communication protocols, including Ethernet, RS-485, Modbus, and OPC, allowing it to integrate seamlessly with existing automation systems.
3. Real-Time Processing and Fast Response
With a high-speed processor, the 3007A can execute real-time control logic and respond quickly to changes, making it perfect for critical process control applications.
4. Wide Operating Temperature and Robust Design
The -40°C to 70°C operating range ensures that the 3007A functions reliably in extreme industrial environments. It is shock and vibration resistant, making it suitable for harsh conditions in oil rigs, power plants, and chemical processing facilities.
5. Fault Detection and Self-Diagnostics
The module features built-in diagnostics and fault detection mechanisms, enabling proactive maintenance and ensuring minimal downtime.
6. Compliance with Global Safety Standards
The Triconex 3007A meets international safety certifications such as SIL3 (IEC 61508), TUV, ATEX, UL, and CSA, making it suitable for applications requiring high-integrity safety functions.
Recent Developments and News
- Triconex Expands Global Reach: Invensys continues to enhance the Triconex safety system, improving industrial control solutions worldwide.
- Enhanced Cybersecurity Features: Recent updates include improved cybersecurity protection against industrial threats.
- Triconex Systems Implemented in LNG Facilities: Major oil and gas companies are using Triconex systems to enhance safety and reliability in LNG processing plants.
For the latest updates, visit Schneider Electric Triconex official website or authorized distributors.
Frequently Asked Questions (FAQs)
1. What is the primary function of the Triconex 3007A?
The Triconex 3007A is a safety and control module used in high-integrity industrial applications to ensure system reliability and fault tolerance.
2. What industries use the Triconex 3007A?
It is commonly used in oil and gas, power generation, petrochemicals, manufacturing, and transportation industries.
3. How does the Triple Modular Redundancy (TMR) work?
TMR technology uses three independent control paths to ensure continuous operation. If one path fails, the other two maintain system integrity.
4. What communication protocols does the 3007A support?
It supports Ethernet, RS-485, Modbus, and OPC, making it compatible with various industrial networks.
5. What is the input voltage requirement?
The module operates at 24V DC.
6. Is the 3007A compliant with safety standards?
Yes, it is SIL3-certified (IEC 61508) and approved by TUV, ATEX, UL, and CSA.
7. Can the 3007A withstand harsh environments?
Yes, it operates in -40°C to 70°C, is shock and vibration resistant, and has high humidity tolerance.
8. How does it handle system faults?
The module has automatic fault detection and self-diagnostics, ensuring continuous operation and minimal downtime.
9. What are the installation requirements?
It is designed for rack mounting in a Tricon chassis, typically within DCS or ESD systems.
10. Where can I purchase the Triconex 3007A?
It is available through authorized Schneider Electric distributors and industrial automation suppliers.
