Product Description

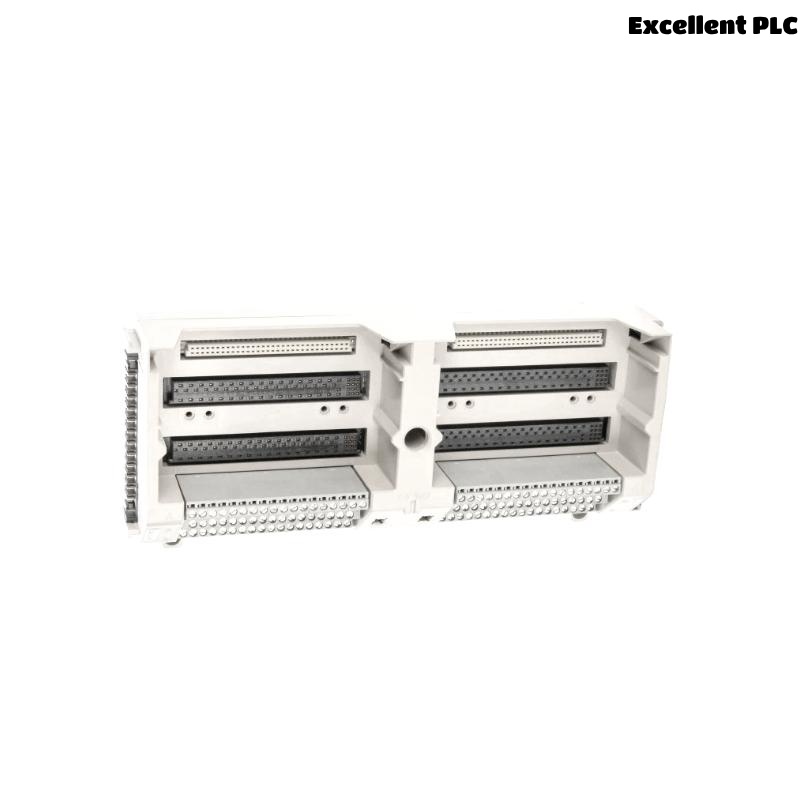

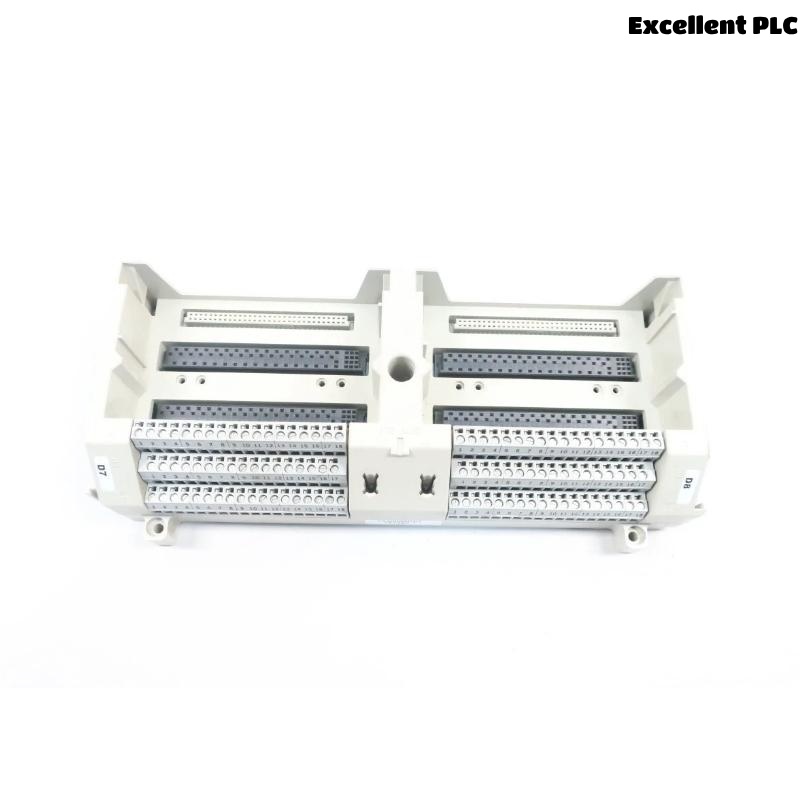

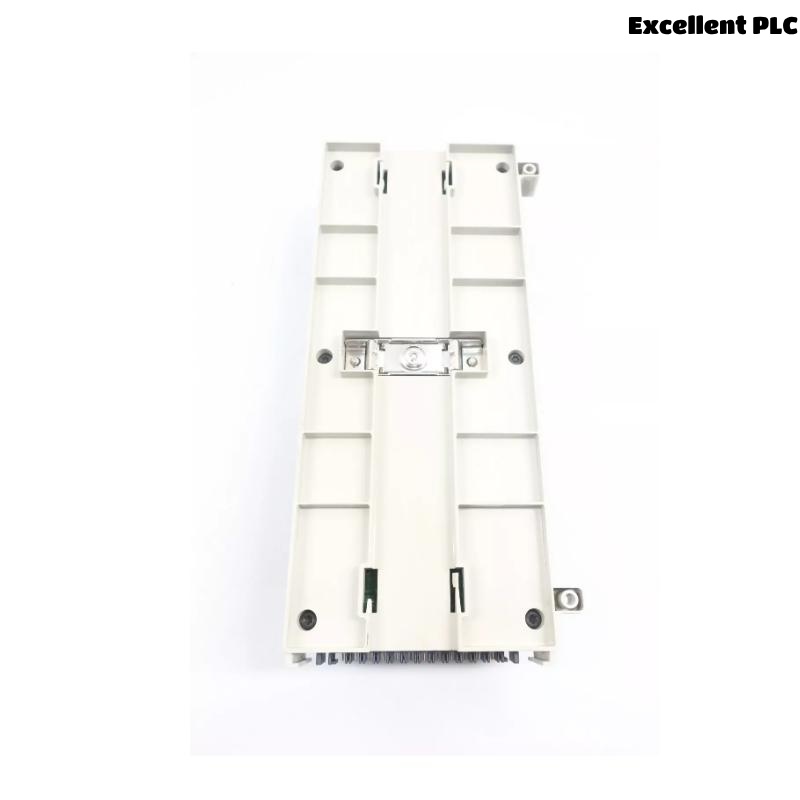

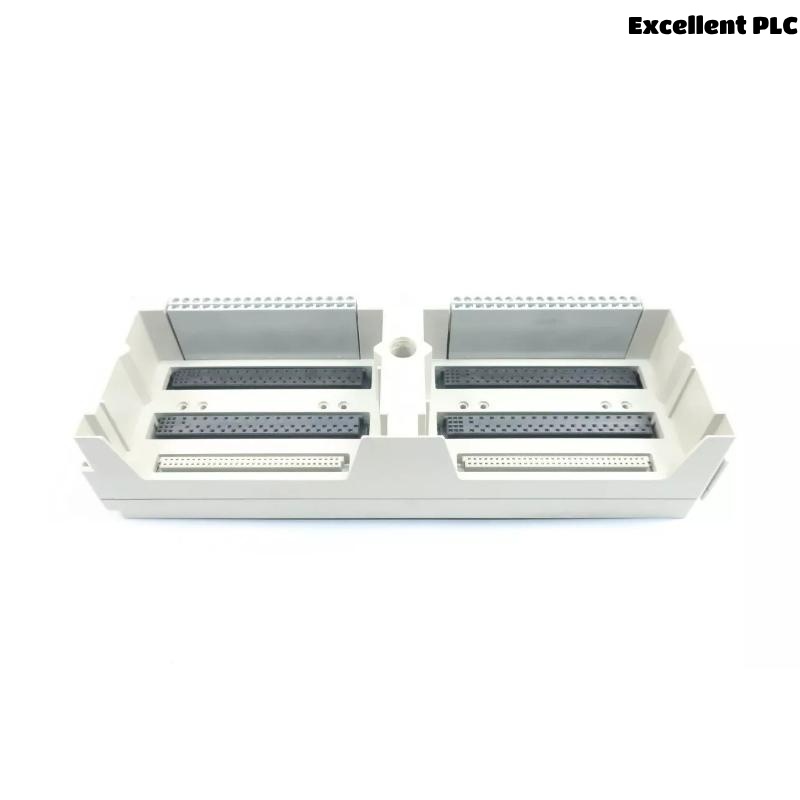

The Emerson Ovation 1B30035H01 is a 2-slot standard I/O base assembly used in Ovation Distributed Control Systems (DCS). It is engineered to serve as a physical and electrical interface for various Ovation I/O modules. This base ensures secure module mounting and efficient communication paths, forming the foundation of reliable industrial process control systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 1B30035H01 |
| Product Type | I/O Base Assembly |
| Slot Configuration | 2 Slots |
| Mounting Type | Chassis / Rack Mount |
| System Compatibility | Emerson Ovation DCS |
| Material | Industrial-grade metal/plastic |
| Dimensions (L × W × H) | 100 × 50 × 25 mm |
| Weight | 0.3 kg |
| Operating Temperature | Standard Ovation enclosure rating |
| Certification | Emerson Factory-Certified |
Applications
-
Power generation control systems
-
Water and wastewater treatment facilities
-
Oil and gas process automation
-
Chemical and petrochemical plants
-
Pulp and paper mill control systems
Advantages
-
Factory-Certified Quality: Ensures compatibility, longevity, and performance.
-
Compact Design: Ideal for installations where space is limited.
-
Standardization: Integrates seamlessly with the entire Ovation I/O suite.
-
Ease of Maintenance: Simplified replacement due to modular slot-based architecture.
-
Robust Construction: Durable design for industrial environments.
-
Enhanced Reliability: Reduced downtime with proven Ovation system performance.
Frequently Asked Questions (FAQ)
Q1: What is the function of the 1B30035H01 base assembly?
A1: It provides a mechanical and electrical platform for mounting Ovation I/O modules in a 2-slot configuration.
Q2: Is the 1B30035H01 compatible with all Ovation modules?
A2: It is compatible with most standard Ovation I/O modules designed for 2-slot base integration.
Q3: Can this base be used in high-temperature environments?
A3: It supports the standard operating temperature range of the Ovation system enclosure.
Q4: What materials are used in the base’s construction?
A4: The base is constructed with industrial-grade plastic and metal components for durability.
Q5: Does the product include any certifications?
A5: Yes, it is factory-certified by Emerson for use in Ovation control systems.
Q6: How is the base installed in the system rack?
A6: It is designed for easy installation into Ovation system chassis using standard mounting brackets.
Q7: What are the dimensions of this product?
A7: The base measures 100 mm x 50 mm x 25 mm.
Q8: What is the weight of the unit?
A8: The unit weighs approximately 0.3 kg.
Q9: What is the recommended maintenance procedure for the 1B30035H01 base?
A9: Regular visual inspection for dust, corrosion, or mechanical damage is recommended. Ensure that the base connections remain clean and tight. Avoid using harsh chemicals or excessive force during cleaning.
Q10: Can I use this base in a redundant control configuration?
A10: Yes, it is suitable for use in systems where redundancy is required, depending on the I/O module configuration.
Related Models in the Same Series
| Model Number | Description | Slots | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 1B30023H01 | I/O Bus Terminator – Internal Guides | – | 90 × 45 × 20 | 0.25 kg |
| 1C31227G01 | Analog Input PMOD (Current) 8CH | 2 | 110 × 50 × 30 | 0.35 kg |
| 1C31232G03 | Digital Input EMOD 16CH – Compact | 2 | 110 × 60 × 30 | 0.40 kg |
| 1C31224G01 | Analog Input EMOD 8CH 14-bit (4–20mA) | 2 | 100 × 50 × 30 | 0.38 kg |
| 1C31122G01 | Digital Output EMOD 16CH (5–60VDC) | 2 | 120 × 55 × 35 | 0.45 kg |
| 1C31116G04 | Analog Input PMOD (Voltage + Temp) 8CH | 2 | 110 × 50 × 30 | 0.36 kg |
Popular Emerson Models
| Model Number | Description | Application Area | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 5X00106G01 | Analog Input EMOD 8CH – HART High Performance | Analog signal acquisition | 110 × 55 × 30 | 0.40 kg |
| 5X00062G01 | Analog Output EMOD – HART 8CH 4–20mA | Field device output control | 115 × 60 × 35 | 0.42 kg |
| 1C31203G01 | Remote Node Controller EMOD | Network node communication | 125 × 60 × 40 | 0.50 kg |
| 5X00419G02 | Ethernet Link Controller w/ Time Stamp | Data networking and timestamping | 130 × 65 × 40 | 0.48 kg |
| 5X00357G05 | Enhanced Events Input EMOD 16CH (24V Differential) | Event monitoring and diagnostics | 120 × 55 × 35 | 0.43 kg |
| 1C31166G02 | Link Controller EMOD (R1120 CPU) | System control processing | 130 × 65 × 40 | 0.46 kg |
