Product Introduction

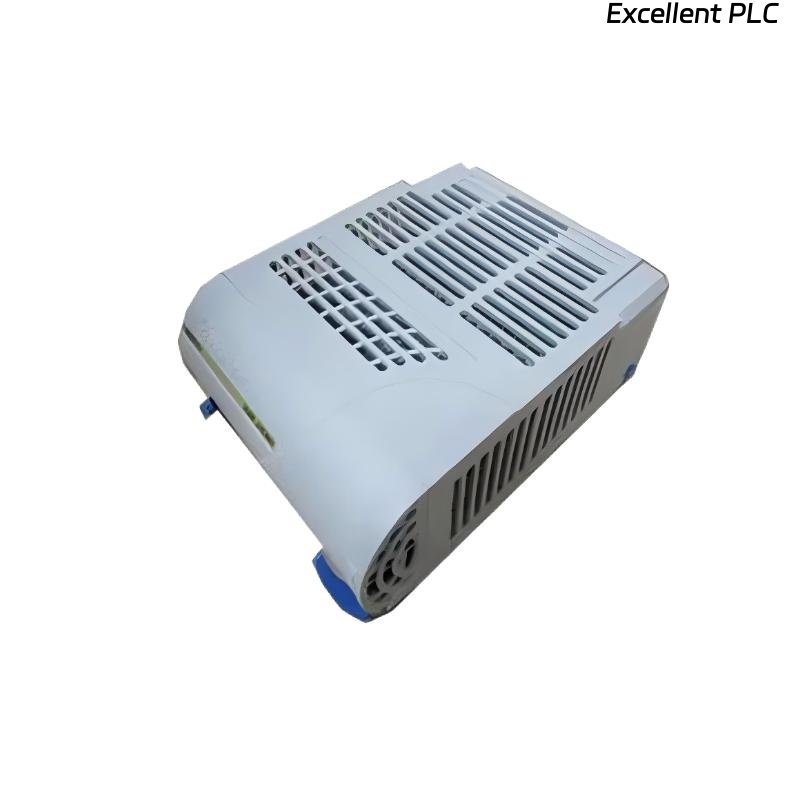

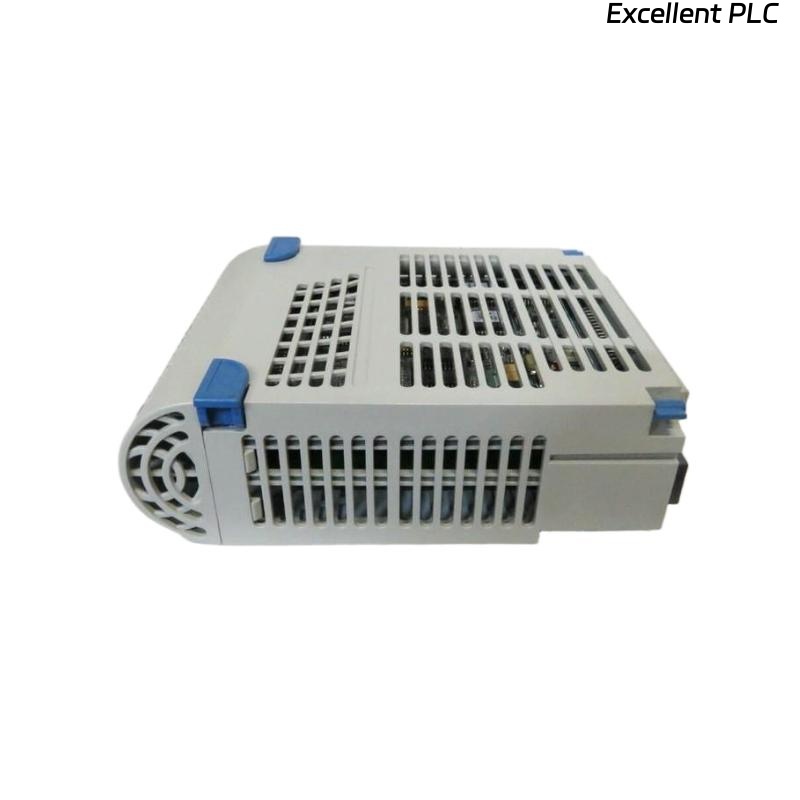

The Ovation 1C31025G02 Digital Output Module is a high-performance and reliable module designed to provide digital output for industrial control systems. Part of the Ovation control system from Emerson, the 1C31025G02 module is engineered to ensure seamless communication and control for various applications, from process automation to machine control. This module is crucial for driving external devices such as relays, valves, and other on/off control systems.
The module features isolated outputs to prevent interference from other systems, which enhances system reliability and prevents damage to sensitive components. With a compact design, it is highly suitable for use in applications where space is limited. It supports a wide range of operating conditions, ensuring performance stability even in harsh industrial environments. The Ovation 1C31025G02 is built for robust performance, long-term reliability, and ease of integration into existing systems.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | 1C31025G02 |
| Module Type | Digital Output Module |
| Dimensions | 41 x 159 x 108 mm |
| Weight | 0.6 kg |
| Number of Outputs | 16 outputs |
| Output Type | Open Collector, 24V DC max |
| Output Current | 0.5 A per output |
| Supply Voltage | 24V DC (nominal) |
| Environmental Rating | IP20 (protection against dust) |
| Operating Temperature | -10°C to +60°C |
| Response Time | 20 ms (typical) |
| Isolation | 1500V Isolation |
| Mounting | DIN rail mounting |
Product Applications
The Ovation 1C31025G02 Digital Output Module is versatile and used across many industrial and process control environments. Its key applications include:
-
Industrial Automation Systems: The module is integrated into control systems to drive external equipment such as relays, lights, and other actuators, ensuring smooth operation in manufacturing environments.
-
Process Control Systems: It is used in process automation systems where precise digital output control is necessary to operate valves, motors, and other critical components.
-
Machine Control: The module plays a critical role in machine control, providing digital outputs to manage machinery operations, start/stop commands, and other essential processes.
-
Energy Management: It is used in energy management systems to control devices that regulate power supply and demand, improving efficiency and reliability.
-
Safety Systems: The module is utilized in safety systems to control emergency stop circuits, alarms, and other fail-safe operations in automated plants.
-
Test and Measurement Systems: The Ovation 1C31025G02 can also be integrated into test equipment where digital signals are required to trigger test cycles or to control devices under test.
Product Advantages
-
High Reliability: The module is designed for industrial environments, offering 1500V isolation to prevent electrical interference and ensure reliable operation even in harsh conditions.
-
Compact and Space-Saving: With dimensions of 41 x 159 x 108 mm, the module is compact, making it suitable for applications where space is limited or critical for system integration.
-
Flexible Output Options: The 16 open collector outputs can drive a wide range of devices, including relays, solenoids, and motors, providing flexibility in various applications.
-
Wide Operating Range: With an operating temperature range of -10°C to +60°C, the module can perform reliably in a variety of environmental conditions, from cold storage facilities to hot industrial settings.
-
Ease of Integration: The module supports DIN rail mounting, which simplifies installation in control cabinets, making it easy to integrate into existing systems.
-
Fast Response Time: The 20 ms typical response time ensures fast and efficient output control, suitable for high-speed automation systems.
-
Durability and Longevity: Built for demanding environments, the module’s IP20 rating ensures protection from dust ingress, contributing to long-term reliability.
-
Safety and Protection: The Ovation 1C31025G02 module includes safety features that protect sensitive equipment from voltage spikes and electrical noise.
FAQ
Q1: How does the Ovation 1C31025G02 Digital Output Module work?
The Ovation 1C31025G02 module works by providing open collector digital outputs to control external devices such as relays and actuators. It accepts a 24V DC supply and drives outputs that can control devices up to 0.5 A per channel.
Q2: What is the number of outputs available on this module?
The Ovation 1C31025G02 has 16 digital outputs, providing sufficient control points for various automation tasks.
Q3: What type of output does the Ovation 1C31025G02 support?
The module provides open collector outputs with a maximum voltage of 24V DC, making it compatible with a wide range of external devices.
Q4: What is the typical response time of the Ovation 1C31025G02 module?
The typical response time of the module is 20 ms, ensuring quick output activation in time-sensitive applications.
Q5: What is the maximum current supported by each output?
Each output can support up to 0.5 A, which is sufficient for driving many industrial devices, including relays and solenoids.
Q6: Can this module be used in high-vibration environments?
Yes, the Ovation 1C31025G02 module is built for industrial environments and is suitable for applications with moderate vibration levels due to its robust design.
Q7: What is the isolation voltage of the Ovation 1C31025G02 module?
The module features 1500V isolation, which protects the control system from electrical interference and ensures system stability.
Q8: What is the mounting method for the Ovation 1C31025G02 module?
The module can be mounted on a DIN rail, making installation and integration into control cabinets simple and efficient.
Q9: What is the operating temperature range for the Ovation 1C31025G02?
The module operates within a temperature range of -10°C to +60°C, making it versatile for various industrial settings, from extreme cold to hot environments.
Q10: Is the Ovation 1C31025G02 module protected against dust and water?
The module has an IP20 rating, providing protection against dust and ensuring the module is safe to use in non-harsh indoor environments.
