Product Introduction

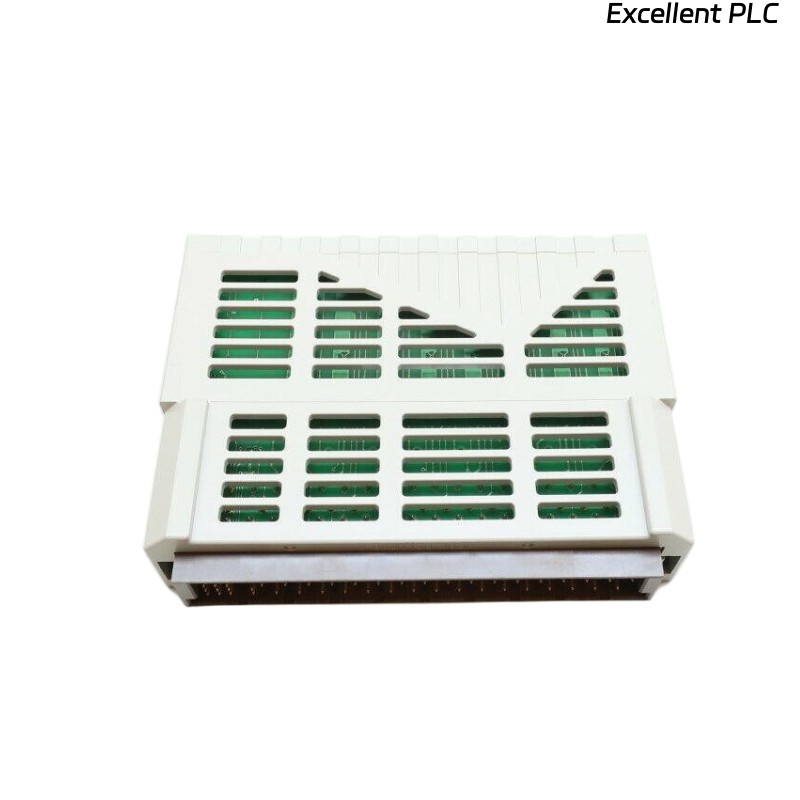

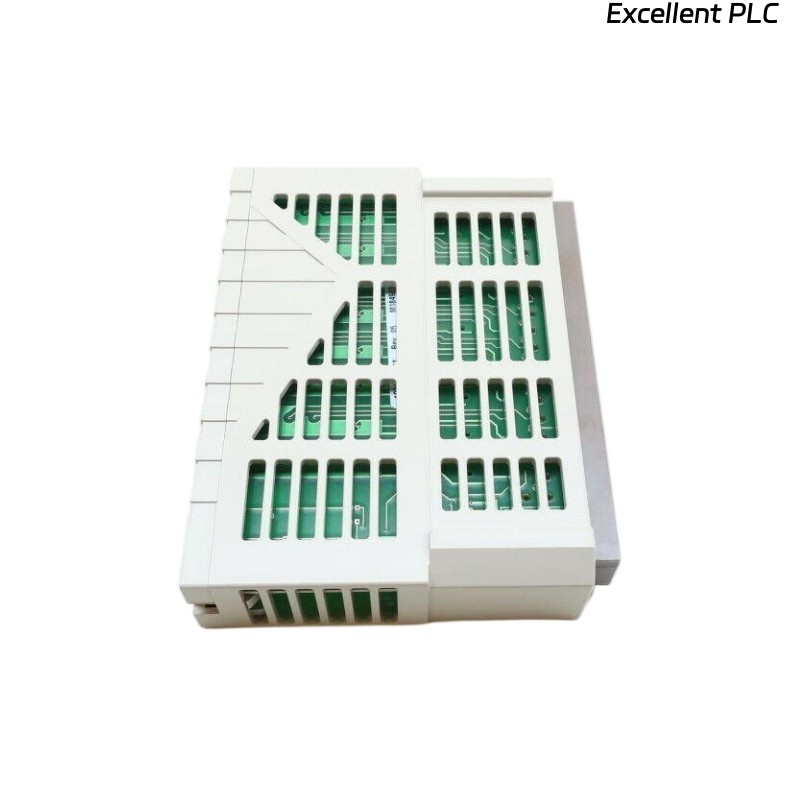

The Ovation 1C31025G03 Digital Output Module is a highly reliable and flexible module designed for controlling external devices through digital output signals in industrial and automation environments. This module is part of the Ovation control system by Emerson, designed to meet the most demanding requirements in process control, machine control, and other industrial applications.
The module provides 32 digital open-collector outputs, which are ideal for controlling devices such as relays, actuators, and solenoids. The Ovation 1C31025G03 module ensures robust performance in high-speed control systems with a fast response time and high isolation capabilities, allowing it to operate safely in electrically noisy environments. Its compact design and DIN rail mounting provide flexibility for system integration in a variety of industrial and automation setups.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | 1C31025G03 |
| Module Type | Digital Output Module |
| Dimensions | 41 x 159 x 108 mm |
| Weight | 0.6 kg |
| Number of Outputs | 32 outputs |
| Output Type | Open Collector, 24V DC max |
| Output Current | 0.5 A per output |
| Supply Voltage | 24V DC (nominal) |
| Environmental Rating | IP20 (protection against dust) |
| Operating Temperature | -10°C to +60°C |
| Response Time | 20 ms (typical) |
| Isolation | 1500V Isolation |
| Mounting | DIN rail mounting |
Product Applications
The Ovation 1C31025G03 Digital Output Module is suitable for a wide range of industrial and automation applications, where accurate and reliable digital output control is necessary. Key applications include:
-
Industrial Automation Systems: The module is integrated into control systems to control external devices such as relays, lights, actuators, and solenoids. Its 32 outputs provide ample control for large-scale systems.
-
Process Control Systems: In industries like oil and gas, chemicals, and manufacturing, the Ovation 1C31025G03 is used to control various process components, including valves, pumps, and conveyors, in a highly efficient manner.
-
Machine Control Systems: The module is used for precise control in machine automation applications. It manages machine start/stop sequences, motor operations, and other processes in high-speed manufacturing systems.
-
Safety Systems: It is used in emergency stop circuits and safety systems where reliable, fail-safe control of processes is required. The Ovation 1C31025G03 module ensures that critical systems shut down safely when needed.
-
Energy Management: The module is used for managing power distribution in energy plants and industrial facilities, providing output signals to control devices such as circuit breakers and energy meters.
-
Test and Measurement Systems: In test setups, the module drives digital output signals for triggering devices and controlling automated testing cycles.
Product Advantages
-
High Output Density: With 32 outputs, the Ovation 1C31025G03 module offers high control density, which makes it ideal for complex industrial applications requiring multiple outputs within a compact space.
-
High Reliability: The module offers 1500V isolation, ensuring that sensitive equipment is protected from electrical noise, voltage spikes, and other disturbances, resulting in long-term reliability in critical environments.
-
Compact and Space-Efficient: The 41 x 159 x 108 mm size of the module makes it highly compact, saving space in control cabinets and panel installations while still providing high output capacity.
-
Fast Response Time: With a typical response time of 20 ms, the module ensures timely control of external devices, making it ideal for high-speed applications and real-time feedback systems.
-
Flexibility and Integration: The DIN rail mounting feature enables quick and easy installation, allowing the module to be integrated seamlessly into control panels without the need for complex wiring or special tools.
-
Wide Temperature Range: The operating temperature range of -10°C to +60°C ensures that the module can function reliably in a variety of industrial environments, from colder climates to high-temperature areas.
-
Durability: With an IP20 rating, the module offers protection against dust ingress, ensuring that it remains operational in environments that may contain some level of dust or particles.
-
Energy Efficiency: The module’s efficient design reduces energy consumption, helping to lower operational costs in large-scale automation systems.
FAQ
Q1: How does the Ovation 1C31025G03 Digital Output Module operate?
The module provides open collector digital outputs to control external devices, such as relays and actuators. The module receives a 24V DC supply and drives outputs that can control devices up to 0.5 A per channel.
Q2: How many digital outputs does the module have?
The Ovation 1C31025G03 offers 32 digital outputs, providing ample control options for large-scale industrial applications.
Q3: What type of output does the Ovation 1C31025G03 support?
The module supports open collector outputs, with a maximum voltage of 24V DC, making it compatible with a wide range of industrial devices.
Q4: What is the maximum current per output on this module?
Each output can support a maximum current of 0.5 A, which is sufficient for controlling relays, solenoids, and other actuators in industrial systems.
Q5: What is the response time of the Ovation 1C31025G03 module?
The typical response time of the module is 20 ms, allowing for quick activation of external devices in real-time applications.
Q6: What is the operating temperature range for the Ovation 1C31025G03?
The module operates within an environmental range of -10°C to +60°C, making it suitable for a variety of industrial environments, from cold storage to hot, high-temperature areas.
Q7: How is the module mounted?
The Ovation 1C31025G03 module is designed for DIN rail mounting, which allows for quick and easy installation in control panels and automation systems.
Q8: What is the isolation rating of the module?
The module provides 1500V isolation, protecting sensitive equipment from electrical interference and ensuring reliable operation even in noisy electrical environments.
Q9: What is the environmental protection rating of this module?
The Ovation 1C31025G03 has an IP20 rating, which protects it from dust ingress, making it suitable for use in indoor industrial environments.
Q10: Can this module be used for high-speed control applications?
Yes, with its fast response time of 20 ms, the module is ideal for high-speed control applications in process control, machine automation, and other time-sensitive systems.
