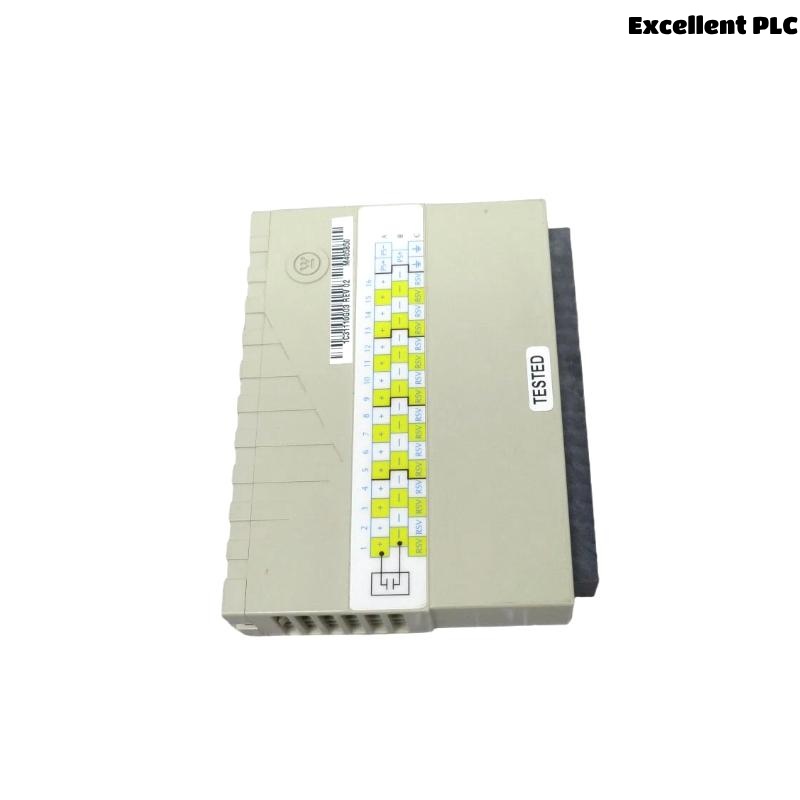

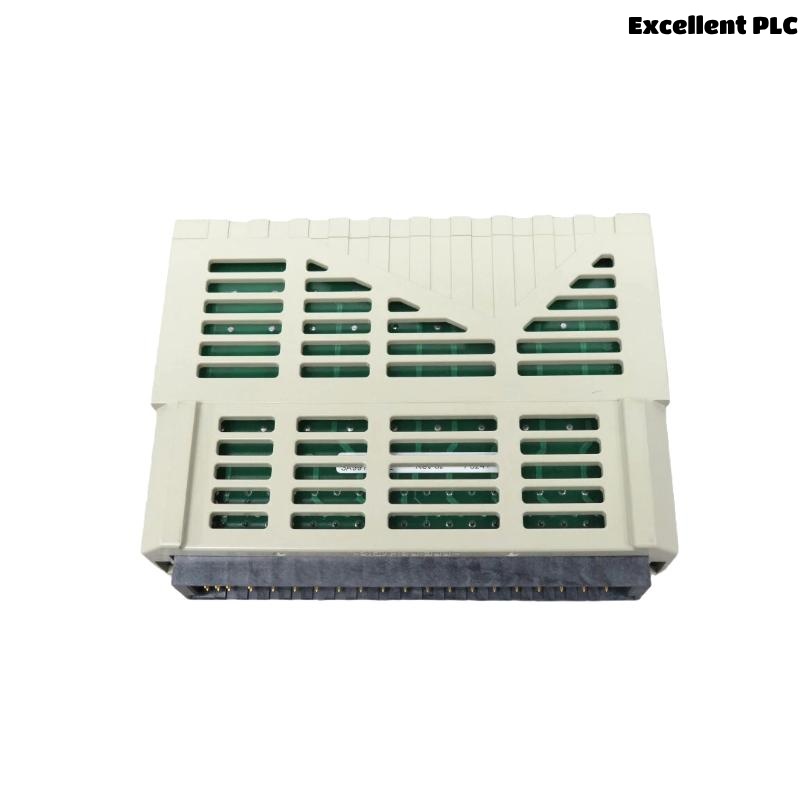

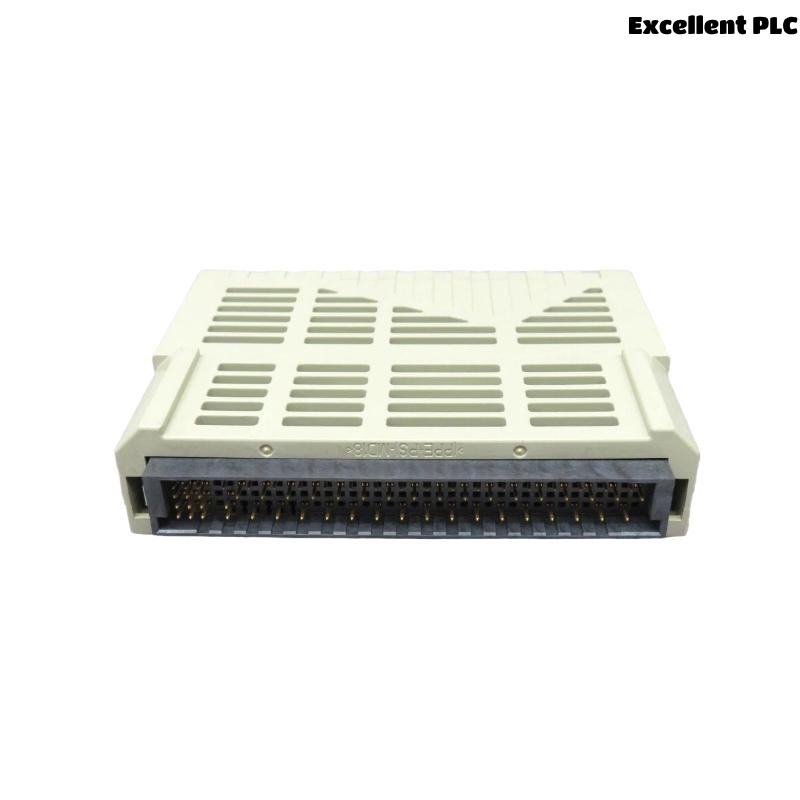

The Ovation 1C31110G03 Contact Input Module is designed for use in the Ovation control system, facilitating the integration of various contact-type input signals into your system. This module offers high reliability and accurate data transmission for industrial control applications. Its versatility allows for easy integration with other control modules within the Ovation system, making it an essential component for monitoring field devices such as switches, relays, and other contact-based signals in critical environments such as power plants, manufacturing facilities, and process control systems.
This module is engineered for seamless operation in industrial environments, offering outstanding performance, ease of installation, and robust data integrity. It is designed with flexibility in mind, offering various input configurations to meet diverse application needs. The Ovation 1C31110G03 Contact Input Module is an ideal choice for applications requiring efficient monitoring of digital on/off signals.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 1C31110G03 |
| Manufacturer | Ovation |
| Type | Contact Input Module |
| Input Type | 16 Contact Inputs |
| Input Voltage | 24 V DC |
| Input Signal Type | Dry Contact, 24 V DC Logic Levels |
| Power Supply | 24 V DC ± 10% |
| Mounting Type | DIN Rail Mountable |
| Dimensions (L x W x H) | 150 x 120 x 90 mm |
| Weight | 0.06 kg |
| Response Time | < 10 ms |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| LED Indicators | Input Status, Fault Indicators |
| Environmental Protection | IP20 |
| Certification | CE, UL |
| Communication Protocol | MODBUS RTU / TCP, Ethernet |
Applications
The Ovation 1C31110G03 Contact Input Module is ideal for use in various industrial applications:
-
Power Plants: It integrates seamlessly into power generation systems for monitoring digital inputs such as alarm conditions, system states, and other operational signals from field devices like relays and switches.
-
Manufacturing Automation: The module is used in automated production lines to monitor input signals from sensors, control switches, and safety devices.
-
Process Control Systems: In industries such as chemical, petrochemical, and water treatment, this module facilitates the integration of field devices that provide digital on/off signals, ensuring effective process monitoring and control.
-
Oil and Gas: This module helps monitor input from safety interlocks, shutoff valves, and other critical devices in oil and gas installations.
-
Building Automation: Used in HVAC systems, lighting control, and security systems, the module ensures accurate data acquisition from control panels and switches.
-
Transportation and Infrastructure: The module is integrated into monitoring systems for transportation systems and large-scale infrastructure, ensuring proper operation and safety.
Advantages
-
High Input Count: The Ovation 1C31110G03 module features 16 contact inputs, allowing the connection of multiple field devices to a single unit, which reduces wiring complexity and improves system efficiency.
-
Fast Response Time: With a response time of less than 10 ms, this module ensures real-time data processing, making it ideal for applications where immediate feedback is critical.
-
Wide Operating Temperature Range: The module can operate in temperatures ranging from -20°C to +70°C, making it suitable for use in harsh industrial environments.
-
Versatile Input Types: It supports dry contact and 24 V DC logic level signals, providing compatibility with a wide range of field devices.
-
Reliable Performance: The module ensures accurate and reliable data transmission, even in demanding industrial environments, with its robust construction and high quality.
-
Easy Installation: The module can be mounted on a DIN rail, allowing for straightforward installation in control panels and cabinets.
-
Compact Design: The module’s compact size (150 mm x 120 mm x 90 mm) makes it easy to integrate into tight spaces without compromising performance.
-
Safety Certifications: With CE and UL certifications, the module meets international standards for safety, ensuring compliance in various industries.
-
Flexible Communication Options: Supporting MODBUS RTU and MODBUS TCP communication protocols, the module offers seamless integration with other Ovation and third-party devices.
-
Scalability: The module can be easily expanded within the Ovation system, allowing for future upgrades and integration of additional input signals as needed.
Frequently Asked Questions (FAQ)
-
What is the primary function of the Ovation 1C31110G03 Contact Input Module?
The module is used to process digital contact-type input signals from field devices such as switches, relays, and sensors, and transmit them to the Ovation control system. -
How many input channels does the Ovation 1C31110G03 module support?
The module supports up to 16 digital contact input channels. -
What types of input signals are compatible with this module?
The module accepts dry contact and 24 V DC logic level signals. -
What is the power supply requirement for the Ovation 1C31110G03?
The module requires a 24 V DC power supply with a ±10% tolerance. -
What is the response time of this module?
The response time of the module is less than 10 ms, ensuring quick data acquisition. -
Can the Ovation 1C31110G03 module operate in extreme temperatures?
Yes, it operates in a temperature range of -20°C to +70°C, making it suitable for various industrial environments. -
What communication protocols are supported by this module?
The module supports MODBUS RTU and MODBUS TCP protocols for easy integration with industrial networks. -
How is the module mounted?
The Ovation 1C31110G03 is designed for DIN rail mounting, which simplifies installation in control panels. -
What certifications does this module have?
The module is certified with CE and UL, ensuring it meets international safety and quality standards. -
Can this module be used in hazardous environments?
While the module is not intrinsically safe, it is designed for industrial applications with an IP20 environmental protection rating.
Recommended Models from the Same Series or Related Models
| Model Number | Input Channels | Power Supply | Response Time | Weight |
|---|---|---|---|---|
| 1C31110G02 | 16 Contact Inputs | 24 V DC ± 10% | < 10 ms | 0.85 kg |
| 1C31110G01 | 16 Contact Inputs | 24 V DC ± 10% | < 10 ms | 0.8 kg |
| 1C31110G04 | 32 Contact Inputs | 24 V DC ± 10% | < 12 ms | 1.0 kg |
| 1C31120G03 | 16 Contact Inputs | 24 V DC ± 10% | < 10 ms | 0.85 kg |
| 1C31130G02 | 16 Contact Inputs | 24 V DC ± 10% | < 10 ms | 0.8 kg |
| 1C31140G01 | 32 Contact Inputs | 24 V DC ± 10% | < 12 ms | 1.0 kg |
