Product Introduction

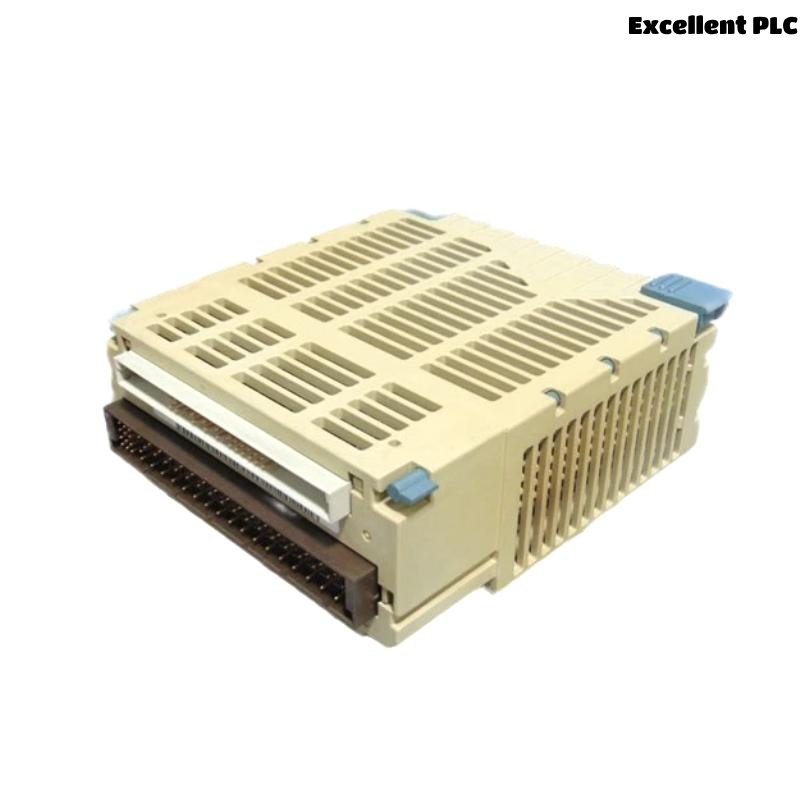

The Ovation 1C31129G04 Analog Output Module is a high-performance control module designed for the Ovation™ control system by Emerson Electric. This module is specifically engineered to provide reliable analog outputs in various industrial automation applications. It plays a crucial role in converting digital control signals into analog outputs, which are essential for controlling devices like actuators, valves, and other process control equipment.
Ideal for process industries, power plants, and critical control applications, the 1C31129G04 Analog Output Module delivers consistent and precise analog control, ensuring smooth operation and maintaining system reliability. This module offers a wide range of benefits including high accuracy, robust performance in harsh environments, and easy integration into existing Ovation systems.
Product Specifications
| Parameter | Value |
|---|---|
| Model | 1C31129G04 |
| Output Type | Analog Output (4-20 mA) |
| Number of Channels | 16 Channels |
| Power Supply | 24 V DC |
| Accuracy | ±0.1% of Full Scale (FS) |
| Response Time | < 100 ms |
| Dimensions (LxWxH) | 152 x 107 x 38 mm |
| Weight | 0.8 kg |
| Operating Temperature | -20°C to +70°C |
| Mounting Type | DIN Rail Mountable |
| Communication Protocol | Ovation Control System |
| Protection Features | Over-voltage, Over-current, Short-circuit |
Product Applications
The Ovation 1C31129G04 Analog Output Module is highly versatile and is suitable for various applications in industrial automation and process control:
-
Power Plants: Ideal for controlling turbines, generators, and other power generation equipment where analog signals are required for feedback control.
-
Process Control: Used in applications like chemical processing, water treatment, and pharmaceutical manufacturing, where analog output signals are critical for controlling valves and flow meters.
-
HVAC Systems: Helps control heating, ventilation, and air conditioning (HVAC) systems by providing analog output signals to actuators.
-
Building Management: Used in building automation systems for energy management, lighting, and security, ensuring accurate and reliable control.
-
Oil & Gas Industry: Enables accurate control of equipment in the oil and gas industry where precise and reliable control signals are essential for optimal operations.
-
Manufacturing and Assembly Lines: Powers equipment such as robotic arms and automated assembly machines that require consistent analog signals for operation.
Product Advantages
-
High Accuracy: The 1C31129G04 provides high accuracy of ±0.1% of Full Scale, ensuring precise control over analog outputs in critical applications.
-
Reliable Performance: Designed for demanding industrial environments, the module ensures reliable and continuous operation in temperatures ranging from -20°C to +70°C.
-
Compact and Space-Saving Design: With a compact size of 152 x 107 x 38 mm,the module can be easily integrated into existing control systems and occupies minimal space in control panels.
-
Fast Response Time: The module boasts a fast response time of less than 100 ms, ensuring that control signals are transmitted quickly and efficiently.
-
Versatile Applications: With 16 output channels and compatibility with the Ovation control system, it is ideal for a wide range of industrial applications.
-
Built-in Protection Features: It includes over-voltage, over-current, and short-circuit protection, ensuring the safety and durability of the system.
-
Easy Integration: Designed to integrate seamlessly with the Ovation control system, this module ensures a smooth installation process with minimal downtime.
FAQ
-
What is the output range of the Ovation 1C31129G04 Analog Output Module?
The module provides a 4-20 mA analog output range, which is standard for industrial process control. -
How many output channels does this module have?
The 1C31129G04 has 16 output channels, providing ample capacity for controlling multiple devices simultaneously. -
What is the accuracy of the Ovation 1C31129G04?
The module has an accuracy of ±0.1% of Full Scale (FS), ensuring precise and consistent control. -
What is the power supply requirement for this module?
The module operates on a 24 V DC power supply. -
What is the response time of the Ovation 1C31129G04?
The response time of the module is less than 100 ms, ensuring fast and responsive control. -
What is the operating temperature range of the module?
The module operates in temperatures ranging from -20°C to +70°C, making it suitable for harsh industrial environments. -
How is the Ovation 1C31129G04 mounted?
The module is designed for DIN rail mounting, allowing for easy installation and maintenance in control cabinets. -
What protection features are included in this module?
The module includes protection against over-voltage, over-current, and short-circuit conditions, ensuring system safety. -
Can this module be used with other control systems besides Ovation?
The 1C31129G04 is specifically designed for use with the Ovation control system and may not be compatible with other systems. -
What types of applications benefit from the Ovation 1C31129G04 Analog Output Module?
It is ideal for applications such as power plants, process control, HVAC systems, and manufacturing lines, where precise analog control is required.
Recommended Related Models from the Same Series
| Model | Output Channels | Output Type | Response Time | Operating Temperature |
|---|---|---|---|---|
| 1C31129G05 | 8 | 4-20 mA | <100 ms | -20°C to +70°C |
| 1C31129G06 | 8 | 4-20 mA | <100 ms | -20°C to +70°C |
| 1C31129G03 | 16 | 4-20 mA | <100 ms | -20°C to +70°C |
| 1C31129G02 | 4 | 4-20 mA | <100 ms | -20°C to +70°C |
| 1C31129G01 | 4 | 4-20 mA | <100 ms | -20°C to +70°C |
| 1C31129G07 | 16 | 4-20 mA | <100 ms | -20°C to +70°C |
Recommended Popular Models from Ovation and Emerson
| Model | Type | Channels | Output Type | Accuracy |
|---|---|---|---|---|
| 1C31129G10 | Digital Output Module | 16 | 0-10 V / 4-20 mA | ±0.1% FS |
| 1C31129G08 | Analog Input Module | 8 | 4-20 mA | ±0.1% FS |
| 1C31129G12 | Analog Output Module | 4 | 4-20 mA | ±0.1% FS |
| 1C31129G11 | Digital Input Module | 8 | 24 V DC | ±0.1% FS |
| 1C31129G09 | Relay Output Module | 8 | 24 V DC | ±0.1% FS |
| 1C31129G15 | Temperature Input Module | 8 | RTD | ±0.1% FS |
