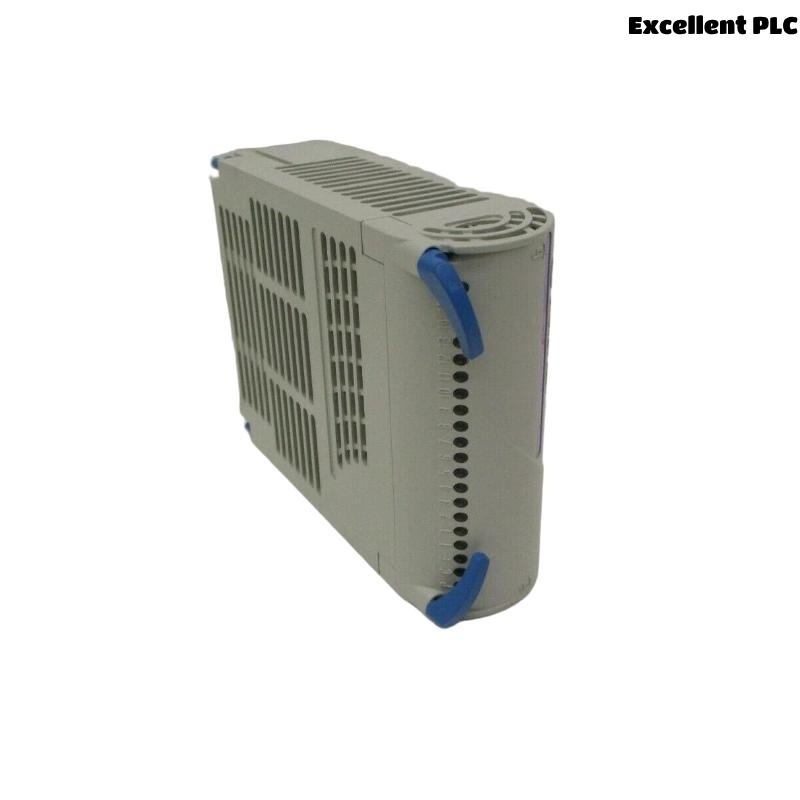

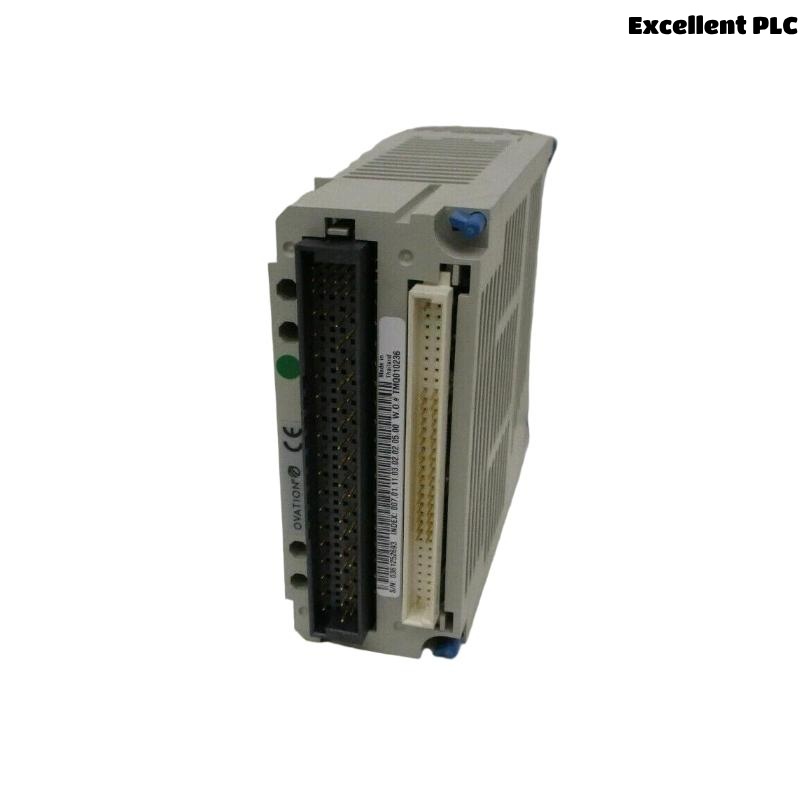

OVATION 1C31147G01 Product Introduction
The OVATION 1C31147G01 is a high-performance industrial control module designed for precision monitoring and automation applications. Manufactured by Emerson, this module is part of the OVATION series, renowned for its reliability and advanced functionality in critical industrial environments. It is widely used in power generation, oil and gas, and process control industries. The module features robust construction, seamless integration with OVATION systems, and exceptional durability under harsh operating conditions.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 1C31147G01 |
| Dimensions | 150 × 80 × 30 mm |
| Weight | 0.227kg |
| Operating Voltage | 24V DC ±10% |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Communication Protocol | OVATION Native Protocol |
| Input/Output Channels | 16 Analog, 8 Digital |
| Protection Rating | IP20 |
| Certifications | CE, UL, RoHS Compliant |
Product Applications
The OVATION 1C31147G01 is ideal for:
-
Power Plants: Monitoring and controlling turbine operations.
-
Oil & Gas: Managing pipeline pressure and flow rates.
-
Water Treatment: Automating filtration and chemical dosing systems.
-
Manufacturing: Integrating with PLCs for process automation.
-
HVAC Systems: Regulating temperature and airflow in large facilities.
Product Advantages
-
High Accuracy: Precision signal processing for reliable data acquisition.
-
Durability: Designed to withstand extreme temperatures and vibrations.
-
Easy Integration: Compatible with existing OVATION control systems.
-
Low Maintenance: Solid-state design reduces wear and tear.
-
Scalability: Supports expansion modules for additional I/O channels.
-
Energy Efficient: Low power consumption reduces operational costs.
Frequently Asked Questions (FAQ)
-
What is the warranty period for the 1C31147G01?
The standard warranty is 12 months from the date of purchase. -
Can this module be used in hazardous environments?
No, it is rated IP20 and is not suitable for explosive atmospheres. -
How do I troubleshoot communication errors?
Check cable connections and ensure the protocol settings match the OVATION system. -
Is software required for configuration?
Yes, Emerson’s OVATION Developer Studio is needed for setup. -
What is the maximum sampling rate for analog inputs?
100 samples per second per channel. -
Can I replace this module without shutting down the system?
No, a controlled shutdown is required for safe replacement. -
Are spare parts readily available?
Yes, Emerson maintains a global inventory for quick delivery. -
Does it support third-party PLC integration?
Only via OVATION-compatible gateways or converters. -
Is the module certified for industrial compliance?
Yes, it meets CE, UL, CSA, and RoHS standards. -
How do I update the firmware?
Use the OVATION Maintenance Tool via a secure USB connection.
