Product Introduction

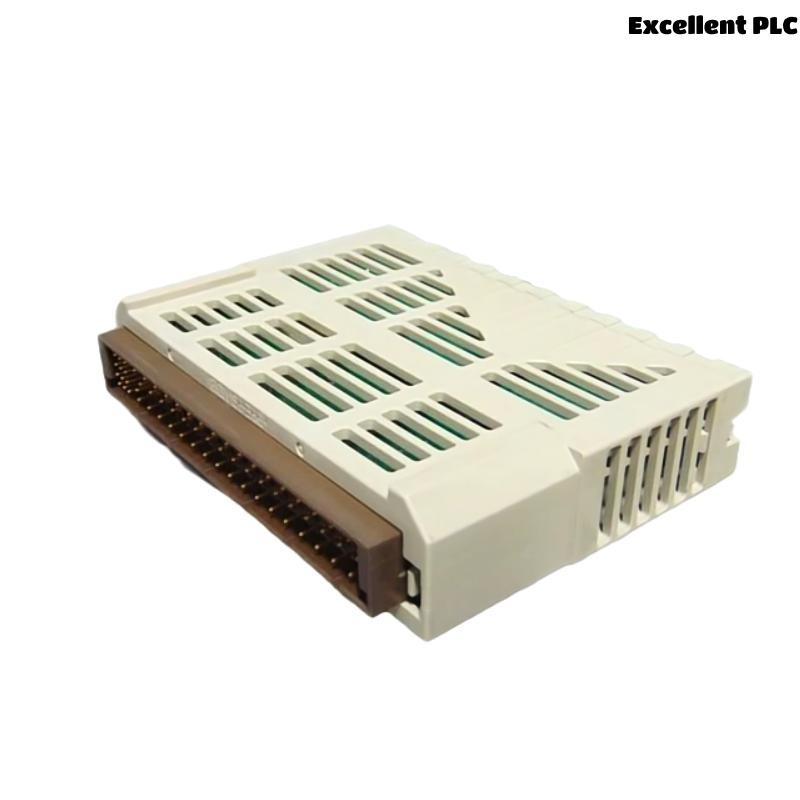

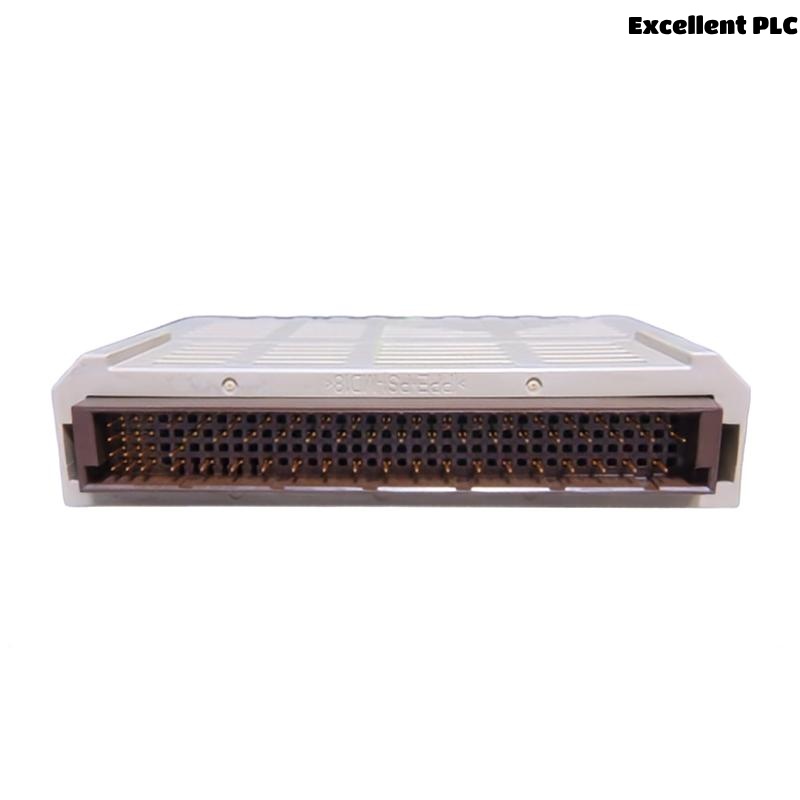

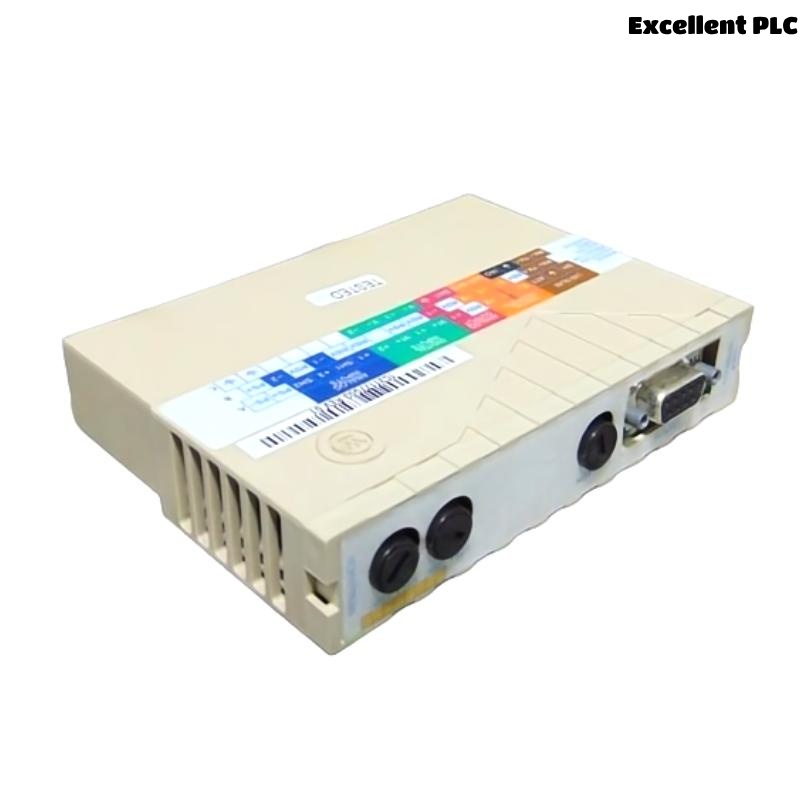

The Ovation 1C31177G03 is a Loop Interface Module (LIM) used in Emerson’s Ovation distributed control system (DCS) platform. Specifically designed to facilitate high-density, high-integrity analog signal interfacing, this module is critical for enabling accurate and reliable transmission of analog signals between field instruments and the Ovation I/O subsystem.
Functioning as an intermediary between field devices (such as transmitters and sensors) and control processors, the 1C31177G03 ensures precise signal conditioning, isolation, and conversion. It supports a variety of input loop types and allows seamless integration into Ovation systems for both legacy upgrades and modern installations.
This module is particularly valued in power generation, water treatment, and process manufacturing environments, where operational continuity, accuracy, and maintainability are essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 1C31177G03 |
| Product Type | Loop Interface Module (LIM) |
| System Compatibility | Emerson Ovation Distributed Control System (DCS) |
| Input Type | Analog 4–20 mA current loops |
| Channel Type | Isolated input channels |
| Number of Channels | 8 channels (individually isolated) |
| Input Impedance | < 250 ohms |
| Channel Isolation | 1500 V RMS channel-to-channel and channel-to-ground |
| Loop Power Support | External loop power (typically 24 VDC) |
| Response Time | < 50 ms typical |
| Signal Accuracy | ±0.05% of full scale |
| Diagnostic Features | Open loop detection, signal loss monitoring |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | –40°C to +85°C (–40°F to 185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Mounting Type | Standard rack-mount (Ovation chassis) |
| Hot Swappable | Yes |
| Power Consumption | .6 W |
| Dimensions (H × W × D) | 228 × 25 × 175 mm |
| Weight | 0.72 kg (1.59 lbs) |
| Certifications | CE, UL, CSA, RoHS, Designed for Class I Div 2 areas |
Applications
The 1C31177G03 Loop Interface Module is ideal for applications requiring high-density analog signal acquisition and robust signal integrity. It is commonly used in the following sectors:
-
Power Generation
Interfaces temperature, pressure, and flow transmitters with control logic in thermal and hydroelectric plants. -
Water & Wastewater Treatment
Captures and transmits sensor data (pH, level, flow, turbidity) to SCADA/control centers for real-time processing. -
Petrochemical and Refinery Operations
Manages high-integrity signal processing in volatile environments with explosion-rated enclosures. -
Chemical and Pharmaceutical Plants
Ensures precise analog control of batch processes, dosing systems, and safety interlocks. -
Food & Beverage Production
Monitors and regulates temperature, humidity, and fluid levels in automated process lines. -
Metals and Mining
Enables reliable instrumentation interfacing in rugged, vibration-prone industrial conditions.
Product Advantages
-
High Signal Accuracy
Delivers ±0.05% full-scale accuracy to support precise measurement and control strategies. -
Channel-to-Channel Isolation
Prevents signal interference and ground loops, critical in safety- or quality-sensitive systems. -
8-Channel Density
Accommodates multiple field signals in a compact footprint, reducing panel and rack space. -
Hot Swappable Design
Enables module replacement or upgrade without process downtime—ideal for 24/7 operations. -
Ovation System Native Compatibility
Seamlessly integrates with existing Ovation architecture, ensuring plug-and-play deployment. -
Integrated Diagnostics
Proactively detects loop faults, open circuits, and signal anomalies, reducing troubleshooting time. -
Industrial-Grade Durability
Engineered for long lifecycle operation under harsh industrial environments. -
Low Power Draw
Efficient energy usage supports compact, low-heat cabinet designs.
Frequently Asked Questions (FAQ)
-
Q: What does the 1C31177G03 Loop Interface Module do?
A: It interfaces 4–20 mA analog input signals from field instruments into the Ovation DCS. -
Q: How many channels does the module support?
A: It supports 8 isolated analog input channels per module. -
Q: Is the module hot-swappable?
A: Yes, it can be replaced or upgraded without shutting down the entire system. -
Q: What type of signals can it handle?
A: It handles standard 4–20 mA analog current signals. -
Q: Is loop power provided by the module?
A: No, loop power must be externally supplied (commonly 24 VDC). -
Q: What kind of isolation does it provide?
A: It offers 1500 V RMS isolation between channels and from channel to ground. -
Q: Can it detect open loops or signal loss?
A: Yes, it includes diagnostic features to detect open circuits and degraded signals. -
Q: What systems is it compatible with?
A: It is specifically designed for the Emerson Ovation DCS platform. -
Q: What is the typical response time of the module?
A: Less than 50 milliseconds, suitable for real-time control environments. -
Q: Where is this module commonly used?
A: Widely used in power plants, chemical processing, water utilities, and other process control environments.
Related Models from the Ovation Loop Interface Family
| Model Number | Description | Channels | Signal Type | Remarks |
|---|---|---|---|---|
| 1C31177G01 | Loop Interface Module (Legacy) | 8 | Analog (4–20 mA) | Earlier version of G03 |
| 1C31177G04 | Enhanced Loop Interface Module | 8 | Analog | Improved diagnostics |
| 1C31234G01 | Dual-channel Loop Interface (high density) | 16 | Analog | Used in compact systems |
| 1C31178G01 | Digital I/O Interface Module | 16 | Digital | For discrete input applications |
| 1C31189G01 | Multi-Loop Control Module | 8 | PID Loop Control | For closed-loop process control |
| 1C31197G01 | 24 VDC Loop Power Module | N/A | Power Supply | Used to power 4–20 mA loops |
