Product Introduction

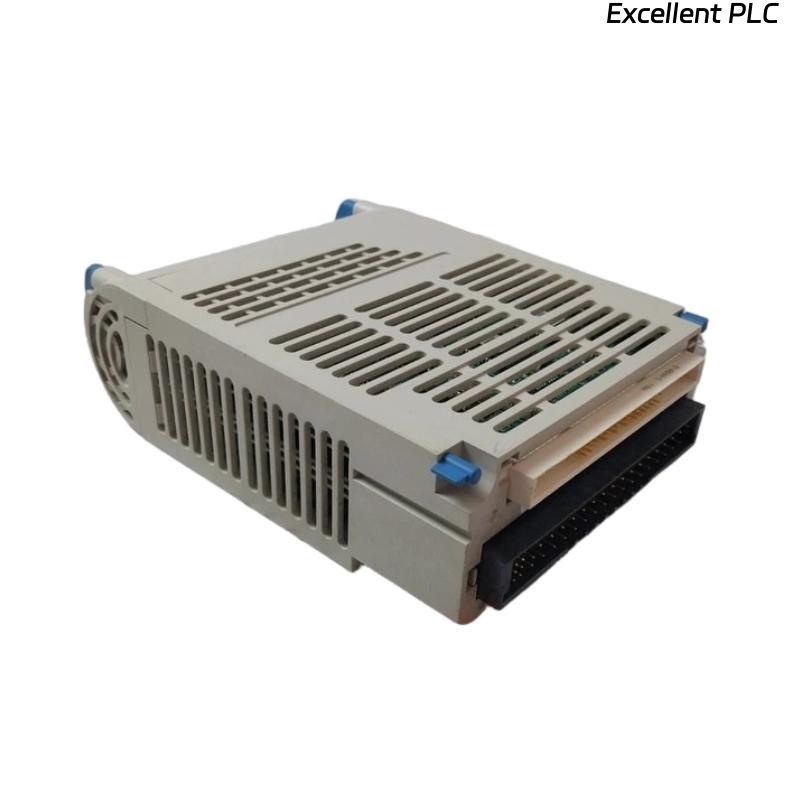

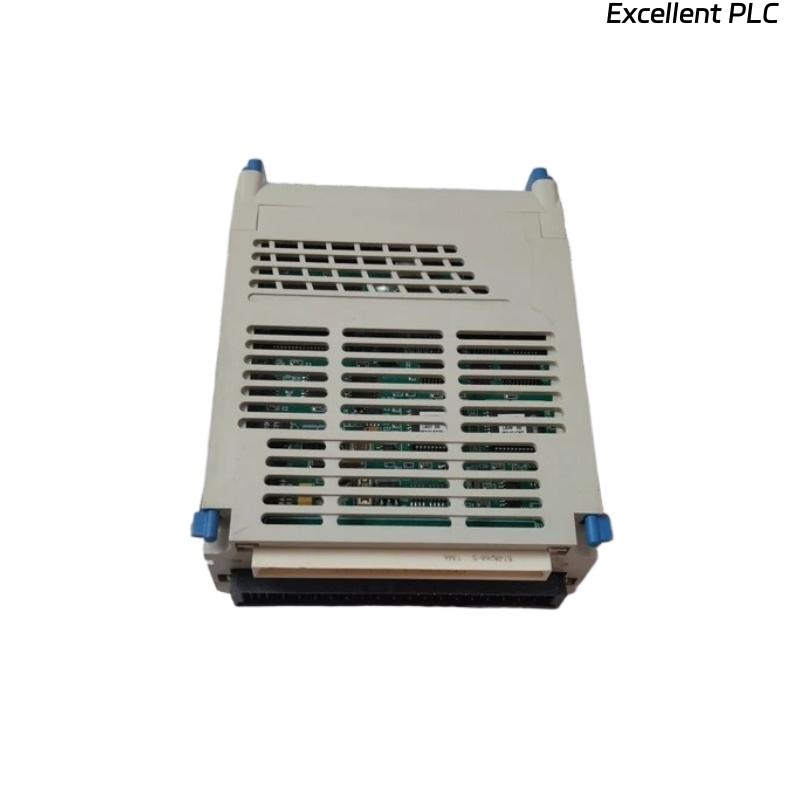

The OVATION 1C31189G04 Input Module is a specialized I/O component designed for Emerson’s Ovation distributed control system (DCS). This module ensures seamless acquisition of process signals from field instruments, providing reliable and accurate data to the control system for monitoring and automation tasks. Built with high-quality components and robust signal conditioning, it offers dependable performance in critical industrial applications such as power generation, oil & gas, petrochemical plants, and water treatment facilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 1C31189G04 |
| Product Type | Input Module |
| System Compatibility | Emerson Ovation DCS |
| Signal Type | Analog / Digital Input (Configurable) |
| Input Channels | 8 or 16 (depending on configuration) |
| Isolation | Channel-to-system isolation |
| Power Supply | 5 V DC (from system backplane) |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity Range | 5% – 95% non-condensing |
| Dimensions | 41 x 159 x 108 mm |
| Weight | 0.11 kg |
Product Applications
-
Power Generation Plants – Monitoring turbine sensors, boiler instrumentation, and auxiliary systems.
-
Oil & Gas – Acquiring field sensor signals from pipelines, compressors, and refineries.
-
Chemical and Petrochemical – Monitoring temperature, flow, and pressure signals for safe and optimized operations.
-
Water and Wastewater Treatment – Gathering process input data for pumps, valves, and treatment processes.
-
Industrial Automation – General process industries requiring real-time control and monitoring.
Product Advantages
-
High Accuracy and Stability – Ensures reliable acquisition of analog and digital signals without significant drift.
-
Seamless Ovation Integration – Designed specifically for Emerson Ovation DCS, ensuring plug-and-play compatibility.
-
Compact and Lightweight – With its small form factor and weight of only 0.11 kg, it fits easily into existing racks.
-
Robust Isolation – Protects the system against electrical interference and ensures stable operation in harsh environments.
-
Modular Design – Supports easy replacement and upgrades without extensive downtime.
-
Wide Application Range – Suitable for various industries and process conditions.
FAQ
Q1: What type of input signals can the 1C31189G04 process?
A1: It supports both analog and digital input signals, depending on configuration requirements.
Q2: How many input channels does the module provide?
A2: The module typically supports 8 or 16 channels, allowing flexible input configurations.
Q3: Does the module provide channel-to-system isolation?
A3: Yes, it includes isolation to ensure system safety and protect against interference.
Q4: How does the module communicate with the Ovation controller?
A4: It communicates through the Ovation backplane interface, ensuring fast and reliable data transfer.
Q5: Can the module handle redundant configurations?
A5: Yes, it can be used in redundant setups to ensure system reliability and fault tolerance.
Q6: What is the update rate for signal acquisition?
A6: The module supports high-speed sampling, optimized for real-time process monitoring in Ovation systems.
Q7: Is hot-swapping supported?
A7: Yes, the module can typically be replaced online without shutting down the entire system.
Q8: How does the module ensure noise immunity?
A8: It is designed with shielded circuits and isolation barriers to minimize electrical noise.
Q9: Does the module require external power?
A9: No, it draws its operating voltage directly from the Ovation system backplane.
Q10: Can the input channels be individually configured?
A10: Yes, channels can be configured to match specific process signal requirements.
Related Models
| Model Number | Description |
|---|---|
| 1C31189G01 | Input Module, early revision |
| 1C31189G02 | Enhanced Input Module |
| 1C31189G03 | Advanced Input Module, higher speed |
| 1C31189G05 | Input Module with extended features |
| 1C31192G01 | Analog Input Module |
| 1C31197G01 | Digital Input Module |
