Product Introduction

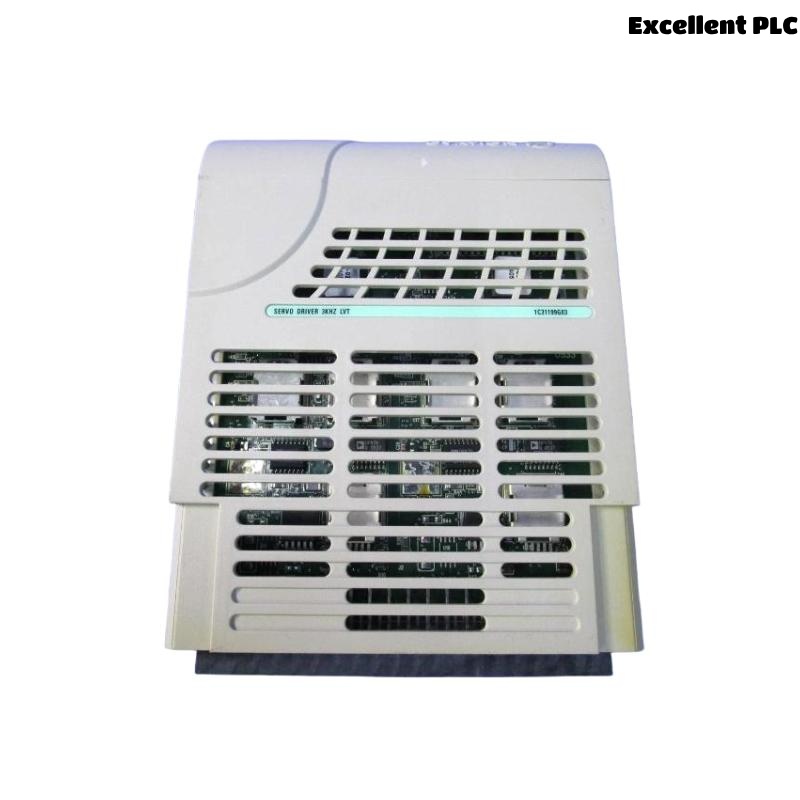

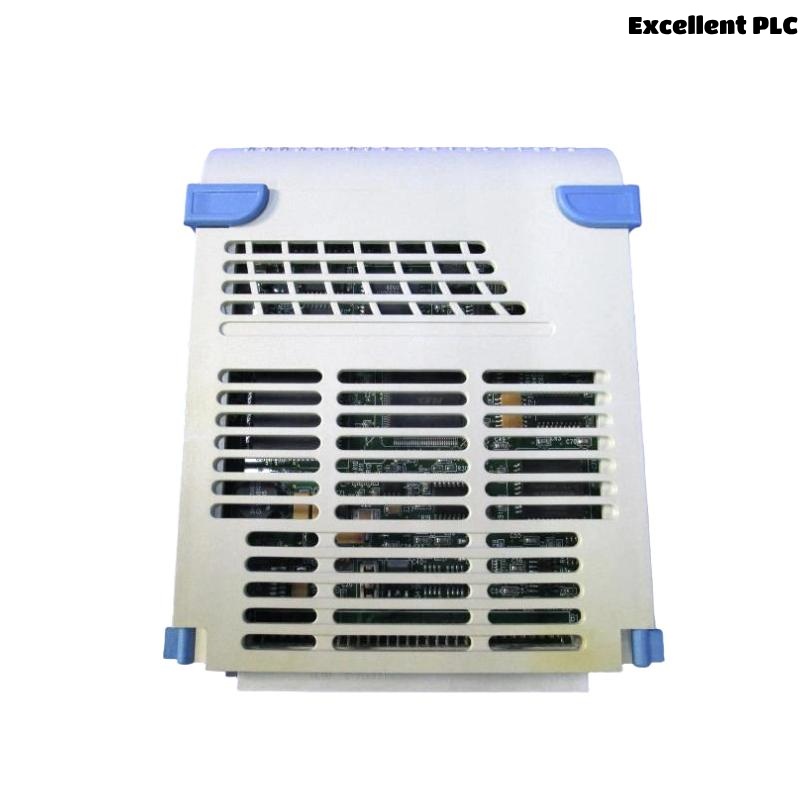

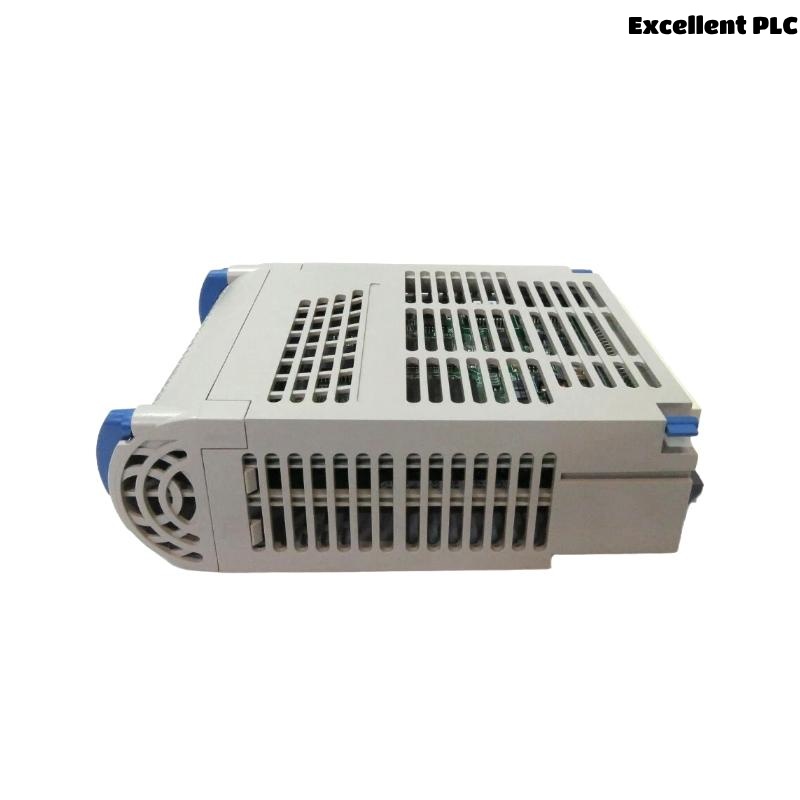

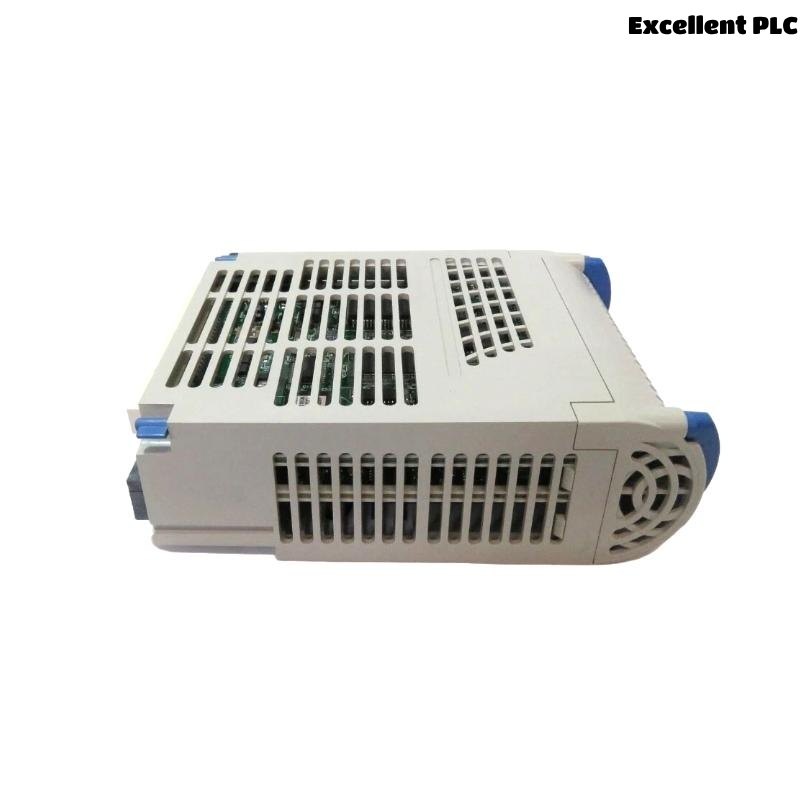

The Ovation 1C31199G03 Servo Electronics Module is a precision control module designed by Emerson for use within the Ovation Distributed Control System (DCS). It serves as an intelligent servo driver interface, providing accurate control and monitoring of electrohydraulic or electromechanical actuators in industrial automation and energy systems.
Built for high-reliability applications, the 1C31199G03 translates digital control commands into analog or pulse-width modulated (PWM) outputs to drive servo actuators. It simultaneously processes position feedback from transducers (such as LVDTs or encoders) to support closed-loop control. This module is commonly deployed in turbine systems, valve positioning systems, and other motion-sensitive control loops where timing, accuracy, and robustness are critical.
Thanks to its seamless integration with the Ovation DCS, the 1C31199G03 ensures reliable communication, fast response time, and advanced diagnostics—making it a key element in precision motion control for critical infrastructure systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 1C31199G03 |
| Manufacturer | Emerson |
| Product Type | Servo Electronics Module |
| Control System | Emerson Ovation DCS |
| Function | Drives servo actuators; closed-loop control via feedback |
| Input Command | Digital control signal from Ovation CPU |
| Output Type | PWM or analog output (0–10 V or 4–20 mA) |
| Feedback Support | Compatible with LVDT, potentiometer, or encoder signals |
| Loop Type | Closed-loop motion control |
| Update Rate | 1 ms or less |
| Channels Supported | Single or dual-channel (application dependent) |
| Backplane Interface | Proprietary Ovation system bus |
| Power Source | Ovation rack backplane (internal power) |
| Status Indicators | LED indicators for power, signal status, feedback health |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% RH, non-condensing |
| Certifications | CE, UL, CSA, RoHS compliant |
| Mounting Type | Rack-mounted (Ovation I/O chassis) |
| Dimensions (W × H × D) | 250 x 180 x 150 mm |
| Weight | 1.1 kg |
Product Applications
The 1C31199G03 Servo Electronics Module is specifically engineered for industrial environments where real-time actuator control and feedback are essential. Its applications include:
-
Steam and Gas Turbine Control
Drives servo valves for fuel control, governor actuation, and IGV positioning in real-time. -
Electrohydraulic Valve Actuation
Used to control hydraulic actuators with LVDT feedback in power generation and refining. -
Motion Control in Industrial Automation
Provides precise positioning in robotic arms, linear actuators, and conveyor systems. -
Compressor and Pump Control
Supports dynamic position control of variable-speed inlet or bypass valves. -
Test and Simulation Systems
Drives test actuators in HIL (Hardware-in-the-Loop) and real-time simulation environments. -
High-Precision Dosing Systems
Used in pharmaceutical and chemical industries for servo-based volumetric control.
Product Advantages
-
High-Speed Performance
Ultra-fast update rate (≤1 ms) supports tight loop control in real-time systems. -
Reliable Feedback Handling
Compatible with multiple feedback types, ensuring accuracy and system redundancy. -
EMI-Resistant Architecture
Built-in filtering and galvanic isolation protect against electrical interference. -
Seamless Ovation Integration
Fully compatible with Ovation rack systems and software tools, minimizing setup time. -
Compact and Modular
Occupies minimal rack space while delivering high processing power. -
Robust Industrial Build
Operates reliably in high-temperature, high-vibration environments. -
Advanced Diagnostics
Real-time monitoring with LED indicators and system alerts for early fault detection. -
Low Maintenance
Solid-state design and built-in health checks reduce system downtime and service costs.
Frequently Asked Questions (FAQs)
1. What does the 1C31199G03 Servo Electronics Module control?
It controls electromechanical or electrohydraulic actuators in closed-loop motion control systems.
2. What type of feedback devices are compatible?
The module supports LVDTs, potentiometers, and digital encoders for position feedback.
3. Can the module be used in turbine applications?
Yes, it’s widely used in turbine fuel valve and IGV actuator control.
4. Is the output analog or digital?
The output can be analog (e.g., 4–20 mA or 0–10 V) or PWM depending on configuration.
5. Does it integrate directly into Ovation DCS racks?
Yes, it is rack-mounted and powered via the Ovation backplane bus.
6. What happens if feedback is lost?
The module can trigger a fault response and follow fail-safe logic, depending on configuration.
7. What diagnostics are available on the module?
LEDs provide real-time status for command signal, feedback health, and power condition.
8. Is it possible to hot-swap this module?
No, it should only be installed or replaced with system power off.
9. Does it support dual-channel redundancy?
Some applications allow dual-channel configuration for failover; consult system documentation.
10. Is this module suitable for outdoor installation?
Only if enclosed in an IP-rated cabinet; the module itself is IP20 rated.
