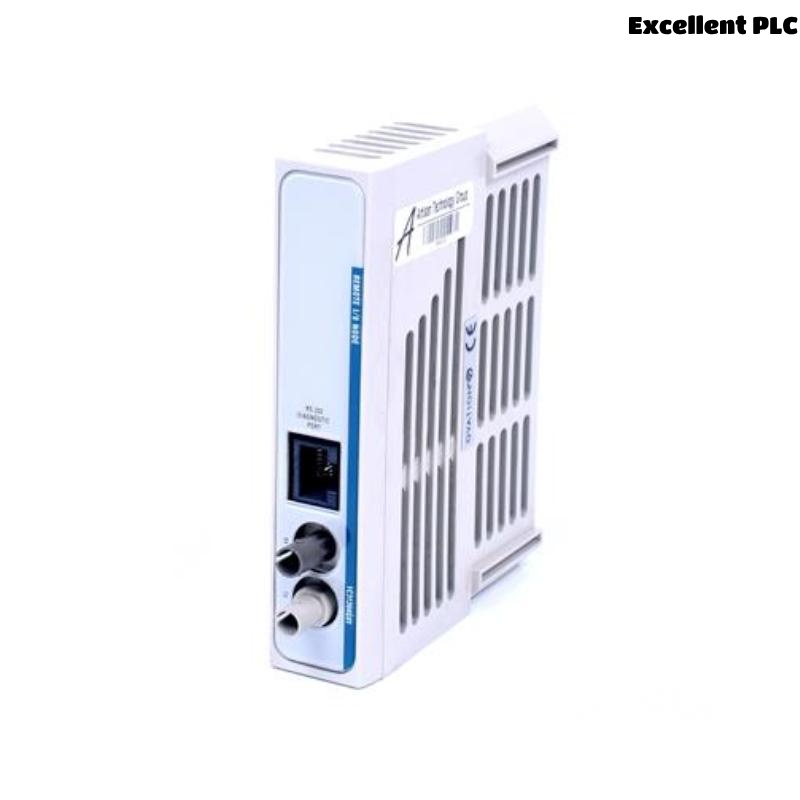

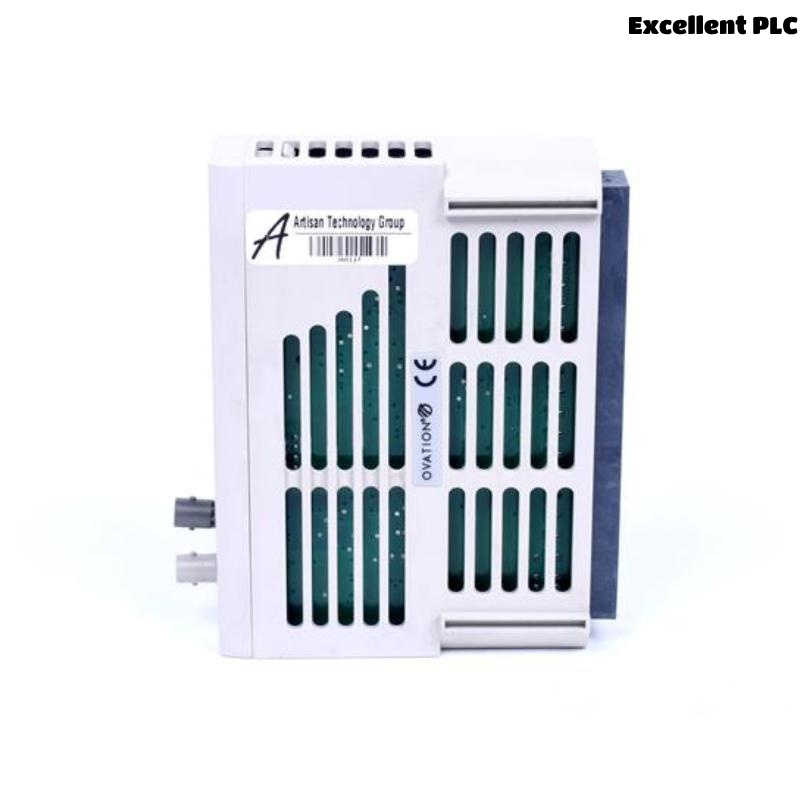

1C31204G01 – OVATION DCS System Module
The OVATION 1C31204G01 is a high-performance Input/Output interface module used within Emerson’s OVATION Distributed Control System (DCS). Designed for reliable operation in industrial automation, power plants, and critical infrastructure, this module ensures seamless data acquisition and control signal exchange between field instruments and the DCS controller.
The 1C31204G01 provides robust analog input capabilities, accommodating a range of sensor inputs, making it essential for real-time process monitoring and data acquisition. Its modularity, compatibility with a wide range of I/O baseplates, and redundancy support make it a trusted choice in high-availability control architectures.
Product Advantages
Built for Stability, Scalability, and Performance
-
High Reliability: Proven field performance in harsh industrial environments.
-
Modular Integration: Easily integrated into existing OVATION backplanes and systems.
-
Redundancy Support: Offers hot-swappable capabilities and dual redundancy for mission-critical applications.
-
Accurate Data Handling: High-resolution analog input processing for precise measurement.
-
Low Maintenance: Designed for long operational life with minimal service interruptions.
-
Emerson DCS Ecosystem Compatibility: Seamless communication with controllers, HMI, and other system modules.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 1C31204G01 |
| Manufacturer | Emerson (OVATION DCS Series) |
| Function | Analog Input Module |
| Input Type | Analog (typically 4–20 mA or 0–10 V) |
| Number of Channels | 16 channels (typical for this model) |
| Input Impedance | >250 Ohms |
| Resolution | 12 to 16 bits (application-dependent) |
| Isolation | Channel-to-bus and channel-to-channel isolation |
| Communication | OVATION I/O Bus |
| Operating Voltage | 24 VDC (supplied from I/O chassis) |
| Power Consumption | <5 W (typical) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 320 x 230 x 180 mm |
| Weight | 2.5 kg |
| Mounting | DIN rail or card chassis |
| Certifications | CE, UL, RoHS compliant |
Product Applications
Critical Infrastructure and Process Industry Integration
The OVATION 1C31204G01 is widely utilized in:
-
Power Generation Plants – Especially thermal and hydroelectric facilities for sensor signal collection.
-
Oil & Gas Industry – For process instrumentation and flow monitoring.
-
Water Treatment Plants – Monitoring pH, pressure, temperature, and flow.
-
Chemical Processing – High-precision analog readings in batch and continuous operations.
-
Renewable Energy Systems – Used in biomass and solar plant monitoring.
-
Industrial Manufacturing – Input aggregation from various sensors in process automation.
Installation Notes
Precise Integration for Maximum Uptime
-
Ensure module is powered off before installation to avoid damage.
-
Align module with appropriate OVATION I/O chassis slot.
-
Carefully insert and secure module using integrated locking mechanism.
-
Connect analog input channels to terminal base, following polarity and shield grounding requirements.
-
Power up system and validate module detection via OVATION controller.
-
Use configuration software (OVATION Workstation) to assign channels and diagnostics.
Frequently Asked Questions (FAQ)
Human-written responses for real-world clarity
Q1: What does the OVATION 1C31204G01 module do?
A1: It collects analog signals from field instruments and sends them to the DCS controller for real-time monitoring and control.
Q2: Can this module be hot-swapped during operation?
A2: Yes, it supports hot-swapping in systems with redundant configurations, minimizing downtime.
Q3: What kind of sensors can be connected to it?
A3: It supports various analog sensors such as temperature transmitters, pressure sensors, and flow meters using standard 4–20 mA or 0–10 V signals.
Q4: Is it compatible with older OVATION systems?
A4: Yes, it is designed to work with both legacy and current OVATION DCS platforms.
Q5: What diagnostics features are available?
A5: It provides channel status monitoring, input integrity checks, and fault isolation.
Q6: How is channel isolation handled?
A6: Each input channel is isolated from others and from the system bus, ensuring signal integrity.
Q7: Can I configure the channels individually?
A7: Yes, each channel can be configured independently through the OVATION system software.
Q8: Does it require external power for sensors?
A8: Some sensor types require loop power, which can be provided by external power supplies or powered loops.
Q9: Is firmware upgradable?
A9: While most OVATION modules have fixed firmware, updates can be available during system-wide upgrades.
Q10: What should I do if a channel stops working?
A10: Use system diagnostics to identify the faulty channel. If needed, the module can be replaced without shutting down the system in redundant configurations.
