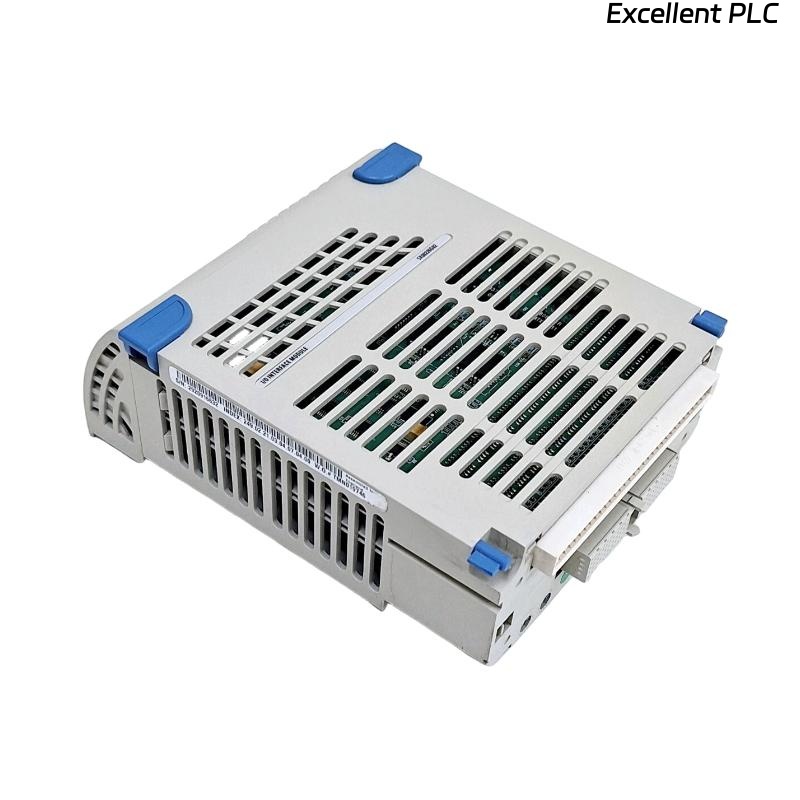

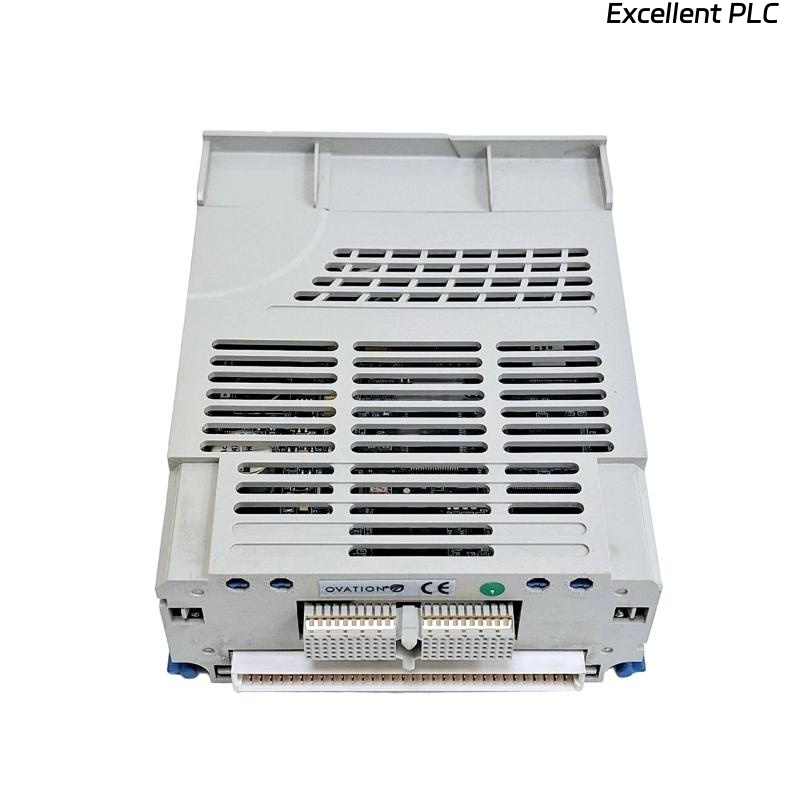

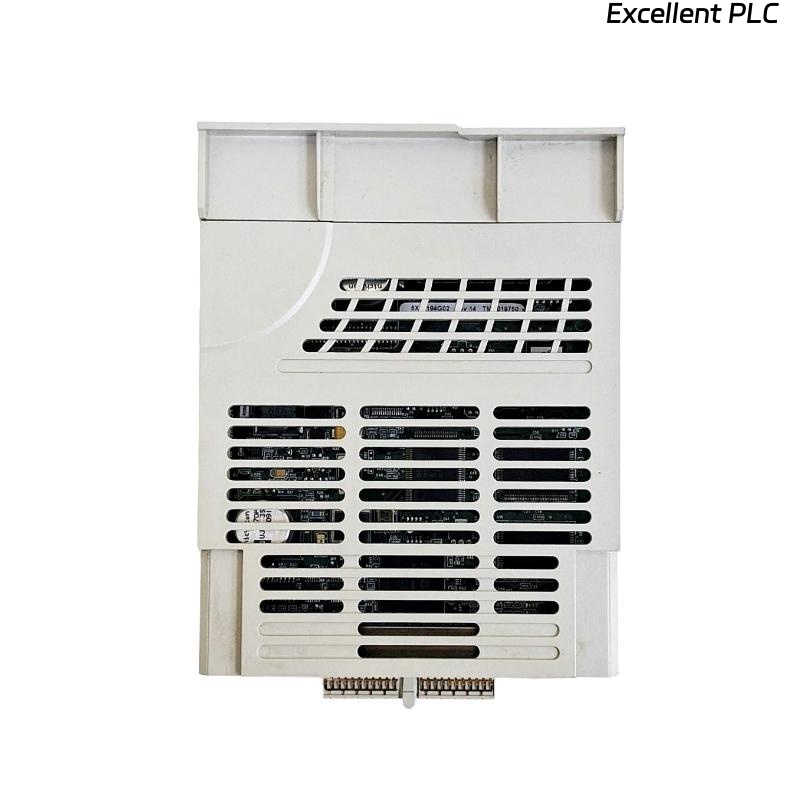

Ovation 1X00046H02 Copper To Fiber Media Converter

Product Introduction

The Ovation 1X00046H02 Copper to Fiber Media Converter is an industrial-grade device designed to bridge the gap between copper Ethernet networks and fiber-optic infrastructures. This converter enables high-speed, long-distance communication for Ovation Distributed Control Systems (DCS) and other industrial automation networks. By converting electrical signals from copper cabling to optical signals for fiber, it ensures low-latency, noise-resistant data transmission. The 1X00046H02 is optimized for harsh industrial environments, featuring robust EMI protection, wide temperature tolerance, and high signal integrity, making it essential for critical process control, network redundancy, and extended-distance communication between controllers, I/O modules, and operator workstations.

Product Specifications

Applications

• Ovation DCS Networks: Enables seamless connectivity between Ovation controllers, I/O modules, and workstations over fiber networks.

• Long-Distance Ethernet Links: Extends copper Ethernet segments to kilometers over fiber-optic cables.

• Industrial Automation: Provides deterministic, low-latency communication for distributed control applications.

• Network Redundancy: Facilitates looped and redundant topologies with low failure risk.

• Harsh Industrial Environments: Operates reliably in areas with high electromagnetic interference and extreme temperatures.

• Remote Data Acquisition: Connects remote sensors and monitoring stations to central Ovation systems.

Advantages

• Extended Distance Communication: Converts copper signals to fiber, allowing transmission over several kilometers.

• Low-Latency Performance: Latency under 5 microseconds ensures timely data delivery for real-time control.

• Noise Immunity: Fiber-optic transmission eliminates susceptibility to electromagnetic interference.

• Flexible Interfaces: Supports both multimode and single-mode fiber connections.

• Redundant Power Support: Dual power input enhances reliability and reduces downtime.

• Industrial-Grade Construction: Built to withstand temperature extremes and harsh plant conditions.

• Seamless System Integration: Fully compatible with Ovation DCS networks and industrial Ethernet devices.

FAQ

1. What types of fiber does the 1X00046H02 support?
   It supports both multimode and single-mode SC/ST fiber connections.

2. Can this media converter operate in high EMI environments?
   Yes, it features robust EMI protection for stable signal transmission.

3. What is the maximum transmission distance?
   Up to 2 km for multimode fiber and up to 20 km for single-mode fiber.

4. Does the converter support full-duplex communication?
   Yes, it supports 100 Mbps full-duplex operation.

5. Can it detect link faults automatically?
   Yes, link fault detection is built in to maintain network reliability.

6. Is dual power input supported for redundancy?
   Yes, it allows dual power input for continuous operation during power failure.

7. What is the operating temperature range?
   The module operates reliably from −20 °C to +70 °C.

8. Can this converter be used in Ovation DCS critical networks?
   Yes, it is fully compatible with Ovation DCS infrastructure for reliable communication.

9. What is the typical latency introduced by the converter?
   Latency is less than 5 microseconds, ensuring near real-time data transmission.

10. Can the converter support both 10 Mbps and 100 Mbps copper Ethernet connections?
    Yes, it automatically negotiates 10/100 Mbps Ethernet signals on the copper side.
