Product Introduction

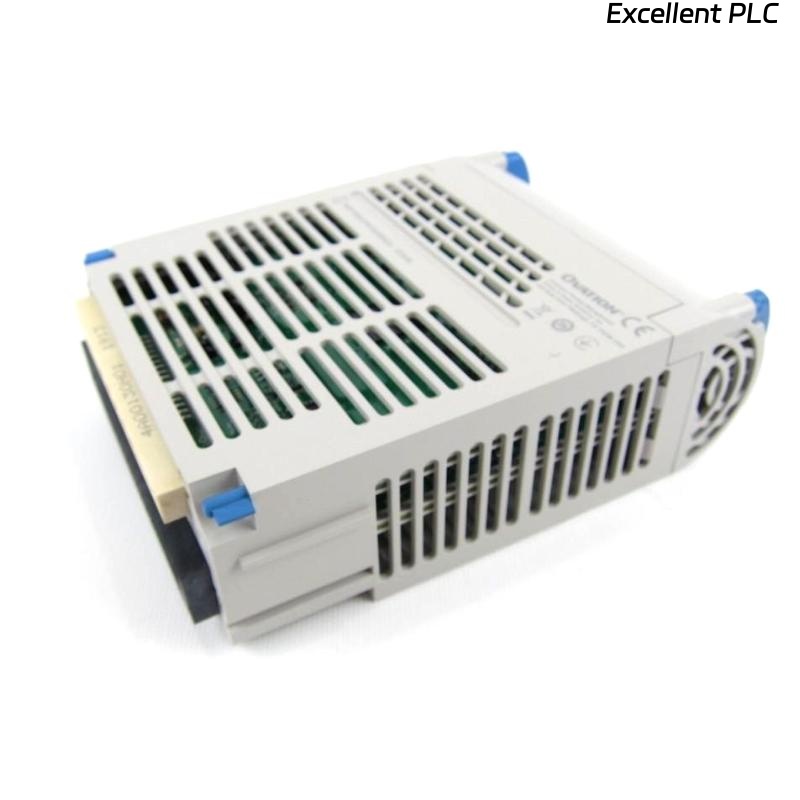

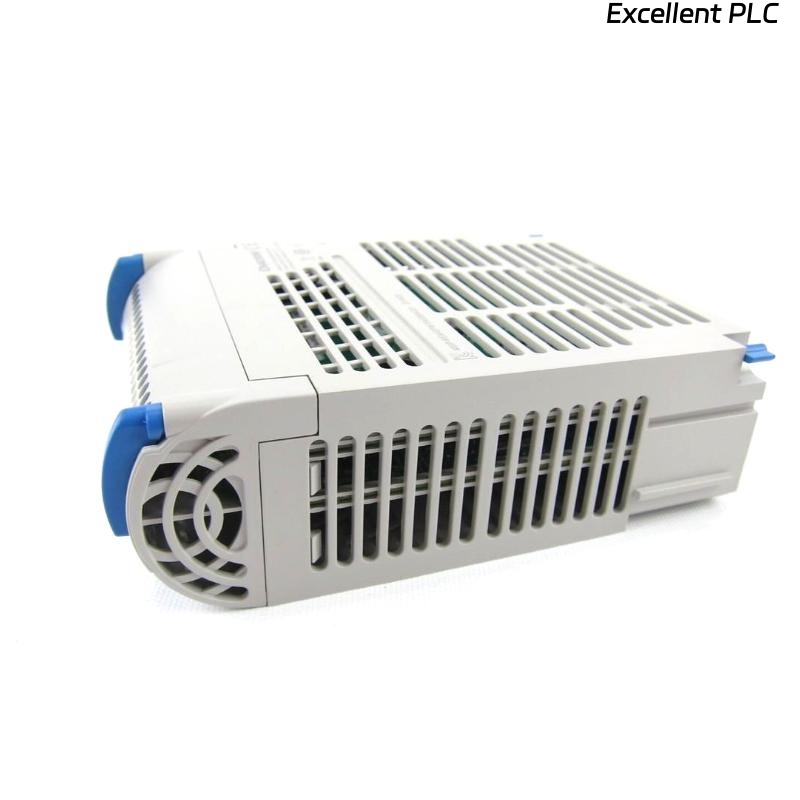

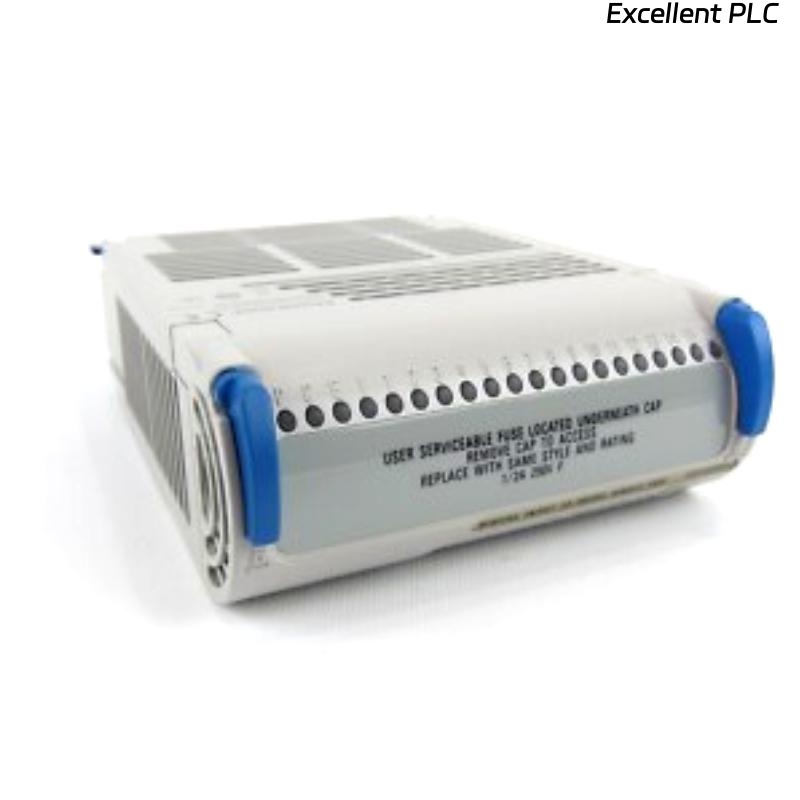

The OVATION 1X00055H01 Converter Rack Mount Chassis is a specialized hardware platform designed to host and manage converter modules within the Ovation control system architecture. It provides a robust mechanical and electrical framework to ensure secure installation, reliable power distribution, and efficient signal handling for multiple converter units. The chassis is engineered to meet the requirements of industrial automation environments, particularly in power generation, process industries, and critical infrastructure, where continuous operation and high reliability are essential.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | OVATION 1X00055H01 |
| Product Type | Converter Rack Mount Chassis |
| Mounting | Standard 19-inch rack-mount configuration |
| Dimensions | 482 × 177 × 350 mm |
| Weight | 0.85 kg |
| Input Power | 24 VDC / 48 VDC (depending on configuration) |
| Supported Modules | Ovation converter modules (various models) |
| Cooling | Passive air ventilation with optional fan kit |
| Material | Industrial-grade steel chassis with anti-corrosion coating |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Connectivity | Backplane connectors for power and data signal routing |
| Compliance | CE, UL, RoHS standards |
Product Applications
-
Power Generation Plants – for housing converters that manage communication and signal conversion in turbine and boiler control systems.
-
Process Automation – in refineries, petrochemicals, and water treatment plants for integrating converters with distributed control systems.
-
Industrial Control Systems – for providing a secure platform to support signal and protocol converters used in automation.
-
Critical Infrastructure – in grid substations and utility monitoring systems where high availability is required.
Product Advantages
-
High Reliability: Industrial-grade design ensures stable operation under harsh environmental conditions.
-
Scalability: Supports multiple converter modules, allowing easy expansion as system demands grow.
-
Ease of Maintenance: Rack-mount design simplifies installation, replacement, and servicing of modules.
-
Efficient Power Distribution: Built-in backplane ensures reliable power and communication signal flow.
-
Space Optimization: Compact rack-mount form factor saves valuable control room or cabinet space.
-
Compatibility: Designed to seamlessly integrate with other Ovation system components.
FAQ
Q1: How many converter modules can the 1X00055H01 chassis support?
A1: It typically supports multiple converter modules depending on system configuration, commonly up to 8–10 units.
Q2: Does the chassis provide redundant power options?
A2: Yes, it can be configured with redundant power feeds to ensure uninterrupted operation.
Q3: What type of backplane interface does the chassis use?
A3: It uses a proprietary Ovation backplane designed for both power and signal distribution.
Q4: Can the chassis operate in environments with high vibration?
A4: Yes, it is tested for industrial vibration resistance and can operate in such conditions when properly mounted.
Q5: Is hot-swapping of converter modules supported?
A5: Yes, modules can be hot-swapped without shutting down the entire system, depending on system design.
Q6: How does the chassis handle heat dissipation?
A6: The chassis uses passive air ventilation and can be equipped with an optional fan kit for enhanced cooling.
Q7: Does the chassis support mixed module types?
A7: Yes, it can host different types of Ovation converter modules simultaneously.
Q8: What is the grounding method for this chassis?
A8: It includes chassis ground terminals for safe integration into industrial grounding systems.
Q9: Can the chassis be integrated into third-party control systems?
A9: While optimized for Ovation systems, it can be adapted for third-party integration with proper converters.
Q10: How is module addressing managed within the chassis?
A10: Module addressing is handled through the backplane and system configuration tools in the Ovation system.
