Product Overview

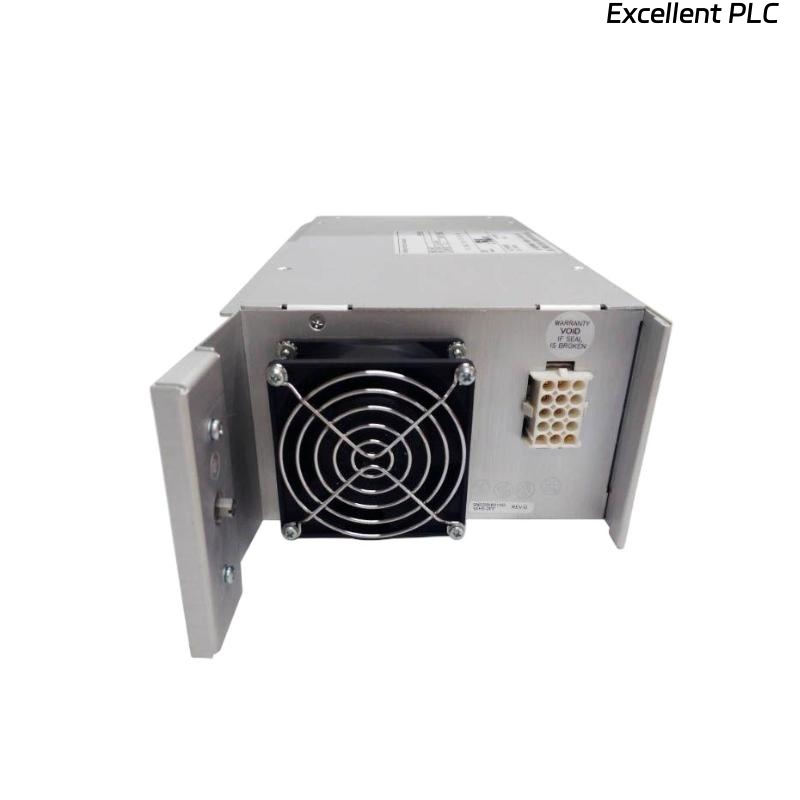

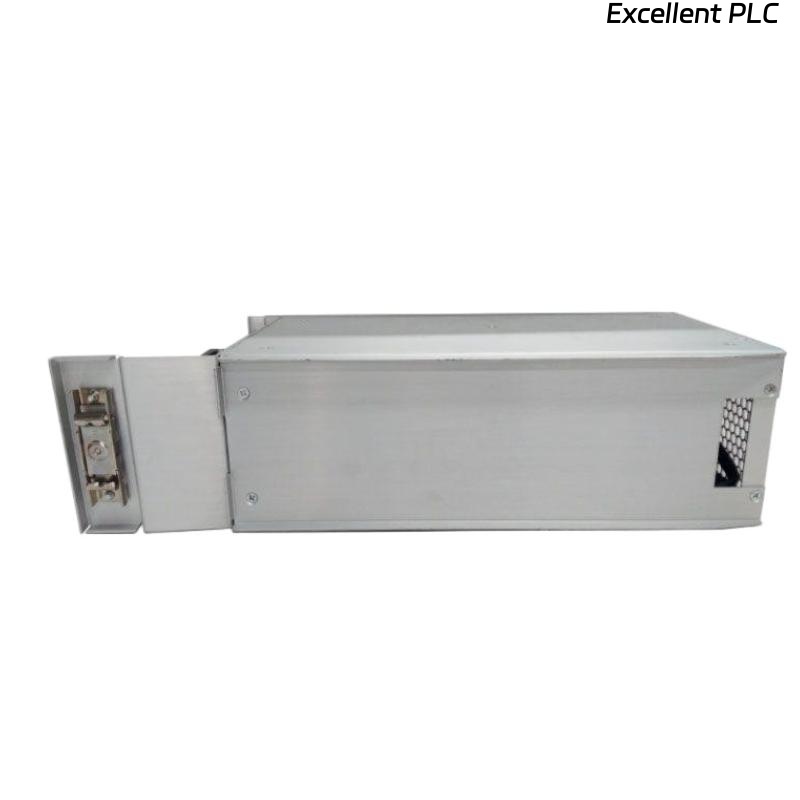

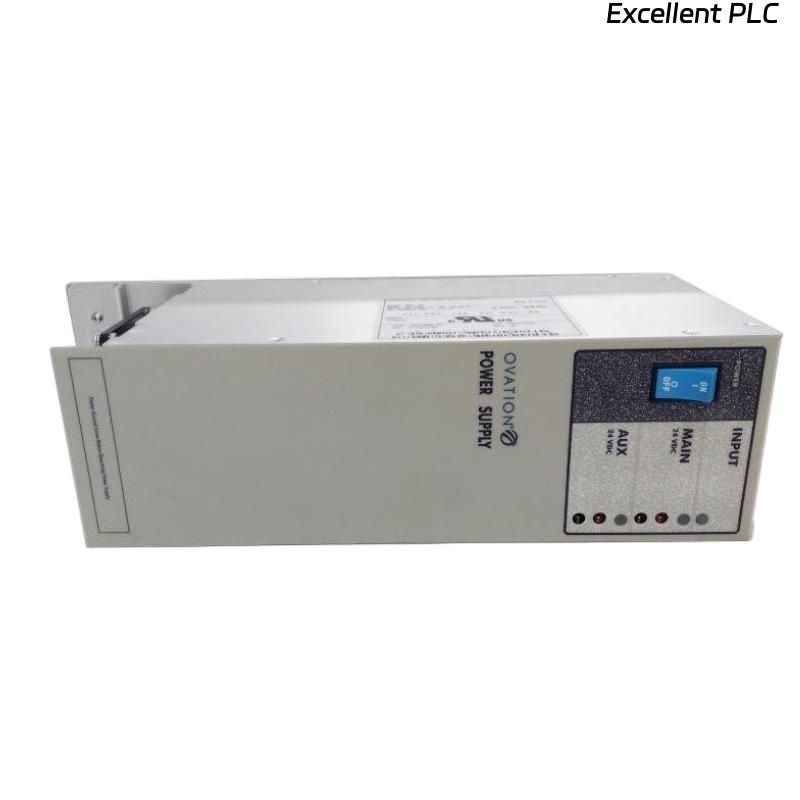

The Ovation 1X00416H01 Power Supply is a reliable industrial power supply designed to provide stable and continuous electrical power to Ovation control systems and associated modules. Engineered for high efficiency and long-term reliability, it ensures consistent performance in demanding industrial environments.
Key Features
-
Provides stable DC power to Ovation control systems
-
High efficiency and low heat generation
-
Compatible with a wide range of Ovation I/O modules
-
Rugged design for industrial environments
-
Protects connected equipment from voltage fluctuations
-
Easy installation and maintenance
-
Supports continuous operation for critical systems
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 1X00416H01 |
| Type | Power Supply |
| Output Voltage | 24 VDC nominal |
| Output Current | Up to 10 A |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Efficiency | ≥ 90% |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -20 °C to +70 °C |
| Humidity | 5% – 95% non-condensing |
| Mounting | Rack or panel mountable |
| Dimensions | 200 × 120 × 90 mm |
| Weight | 1.3 kg |
| Compliance | CE, RoHS |
Industry Applications
-
Power Generation – turbine and generator control systems
-
Oil & Gas – process control and monitoring
-
Petrochemical & Chemical – critical system power supply
-
Manufacturing – control of motors, pumps, and process equipment
-
Water & Wastewater – reliable power for distributed control systems
Advantages
-
Provides stable and reliable power for Ovation systems
-
High efficiency minimizes energy loss and heat
-
Rugged design ensures durability in industrial environments
-
Protects sensitive equipment from power fluctuations
-
Supports continuous and uninterrupted operation
-
Easy installation and maintenance
Frequently Asked Questions (FAQ)
Q1: What is the output voltage of this power supply?
24 VDC nominal.
Q2: What is the maximum output current?
Up to 10 A.
Q3: What is the input voltage range?
100–240 VAC, 50/60 Hz.
Q4: What is the operating temperature range?
0 °C to +60 °C.
Q5: How is it mounted?
Rack or panel mountable.
Q6: Is it suitable for industrial environments?
Yes, it is rugged and durable.
Q7: Does it comply with CE and RoHS standards?
Yes.
Q8: What type of Ovation modules can it power?
Analog, digital, and specialty I/O modules.
Q9: Can it protect against voltage fluctuations?
Yes, it provides stable and regulated output.
Q10: Which industries commonly use this power supply?
Power generation, oil & gas, petrochemical, manufacturing, and water & wastewater.
