Product Introduction

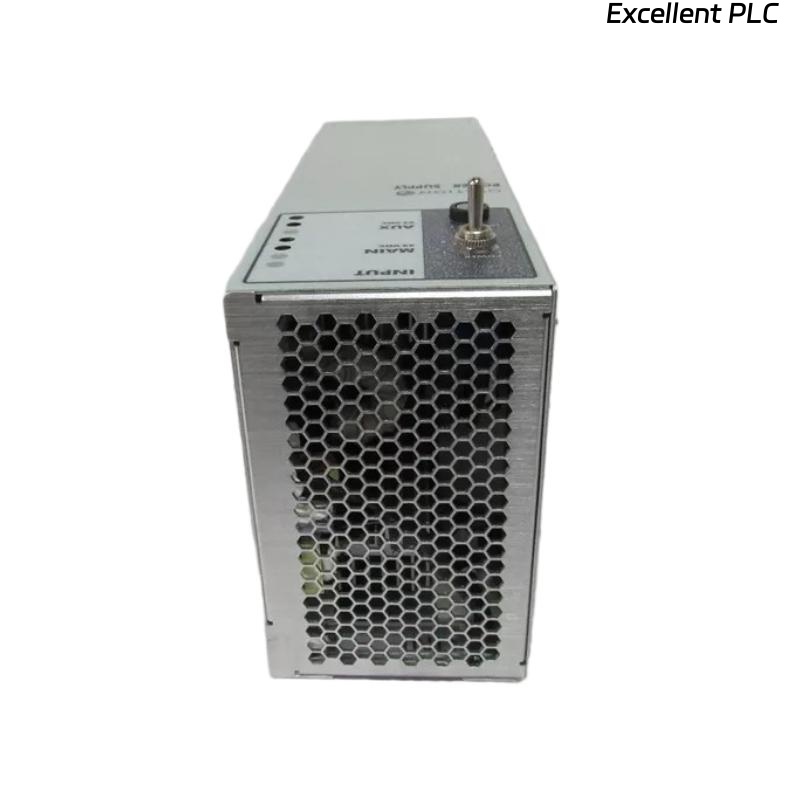

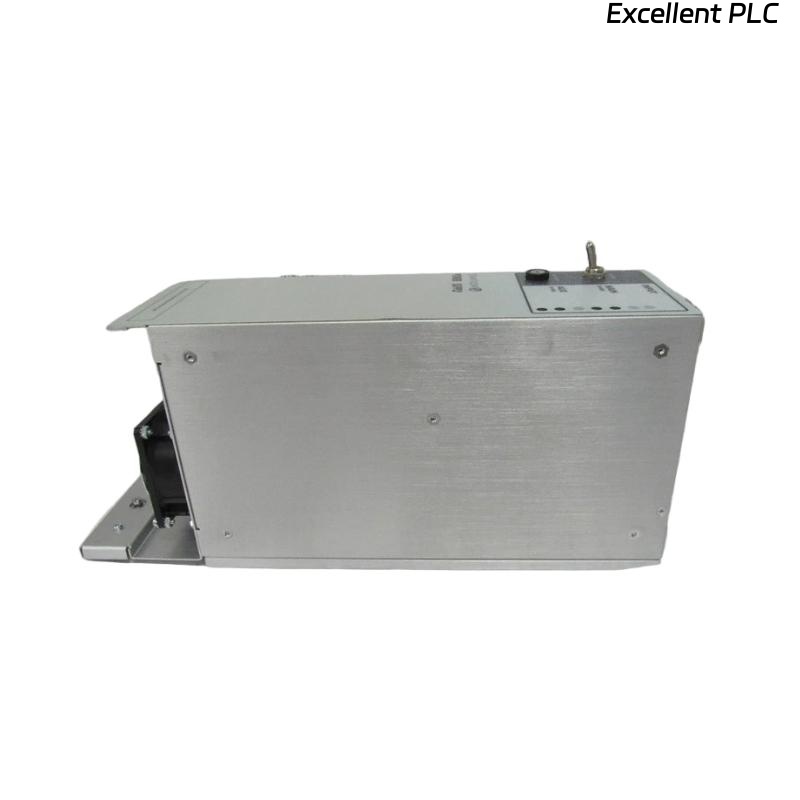

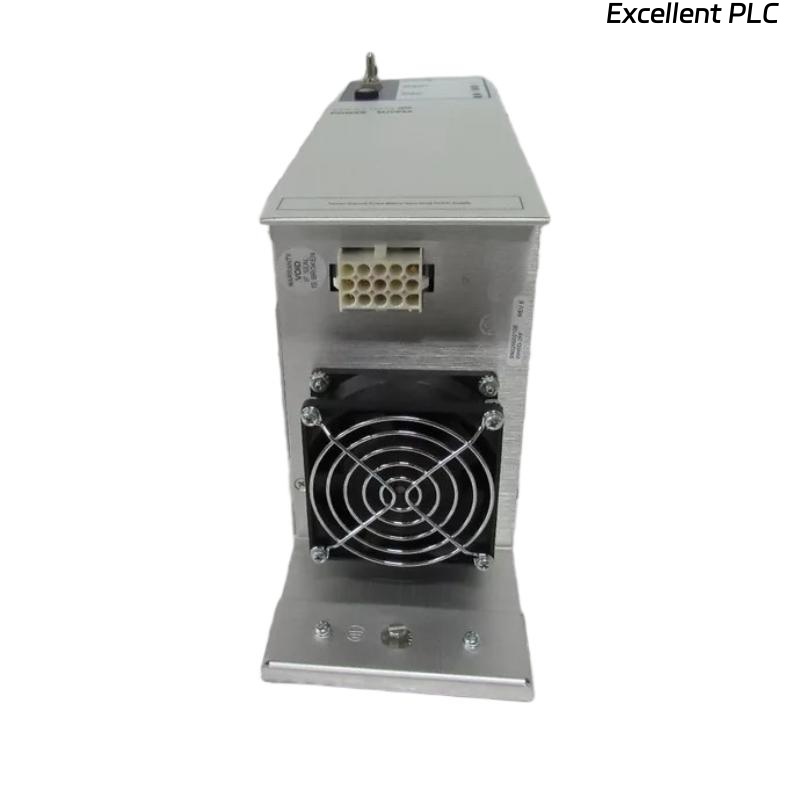

The OVATION 1X00416H03 Power Supply Module is a robust and reliable component designed for Ovation Distributed Control Systems (DCS). It ensures stable and uninterrupted power delivery to control modules and field devices, enabling continuous operation of industrial automation systems. With its advanced protection mechanisms, the module is capable of handling demanding industrial environments where reliability and precision are critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 1X00416H03 |
| Product Type | Power Supply Module |
| Input Voltage Range | 85 – 264 VAC / 47 – 63 Hz |
| Output Voltage | 24 VDC (regulated) |
| Output Power Capacity | 150 W nominal |
| Efficiency | ≥ 90% |
| Protection Features | Overvoltage, Overcurrent, Short Circuit |
| Cooling Method | Natural convection / forced air |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity Range | 5% – 95% non-condensing |
| Dimensions | 400 x 205 x 103 mm |
| Weight | 3.18 kg |
Product Applications
-
Power Generation Plants – providing stable DC power for turbine and boiler control systems.
-
Petrochemical and Refining – ensuring continuous operation of control systems in critical refining processes.
-
Water and Wastewater Treatment – supplying reliable power to monitoring and control modules.
-
Steel and Manufacturing Industries – powering automation systems for improved efficiency and reduced downtime.
-
Marine and Offshore Systems – maintaining stable power in harsh environmental conditions.
Product Advantages
-
High Reliability: Built for continuous operation with advanced fault protection mechanisms.
-
Wide Input Range: Supports global power standards, making it versatile for international deployment.
-
Stable Output: Provides regulated and noise-free DC output, ensuring accuracy for sensitive control modules.
-
Compact Design: Optimized size and weight for easy integration into Ovation cabinets.
-
Ease of Maintenance: Modular design enables quick replacement and reduces system downtime.
-
Extended Protection: Safeguards against overvoltage, overload, and short-circuit conditions.
FAQ
Q1: What type of power regulation does the 1X00416H03 module use?
A1: It employs regulated DC conversion with filtering to ensure stable output voltage.
Q2: Can this power supply operate with fluctuating AC inputs?
A2: Yes, it supports an input range of 85–264 VAC, accommodating voltage fluctuations within this spectrum.
Q3: How does the module protect connected devices from electrical faults?
A3: It is equipped with overvoltage, overcurrent, and short-circuit protection circuits.
Q4: Is redundancy supported when multiple modules are used?
A4: Yes, the module can be deployed in parallel for redundancy and load sharing.
Q5: What is the maximum output ripple voltage of the module?
A5: The ripple is typically less than 50 mV, ensuring minimal interference for sensitive electronics.
Q6: How is cooling managed within the unit?
A6: The design supports both natural convection and optional forced-air cooling depending on system configuration.
Q7: Does the module support hot-swapping?
A7: Yes, it can be replaced without shutting down the entire Ovation control system.
Q8: What diagnostic features are available in this module?
A8: It includes status indicators and self-monitoring circuits for voltage and load conditions.
Q9: Can the power supply withstand harsh environmental conditions?
A9: Yes, it is designed for industrial-grade operation with wide temperature and humidity tolerances.
Q10: Is the module compatible with third-party control systems?
A10: While optimized for Ovation DCS, it can provide regulated DC power to other systems requiring 24 VDC.
Related Models
| Model Number | Description |
|---|---|
| 1X00416H01 | Power Supply Module, standard version |
| 1X00416H02 | Power Supply Module, enhanced capacity |
| 1X00416H04 | Power Supply Module, redundant type |
| 1X00417H01 | Power Supply, high-load version |
| 1X00418H02 | Auxiliary Power Module |
| 1X00419G01 | Power Distribution Module |
