Product Introduction

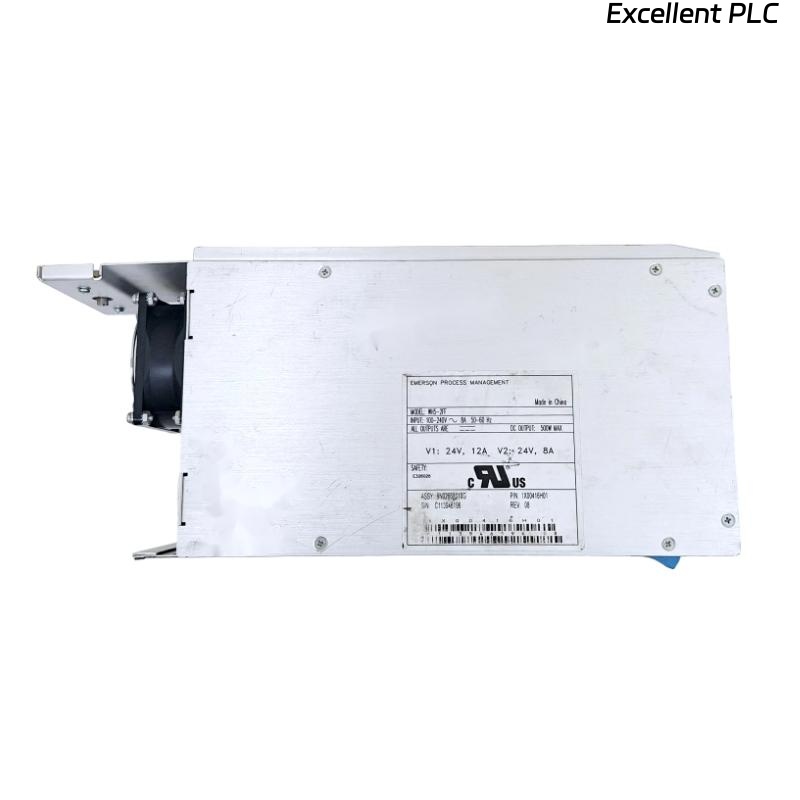

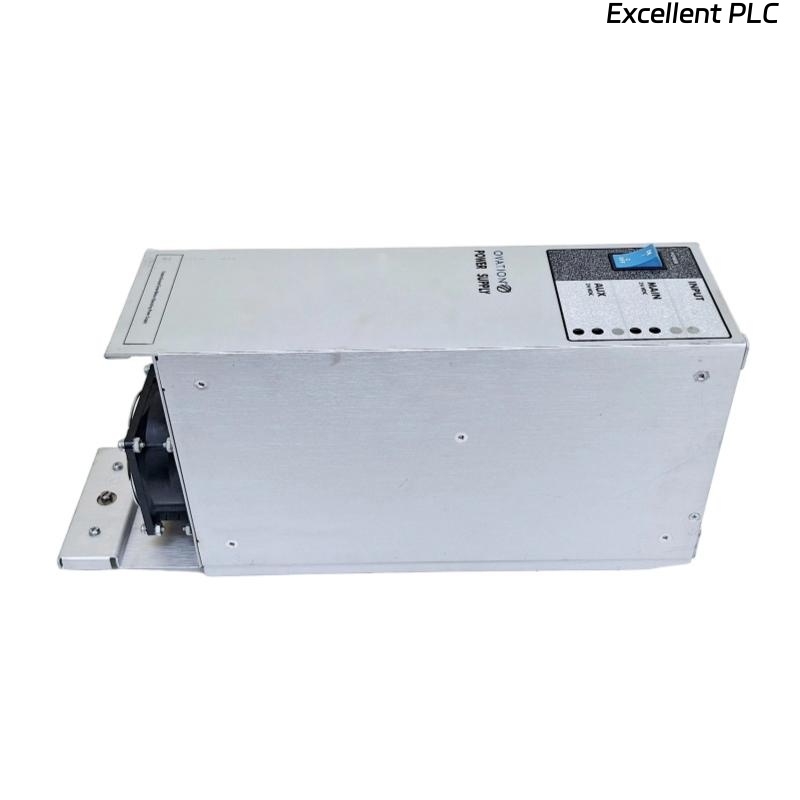

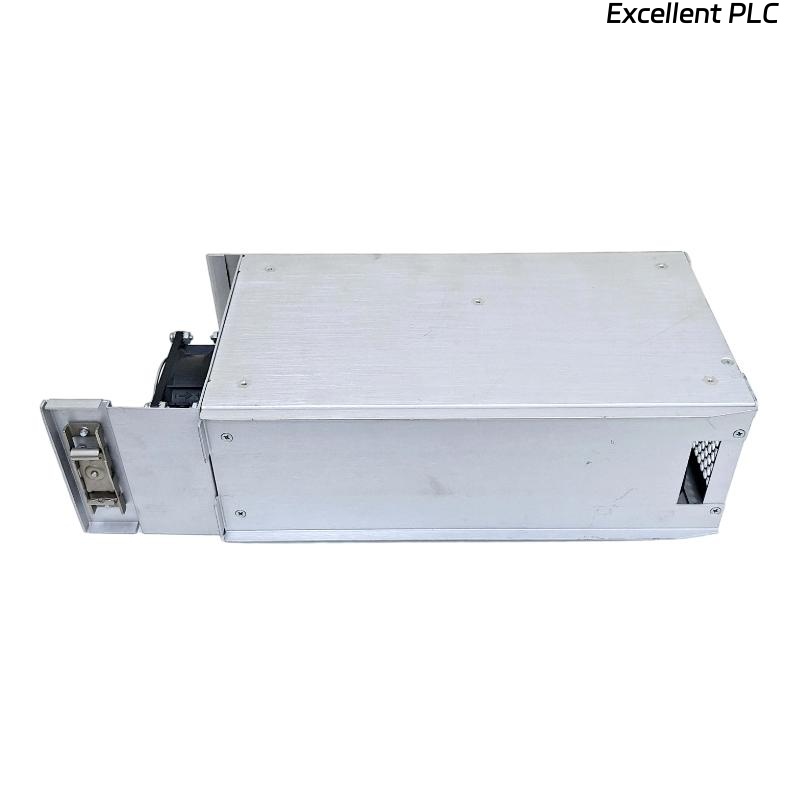

The Ovation 1X00417H02 Power Supply is a robust DC power module engineered for Ovation™ distributed control systems. It provides stable and reliable power to input/output modules, controllers, and communication interfaces in demanding industrial environments. The module is designed to ensure continuous operation with high efficiency and built-in electrical protections, making it suitable for critical process control applications in power generation, water/wastewater treatment, oil & gas, and industrial automation.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 1X00417H02 |
| Product Type | DC Power Supply Module |
| Output Voltage | 24 VDC nominal |
| Output Current | 10 A maximum |
| Input Voltage Range | 85–265 VAC, 50/60 Hz |
| Power Conversion Efficiency | ≥ 90 % |
| Voltage Regulation | ±2 % typical |
| Ripple & Noise | <50 mV peak-to-peak |
| Protections | Overvoltage, overload, short-circuit, and thermal protection |
| Communication Interface | Ovation™ redundant I/O bus |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5–95 % non-condensing |
| Dimensions | 130 × 50 × 160 mm |
| Weight | 0.6 kg |
| Certifications | CE, UL, CSA, ATEX Zone 2 |
Applications
-
Distributed Control Systems – Supplies regulated DC power to Ovation I/O and controller modules.
-
Power Generation – Ensures uninterrupted operation of turbine, boiler, and auxiliary control modules.
-
Water & Wastewater Treatment – Powers automation modules and monitoring systems reliably.
-
Oil & Gas Facilities – Provides power for control and safety modules in harsh environments.
-
Industrial Automation – Powers critical process controllers, sensors, and actuators.
-
Building Automation – Supports Ovation modules used in HVAC, fire protection, and energy monitoring.
Advantages
-
High Output Capacity – Supports 10 A maximum current to power multiple system modules.
-
Stable 24 VDC Supply – Maintains tight voltage regulation (±2 %) under varying load conditions.
-
High Efficiency – ≥90 % power conversion reduces heat generation and operational costs.
-
Comprehensive Protection Features – Safeguards connected devices against overvoltage, overload, short-circuit, and thermal faults.
-
Wide AC Input Range – Operates reliably with global power systems ranging from 85–265 VAC.
-
Redundant Bus Compatibility – Fully compatible with Ovation redundant I/O bus for high availability systems.
-
Hot-Swappable – Can be replaced without shutting down the control system.
-
Certified for Hazardous Locations – CE, UL, CSA, and ATEX Zone 2 approvals enable safe industrial deployment.
FAQ
-
What is the nominal output voltage of the 1X00417H02?
The module provides a stable 24 VDC output suitable for powering Ovation I/O and controllers. -
What is the maximum output current it can deliver?
The power supply can deliver up to 10 A to connected system components. -
Which AC input voltages are supported?
The module supports a wide input range of 85–265 VAC at 50/60 Hz. -
Does the module include protection features?
Yes, it offers overvoltage, overload, short-circuit, and thermal protection to safeguard devices. -
Can it operate in extreme temperature and humidity conditions?
Yes, it functions reliably from –20 °C to +60 °C and 5–95 % non-condensing humidity. -
Is the 1X00417H02 compatible with redundant Ovation buses?
Yes, it integrates seamlessly with the Ovation redundant I/O bus. -
What is the efficiency of this power supply module?
The module has a power conversion efficiency of ≥90 %, minimizing heat generation. -
Can it be replaced while the system is running?
Yes, it is hot-swappable for maintenance without interrupting operations. -
Is the module suitable for hazardous areas?
Yes, it meets CE, UL, CSA, and ATEX Zone 2 certifications. -
Which Ovation system components can it power?
It supplies power to controllers, discrete and analog I/O modules, and communication interfaces.
