Product Introduction

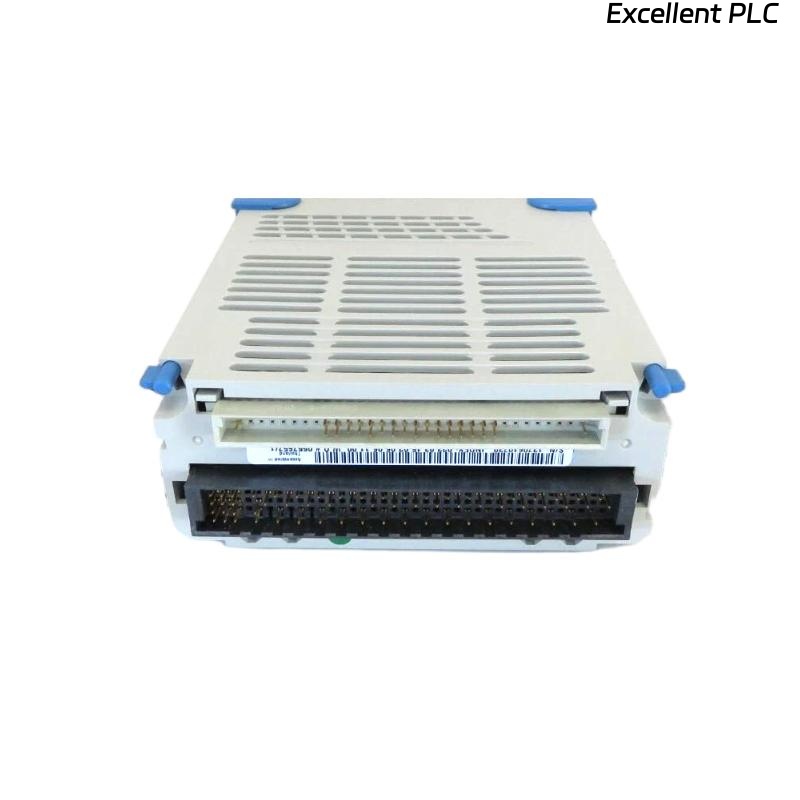

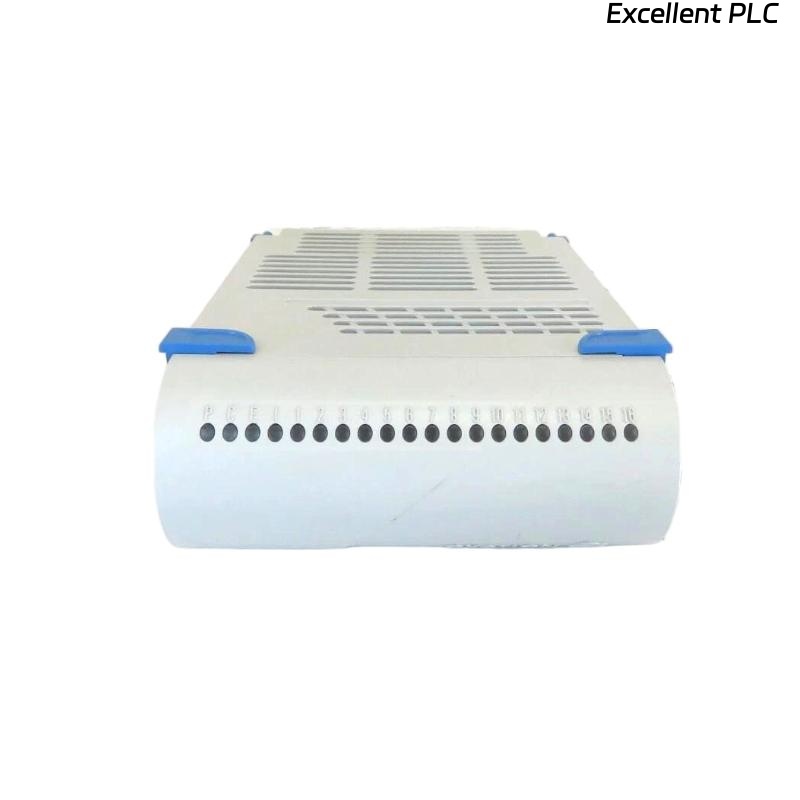

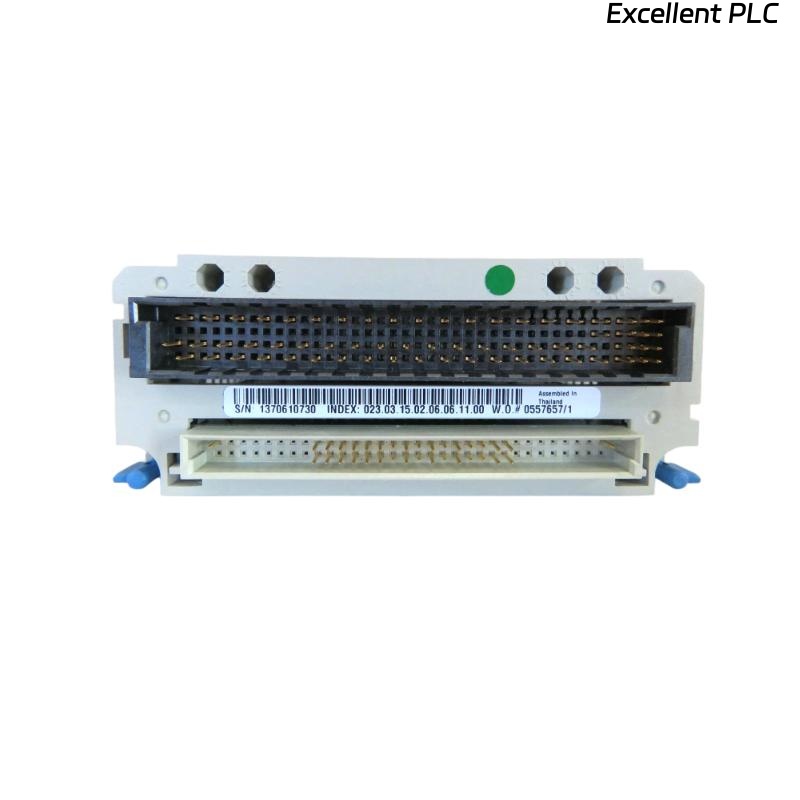

The Ovation 5X00070G03 is a state-of-the-art Analog High-Speed Input Module designed for high-precision applications in industrial automation systems. With its advanced technology, it provides reliable and efficient signal processing for applications requiring quick response times and high fidelity in data capture. This module is optimized for integration into the Ovation control systems, ensuring seamless performance in demanding environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | Ovation 5X00070G03 |
| Type | Analog High-Speed Input Module |
| Dimensions | 41 x 159 x 108 mm |
| Weight | 0.4 kg |
| Input Channels | 8 |
| Input Type | Voltage or Current |
| Signal Resolution | 16-bit |
| Input Range | ±10V or 4-20mA |
| Sampling Rate | 1 MS/s |
| Accuracy | ±0.01% Full Scale |
| Power Consumption | 0.6 W |
| Operating Temperature Range | -20°C to +70°C |
Product Applications
The Ovation 5X00070G03 module is ideal for use in industries that require high-speed and high-accuracy analog data acquisition. Its applications include but are not limited to:
-
Industrial Process Control: Accurate monitoring and control of industrial processes such as temperature, pressure, and flow.
-
Machine Monitoring: Real-time data collection for machinery performance analysis and predictive maintenance.
-
Energy Management: Power quality monitoring and energy consumption optimization in utilities and energy production systems.
-
Scientific Research: Accurate measurement for high-speed data collection in research and testing environments.
Product Advantages
-
High-Speed Data Capture: Capable of processing high-speed signals with a sampling rate of 1 MS/s, ensuring that fast-changing process data is captured without delay.
-
Wide Input Range: Supports both voltage and current inputs (±10V, 4-20mA), making it adaptable for various sensor types and industrial standards.
-
High Accuracy: With a 16-bit resolution, the module delivers precise signal measurements, ensuring reliable operation even in critical control applications.
-
Compact and Lightweight Design: With compact dimensions (41 x 159 x 108 mm) and a lightweight form factor (0.4 kg), it is easy to install and integrate into existing systems.
-
Seamless Integration: Perfectly integrates with the Ovation control systems, ensuring compatibility and ease of use in a wide range of automation setups.
FAQ
1. What is the input type supported by the Ovation 5X00070G03 module?
The module supports both voltage and current input types, offering flexibility in integration with various sensors and devices.
2. What is the maximum sampling rate of the Ovation 5X00070G03 module?
The maximum sampling rate of the module is 1 MS/s, ensuring high-speed data capture for dynamic processes.
3. What is the input range for voltage and current on the Ovation 5X00070G03?
The module supports an input range of ±10V for voltage inputs and 4-20mA for current inputs.
4. How many channels does the Ovation 5X00070G03 module have?
The module provides 8 input channels, making it suitable for monitoring multiple process variables simultaneously.
5. What is the resolution of the analog inputs on the Ovation 5X00070G03?
The module has a 16-bit resolution, providing high precision for accurate signal processing and control.
6. What is the operating temperature range of the Ovation 5X00070G03?
The module operates within a temperature range of -20°C to +70°C, making it suitable for a wide range of industrial environments.
7. What is the power consumption of the Ovation 5X00070G03?
The power consumption of the module is 0.6 W, making it energy-efficient while delivering high-performance data acquisition.
8. Can the Ovation 5X00070G03 module be used in a hazardous environment?
Yes, the module is designed to operate in industrial environments, but you may need additional certifications and enclosures for hazardous locations.
9. What is the accuracy of the Ovation 5X00070G03 module?
The module provides an accuracy of ±0.01% Full Scale, ensuring precise measurement in critical applications.
10. Is the Ovation 5X00070G03 compatible with other Ovation modules?
Yes, the Ovation 5X00070G03 module is designed to seamlessly integrate into Ovation control systems, ensuring compatibility with other modules and devices.
