Product Introduction

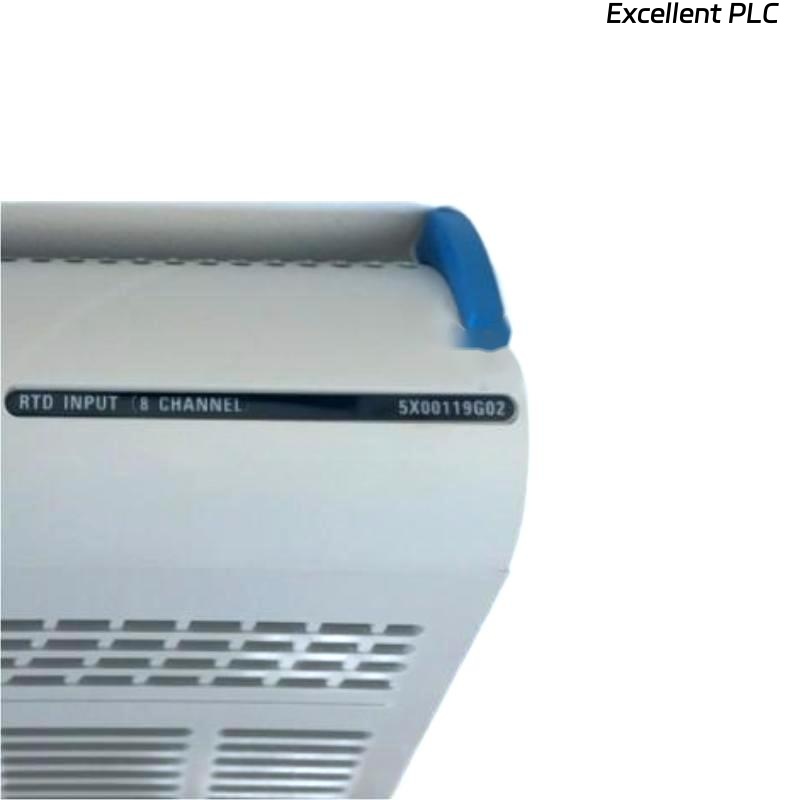

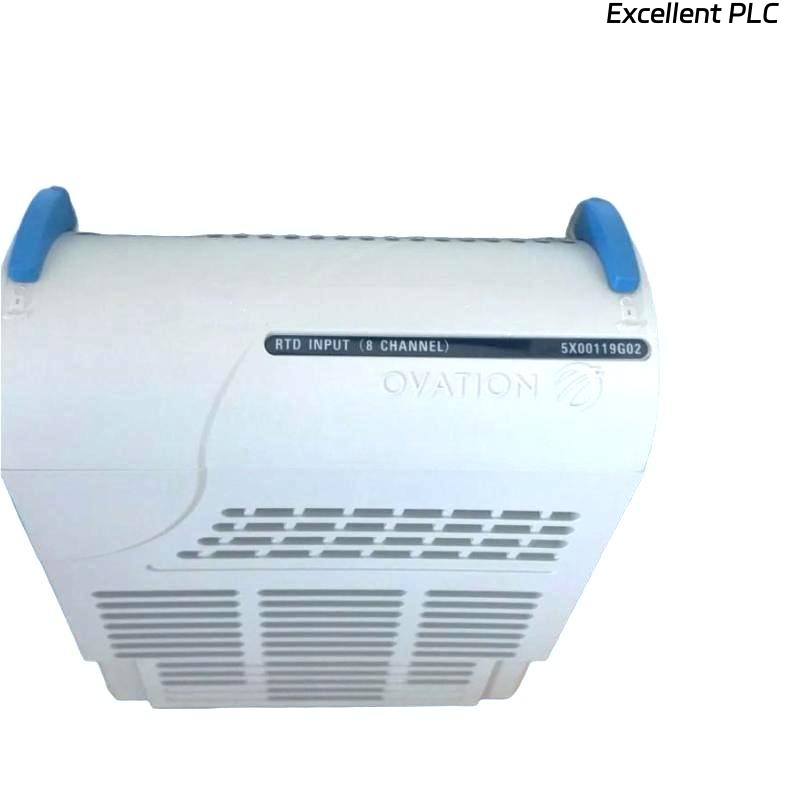

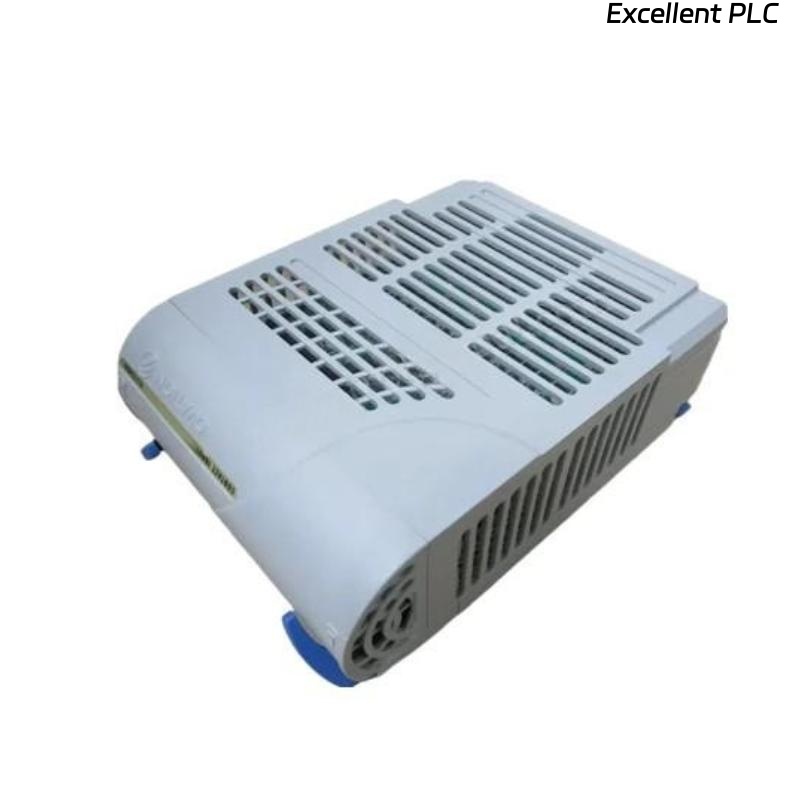

The OVATION 5X00119G02 RTD Input 8 Channel Module is a high-precision input module designed for processing resistance temperature detector (RTD) signals in industrial automation and control environments. As part of the Emerson Ovation distributed control system (DCS), this module provides accurate and reliable temperature measurements from multiple RTD sensors simultaneously.
It is optimized for applications where precise monitoring of thermal conditions is critical, such as in power generation, process industries, and heavy manufacturing. Its modular design allows seamless integration into existing Ovation systems, delivering stable performance and simplified system architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 5X00119G02 |
| Module Type | RTD Input Module (8 Channels) |
| Supported Sensors | 2-wire, 3-wire, and 4-wire RTDs |
| Number of Channels | 8 isolated input channels |
| Input Range | Compatible with Pt100, Pt200, Pt500, Pt1000 RTDs |
| Accuracy | ±0.1% of full scale |
| Resolution | 16-bit ADC |
| Input Isolation | Channel-to-channel and channel-to-bus |
| Sampling Rate | Configurable, up to 10 samples/second |
| Operating Temperature | -20°C to +60°C |
| Power Supply | 24 VDC (from system backplane) |
| Dimensions | 163 x 38 x 58 mm |
| Weight | 3 kg |
Product Applications
-
Power generation plants: Monitoring turbine temperatures, boiler surfaces, and cooling systems.
-
Petrochemical and refining: Controlling critical temperature points in distillation and cracking units.
-
Steel and metals industry: Tracking furnace and casting equipment temperatures.
-
Pharmaceutical manufacturing: Ensuring precise environmental control in production processes.
-
Food and beverage industry: Maintaining temperature stability in sterilization and refrigeration systems.
-
Research facilities: Gathering high-accuracy temperature data for experiments.
Product Advantages
-
High Channel Density: Eight RTD inputs in a single module reduce hardware footprint.
-
Exceptional Accuracy: Provides reliable readings with minimal error margin.
-
Flexibility: Supports various RTD types (2-wire, 3-wire, 4-wire).
-
Industrial Durability: Designed for harsh operating environments with strong electrical isolation.
-
Seamless Integration: Fully compatible with Emerson Ovation DCS architecture.
-
Reduced Maintenance: Robust design with fewer calibration needs.
FAQ
Q1: What types of RTD sensors are supported by the 5X00119G02 module?
A1: It supports 2-wire, 3-wire, and 4-wire RTD configurations, including Pt100, Pt200, Pt500, and Pt1000.
Q2: Can the input channels operate independently?
A2: Yes, each of the eight channels is electrically isolated and can be configured independently.
Q3: What is the maximum sampling rate of the module?
A3: The module supports up to 10 samples per second, configurable based on system requirements.
Q4: How does the module ensure signal integrity in noisy environments?
A4: It uses channel-to-channel and channel-to-bus isolation, along with filtering algorithms.
Q5: Is cold junction compensation supported?
A5: Yes, the module includes automatic compensation for accurate RTD signal processing.
Q6: What is the resolution of temperature measurement?
A6: The module uses a 16-bit ADC, providing fine measurement resolution.
Q7: Can this module be hot-swapped in an Ovation system?
A7: Yes, it is designed for hot-swap capability without shutting down the entire system.
Q8: Does it support diagnostic functions?
A8: Yes, built-in diagnostics monitor wiring faults, sensor breaks, and short circuits.
Q9: What communication method does the module use with the Ovation controller?
A9: It communicates via the Ovation backplane bus, ensuring seamless integration.
Q10: Can it be used in redundant configurations?
A10: Yes, it supports redundancy when paired with backup modules in critical systems.
