Product Overview

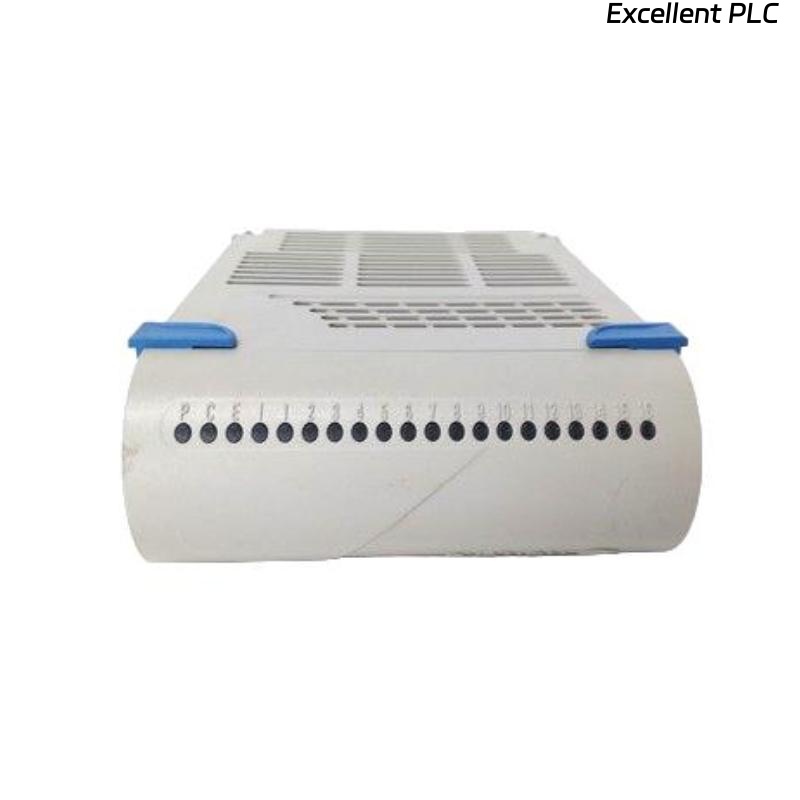

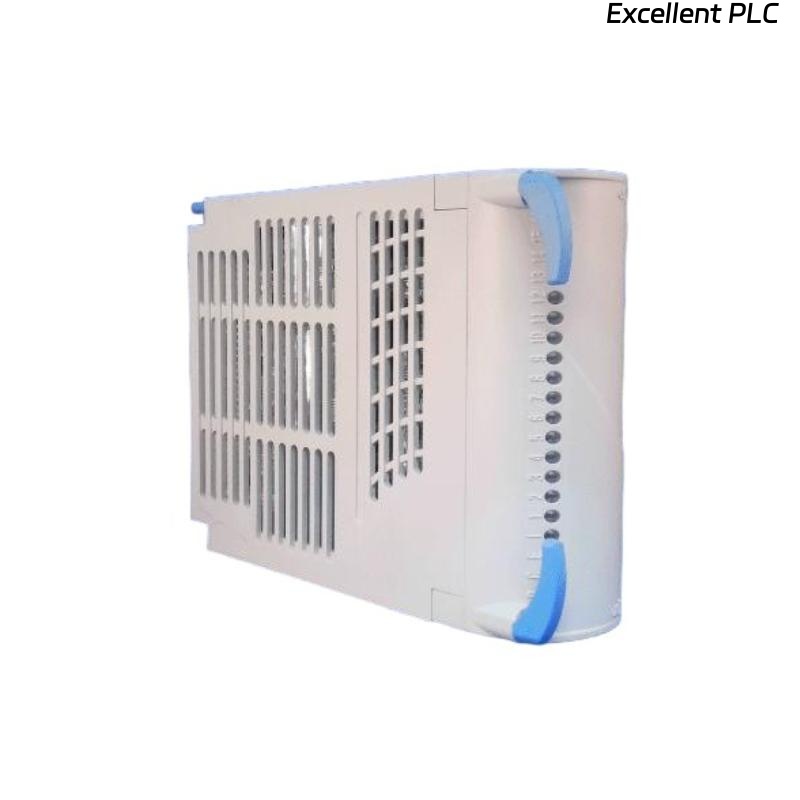

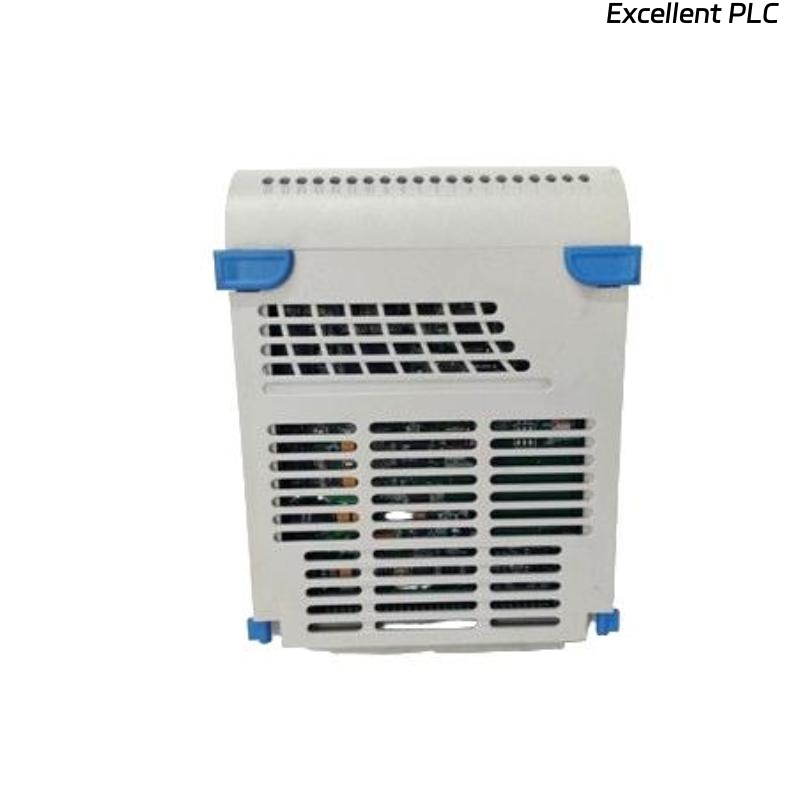

The Ovation 5X00167G01 Analog Output Module is a high-performance output device designed for Emerson’s Ovation distributed control system (DCS). It delivers precise analog output signals to actuators, control valves, and other field devices, enabling accurate process control in critical industrial applications. Built for reliability and seamless integration, this module ensures stable operation in power generation, petrochemical, oil & gas, and other demanding environments.
Key Features
-
Provides accurate and stable analog output signals
-
Supports multiple output ranges for flexibility
-
High channel density for efficient system design
-
Built-in diagnostics and fault detection
-
Rugged industrial-grade construction
-
Seamless integration with Ovation DCS backplane
-
Hot-swappable for reduced downtime
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 5X00167G01 |
| Series | Ovation |
| Type | Analog Output Module |
| Dimensions | 250 × 40 × 180 mm |
| Weight | 1.3 kg |
| Channels | 8 or 16 analog output channels (depending on config) |
| Output Range | 0–10 V, ±10 V, 0–20 mA, 4–20 mA (configurable) |
| Resolution | 12-bit or better |
| Accuracy | ±0.1% of span |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Diagnostics | Built-in self-test and fault reporting |
| Response Time | <10 ms typical |
| Communication | Via Ovation I/O backplane |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -20 °C to +85 °C |
| Humidity | 5% to 95% non-condensing |
| Compliance | CE, UL, RoHS |
Industry Applications
-
Power Generation – turbine governors, control valves, and excitation systems
-
Oil & Gas – actuator control in compressors and pipeline systems
-
Petrochemical – precision output for process equipment control
-
Water & Wastewater – motor and pump control
-
Industrial Manufacturing – advanced process automation and robotics
Advantages
-
Provides accurate and reliable analog outputs for process control
-
Flexible configuration supports voltage and current outputs
-
Enhanced system uptime with hot-swappable design
-
Built-in diagnostics ensure reliable operation
-
Rugged construction for demanding environments
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 5X00167G01 module?
It generates analog output signals for field devices such as valves, actuators, and controllers.
Q2: How many output channels does it provide?
It provides 8 or 16 analog output channels, depending on configuration.
Q3: What output ranges are supported?
0–10 V, ±10 V, 0–20 mA, and 4–20 mA.
Q4: What is the resolution of the output signals?
12-bit or better resolution.
Q5: What is the accuracy specification?
±0.1% of span.
Q6: What are the dimensions of the module?
250 mm × 40 mm × 180 mm.
Q7: What is the weight of the module?
1.3 kg.
Q8: Does the module support isolation?
Yes, it provides both channel-to-channel and channel-to-system isolation.
Q9: Can the module be replaced while the system is running?
Yes, it is hot-swappable for minimized downtime.
Q10: Which industries use this module?
Power generation, petrochemical, oil & gas, water treatment, and manufacturing.
