Product Overview

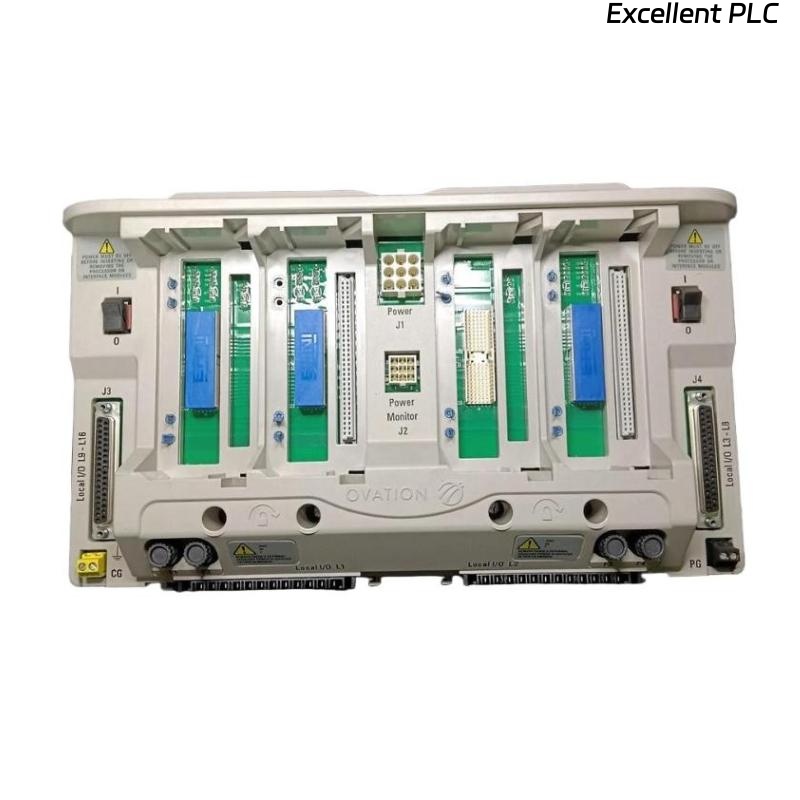

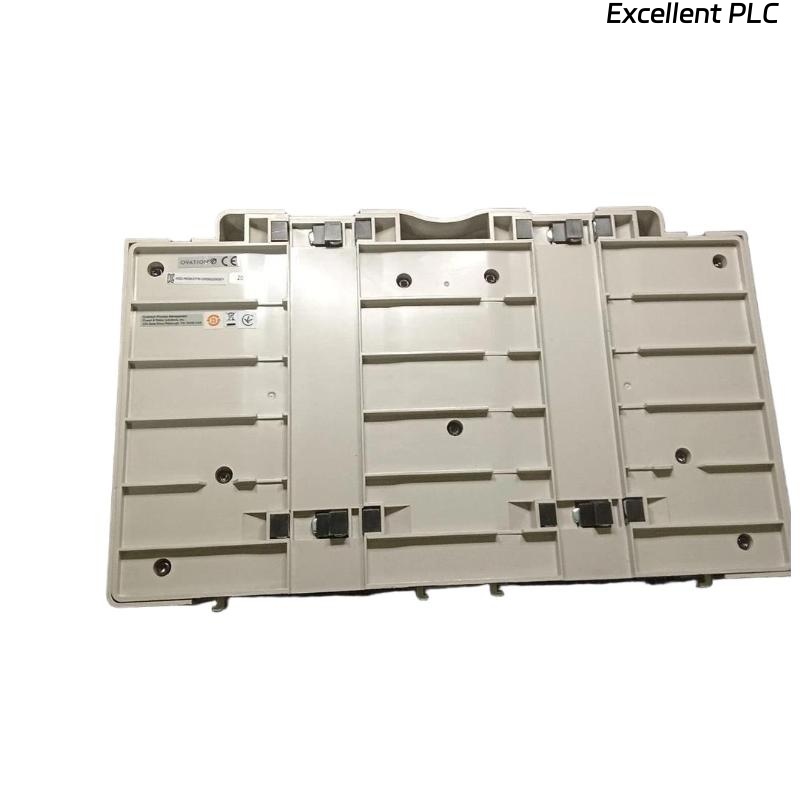

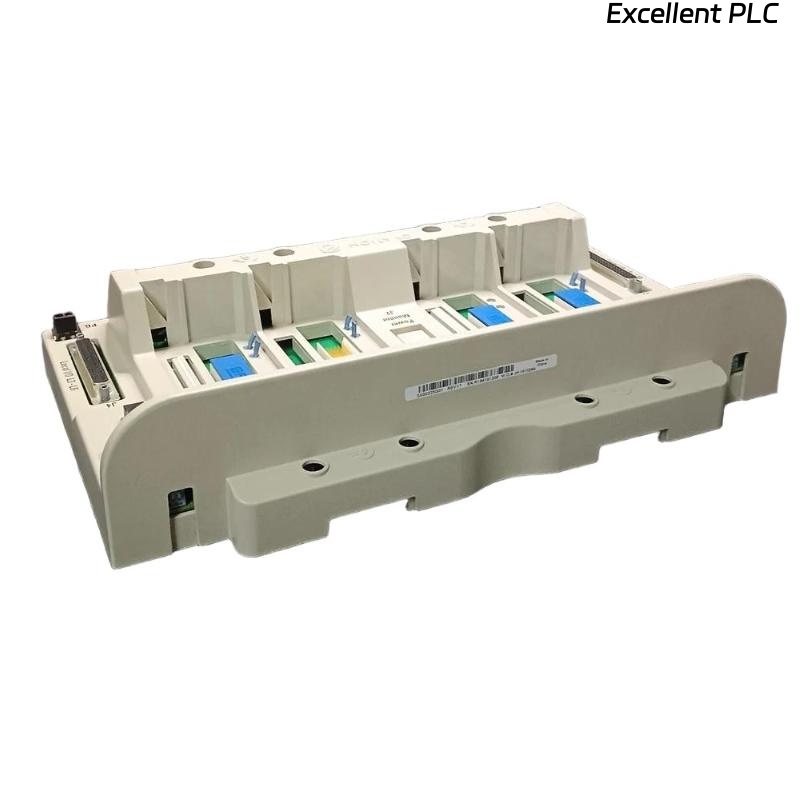

The Ovation 5X00225G01 Process Control Base Assembly serves as the foundational platform for Ovation Distributed Control Systems (DCS), providing a structured interface for connecting processor modules, I/O modules, and communication interfaces. It ensures reliable power distribution, signal routing, and secure mechanical support for all attached modules.
Key Features
-
Provides a robust base for mounting Ovation DCS modules
-
Supports processor, analog/digital I/O, and relay modules
-
Integrated power distribution and signal routing
-
Rack-mountable design for industrial cabinets
-
Ensures secure mechanical and electrical connections
-
Facilitates modular system expansion
-
Compatible with Ovation system controllers
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 5X00225G01 |
| Type | Process Control Base Assembly |
| System Compatibility | Ovation DCS |
| Function | Mechanical and electrical interface for Ovation modules |
| Supported Modules | Processor, Analog/Digital I/O, Relay, Communication Modules |
| Power Distribution | Integrated DC power distribution for modules |
| Signal Routing | Provides secure interconnections between modules |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -20 °C to +70 °C |
| Humidity | 5–95% non-condensing |
| Dimensions | 343 x 76 x 229 mm |
| Weight | 1.16 kg |
| Mounting | Rack-mounted |
| Compliance | CE, UL, RoHS |
Industry Applications
-
Power generation – DCS system base for turbine and generator control
-
Oil & gas – central platform for process control modules
-
Petrochemical & chemical – base for integrated process automation
-
Industrial manufacturing – modular control system installation
-
Water & wastewater – foundation for control and monitoring modules
Advantages
-
Provides robust mechanical and electrical support for Ovation modules
-
Facilitates seamless integration of processors, I/O, and relay modules
-
Rack-mounted design ensures secure and organized installation
-
Supports modular system expansion without rewiring
-
Industrial-grade design ensures long-term reliability
-
Simplifies maintenance and upgrades by providing organized module layout
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 5X00225G01?
It serves as the mechanical and electrical base for connecting Ovation DCS modules.
Q2: Which modules can be installed on this assembly?
Processor modules, analog/digital I/O modules, relay modules, and communication interfaces.
Q3: Is this assembly rack-mountable?
Yes, it is designed for standard industrial racks.
Q4: What are the operating temperature and humidity ranges?
0 °C to +60 °C; 5–95% non-condensing humidity.
Q5: What are its approximate dimensions and weight?
Dimensions are 343 x 76 x 229 mm; weight are 1.16 kg.
Q6: Does it provide power distribution to modules?
Yes, it provides integrated DC power distribution for all connected modules.
Q7: Is it compatible with Ovation DCS?
Yes, it is fully compatible with Ovation Distributed Control Systems.
Q8: Can it support modular expansion?
Yes, additional modules can be easily added without rewiring.
Q9: Which industries commonly use this base assembly?
Power generation, oil & gas, petrochemical, industrial manufacturing, and water & wastewater.
Q10: What advantages does this base provide for system maintenance?
It provides an organized layout, secure module connections, and simplifies installation, upgrades, and troubleshooting.
