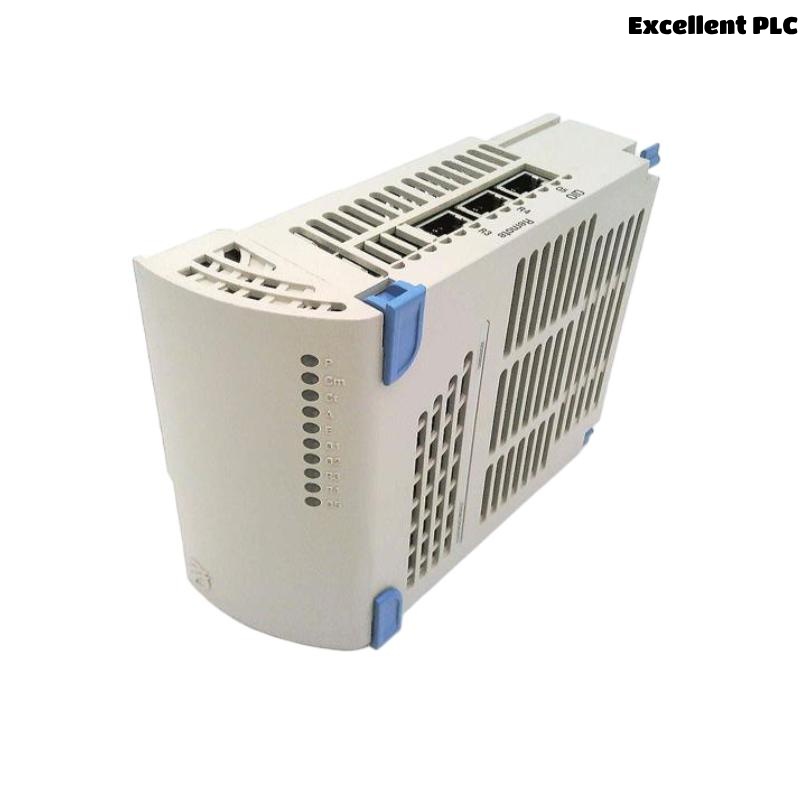

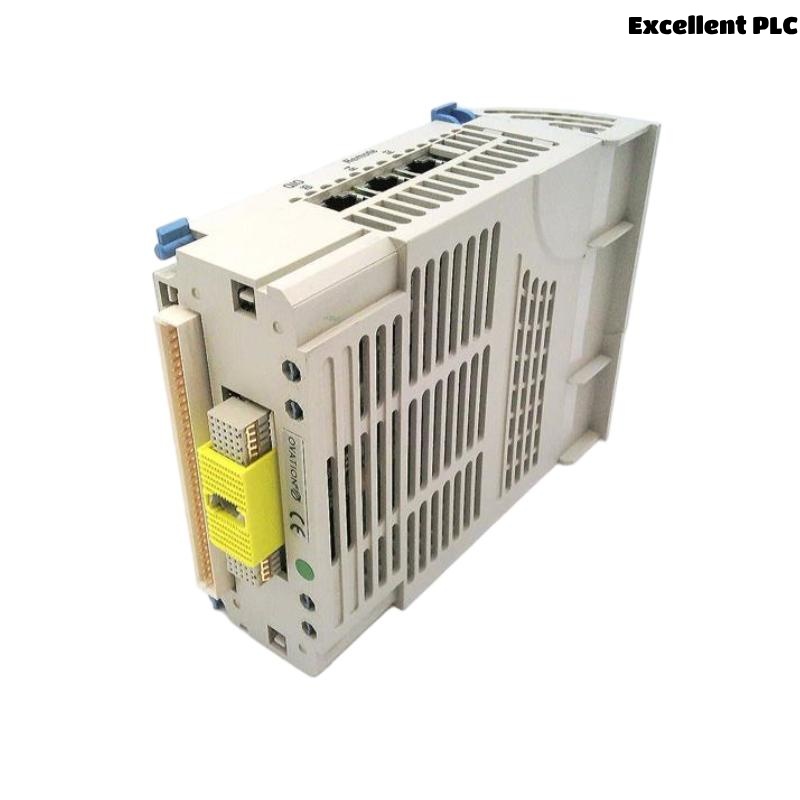

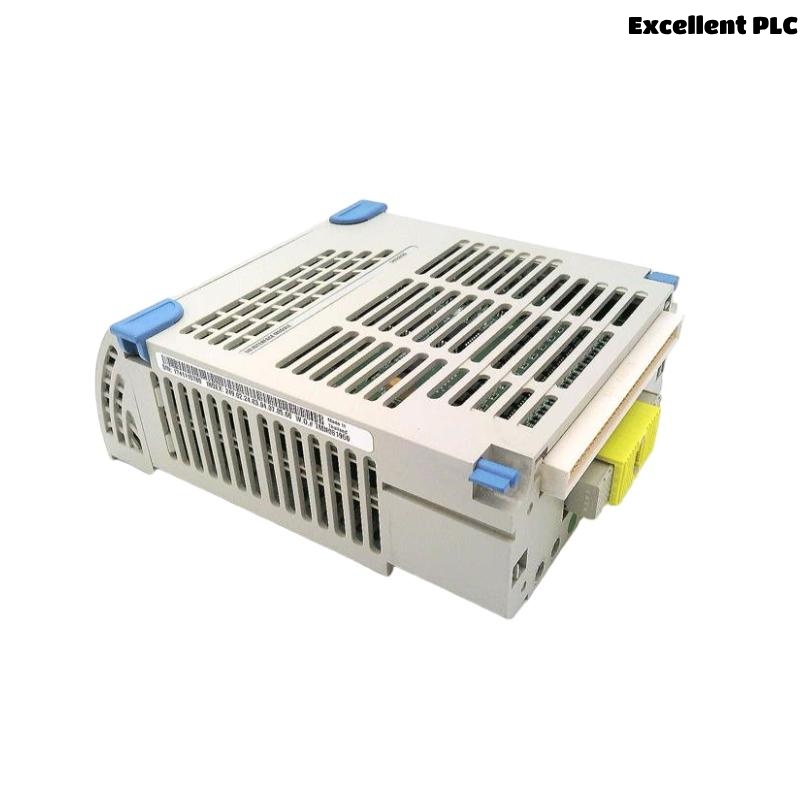

Ovation 5X00226G02 I/O Interface Module

Product Introduction

The Ovation 5X00226G02 is a robust I/O Interface Module engineered for seamless integration with Emerson’s Ovation Distributed Control System (DCS). As part of the Ovation control platform, it serves a critical role in facilitating communication between field devices and system-level controllers. This module acts as a physical and logical bridge that links input/output modules with process sensors and actuators, supporting a variety of signal types including analog, digital, and specialty instrumentation.

Designed for use in demanding industrial environments, the 5X00226G02 ensures high-speed signal transmission, stable operation, and system expandability. It supports hot-swap functionality, diagnostic LEDs, and robust electrical isolation, making it an ideal choice for large-scale automation in power plants, chemical facilities, and critical infrastructure systems.

The module’s rugged design and full compatibility with the Ovation ecosystem make it indispensable for modern control architectures requiring flexibility, scalability, and real-time responsiveness.

Product Specifications

Product Applications

The 5X00226G02 I/O Interface Module is purpose-built for use in a wide variety of industrial and infrastructure environments:

• Power Generation (Thermal, Nuclear, Renewable)
  Enables secure and responsive interfacing for sensors, actuators, turbine monitoring, and generator control.

• Water & Wastewater Treatment
  Handles signals from flow meters, level transmitters, pumps, and chlorination systems for municipal and industrial water systems.

• Oil & Gas Processing
  Interfaces with pressure, temperature, and safety interlocks within upstream and downstream applications.

• Chemical & Petrochemical Plants
  Supports precision monitoring and control of batch processes, reactors, and heat exchangers.

• Steel and Metal Processing
  Enables thermal, hydraulic, and process control system integration across smelters and mills.

• Data Centers & Building Automation
  Serves HVAC and energy systems by linking sensors, dampers, and actuators to the control platform.

Product Advantages

• Versatile Signal Handling
  Supports multiple signal types (analog, digital, temperature) for centralized field connectivity.

• Robust Isolation
  Provides excellent channel-to-ground and inter-channel isolation to prevent crosstalk and electrical noise.

• Compact Modular Design
  Easily integrates into Ovation I/O racks with minimal space requirements and high reliability.

• System Reliability
  Built-in diagnostics, LED status indicators, and self-monitoring functions increase fault resilience.

• Hot-Swap Capability
  Can be inserted or removed without interrupting system operations—ideal for 24/7 facilities.

• Scalable Infrastructure
  Designed to expand with plant needs; works seamlessly with Ovation’s control architecture and software.

Frequently Asked Questions (FAQ)

1. What is the core function of the 5X00226G02 module?
   It serves as a communication and signal routing interface between Ovation I/O modules and field instrumentation.

2. What types of signals can this module support?
   It supports analog (4–20 mA, 0–10 V), digital (24VDC), thermocouple, RTD, and pulse input signals.

3. Is it compatible with older Ovation systems?
   Yes, it is backward-compatible with most legacy Ovation components and systems.

4. Can I replace this module without shutting down the system?
   Yes, the module is hot-swappable, allowing maintenance without interrupting operation.

5. How many signals can it handle per module?
   It typically supports up to 16 signals, depending on the connected input/output modules.

6. Does it provide channel isolation?
   Yes, it includes galvanic isolation for both channel-to-ground and inter-channel safety.

7. Are there status indicators on the module?
   Yes, it includes multiple LEDs to display module power, signal activity, and faults.

8. Can this module be used in high-vibration environments?
   Yes, it’s built for harsh industrial use including high humidity and vibration conditions.

9. What kind of mounting is required?
   It is mounted in an Ovation I/O rack and may also be used with DIN-rail carriers where applicable.

10. How is configuration handled for this module?
    Configuration is done through Ovation system software, allowing automatic detection and assignment.
