Product Introduction

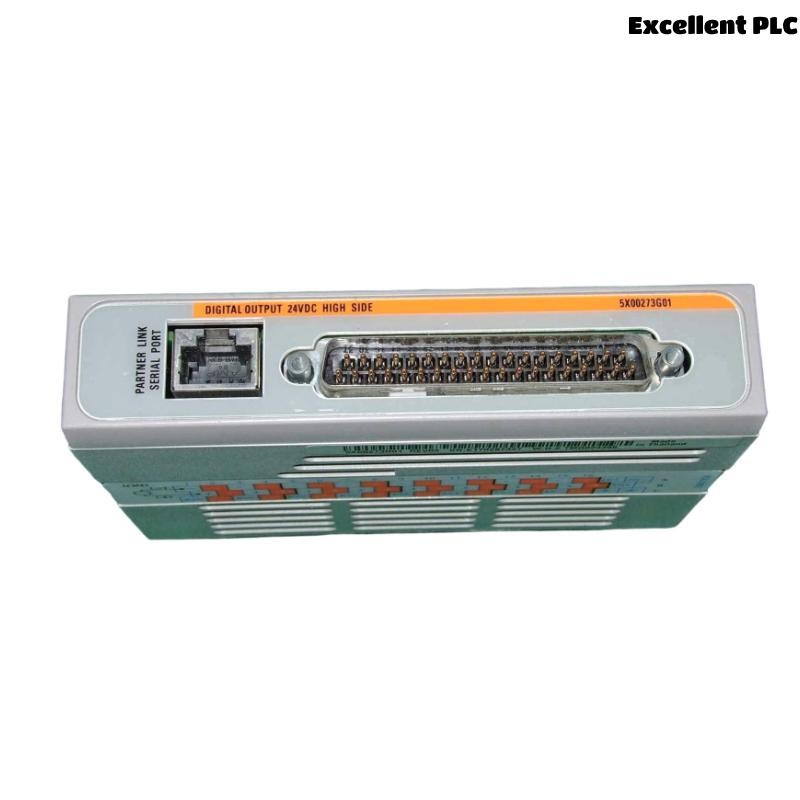

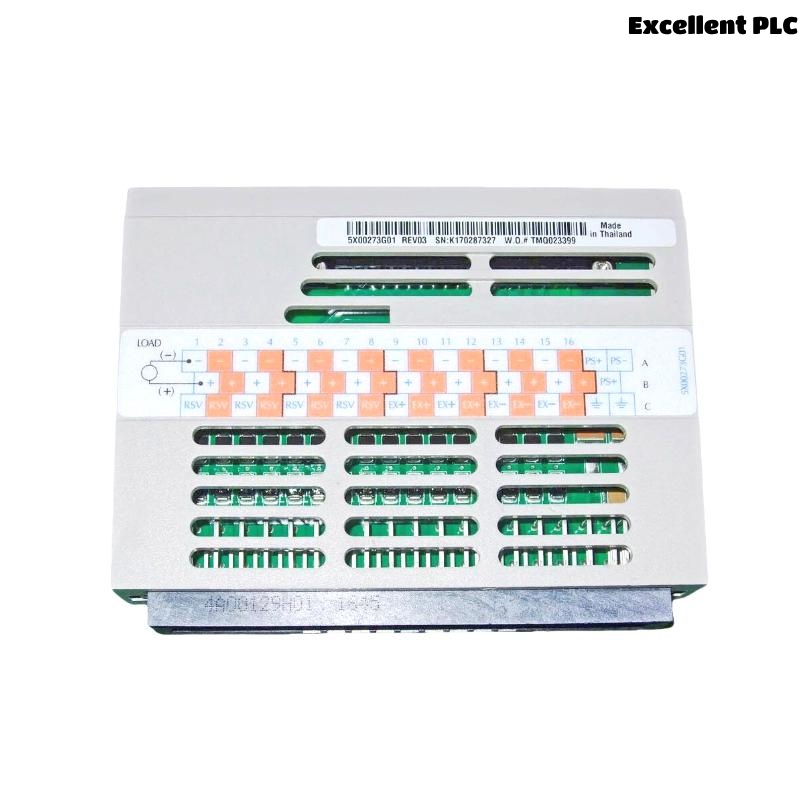

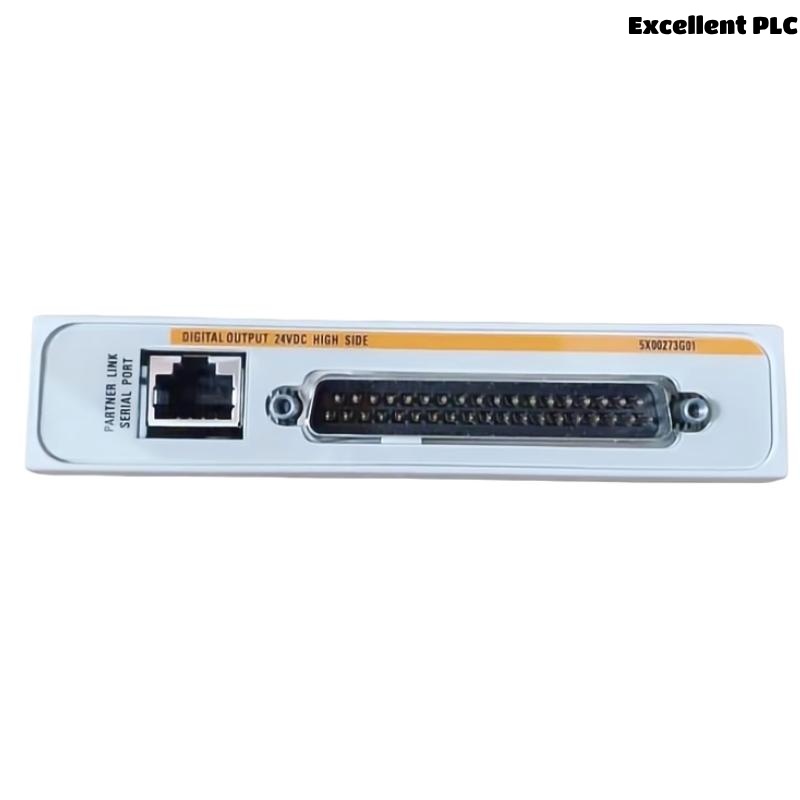

The Ovation 5X00273G01 Digital Output Module is a high-performance discrete output component within Emerson’s Ovation™ Distributed Control System (DCS). Engineered for dependable binary signal control, this module is responsible for energizing and de-energizing field devices such as relays, solenoids, motor contactors, and alarms. It serves as a key bridge between the control system and physical equipment, enabling real-time, deterministic command execution across diverse industrial applications.
The 5X00273G01 is designed with operational reliability in mind. It features robust electrical isolation, channel fault monitoring, and precise output logic control. While not a redundant model, it supports fail-safe operation, making it suitable for systems that require high uptime and accurate discrete signal management.
Its compact form, high output channel density, and seamless integration into Ovation’s modular architecture make it a preferred choice in energy generation, water treatment, and industrial processing environments.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 5X00273G01 |
| Product Type | Digital Output Module |
| System Platform | Emerson Ovation™ DCS |
| Output Channels | 32 channels (discrete digital) |
| Output Type | 24 VDC digital outputs |
| Output Configuration | Sourcing (positive logic) or configurable |
| Channel Isolation | Optical isolation between system and field circuits |
| Output Protection | Short-circuit, open-load, overcurrent protection |
| Diagnostics | Per-channel and module-level diagnostics available |
| Redundancy Supported | No (non-redundant module) |
| LED Indicators | Yes, per-channel and module-level status indicators |
| Mounting Type | Rack-mounted (Ovation standard slot) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5–95% RH, non-condensing |
| Dimensions (WxHxD) | 120 x 50 x 165 mm |
| Weight | 0.34 kg |
| Certifications | CE, UL, CSA, RoHS compliant |
Product Applications
The 5X00273G01 Digital Output Module plays a critical role in a wide range of industries, particularly where discrete automation and field control are essential. It is commonly used for:
-
Power Plants (Fossil, Nuclear, Renewable): Controls circuit breakers, fans, dampers, and alarms.
-
Water & Wastewater Facilities: Manages pump start/stop, motor control, and gate actuation.
-
Oil & Gas Facilities: Coordinates pipeline valve operations, local alarms, and interlocks.
-
Manufacturing Automation: Activates machinery, safety relays, and production line switches.
-
Chemical Plants: Triggers alarms, dosing systems, and interlock mechanisms.
-
Transportation and Infrastructure: Manages signal relays, warning systems, and access gates.
Product Advantages
-
High-Density Output Capability: Provides 32 digital output channels in a single compact module, optimizing panel space and wiring.
-
Reliable Isolation: Each output is optically isolated, reducing noise and protecting sensitive control circuitry.
-
Built-In Diagnostics: Allows early detection of channel faults, such as open loads or output failures.
-
Fast Switching Response: Ensures deterministic output timing suitable for time-sensitive operations.
-
LED Feedback Per Channel: Simplifies troubleshooting and on-site maintenance by providing visual signal verification.
-
Field Configurability: Supports output logic customization to fit application-specific wiring standards.
-
Wide Environmental Range: Designed for use in harsh industrial environments without compromising performance.
-
Seamless DCS Integration: Easily incorporated into Ovation systems using standard rack infrastructure.
-
Cost-Effective Design: Offers reliable performance for systems not requiring full redundancy.
-
Global Compliance: Meets strict international standards for safety and electromagnetic compatibility.
Frequently Asked Questions (FAQ)
1. What devices can the 5X00273G01 control?
It is designed to switch binary field devices such as relays, solenoids, pilot lamps, and motor starters.
2. How many output channels does the module have?
This module includes 32 digital output channels, providing high signal density for large systems.
3. Is this a redundant module?
No, the 5X00273G01 is a non-redundant output module. For redundancy, consider models like 5X00270G01.
4. Can this module detect if an output device is disconnected or failed?
Yes, it includes diagnostics for open-load and short-circuit detection, ensuring safe operation and quick troubleshooting.
5. What kind of protection does it have for output circuits?
It offers overcurrent, short-circuit, and open-load protection on each channel, improving field reliability.
6. Can I use this module in outdoor enclosures?
The module itself is not weatherproof (IP20), but it can be installed in sealed industrial enclosures suitable for outdoor use.
7. What type of logic does it use: sourcing or sinking?
It supports sourcing logic (positive voltage output), which is standard in Ovation DCS systems.
8. Is there a way to see output status on the module itself?
Yes, each channel has an individual LED indicator showing its current output status.
9. What tools are used to configure or program the module?
Configuration is handled through the Ovation control software suite during system setup or reconfiguration.
10. How often should this module be maintained or replaced?
Routine inspections are recommended annually. With normal use, the module can operate reliably for 10+ years.
Related Models (Same Series or Function)
| Model Number | Description | Dimensions (mm) | Weight (kg) | Key Feature |
|---|---|---|---|---|
| 5X00270G01 | Redundant Digital Output Module | 140 x 125 x 50 | 0.85 | Redundant architecture for critical control |
| 5X00270G02 | Enhanced Redundant Output Module | 140 x 125 x 50 | 0.85 | Advanced diagnostics and filtering |
| 5X00226G04 | I/O Interface Controller | 130 x 120 x 45 | 0.75 | Field I/O signal processing |
| 5X00241G02 | Ovation Processor Module | 150 x 130 x 50 | 0.95 | Real-time control and system logic |
| 5X00368G01 | I/O Expansion Module | 120 x 110 x 40 | 0.70 | Increases system I/O capacity |
| 1C31194G01 | Power Supply Module | 140 x 125 x 50 | 0.95 | Delivers stable power to control modules |
Popular Emerson Ovation Models (Same Brand)
| Model Number | Description | Dimensions (mm) | Weight (kg) | Key Feature |
|---|---|---|---|---|
| 1C31125G02 | Analog Output Module | 110 x 100 x 40 | 0.65 | High-resolution analog control |
| 1C31234G01 | Digital Input Module | 120 x 110 x 45 | 0.68 | Multiple discrete input channels |
| 5X00241G01 | Processor Module | 150 x 130 x 50 | 0.95 | Executes Ovation control logic |
| 5X00419G01 | Signal Processor | 150 x 135 x 55 | 0.90 | Processes and conditions field signals |
| 1C31157G01 | Analog Input Module | 115 x 105 x 40 | 0.70 | Captures high-resolution analog signals |
| 5X00300G01 | Termination Module | 135 x 120 x 40 | 0.78 | Field wiring and connection management |
