Product Introduction

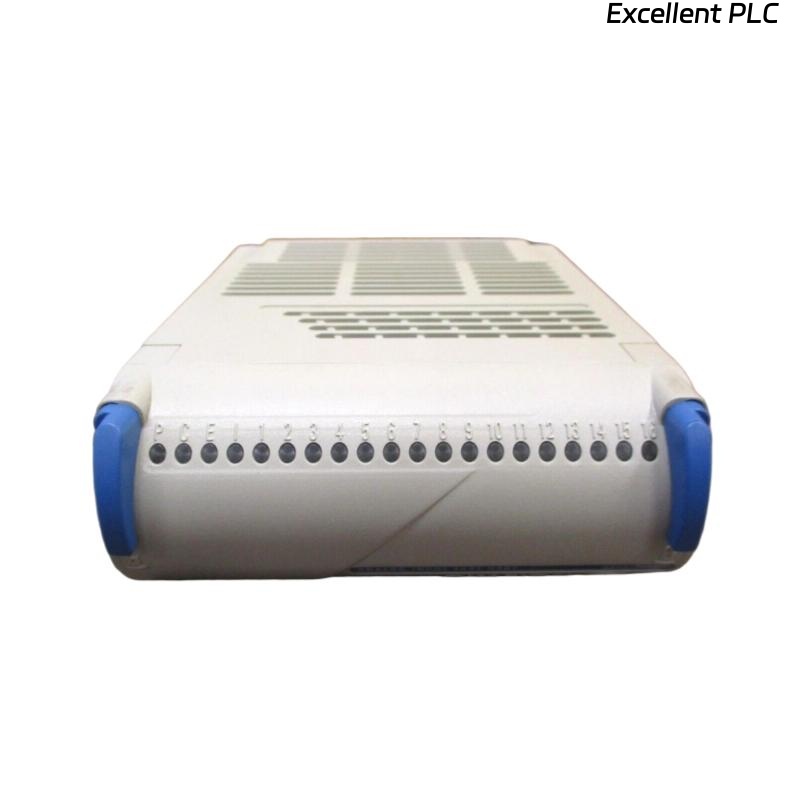

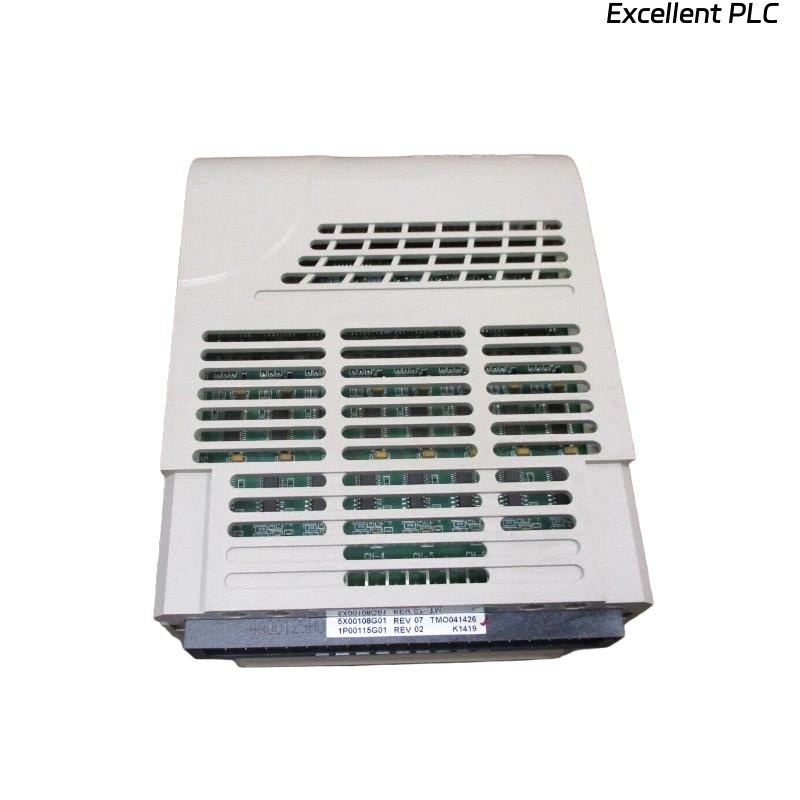

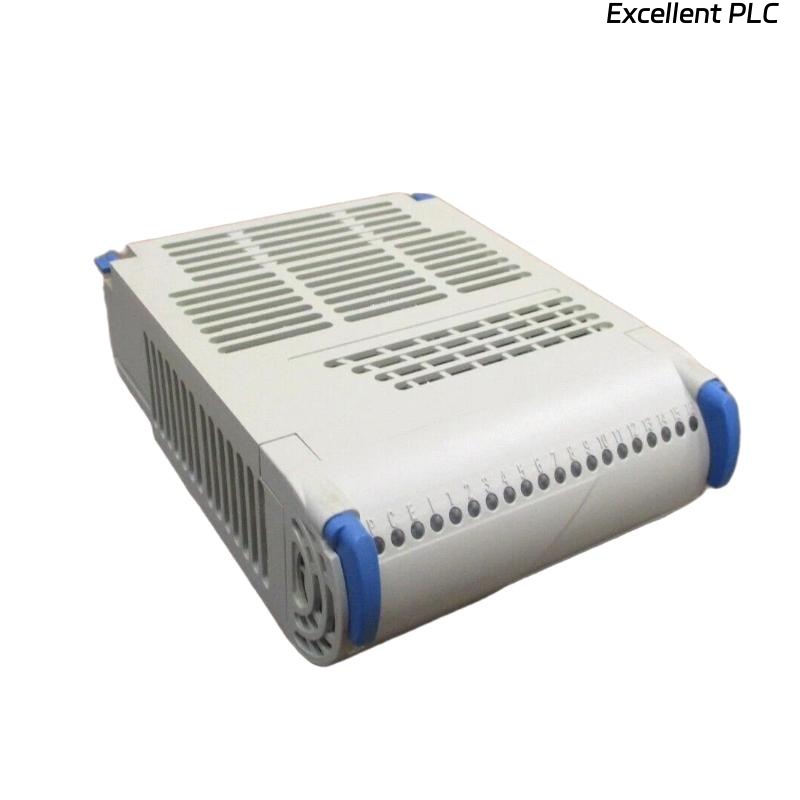

The Ovation 5X00327G01 Analog Output Module is an integral part of the Ovation Distributed Control System (DCS), designed to deliver precise analog output signals to field devices and process equipment. This module translates digital control instructions into accurate analog signals, enabling seamless control of actuators, valves, drives, and other analog-driven equipment.
It is widely used in industrial automation environments where stable and reliable signal conversion is required. Built with advanced electronic circuitry, fault protection, and diagnostic features, the 5X00327G01 ensures consistent performance, even under harsh industrial conditions. Its modular design allows for flexible integration and scalability within Ovation racks, making it a trusted choice for modern control systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 5X00327G01 |
| Module Type | Analog Output Module |
| Function | Converts digital control signals into analog output signals |
| Output Signal Range | 0–10 VDC, 0–20 mA, 4–20 mA (configurable) |
| Resolution | 12-bit or higher |
| Accuracy | ±0.1% of full scale |
| Update Rate | ≤ 10 ms |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Number of Channels | 8 isolated analog output channels |
| Protection | Over-voltage, over-current, and short-circuit protection |
| Power Supply | Provided via Ovation backplane |
| Diagnostics | Continuous self-test with LED status indicators |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 212 x 127 x 45 mm |
| Weight | 0.75 kg |
| Mounting | Standard Ovation rack-mounted |
| Certification | CE, UL listed, industrial-grade |
Applications
The 5X00327G01 Analog Output Module is designed for critical automation tasks where accurate analog signal control is essential:
-
Power Generation – Controls actuators for turbine regulation, boiler feedwater valves, and auxiliary systems.
-
Water & Wastewater Treatment – Sends precise signals to pumps, dosing units, and flow regulators.
-
Petrochemical Industry – Operates valves, compressors, and process actuators in chemical plants.
-
Oil & Gas – Provides analog signals for refining, pipeline control, and gas compression.
-
Industrial Manufacturing – Controls speed drives, motor actuators, and production line equipment.
-
Renewable Energy – Regulates inverters, turbines, and auxiliary process equipment in solar and wind systems.
Advantages
The 5X00327G01 offers multiple operational advantages that enhance system performance and reliability:
-
High Accuracy Output – Provides consistent and precise analog signals with ±0.1% accuracy.
-
Fast Response – Rapid update rate ensures real-time responsiveness for dynamic processes.
-
Multi-Signal Flexibility – Configurable for voltage or current outputs (0–10 V, 0–20 mA, 4–20 mA).
-
Robust Isolation – Channel-to-channel and system isolation prevents signal interference.
-
Built-in Protection – Over-voltage, over-current, and short-circuit protection ensure safety.
-
Modular Scalability – Easily integrates into Ovation racks for system expansion.
-
Diagnostics Support – Self-test and LED indicators reduce troubleshooting time.
Frequently Asked Questions (FAQ)
-
How many analog output channels are available in the 5X00327G01?
The module provides 8 isolated analog output channels. -
What output signal ranges are supported by this module?
It supports 0–10 VDC, 0–20 mA, and 4–20 mA output ranges. -
What is the resolution of the analog outputs?
The module offers a resolution of 12-bit or higher. -
Does the 5X00327G01 provide channel-to-channel isolation?
Yes, each channel is electrically isolated to minimize interference. -
What is the typical update rate for output signals?
The module can update signals within ≤ 10 ms. -
What type of fault protection is integrated into the module?
It includes protection against over-voltage, over-current, and short circuits. -
How does the module receive its power supply?
Power is provided directly through the Ovation system backplane. -
Can the output mode (voltage/current) be configured per channel?
Yes, channels can be individually configured for voltage or current mode. -
What kind of diagnostic support is built into the module?
It provides continuous self-tests and front-panel LED status indicators. -
Is the module backward-compatible with older Ovation racks?
Yes, it is designed for backward compatibility with legacy Ovation systems.
