Product Overview

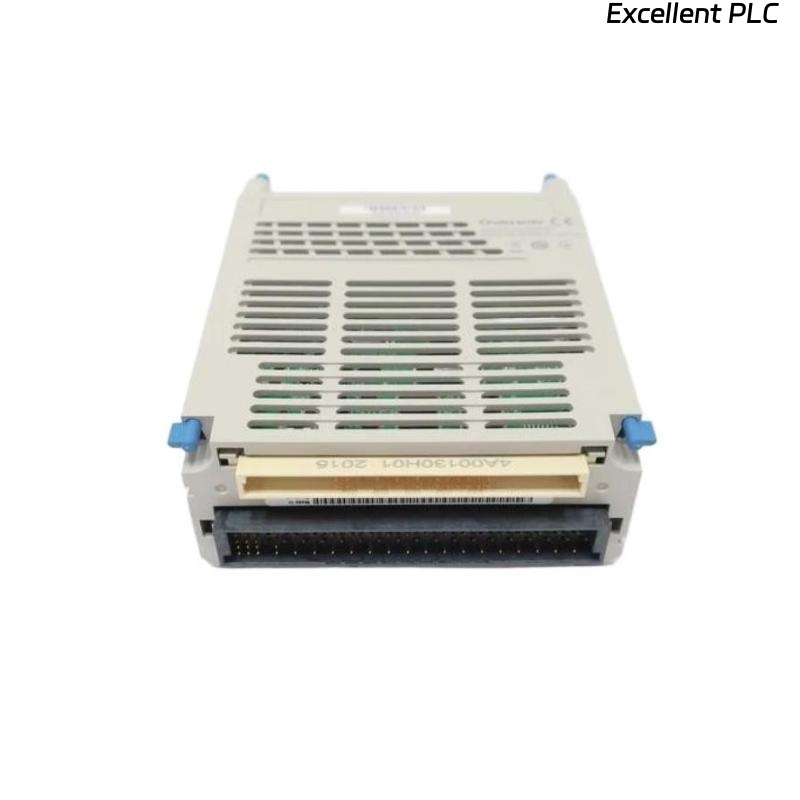

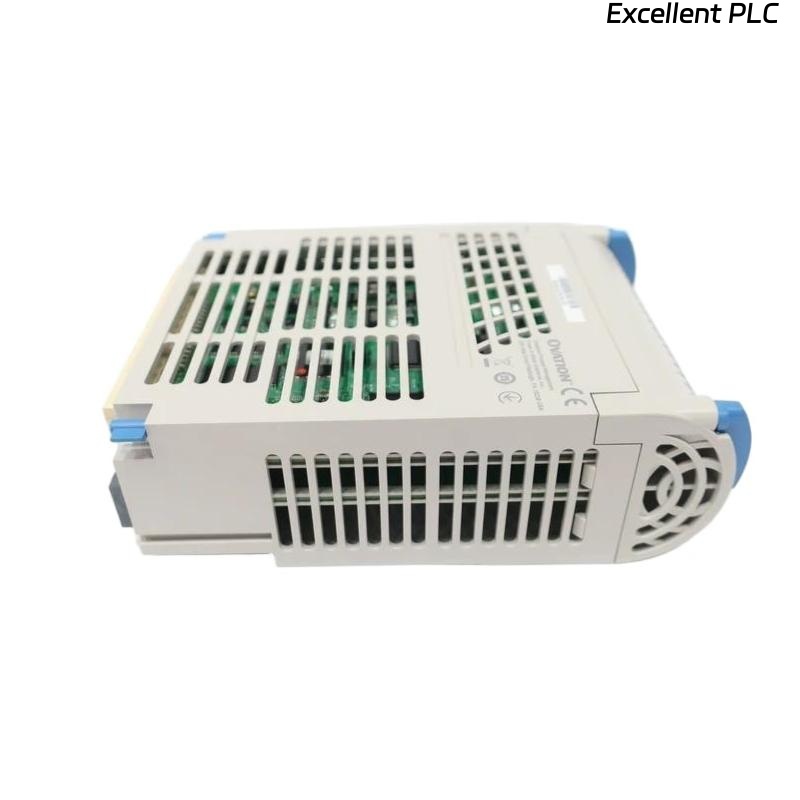

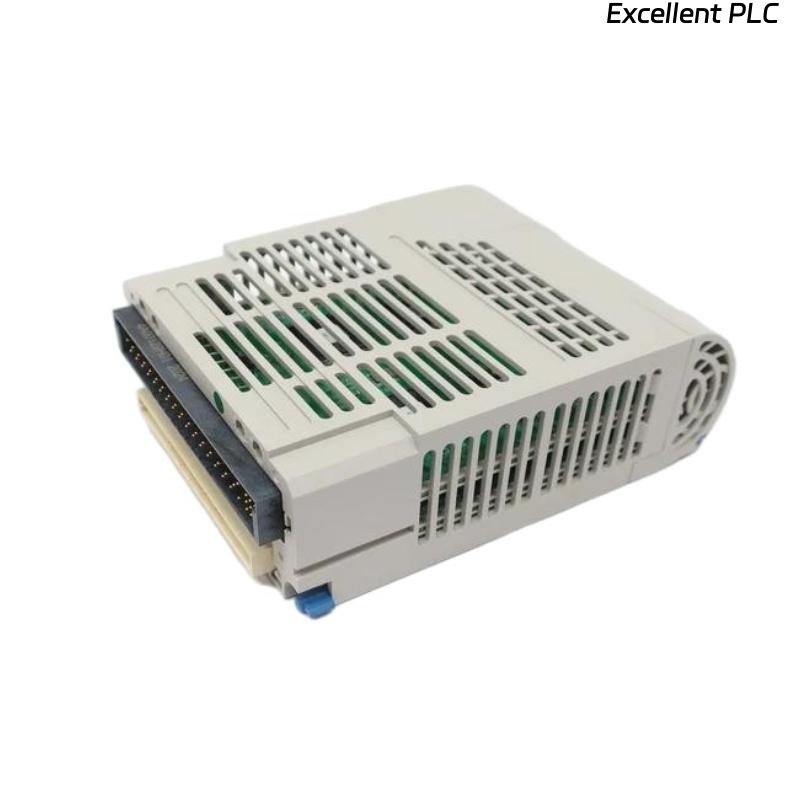

The Ovation 5X00376G01 Analog Output Module is a high-precision output module designed for Emerson Ovation Distributed Control Systems (DCS). It provides reliable analog outputs for controlling actuators, control valves, and other field devices. With high accuracy, stability, and diagnostic capabilities, the module ensures precise process control in demanding industrial environments. Its design supports hot-swapping, enabling maintenance without interrupting critical plant operations.
Key Features
-
Provides multiple analog output channels for field devices
-
Supports current and voltage output ranges
-
High accuracy and resolution for precise process control
-
Integrated diagnostics and fault detection
-
Hot-swappable for minimal downtime
-
Compact and rugged design for industrial applications
-
Seamless integration with Ovation DCS systems
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 5X00376G01 |
| Manufacturer | Ovation (Emerson) |
| Product Type | Analog Output Module |
| System Compatibility | Ovation Distributed Control System |
| Number of Channels | 8 analog output channels |
| Output Types | Current (4–20 mA, 0–20 mA), Voltage (±10 V) |
| Resolution | 16-bit digital resolution |
| Accuracy | ±0.1% of full-scale span |
| Load Resistance | Up to 750 Ω for current outputs |
| Update Rate | 100 ms typical |
| Diagnostics | Built-in channel diagnostics and fault detection |
| Hot-Swap Capability | Yes |
| Indicators | Status and fault LEDs |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Dimensions | 125 x 100 x 51 mm |
| Weight | 0.23 kg |
| Mounting | Ovation I/O rack or chassis |
| Compliance | CE, UL, RoHS, IEC standards |
Industry Applications
-
Power Generation – turbine and generator control valves
-
Oil & Gas – precise actuator and valve control
-
Petrochemical – process control loops for chemical plants
-
Water & Wastewater – pump and motor control
-
Industrial Automation – general analog control of field devices
Advantages
-
High accuracy and resolution for precise analog control
-
Hot-swappable design reduces plant downtime
-
Integrated diagnostics improve system reliability
-
Compact, rugged design suitable for industrial environments
-
Seamless integration with Ovation DCS systems
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 5X00376G01?
It provides analog output signals to control valves, actuators, and other field devices in Ovation DCS systems.
Q2: How many channels does the module support?
It supports 8 analog output channels.
Q3: What types of signals are supported?
It supports current (4–20 mA, 0–20 mA) and voltage (±10 V) outputs.
Q4: Can the module be hot-swapped?
Yes, it can be replaced without shutting down the control system.
Q5: What is the accuracy of the outputs?
±0.1% of full-scale span.
Q6: What is the maximum load resistance for current outputs?
Up to 750 Ω.
Q7: What diagnostics are included?
Built-in channel diagnostics and fault detection LEDs.
Q8: What is the operating temperature range?
0 °C to +60 °C.
Q9: Where is it installed?
In Ovation I/O racks or chassis.
Q10: Is it compliant with industrial standards?
Yes, it complies with CE, UL, RoHS, and IEC standards.
