Product Overview

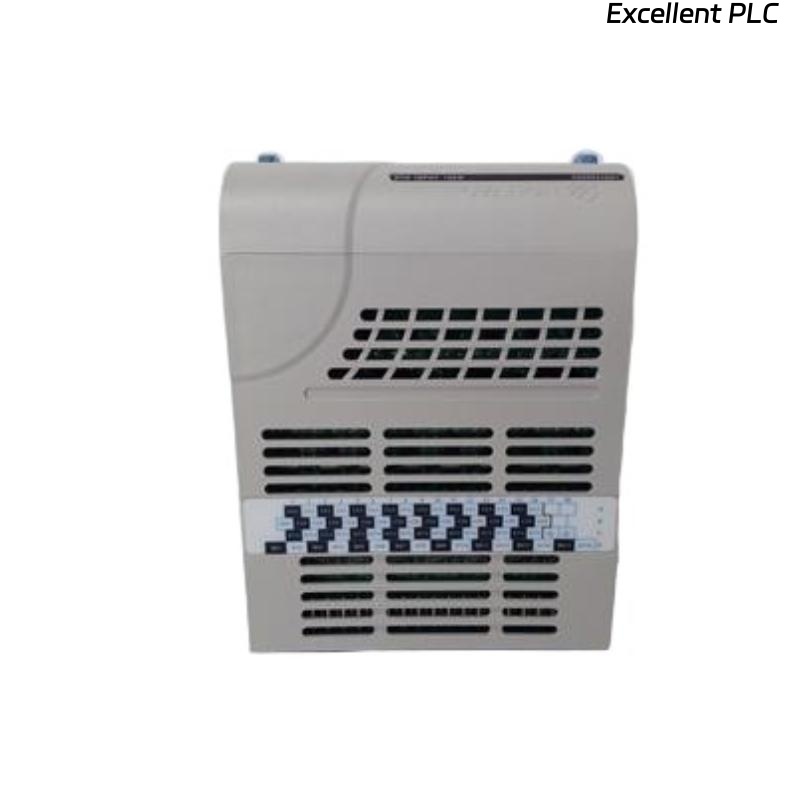

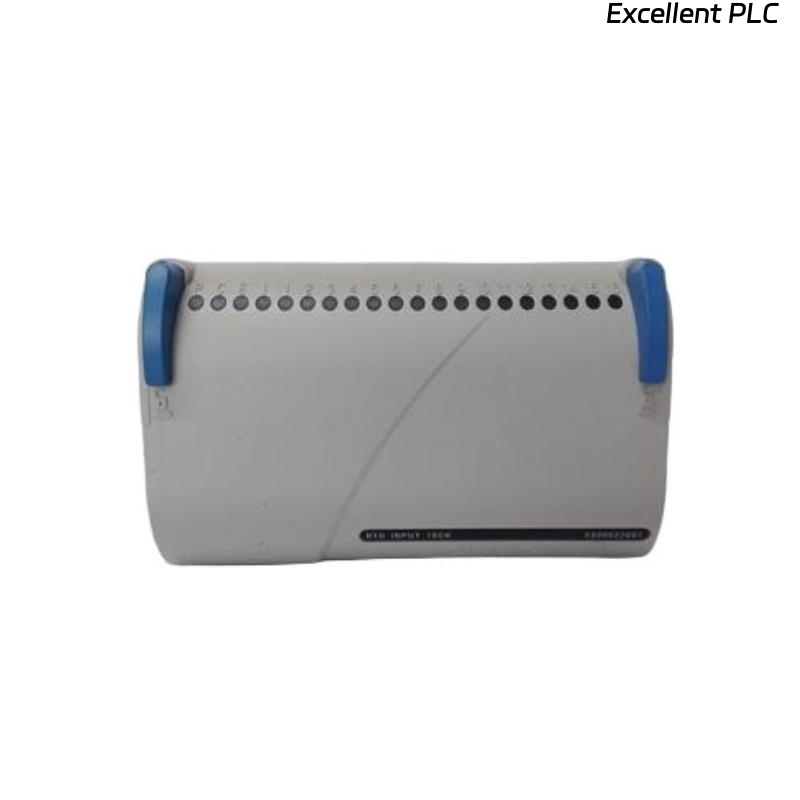

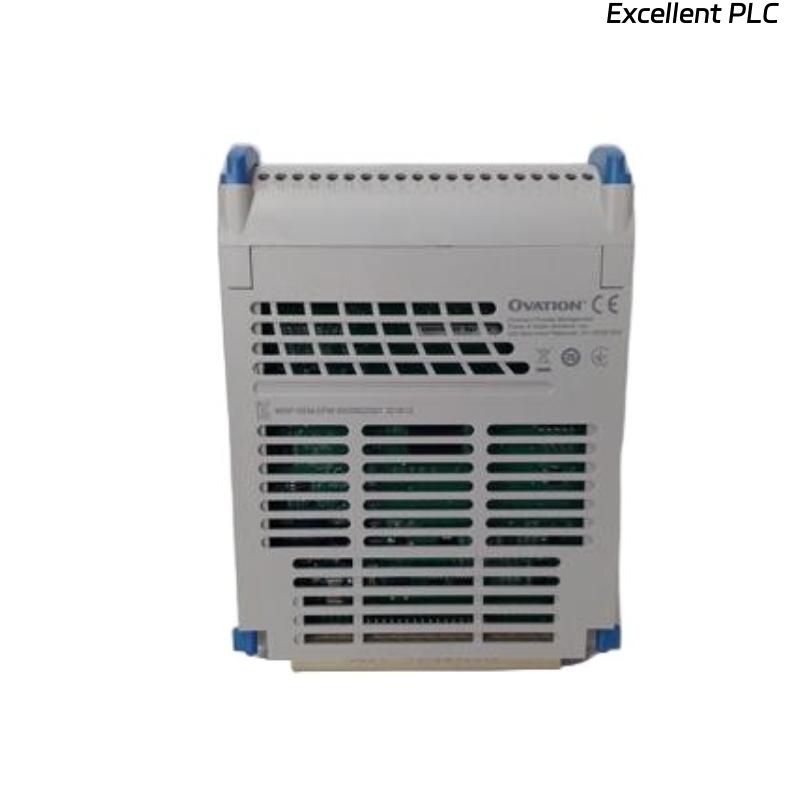

The Ovation 5X00622G01 16-Channel RTD Input Module is designed to provide precise and reliable resistance temperature detector (RTD) measurements within Emerson’s Ovation distributed control system (DCS). It supports multiple RTD sensor types, ensuring accurate monitoring of process and equipment temperatures. With its high channel density and robust design, this module is ideal for critical applications in power generation, petrochemical, and other industrial sectors requiring accurate thermal monitoring.
Key Features
-
16-channel RTD input capability
-
Compatible with a wide range of RTD sensor types (Pt100, Cu10, Ni120, etc.)
-
High accuracy and fast response time
-
Built-in diagnostics and fault detection
-
Electrical isolation for enhanced safety and reliability
-
Direct integration with Ovation DCS backplane
-
Rugged construction for demanding environments
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 5X00622G01 |
| Series | Ovation |
| Type | 16-Channel RTD Input Module |
| Dimensions | 260 × 45 × 185 mm |
| Weight | 1.4 kg |
| Channels | 16 RTD inputs |
| Supported Sensors | Pt100, Pt200, Pt500, Pt1000, Cu10, Ni120, and others |
| Input Type | 2-wire, 3-wire, and 4-wire RTD configurations |
| Input Range | -200 °C to +850 °C (depending on RTD type) |
| Accuracy | ±0.1% of reading or better |
| Input Impedance | >10 MΩ |
| Excitation Current | Configurable (typically 0.1 to 1 mA) |
| Communication | Ovation I/O bus (via system backplane) |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -20 °C to +85 °C |
| Humidity | 5% to 95% non-condensing |
| Compliance | CE, UL, RoHS |
Industry Applications
-
Power Generation – turbine temperature monitoring and control
-
Oil & Gas – monitoring pipeline and compressor equipment temperatures
-
Petrochemical – process heaters, reactors, and exchangers temperature control
-
Water & Wastewater – monitoring motor and pump temperatures
-
Industrial Manufacturing – equipment condition monitoring and protection
Advantages
-
High-density 16-channel RTD input design reduces module count
-
Supports multiple RTD sensor types and wiring configurations
-
Ensures precise and stable temperature measurements
-
Provides diagnostic feedback for improved system reliability
-
Designed for harsh industrial environments
Frequently Asked Questions (FAQ)
Q1: How many channels does the 5X00622G01 module support?
It supports 16 RTD input channels.
Q2: Which RTD sensors are compatible?
It supports Pt100, Pt200, Pt500, Pt1000, Cu10, Ni120, and other standard RTDs.
Q3: What wiring configurations are supported?
2-wire, 3-wire, and 4-wire RTD configurations are supported.
Q4: What is the input temperature range?
-200 °C to +850 °C depending on the RTD type used.
Q5: What is the accuracy of this module?
Typically ±0.1% of reading or better.
Q6: What are the dimensions of the module?
260 mm × 45 mm × 185 mm.
Q7: What is the weight of the module?
Approx. 1.4 kg.
Q8: Is the module isolated?
Yes, it provides both channel-to-channel and system isolation.
Q9: What industries use this module most commonly?
Power generation, petrochemical, oil & gas, water treatment, and manufacturing.
Q10: How does it integrate with the Ovation system?
It connects directly via the Ovation I/O backplane.
Related Ovation Modules
| Model Number | Description |
|---|---|
| 5X00622G01 | 16-Channel RTD Input Module |
| 5X00623G01 | 8-Channel RTD Input Module |
| 1C31194G01 | Ovation RTD Measurement Module |
| 1C31232G01 | High-Accuracy RTD Input Module |
| 5X00702G01 | Compact RTD Input Module |
| 1C31234G01 | Universal RTD/TC Input Module |
