Product Introduction

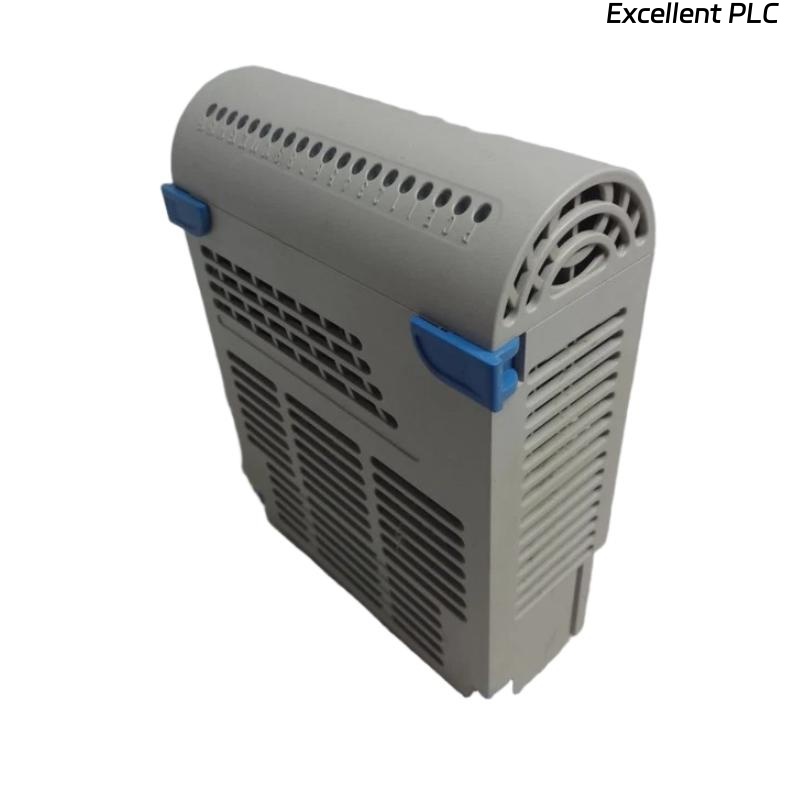

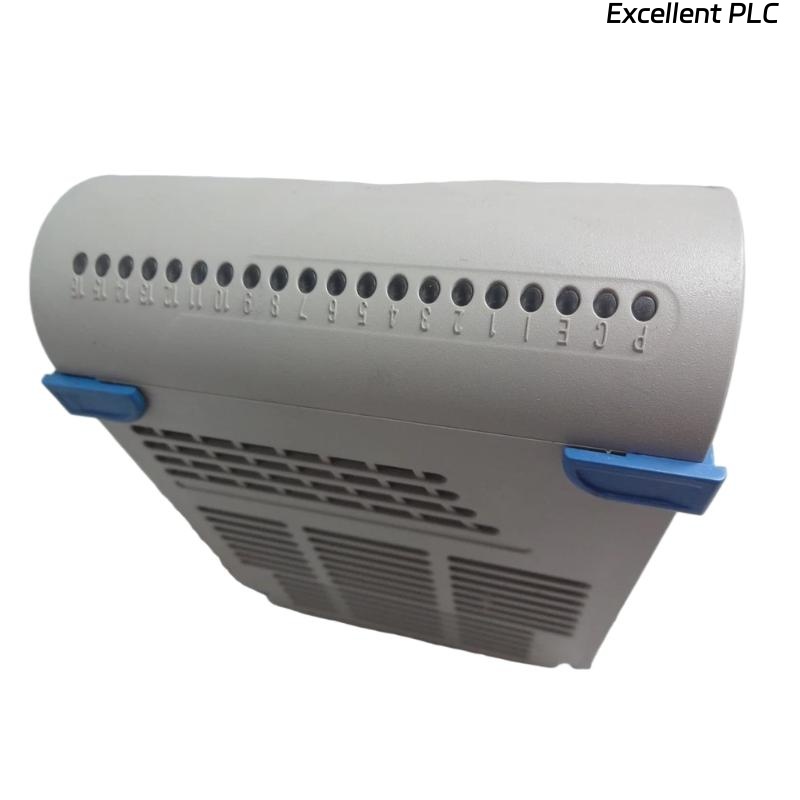

The OVATION 5X00672G02 Analog Input Module is a precision-engineered component designed for use in Emerson’s Ovation Distributed Control System (DCS). It provides accurate and reliable analog signal acquisition from field instruments such as transmitters and sensors. By converting analog signals into digital values, it enables operators to monitor, regulate, and optimize process variables with a high degree of accuracy. This module is built to handle critical industrial environments, ensuring stable performance in applications that demand continuous monitoring and control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Analog Input Module |
| Part Number | 5X00672G02 |
| Input Channels | 8 Analog Inputs |
| Input Signal Range | ±10 V, 0–20 mA, 4–20 mA (configurable) |
| Resolution | 12/16-bit (depending on configuration) |
| Isolation | Channel-to-bus optical/electrical isolation |
| Update Rate | High-speed scan support |
| Communication Interface | Ovation System Backplane |
| Power Supply | 24 V DC (via system backplane) |
| Dimensions | 163 x 38 x 58 mm |
| Weight | 0.4 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
Product Applications
-
Power Generation – monitoring turbine sensors, temperature transmitters, and vibration sensors.
-
Petrochemical Industry – integrating field instrumentation for flow, pressure, and level measurement.
-
Water and Wastewater Treatment – real-time monitoring of flow meters, chemical dosing, and water quality sensors.
-
Pulp and Paper Industry – measuring pressure and flow in steam and water circuits.
-
Pharmaceutical Manufacturing – monitoring critical process variables for batch consistency.
Product Advantages
-
High Accuracy: Ensures precise signal acquisition and conversion.
-
Wide Signal Compatibility: Supports multiple input ranges including voltage and current types.
-
Robust Design: Built to withstand industrial conditions with stable performance.
-
Seamless Integration: Compatible with Ovation DCS backplane and engineering tools.
-
Isolation Protection: Minimizes risk of noise, surges, and signal interference.
-
Scalability: Easily expandable to support additional I/O modules as system requirements grow.
FAQ
Q1: What type of analog signals does the 5X00672G02 support?
A1: It supports ±10 V, 0–20 mA, and 4–20 mA input signals, configurable per channel.
Q2: How many channels are available on this module?
A2: The module provides 8 analog input channels.
Q3: Does this module offer channel isolation?
A3: Yes, it provides channel-to-bus isolation to protect against electrical disturbances.
Q4: What resolution does the module provide for signal conversion?
A4: Depending on configuration, it supports 12-bit or 16-bit resolution.
Q5: How does the module communicate with the Ovation controller?
A5: It communicates via the Ovation system backplane connection.
Q6: Can the input range be configured per channel?
A6: Yes, each channel can be individually configured for voltage or current inputs.
Q7: What protection features are included for input signals?
A7: Overvoltage and isolation protection are included to safeguard the circuitry.
Q8: Does the module support redundant configuration?
A8: It can operate within redundant I/O chassis for high system availability.
Q9: What is the typical update rate of the analog input data?
A9: It supports high-speed scanning suitable for critical process monitoring.
Q10: Is calibration required for this module?
A10: Calibration is minimal, but factory calibration ensures high accuracy.
