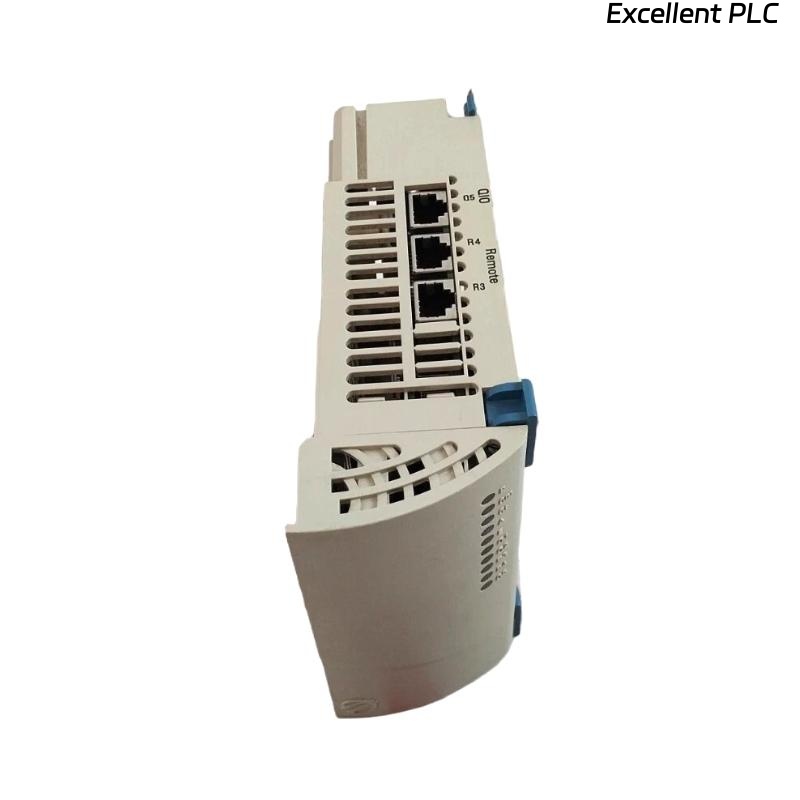

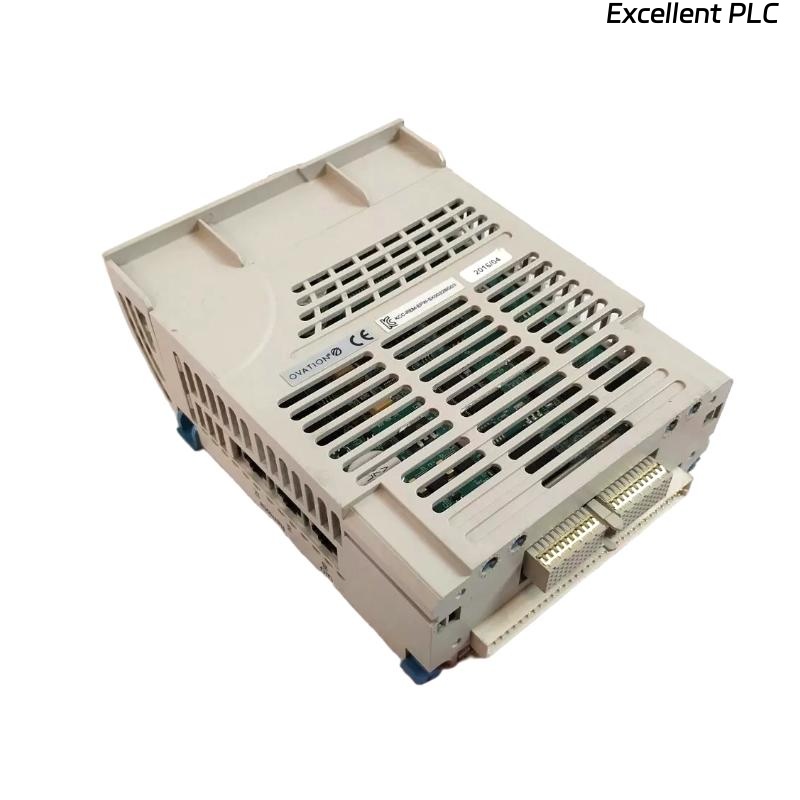

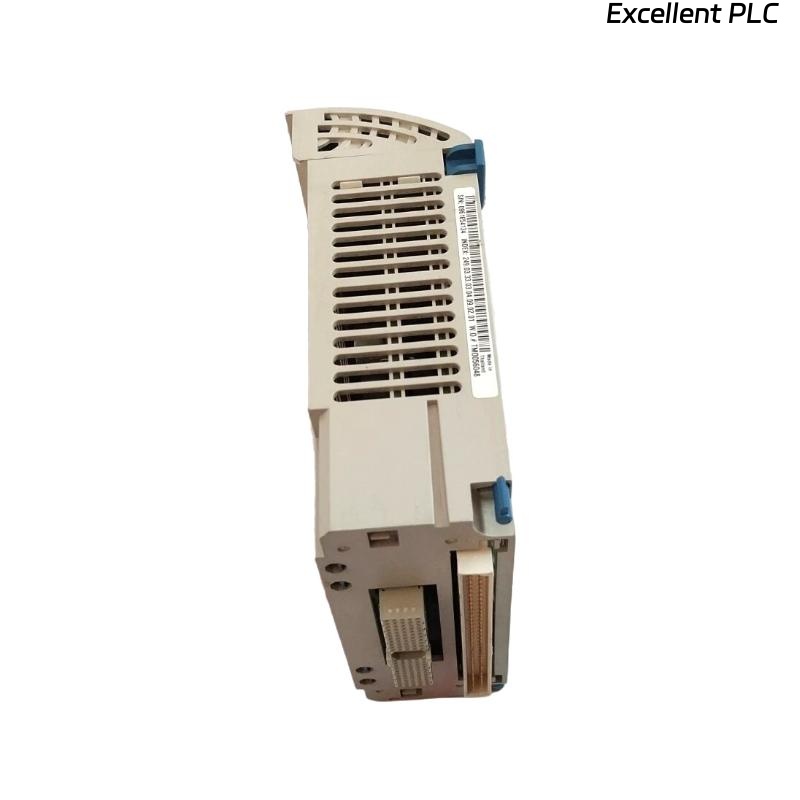

Ovation 5X00701G02 Analog Output Module

Product Introduction

The Ovation 5X00701G02 Analog Output Module is a high-precision output interface designed for Emerson’s Ovation Distributed Control System (DCS). It delivers accurate, stable analog signals to field devices such as control valves, actuators, and instrumentation requiring precise set-point control. Engineered for critical industrial operations, the 5X00701G02 provides exceptional reliability, low noise, and superior long-term stability. Its rugged design supports demanding environments, making it suitable for power generation, petrochemical plants, water treatment facilities, and other process industries where consistent analog output is essential.

Product Specifications

Applications

• Power Generation: Provides precise analog outputs to turbine governor systems, boiler controls, and emission control equipment.

• Oil & Gas: Drives actuators and control valves for pressure, flow, and temperature regulation in upstream and downstream processes.

• Water & Wastewater Treatment: Controls dosing pumps, chemical feed systems, and flow valves with fine accuracy.

• Chemical & Petrochemical Plants: Sends accurate set-point signals to process controllers for consistent product quality.

• Manufacturing & Industrial Automation: Interfaces with variable-speed drives, PID loops, and analog instrumentation requiring dependable current outputs.

• HVAC & Building Systems: Regulates chilled water valves, fan speed controllers, and dampers for energy-efficient operation.

Advantages

• High Accuracy and Resolution: 16-bit digital-to-analog conversion ensures smooth and precise signal control.

• Fast Update Rate: ≤10 ms per channel guarantees quick response to process changes.

• Excellent Isolation: 1500 V RMS isolation prevents ground loops and protects equipment from electrical interference.

• Low Noise and Drift: Maintains signal integrity even in electrically noisy industrial environments.

• Integrated Diagnostics: Built-in self-tests and channel-status LEDs simplify maintenance and troubleshooting.

• Flexible Signal Range: Supports 4–20 mA or 0–20 mA output for compatibility with a wide range of field devices.

• Rugged Design: Withstands harsh operating conditions, providing long-term reliability.

• Seamless Ovation Integration: Plug-and-play installation within the Ovation DCS architecture.

FAQ

1. What is the output signal range of the 5X00701G02?
   The module supports 4–20 mA or 0–20 mA, selectable via jumpers.

2. How many output channels are available on this module?
   It provides eight isolated analog output channels.

3. What is the digital-to-analog conversion resolution?
   The module features a 16-bit resolution for precise output control.

4. What is the update rate per channel?
   The module updates each channel within 10 milliseconds or less.

5. What isolation rating is provided?
   Each channel is isolated to 1500 V RMS from other channels and ground.

6. What is the maximum permissible load resistance?
   The module can drive loads from 0 to 750 ohms.

7. How accurate are the analog outputs?
   Output accuracy is ±0.05% of full scale, with linearity error under ±0.02%.

8. What diagnostic features are included?
   Integrated self-test routines and channel-status LEDs provide continuous monitoring.

9. What power source does the module require?
   It draws power from the Ovation backplane at a nominal 24 VDC supply.

10. Is it compatible with all Ovation controllers?
    Yes, the 5X00701G02 is fully compatible with Ovation DCS hardware and software.
