Product Overview

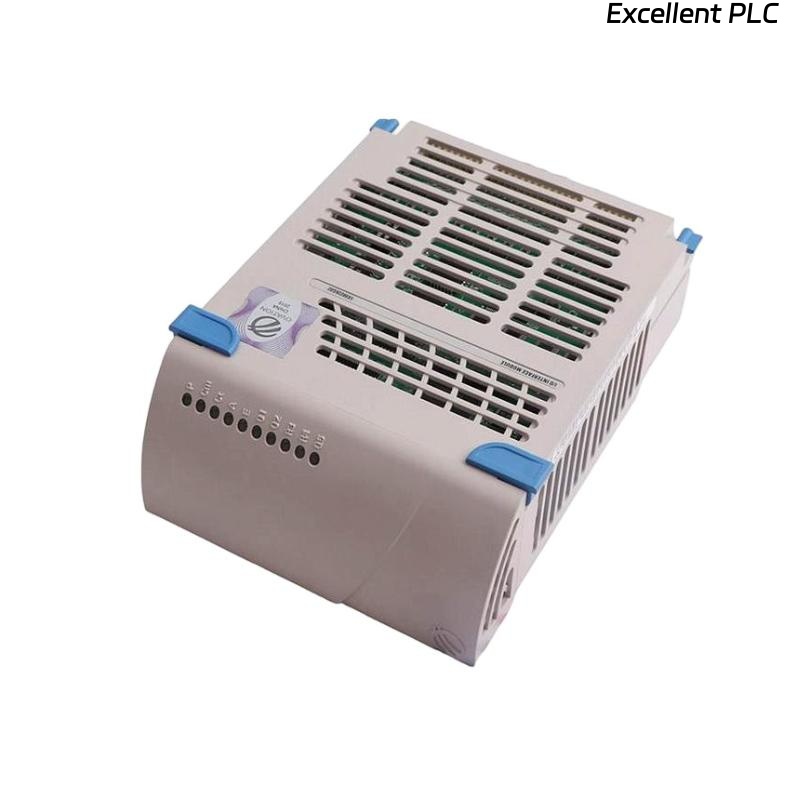

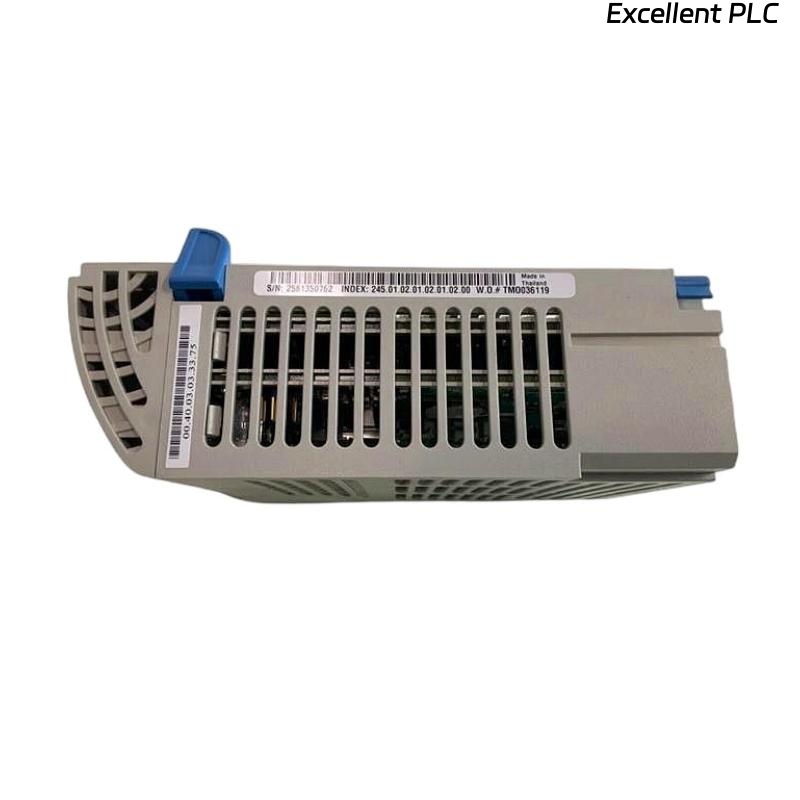

The Ovation 5X00717G01 Analog Input Module is a high-performance I/O component designed for Emerson Ovation Distributed Control Systems (DCS). It provides accurate and reliable measurement of analog signals such as temperature, pressure, flow, and level. The module is engineered for high-density analog input, supporting efficient process monitoring and seamless integration with the Ovation DCS.
Key Features
-
High-density analog input channels for efficient signal acquisition
-
Wide signal type support: mA, V, RTD, thermocouple
-
Integrated diagnostics for real-time health monitoring
-
Hot-swappable design for minimal downtime
-
Seamless integration with Ovation DCS
-
Rugged design suitable for harsh industrial conditions
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 5X00717G01 |
| Module Type | Analog Input Module |
| System Compatibility | Emerson Ovation DCS |
| Input Type | Analog (mA, V, RTD, Thermocouple – configuration dependent) |
| Input Channels | Multi-channel high-density configuration |
| Diagnostics | Built-in self-diagnostics and status monitoring |
| Mounting | Standard Ovation rack installation |
| Dimensions | 120 x 60 x 170 mm |
| Weight | 0.75 kg |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% non-condensing |
| Vibration Resistance | Meets Ovation system standards |
Industry Applications
-
Power Generation – thermal, nuclear, and renewable energy plants
-
Oil & Gas – upstream and refining process monitoring
-
Petrochemical & Chemical – continuous process control
-
Water & Wastewater Treatment – process variable measurement
-
Industrial Manufacturing – high-precision process monitoring
-
Other critical process industries requiring reliable analog inputs
Advantages
-
High-precision analog signal measurement
-
Supports multiple signal types and high-density inputs
-
Enhances predictive maintenance with built-in diagnostics
-
Hot-swappable for reduced downtime
-
Reliable operation in demanding industrial environments
-
Seamless integration with Ovation DCS systems
Frequently Asked Questions (FAQ)
Q1: What types of signals can this module measure?
It supports mA, V, RTD, and thermocouple analog inputs depending on configuration.
Q2: Is the module hot-swappable?
Yes, it can be replaced or installed without shutting down the system.
Q3: How many input channels are available?
It is a high-density analog input module supporting multiple channels.
Q4: Can it be used in critical process applications?
Yes, it is suitable for power generation, oil & gas, and other critical industries.
Q5: What diagnostic features are included?
It has continuous self-diagnostics, channel status monitoring, and fault detection.
Q6: Is it compatible with all Ovation controllers?
Yes, it integrates with both legacy and current Ovation DCS controllers.
Q7: What are the environmental specifications?
Operating temperature: 0–60 °C, Storage temperature: -40–85 °C, Humidity: 5–95% non-condensing.
Q8: How does it improve system reliability?
By providing precise measurements, robust diagnostics, and hot-swappable operation, it minimizes downtime and enhances process monitoring reliability.
