Product Introduction

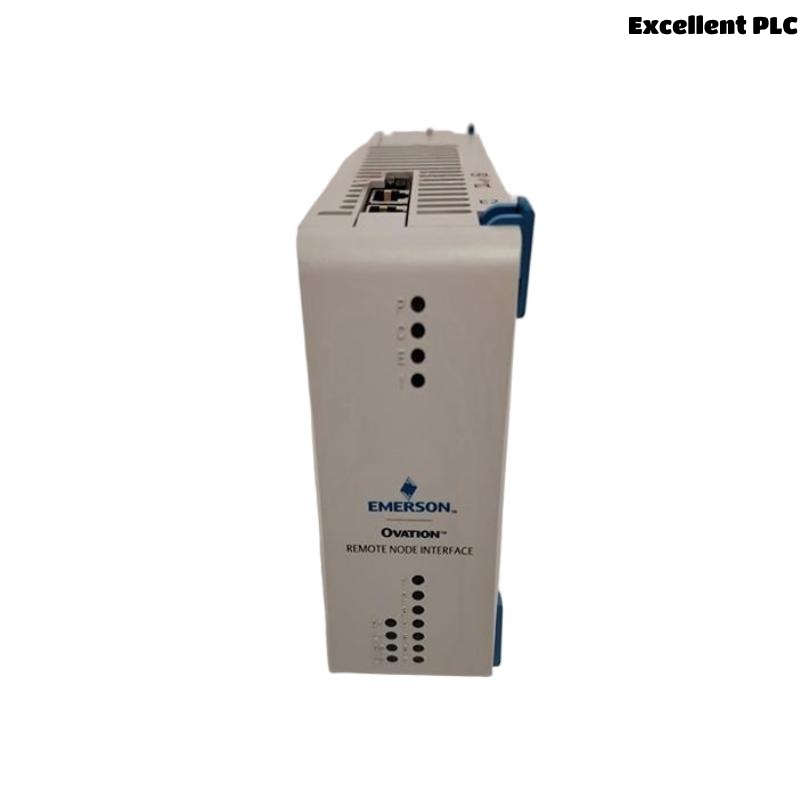

The OVATION 5X00790G01 is a high-performance module designed for use within Emerson’s Ovation Distributed Control System (DCS). Engineered to handle complex process automation and control tasks, this module plays a vital role in critical process industries such as power generation, water treatment, and chemical processing. It integrates seamlessly into Ovation racks and ensures high-speed data acquisition and reliable process execution.
This component is commonly utilized in both legacy and modern DCS architectures, supporting system scalability, redundancy, and real-time monitoring. It is known for its robust reliability in mission-critical control environments and is a key asset in achieving operational efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 5X00790G01 |
| System Compatibility | Ovation DCS |
| Function | I/O module (commonly analog or digital interface) |
| Input Type | Depends on slot configuration (AI, DI, DO, etc.) |
| Data Communication | High-speed backplane bus |
| Mounting Type | DIN rail / Ovation chassis |
| Operating Voltage | 24 VDC (typical) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| Material Composition | Industrial-grade PCB, EMC shielded casing |
| Dimensions | 120 x 80 x 40mm |
| Weight | 0.5 kg |
| Certifications | CE, UL, CSA |
| Compliance | RoHS, WEEE |
Product Advantages
-
High Compatibility: Fully integrates with the Ovation DCS platform, ensuring system-wide consistency and interoperability.
-
Compact Design: Space-saving form factor allows high-density installations in control cabinets.
-
Industrial Grade Durability: Manufactured using high-reliability components and PCB design for operation in rugged industrial environments.
-
Flexible I/O Options: Can support multiple input/output configurations, including analog and digital signals.
-
Redundancy Support: Enables hot-swap and redundant setups, reducing system downtime during maintenance or module failure.
-
Reliable Signal Processing: Provides accurate and high-speed signal conditioning, crucial for control-loop performance.
-
Easy Maintenance: Module identification, diagnostics, and replacement are simplified by design, reducing operational downtime.
Product Applications
The OVATION 5X00790G01 module finds wide applications in the following domains:
-
Power Generation Plants – Turbine control, boiler control, feedwater systems
-
Water & Wastewater Treatment – Pump control, chemical dosing, filtration automation
-
Petrochemical & Refining – Reactor control, safety interlock systems, compressor monitoring
-
Metals & Mining – Conveyor automation, temperature and motor control
-
Pharmaceutical Manufacturing – Batch process control, environmental monitoring
-
Pulp and Paper Industries – Dryer section control, stock preparation monitoring
FAQs (10 Human-Written Questions and Answers)
Q1: What exactly is the function of the 5X00790G01 module?
A1: This module acts as a process interface, handling real-world analog or digital signals within the Ovation DCS, either by acquiring data or executing outputs.
Q2: Is this model hot-swappable?
A2: Yes, like most Ovation modules, it supports hot-swapping, allowing users to replace the unit without shutting down the entire system.
Q3: Can the 5X00790G01 be used in redundant configurations?
A3: Absolutely. It supports redundancy to ensure continuous operation in case one unit fails.
Q4: Does it require any specific firmware to operate?
A4: Yes, it works with specific Ovation firmware versions. Compatibility should be checked against the controller’s configuration.
Q5: What type of signals can it handle?
A5: It depends on the sub-model configuration. It can handle analog input/output, or digital input/output, based on the assigned role in the rack.
Q6: Is calibration required for this module?
A6: Analog variants of the module might require periodic calibration to ensure accuracy.
Q7: What is the expected service life of the module?
A7: When used under standard conditions, it can last 5 years or more with regular maintenance.
Q8: Is it backward compatible with older Ovation systems?
A8: Yes, Emerson designed the module to be backward-compatible with most legacy Ovation architectures.
Q9: Can it be used in outdoor enclosures?
A9: Only if properly housed in NEMA or IP-rated enclosures with environmental control.
Q10: How can I verify module health or failure?
A10: The Ovation system will issue diagnostics via the controller interface, and LED indicators on the module itself provide status feedback.
Recommended Related Models (Same Series / Function Family)
-
5X00790G02 – Alternate firmware or configuration variant
-
5X00710G01 – Analog Input Module
-
5X00786G01 – Digital Output Module
-
5X00717G01 – Redundant Interface Module
-
5X00719G01 – Analog Output Module
-
5X00808G01 – Power Supply Module for Ovation I/O
Popular Emerson Ovation Models (With Key Specifications)
| Model | Description | Voltage | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 5X00106G01 | I/O Termination Assembly | 24 VDC | 220 × 105 × 30 | 290 g |
| 5X00357G01 | Ovation CPU Controller | 24 VDC | 240 × 120 × 45 | 550 g |
| 5X00790G01 | I/O Interface Module | 24 VDC | 224 × 108 × 35 | 320 g |
| 5X00121G01 | Analog Input Module | 24 VDC | 210 × 100 × 35 | 310 g |
| 5X00419G01 | Digital Input Module | 24 VDC | 225 × 110 × 35 | 330 g |
| 5X00454G01 | Analog Output Module | 24 VDC | 215 × 108 × 35 | 315 g |
| 5X00786G01 | Digital Output Interface Module | 24 VDC | 230 × 105 × 40 | 345 g |
| 5X00357G02 | Advanced CPU Controller | 24 VDC | 240 × 120 × 50 | 570 g |
