Product Introduction

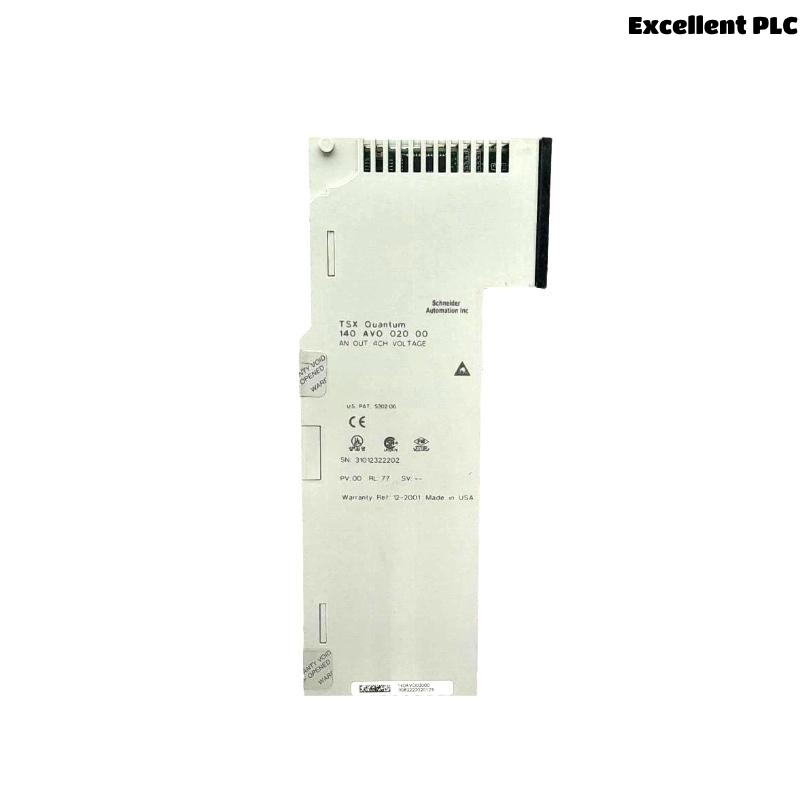

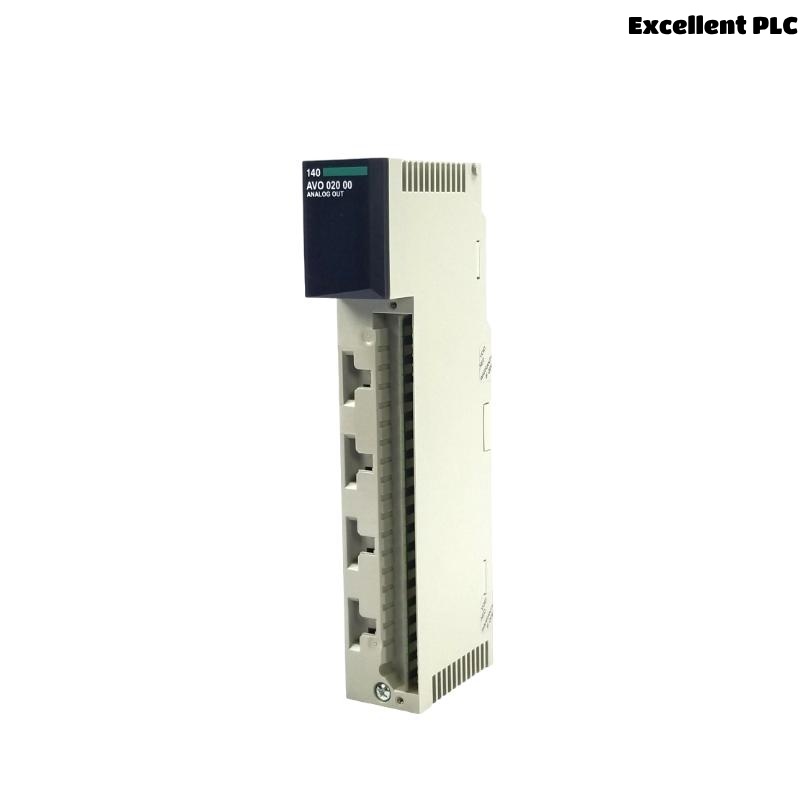

The Schneider Electric 140AVO02000C is a precision analog output module designed for the Modicon Quantum automation platform, offering accurate control of analog devices in process and manufacturing environments. It features two isolated analog output channels, capable of delivering voltage signals (±10 V) to actuators, control valves, drives, and other field devices that require finely tuned analog control.
This module is ideal for systems requiring high-performance analog output in mission-critical applications, such as temperature regulation, flow control, or speed command in industrial automation. Built with advanced diagnostics, excellent linearity, and signal stability, the 140AVO02000C ensures reliability and integration simplicity within large-scale automation architectures.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 140AVO02000C |
| Manufacturer | Schneider Electric |
| Product Family | Modicon Quantum |
| Module Type | Analog Output Module |
| Number of Output Channels | 2 |
| Output Signal Type | Voltage |
| Output Range | ±10 VDC |
| Output Resolution | 15 bits |
| Load Impedance | ≥1 kΩ |
| Accuracy | ±0.1% of full scale |
| Stability | <50 ppm/°C |
| Isolation | Channel-to-bus and channel-to-channel optical isolation |
| Conversion Type | Digital-to-Analog with filtering |
| Output Update Rate | 8 ms per channel |
| Diagnostic Features | Channel fault, output status, internal error detection |
| Power Consumption | 180 mA from 5 V backplane |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting Type | Rack-mounted (Quantum chassis) |
| Certifications | CE, UL, cUL, CSA, FM, ATEX |
| Dimensions (W × H × D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
Product Applications
The 140AVO02000C is tailored for diverse applications across various industries that require analog control:
-
Oil & Gas – Provides precise voltage control to pneumatic valves and actuators for flow and pressure regulation.
-
Power Generation – Controls turbine valve positions or generator excitation systems.
-
Pharmaceutical Manufacturing – Maintains precise environmental conditions such as humidity and temperature in cleanrooms.
-
Chemical Processing – Controls proportional dosing pumps and pH neutralization systems.
-
HVAC Automation – Outputs analog voltage to modulate dampers, valves, or VFDs for energy-efficient control.
-
Water & Wastewater – Drives analog actuators in filtration, aeration, and pumping processes.
Key Advantages
-
High Precision Control
With a 15-bit resolution and ±0.1% accuracy, the 140AVO02000C provides highly reliable analog output signals for demanding applications. -
Dual Independent Outputs
Two channels allow simultaneous, independent control of two separate analog devices. -
Channel and Bus Isolation
Ensures signal integrity and system protection through full optical isolation between channels and backplane. -
Robust Diagnostic Features
Internal diagnostics alert users to output faults and internal errors, reducing troubleshooting time and downtime. -
Quantum Platform Compatibility
Seamlessly integrates with Schneider Electric’s Modicon Quantum platform, minimizing setup and engineering costs. -
Rugged Industrial Design
Designed to operate in harsh environments, backed by multiple certifications including ATEX for hazardous areas.
Frequently Asked Questions (FAQ)
-
What type of analog signals does the 140AVO02000C output?
It outputs voltage signals in the ±10 VDC range. -
How many output channels does this module have?
The module provides 2 independently controlled analog output channels. -
Can it provide current (mA) output signals?
No, this model is designed exclusively for voltage outputs. Use 140AVO02000 or similar if current output is required. -
Is the module compatible with Quantum CPUs like 140CPU65160?
Yes, it is fully compatible with Modicon Quantum CPUs and rack systems. -
Does this module have output isolation?
Yes, each output channel is isolated from the backplane and from each other. -
Can the outputs be used simultaneously?
Yes, both outputs can function independently at the same time. -
How accurate is the output signal?
The module offers ±0.1% of full-scale accuracy, suitable for critical control. -
What is the typical update rate for each channel?
Each channel updates every 8 milliseconds. -
Is the module hot-swappable?
Yes, it supports hot-swapping within compatible chassis configurations. -
What is the size and weight of the module?
Dimensions are 103.9 × 40.3 × 250 mm, and it weighs 0.3 kg.
Recommended Related Models (Same Series or Function)
| Model | Type | Channels | Output Type | Notes |
|---|---|---|---|---|
| 140AVO02000C | Analog Output Module | 2 | Voltage (±10 VDC) | Precision voltage output |
| 140AVO02000 | Analog Output Module | 2 | Configurable V/mA | Supports both voltage and current output |
| 140ACI03000 | Analog Input Module | 8 | Current (4–20 mA) | Ideal for process loop inputs |
| 140AVI03000C | Analog Input Module | 8 | Voltage (±10 VDC) | High-resolution voltage input |
| 140CHS32000 | I/O Base | – | – | Chassis for Quantum modules |
| 140CPU65160 | CPU Module | – | – | High-performance Quantum CPU |
Popular Schneider Electric Modules (Same Brand)
| Model | Type | Channels | Description |
|---|---|---|---|
| BMXAMI0410 | Analog Input Module | 4 | For Modicon M340 – high accuracy voltage input |
| BMXAMO0802 | Analog Output Module | 8 | M340 platform – voltage/current configurable |
| BMXDDI1602 | Digital Input Module | 16 | 24 VDC discrete input, compact and efficient |
| TSXPSY2600 | Power Supply Module | – | Regulated power supply for Quantum racks |
| BMXP342020 | PLC Processor | – | M340 CPU with Ethernet and USB ports |
| BMXNOE0100 | Network Module | – | Ethernet TCP/IP communication module |
