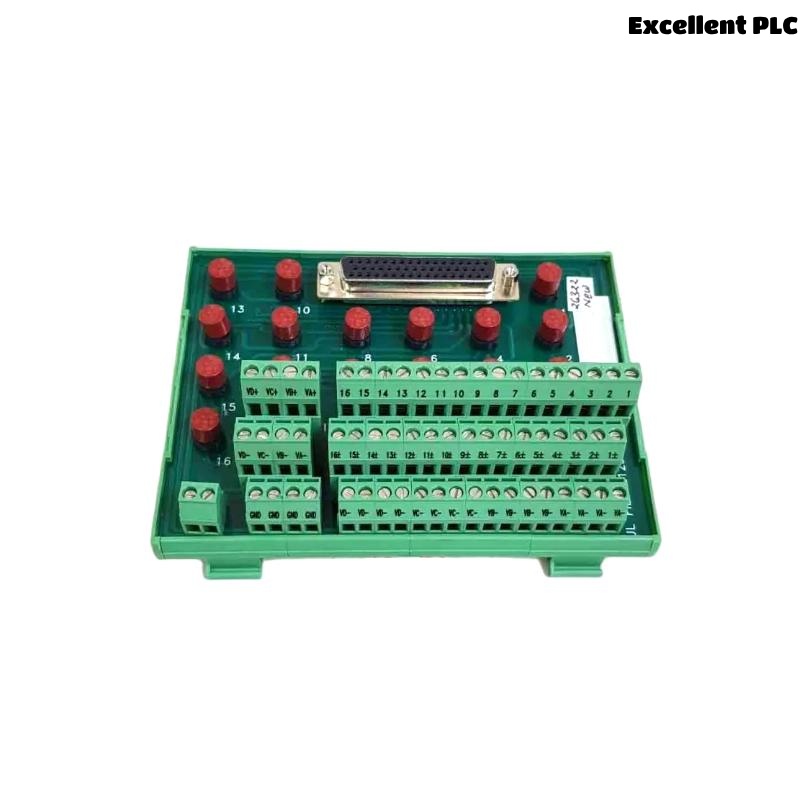

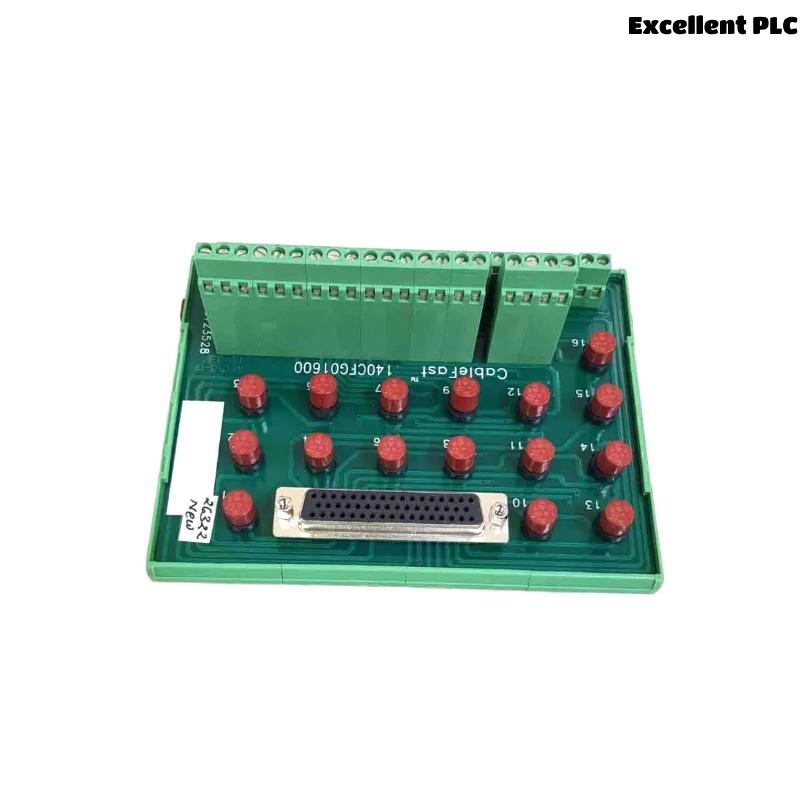

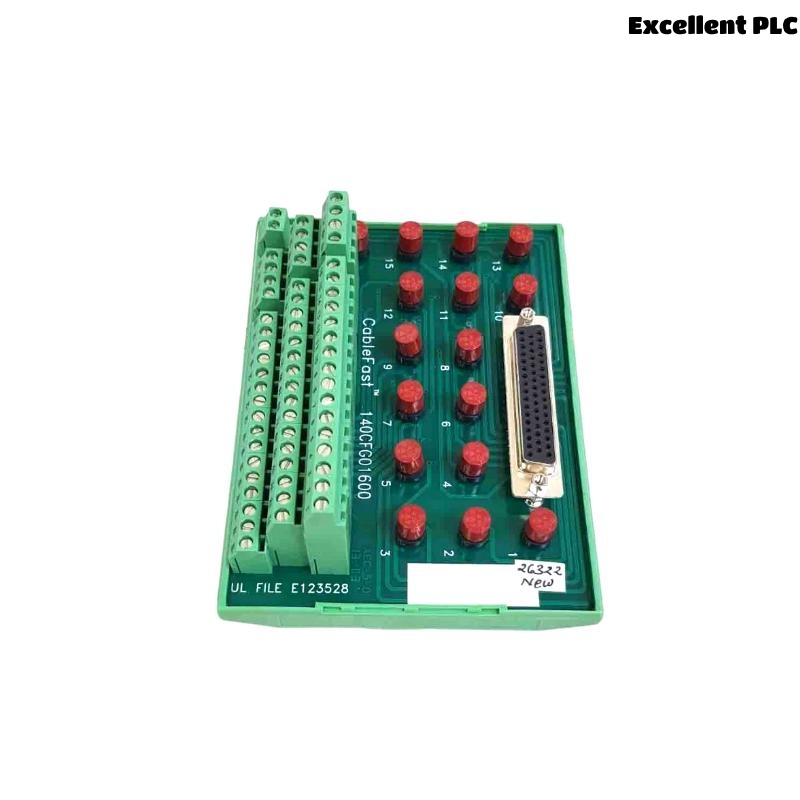

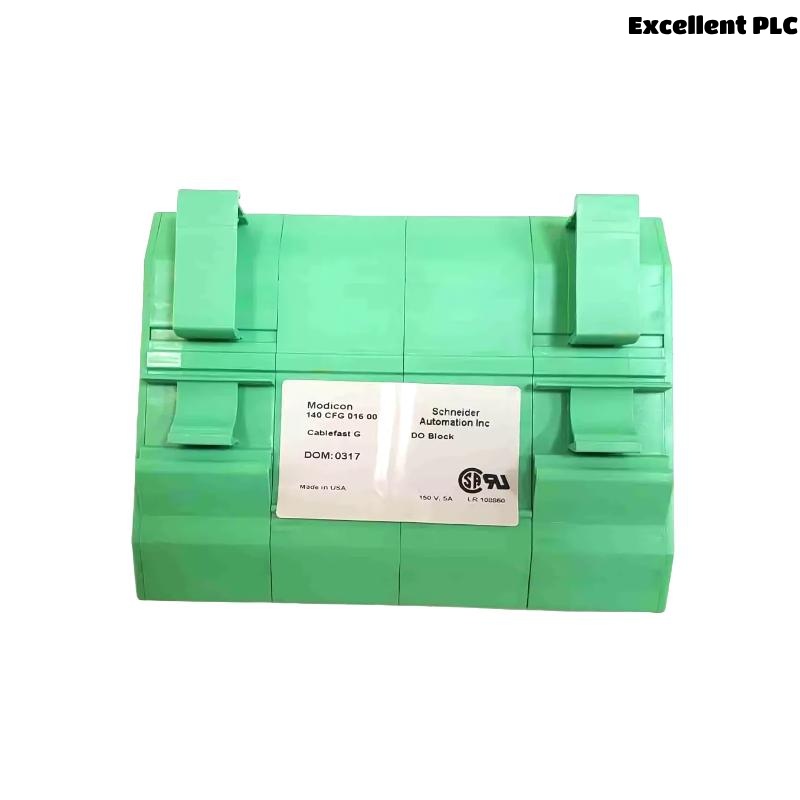

Schneider 140CFG01600 CableFast Terminal Block

Product Introduction

The Schneider Electric 140CFG01600 CableFast Terminal Block is a purpose-built connection interface designed for the Modicon Quantum automation platform. As part of Schneider’s highly regarded CableFast series, this terminal block offers fast, efficient, and highly reliable field wiring for Quantum I/O modules.

The 140CFG01600 provides a pre-assembled, standardized wiring solution that helps streamline installation, reduce errors, and improve maintainability. Designed with a focus on reliability and operational continuity, this terminal block is widely used in industrial control environments where both quality and ease of maintenance are critical.

Schneider’s CableFast technology is renowned for its ability to simplify large and complex automation systems by providing an efficient means of connecting field wiring to I/O modules, while maintaining clear labeling, error-proof connections, and ease of reconfiguration.

Product Parameters

Applications

The Schneider 140CFG01600 CableFast Terminal Block is used in a wide variety of industrial sectors where automation reliability and rapid installation are critical. Common application areas include:

• Process Industries:
  Oil & Gas, Chemical, Petrochemical, and Pharmaceutical sectors rely on CableFast blocks for clean, accurate field wiring in process control systems.

• Energy and Utilities:
  Power generation, power distribution, and water & wastewater treatment plants use CableFast terminal blocks to ensure reliable I/O connections.

• Manufacturing and Packaging:
  Used in production lines where modularity, quick reconfiguration, and reduced downtime are vital.

• Infrastructure Projects:
  Building management systems, transportation, and large-scale HVAC systems.

• SCADA Systems:
  Reliable and clear terminal blocks are needed for high-performance supervisory control and data acquisition systems.

• Safety Instrumented Systems:
  The block’s standardized wiring helps ensure compliance with safety regulations and reduces commissioning time.

Product Advantages

• Fast Installation:
  Pre-configured and pre-labeled terminal blocks significantly reduce wiring time compared to traditional wiring techniques.

• Reduced Errors:
  CableFast connectors and clear labeling minimize human errors during installation and maintenance.

• High Reliability:
  Rugged design ensures a long operational life even in harsh industrial environments.

• Compact Footprint:
  Saves valuable control panel space while offering high-density wiring.

• Versatile Wiring Options:
  Compatible with a range of wire sizes and configurations for maximum flexibility.

• Minimal Downtime:
  Quick reconfiguration and field-replaceable blocks reduce maintenance time and improve uptime.

• Industry Compliance:
  Meets or exceeds international standards such as UL, CE, and RoHS.

• Enhanced Safety:
  Secure, vibration-resistant connections improve operational safety.

• Optimized for Modicon Quantum:
  Seamlessly integrates with the Quantum series controllers and I/O modules.

• Field-Proven Solution:
  Trusted in thousands of installations globally, providing consistent, reliable service.

FAQ (10 Technical Questions and Answers)

1. What systems are compatible with the 140CFG01600 terminal block?
   It is designed to work with Schneider Modicon Quantum I/O modules and related control systems.

2. How many channels does the terminal block support?
   The 140CFG01600 supports 16 channels, configurable for either input or output.

3. Does this terminal block reduce installation time compared to traditional methods?
   Yes, its pre-terminated CableFast design reduces wiring time by as much as 50%.

4. Can it operate in outdoor or harsh industrial environments?
   Yes, its wide temperature range and IP20 rating make it suitable for many industrial applications, though it should be enclosed in an appropriate cabinet for outdoor use.

5. What maintenance is required for optimal performance?
   Visual inspection for loose wires or wear, occasional cleaning of terminals, and confirming connection integrity.

6. Are hot-swappable connections supported?
   The terminal block itself does not provide hot-swap functionality, but if used with hot-swappable I/O modules, field wiring changes can be safely managed.

7. What certification does the 140CFG01600 carry?
   It is CE, UL, cUL, and RoHS compliant.

8. What is the maximum wire size that can be used?
   It accepts wire sizes from 0.14 mm² to 2.5 mm² (26 AWG to 14 AWG).

9. How does the terminal block improve system safety?
   Clear, error-proof wiring with vibration-resistant connections reduces wiring errors and ensures better safety in industrial environments.

10. Is the terminal block compatible with existing legacy Modicon Quantum systems?
    Yes, it is backward compatible with both legacy and current Modicon Quantum controllers and I/O modules.
