Product Introduction

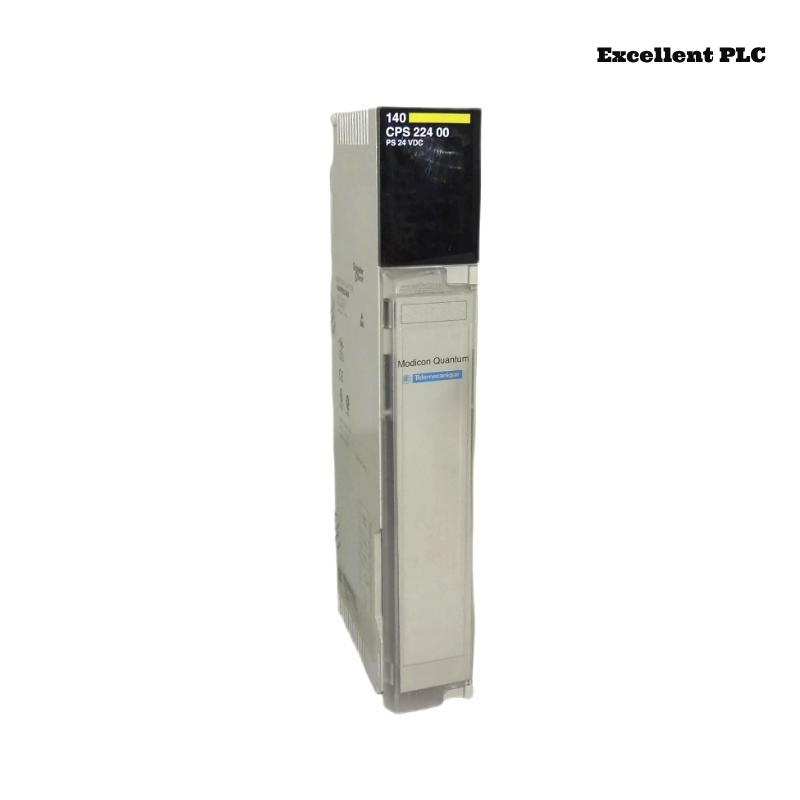

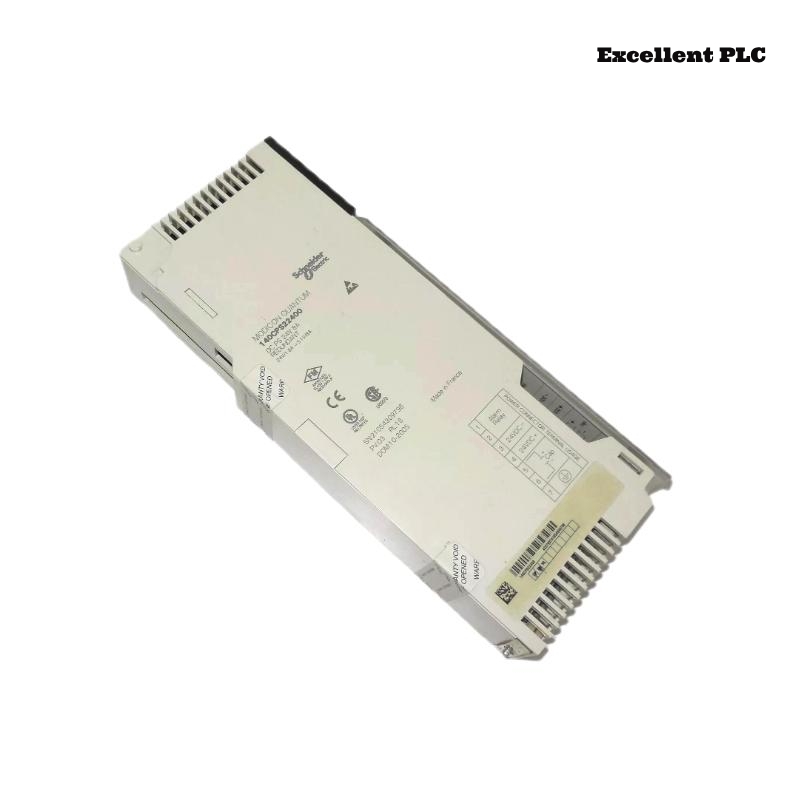

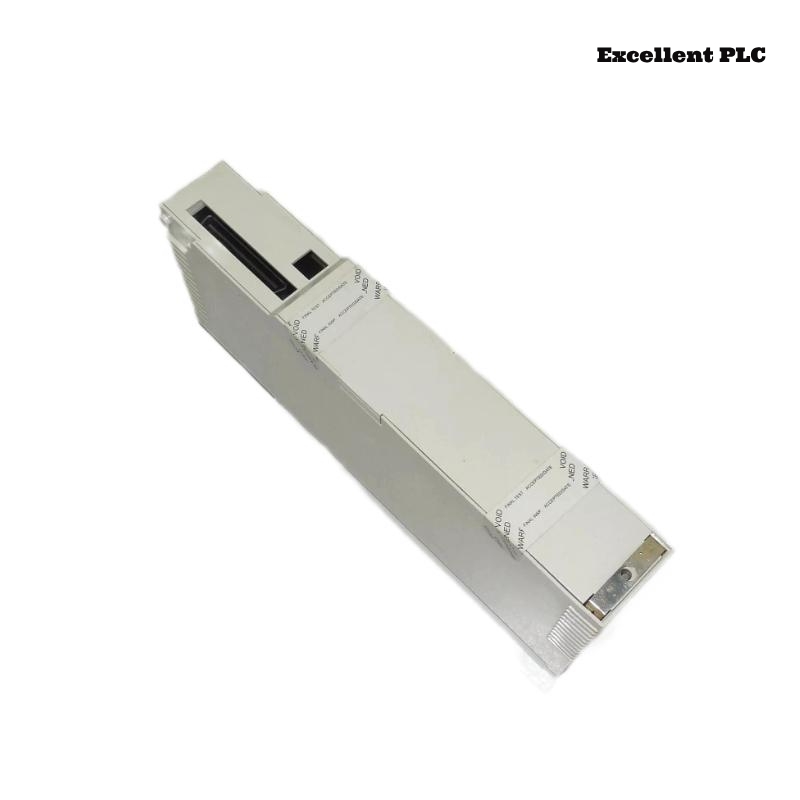

The Schneider 140CPS22400 Power Supply Module is a high-performance power supply unit designed for Modicon Quantum PLC systems. It provides a stable DC power output, ensuring that the PLC, I/O modules, and communication modules within the system operate efficiently and reliably.
As a dual-input power module, the 140CPS22400 supports redundancy and high availability, making it ideal for critical automation applications where continuous operation is required. This model is specifically engineered to deliver high efficiency, low heat dissipation, and robust performance in industrial environments such as manufacturing, process automation, and power generation.
With high reliability, strong environmental resistance, and safety certifications, the 140CPS22400 is one of the most trusted power solutions in industrial control applications.
Product Specifications
| Specification | Details |
|---|---|
| Model | 140CPS22400 |
| Product Type | Power Supply Module |
| Compatible System | Modicon Quantum Series |
| Power Input | 125 VDC / 230 VAC, 50/60 Hz |
| Output Voltage | 24 VDC |
| Output Current | 10 A |
| Rated Power | 240 W |
| Efficiency | >90% |
| Redundancy Support | Yes, dual power input support |
| Operating Temperature Range | -25°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Tolerance | 5% – 95% RH, non-condensing |
| Dimensions (L x W x H) | 103.9 × 40.3 × 250 mm |
| Weight | 0.65 kg |
| Cooling Mechanism | Convection cooling |
| Environmental Protection | IP20, dust protection |
| Certifications | UL, CE, RoHS, CUL, IEC |
Product Applications
The Schneider 140CPS22400 Power Supply Module is widely used in industrial automation systems where high availability and reliability are required. Its redundant power supply support makes it a preferred choice for critical applications, including:
- PLC and SCADA Systems: Used in industrial control systems to power Modicon Quantum PLCs and related automation modules.
- Manufacturing and Process Automation: Provides stable power to assembly lines, robotic systems, and process control units.
- Oil & Gas Industry: Ensures uninterrupted power supply to critical monitoring and safety control systems.
- Power Plants and Utilities: Essential in power distribution control centers for monitoring and automation systems.
- Transportation and Railway Systems: Supports signaling, control panels, and infrastructure monitoring.
- Building Automation: Used in HVAC, lighting control, and security automation in large-scale industrial buildings.
Product Advantages
- Dual Power Input for Redundancy: Supports 125 VDC and 230 VAC inputs, ensuring system stability even if one power source fails.
- High Efficiency: Operates at >90% efficiency, reducing energy consumption and minimizing heat dissipation.
- Wide Operating Temperature Range: Works reliably in harsh environments, withstanding temperatures from -25°C to +60°C.
- Compact and Space-Saving Design: Small form factor allows for easy integration into tight control cabinets.
- Convection Cooling for Reliability: Uses natural convection cooling, eliminating the need for active fans and reducing maintenance requirements.
- Rugged Industrial Build: Designed for use in dusty, high-vibration, and industrial environments.
- Certifications for Global Use: Complies with UL, CE, RoHS, CUL, and IEC standards, ensuring safety and compatibility worldwide.
Latest News
- “Schneider Electric Expands Modicon Quantum Series with Advanced Power Supply Solutions”
- “140CPS22400 Enhances Redundant Power Capabilities in Industrial Automation”
- “Schneider’s 140CPS22400: A Reliable Power Supply for Mission-Critical Systems”
- “New Schneider Power Module Ensures High Efficiency in Process Control Applications”
- “Schneider Electric’s Latest Power Supply Model Improves Energy Management in Factories”
- “140CPS22400 Supports High-Availability Industrial Automation Systems”
- “Schneider Quantum Series Power Supply Achieves New Efficiency Standards”
- “Enhanced Safety and Redundancy: Why the 140CPS22400 is Ideal for Energy Applications”
- “Schneider Electric Releases New Power Supply with Extended Operating Temperature Range”
- “Quantum PLC Systems Gain Stability with Schneider’s 140CPS22400”
Frequently Asked Questions (FAQ)
-
What is the input voltage range of the 140CPS22400 power supply?
- It supports 125 VDC and 230 VAC, providing flexibility for different industrial power systems.
-
What is the output voltage and current rating?
- The module provides 24 VDC output with a maximum current of 10 A, delivering 240 W of power.
-
Is the 140CPS22400 suitable for redundant power configurations?
- Yes, it features dual power input support, allowing for redundancy in critical applications.
-
What industries typically use this power supply?
- Industries such as manufacturing, energy, transportation, and process automation commonly use this power module.
-
What is the efficiency rating of the Schneider 140CPS22400?
- The module has an efficiency of over 90%, reducing energy waste and operational costs.
-
Can this power supply operate in extreme environments?
- Yes, it works in temperatures ranging from -25°C to +60°C, with storage capability up to -40°C to +85°C.
-
What are the dimensions and weight of the module?
- It measures 103.9 × 40.3 × 250 mm and weighs 0.65 kg.
-
Does the power supply require active cooling?
- No, it uses passive convection cooling, reducing noise and increasing longevity.
-
What level of environmental protection does the 140CPS22400 offer?
- It is rated IP20, providing protection against dust and solid objects.
-
Is the 140CPS22400 certified for international use?
- Yes, it meets UL, CE, RoHS, CUL, and IEC standards for global industrial applications.
Recommended Related Models
| Model | Specification |
|---|---|
| 140CPS22410 | Similar power supply with enhanced redundancy |
| 140CPS22420 | Higher efficiency version of 140CPS22400 |
| 140CPS12420 | 24 VDC, 20 A power supply for smaller applications |
| 140CPS12450 | 50 A output version for high-power applications |
| 140CPS22430 | 30 A output version with increased power capability |
| 140CPS22450 | Redundant power supply for critical systems |
| 140CPS22500 | High-efficiency version for energy-sensitive setups |
| 140CPS12000 | Compact power supply for small control applications |
| 140CPS12460 | Industrial-grade power module for process control |
| 140CPS12480 | Extended input range for specialized automation |
