Product Description

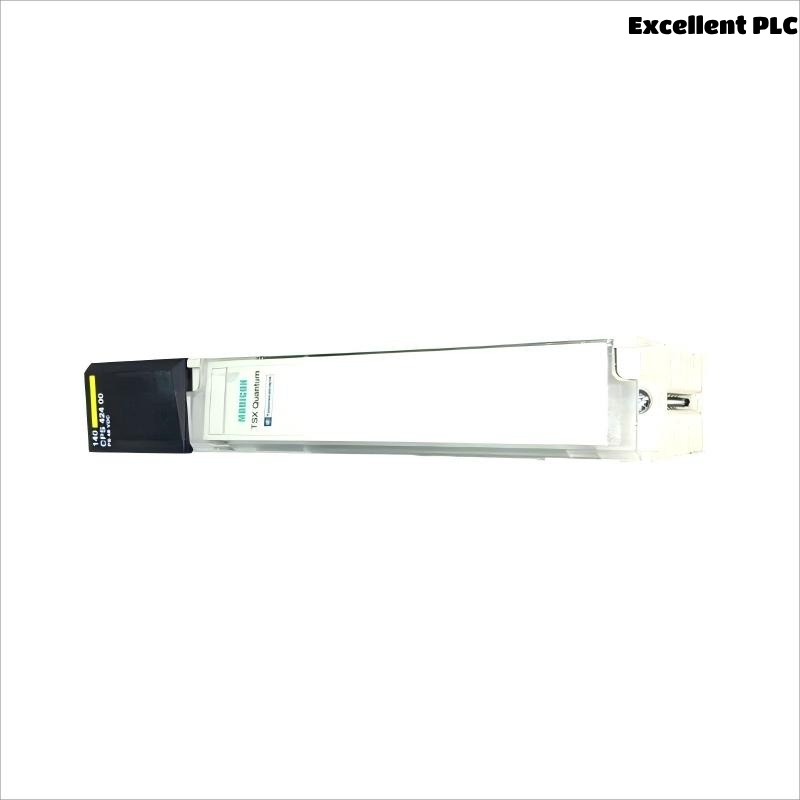

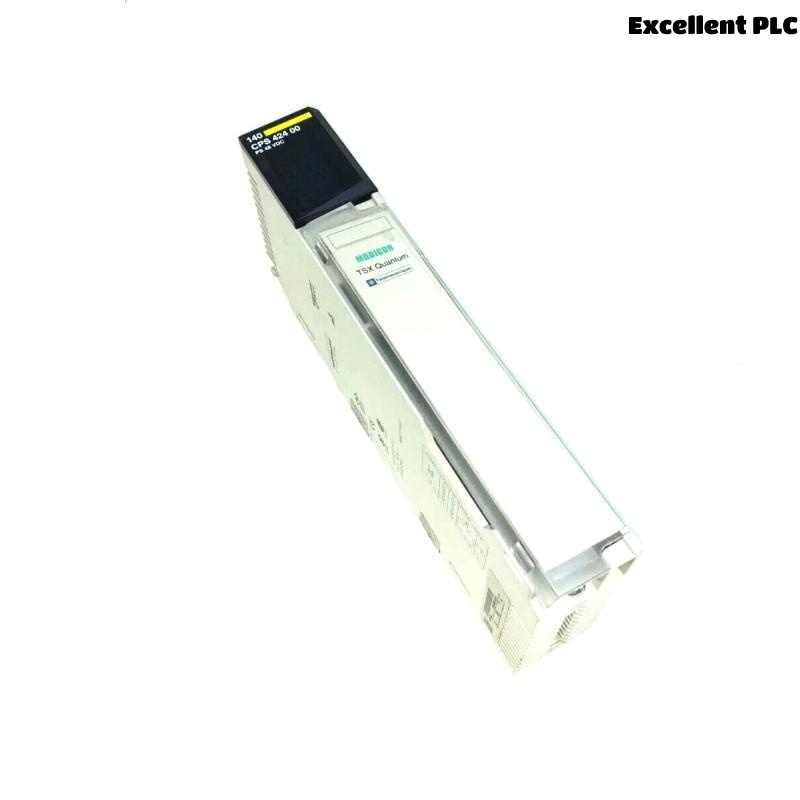

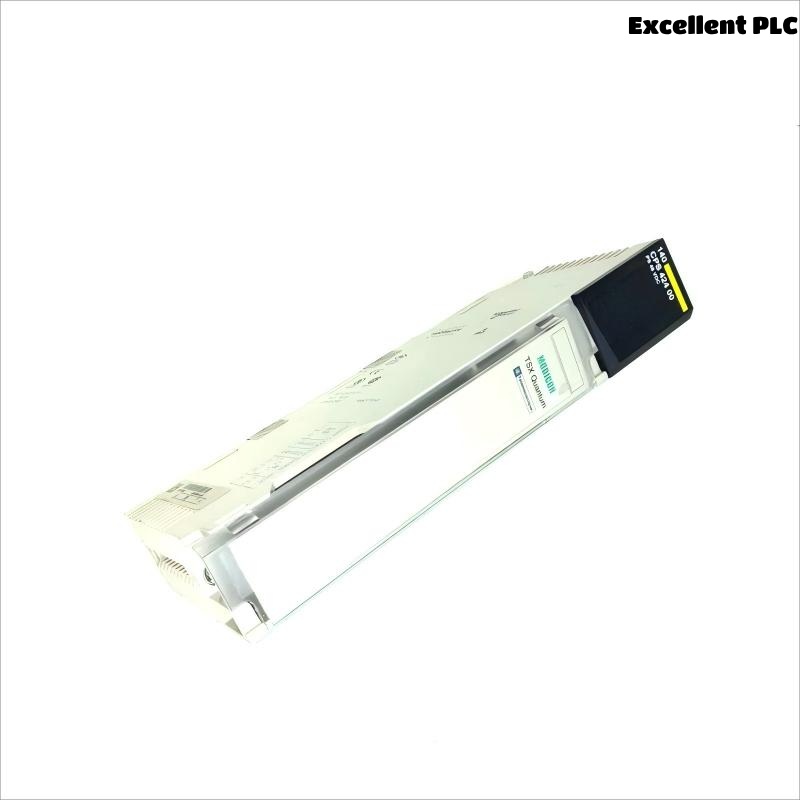

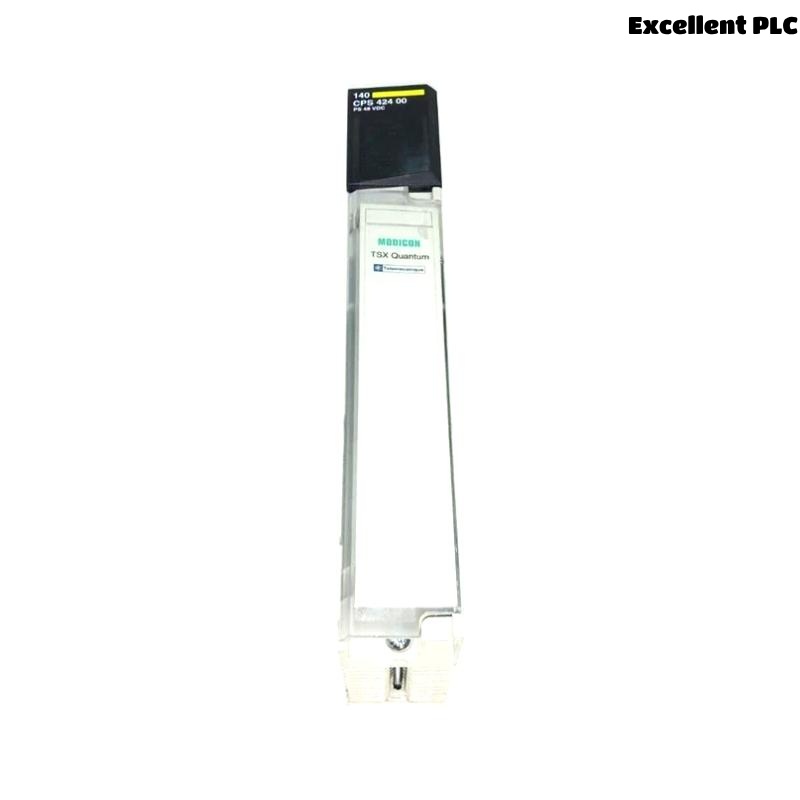

The Schneider 140CPS42400C is a reliable power supply module designed for the Modicon Quantum series PLC systems. It provides stable 24 VDC power to the system components, ensuring efficient operation and long-term performance in industrial automation applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 140CPS42400C |
| Input Voltage | 24 VDC |
| Output Power | 40 W |
| Output Voltage | 5.1 VDC / 8 A |
| Dimensions (H×W×D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.65 kg |
| Operating Temperature | 0…60 °C |
| Storage Temperature | -40…85 °C |
| Relative Humidity | 5…95% non-condensing |
Applications
-
Industrial automation systems
-
Modicon Quantum PLC power supply
-
Manufacturing process control
-
Utility and energy management systems
-
Transportation and logistics automation
Advantages
-
Compact and lightweight design for easy integration
-
Stable and efficient power output with low ripple
-
Wide operating temperature range for harsh environments
-
Compatible with Modicon Quantum series
-
High reliability and long service life
FAQ
Q1: What is the input voltage for the 140CPS42400C?
A1: It operates with a 24 VDC input voltage.
Q2: Is the 140CPS42400C compatible with all Quantum CPUs?
A2: Yes, it is designed to work with all Modicon Quantum CPUs.
Q3: What is the output current capacity of this module?
A3: It delivers up to 8 A at 5.1 VDC.
Q4: Can it be used in high-temperature environments?
A4: Yes, it supports operating temperatures up to 60 °C.
Q5: How much does the module weigh?
A5: The weight of the module is 0.65 kg.
Q6: What are the module’s physical dimensions?
A6: It measures 103.9 × 40.3 × 250 mm.
Q7: Is the module hot-swappable?
A7: No, it must be powered down before replacement.
Q8: Does it provide short-circuit protection?
A8: Yes, the module includes internal protection circuits.
Q9: What is the maximum humidity level it can handle?
A9: Up to 95% non-condensing.
Q10: Is the 140CPS42400C CE certified?
A10: Yes, it complies with relevant international standards.
Recommended Related Models
| Model | Input Voltage | Output Power | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 140CPS11420 | 115/230 VAC | 30 W | 103.9 × 40.3 × 250 | 0.7 kg |
| 140CPS21400 | 24 VDC | 30 W | 103.9 × 40.3 × 250 | 0.65 kg |
| 140CPS11410 | 115/230 VAC | 20 W | 103.9 × 40.3 × 250 | 0.7 kg |
| 140CPS12420 | 115/230 VAC | 40 W | 103.9 × 40.3 × 250 | 0.7 kg |
| 140CPS21400C | 24 VDC | 30 W | 103.9 × 40.3 × 250 | 0.65 kg |
| 140CPS42400 | 24 VDC | 40 W | 103.9 × 40.3 × 250 | 0.65 kg |
