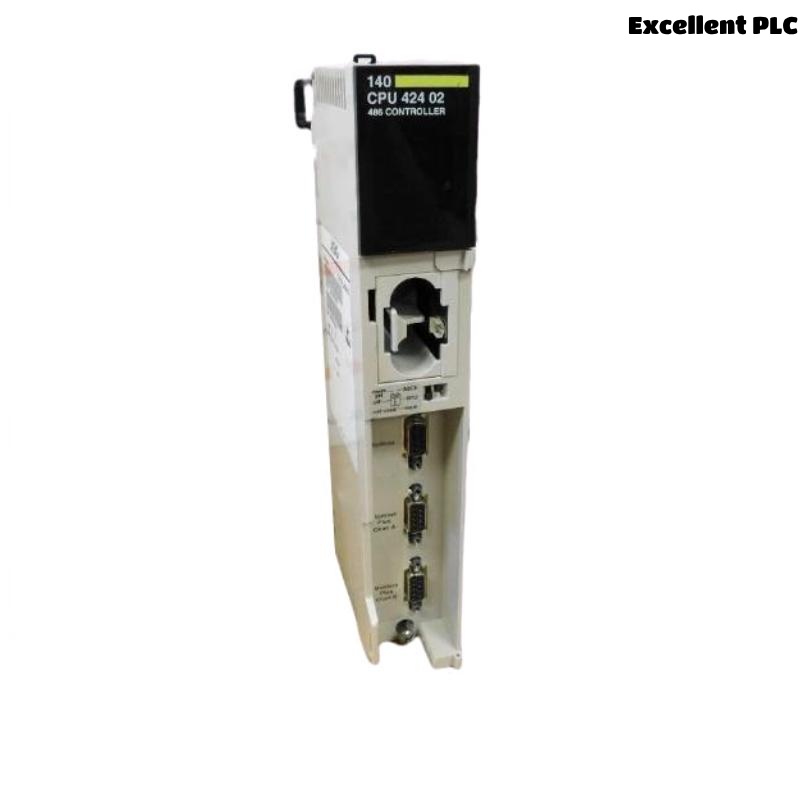

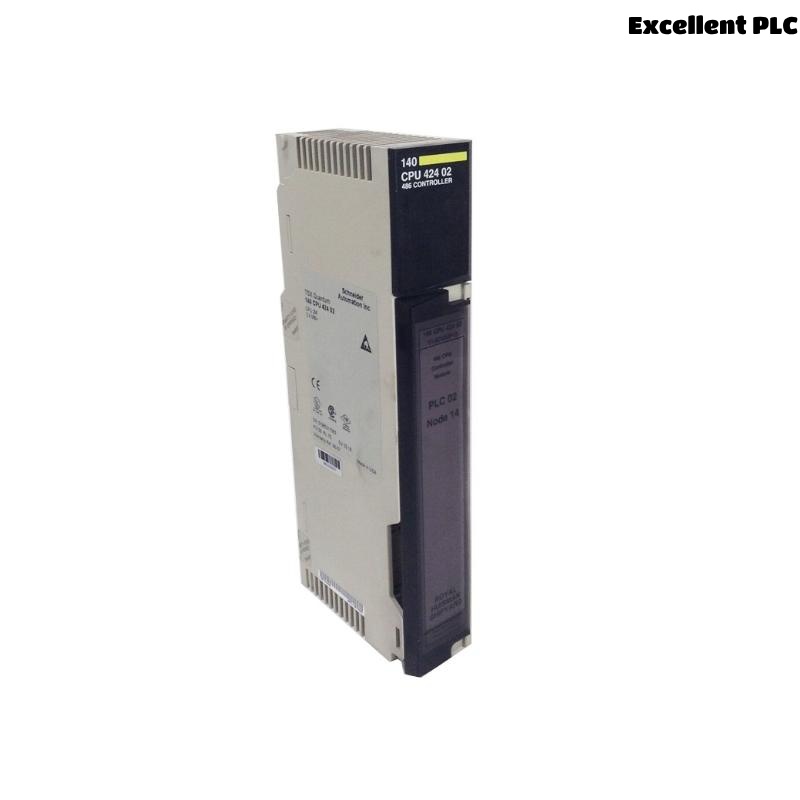

Schneider 140CPU42402 Product Overview
The Schneider 140CPU42402 is a high-performance programmable logic controller (PLC) module from the Modicon Quantum series, designed for industrial automation and control applications. It offers robust processing capabilities, advanced communication options, and reliable operation in harsh environments. This CPU module is ideal for complex automation tasks in industries such as manufacturing, energy, and infrastructure.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 140CPU42402 |
| Processor | 32-bit RISC processor |
| Memory | 4 MB RAM, 8 MB Flash |
| Communication Ports | 1 x RS-232, 1 x RS-485, 1 x Ethernet (TCP/IP) |
| I/O Capacity | Supports up to 64,000 I/O points |
| Programming Languages | LD, FBD, ST, IL, SFC |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 150 x 125 x 75 mm |
| Weight | 0.85 kg |
| Power Supply | 24V DC (19.2V – 30V) |
| Certifications | UL, CE, IEC 61131-2 |
Product Applications
The 140CPU42402 is widely used in:
-
Industrial Automation: Control of production lines, machinery, and robotic systems.
-
Energy Management: Monitoring and control of power distribution systems.
-
Water/Wastewater Treatment: Automation of pumps, valves, and filtration systems.
-
Oil & Gas: Supervision of extraction and refining processes.
-
Transportation: Control of conveyor systems and traffic management.
-
Building Automation: HVAC and lighting control in smart buildings.
Product Advantages
-
High Performance: Fast processing speed for complex control tasks.
-
Scalability: Supports extensive I/O configurations and modular expansions.
-
Robust Design: Operates reliably in extreme temperatures and dusty environments.
-
Advanced Communication: Multiple ports for seamless integration with SCADA, HMI, and other devices.
-
User-Friendly Programming: Supports multiple IEC 61131-3 languages for flexibility.
-
Long-Term Availability: Schneider’s commitment to product lifecycle support.
Frequently Asked Questions (FAQ)
-
What is the maximum I/O capacity of the 140CPU42402?
The module supports up to 64,000 I/O points with additional expansion modules. -
Does it support redundant configurations?
Yes, it can be configured for hot-standby redundancy for critical applications. -
What programming software is compatible?
Unity Pro software is used for programming and configuration. -
Can it communicate with third-party devices?
Yes, via Modbus TCP/IP, Ethernet/IP, and other standard protocols. -
What is the typical lifespan of this CPU?
Designed for 5+ years of operation under normal conditions. -
Is firmware upgradable?
Yes, firmware can be updated to access new features and improvements. -
What are the power requirements?
It operates on 24V DC (19.2V – 30V range). -
Does it support remote monitoring?
Yes, via Ethernet or optional GSM modules. -
What certifications does it hold?
UL, CE, and IEC 61131-2 compliance. -
How is troubleshooting performed?
Diagnostics are available through LED indicators and software tools like Unity Pro.
