Product Overview

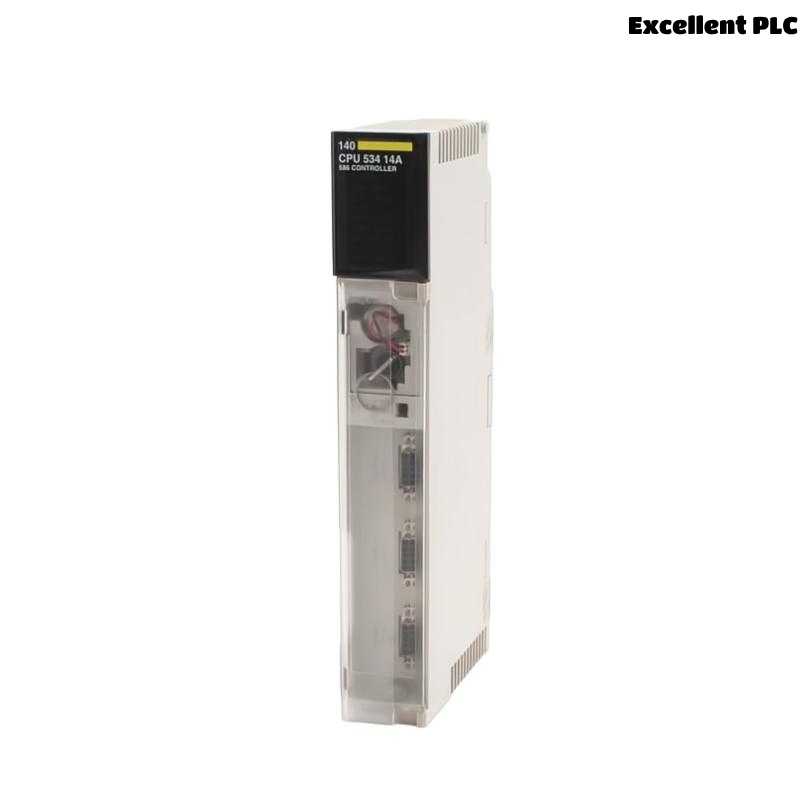

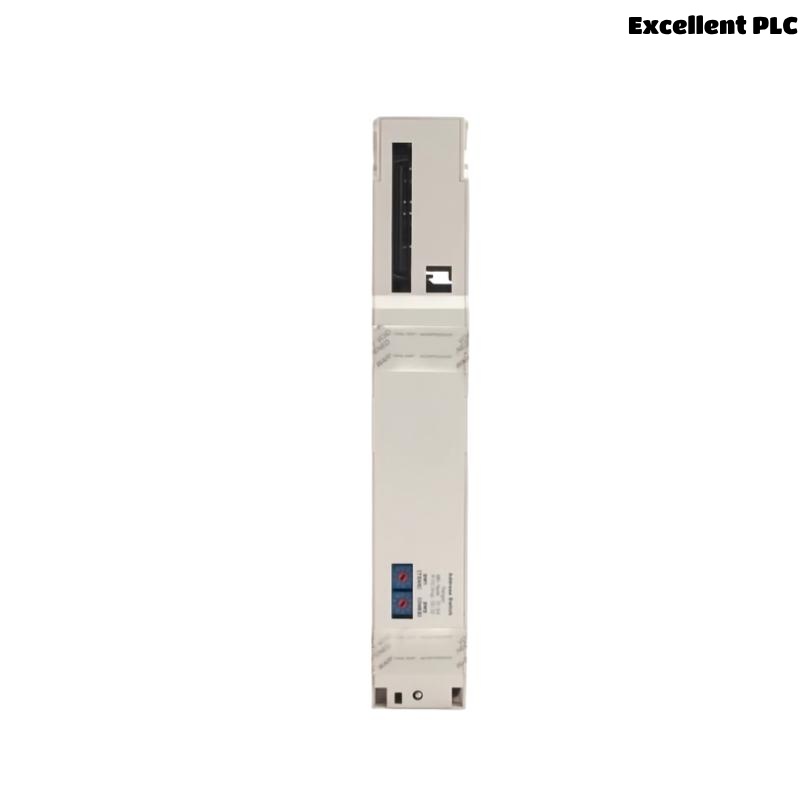

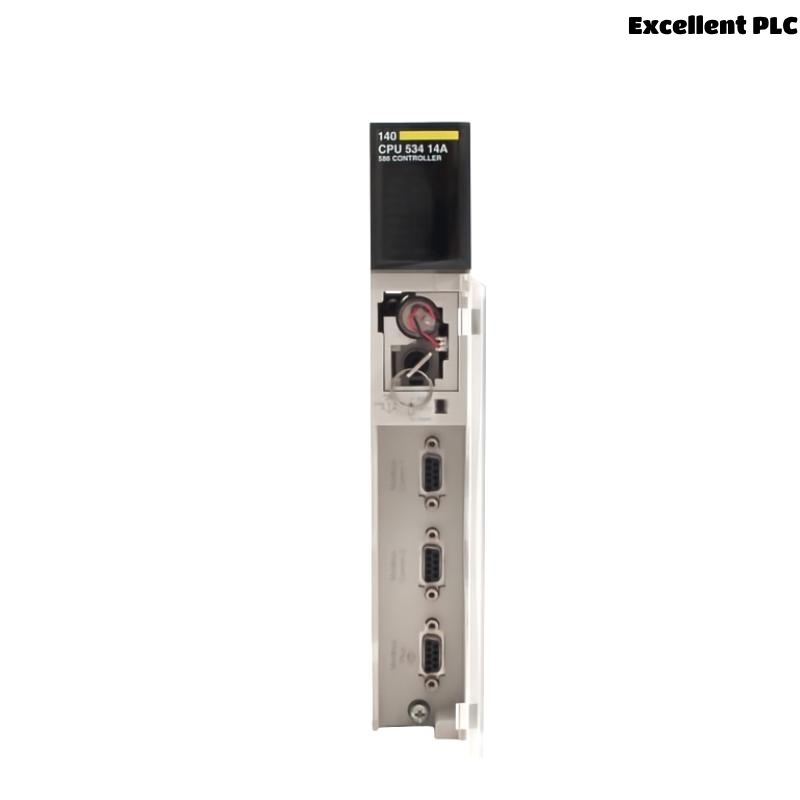

The Schneider Electric 140CPU53414AC is a high-performance processor module from the Modicon Quantum series of programmable logic controllers (PLCs). Designed for medium to large-scale automation systems, this controller delivers exceptional processing speed, network connectivity, and memory capacity, making it a reliable and powerful solution for complex industrial applications.
It supports Unity Pro (EcoStruxure Control Expert) programming and integrates seamlessly into distributed control systems. The 140CPU53414AC is widely used in process industries such as power generation, oil & gas, water treatment, and manufacturing, where deterministic control and system uptime are critical.
With integrated Ethernet and Modbus communications, redundancy features, and support for advanced diagnostics, this controller forms the core of reliable automation infrastructures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 140CPU53414AC |
| Product Family | Modicon Quantum |
| Processor Type | 32-bit Motorola MPC860P at 66 MHz |
| Application Memory | 1024 KB (1 MB) |
| Internal RAM | 4 MB |
| Programming Software | Unity Pro / EcoStruxure Control Expert |
| Supported Protocols | Modbus, Modbus TCP/IP, Ethernet/IP |
| Communication Ports | 1 x RJ45 Ethernet, 1 x Modbus, 1 x RS-232/RS-485 |
| Redundancy Support | Yes (Hot Standby compatible) |
| Power Supply | 5 VDC via Quantum backplane |
| Backplane Compatibility | Quantum rack system |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Dimensions (H × W × D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.85 kg |
| Certifications | CE, UL, CSA, RoHS, ATEX |
Applications
The 140CPU53414AC controller is suitable for a broad range of industrial applications that demand high-speed logic execution, network integration, and reliable control:
-
Oil and Gas Facilities
Used in upstream drilling, refining, and pipeline control where environmental and process stability is crucial. -
Water and Wastewater Management
Controls pumps, filters, and SCADA systems in municipal and industrial treatment plants. -
Power Generation and Distribution
Manages real-time control in thermal, hydro, and substation automation environments. -
Food and Beverage Processing
Ensures consistency in batch and continuous processes, including temperature and flow regulation. -
Pharmaceutical Manufacturing
Supports regulatory compliance and precision control for automated drug production lines. -
Infrastructure Automation
Applied in tunnels, airports, metros, and energy-efficient building management systems.
Advantages
-
High Memory and Performance
With 1 MB of application memory and a 66 MHz processor, it can handle large and complex control logic with minimal latency. -
Advanced Networking Capabilities
Built-in support for Modbus, Ethernet/IP, and TCP/IP allows for easy integration with SCADA, HMIs, and third-party devices. -
Unity Pro Support
Seamless programming using Unity Pro software enhances productivity and allows standardized IEC 61131-3 programming. -
Reliable Redundancy Options
Compatible with hot standby configurations to ensure system continuity and minimize downtime. -
Diagnostics and Maintenance
Supports real-time diagnostics and remote monitoring to improve fault detection and system maintenance. -
Modular and Scalable Design
Can be expanded with Quantum I/O modules to suit growing plant or process needs without overhauling the control system.
Frequently Asked Questions (FAQ)
1. What software is required to program the 140CPU53414AC?
It is programmed using Unity Pro, now branded as EcoStruxure Control Expert. This platform supports multiple IEC languages and advanced diagnostic tools.
2. Is the controller compatible with other Quantum modules?
Yes, it works with all standard Modicon Quantum backplanes and I/O modules, making system integration seamless.
3. Does this CPU support hot standby redundancy?
Absolutely. The 140CPU53414AC can be used in redundant CPU configurations for critical applications.
4. What industrial protocols are supported?
It supports Modbus, Modbus TCP/IP, and Ethernet/IP, providing extensive interoperability with industrial devices.
5. Can the controller be integrated into SCADA or DCS systems?
Yes, it integrates easily with SCADA, DCS, and HMI platforms via Ethernet and serial communication.
6. Is this module suitable for harsh industrial environments?
Yes, it is certified to operate in demanding conditions with ATEX, UL, and CE compliance.
7. Can the CPU be updated remotely?
Yes, firmware and program updates can be deployed via Ethernet using Schneider’s software tools.
8. What is the application memory capacity of this module?
It offers 1 MB of application memory, sufficient for handling large process logic.
9. How does the controller handle faults and errors?
It provides detailed diagnostic logs accessible through the software, aiding in troubleshooting and predictive maintenance.
10. Can I expand the memory or storage?
Yes, it supports PCMCIA memory cards for additional storage or application backup.
Related Models from the Same Series
| Model | Description | Key Feature |
|---|---|---|
| 140CPU65160 | Quantum CPU with 2 MB application memory | Hot standby, high-speed performance |
| 140CPU67261 | Advanced CPU with fast Ethernet and redundancy | Enhanced processing and networking |
| 140CPU53414B | Similar CPU with different memory configuration | Unity compatible, standard memory |
| 140CPU43412AC | Mid-tier Quantum CPU with Modbus and Ethernet | Basic redundancy support |
| 140CPU65150 | High-end CPU with advanced diagnostic features | 1.5 MB memory, robust CPU architecture |
| 140CPU31110 | Entry-level Quantum CPU | Ideal for simple automation tasks |
